Dr-15: No Fault Code Testing

Fig 1: DR-15 Test Schematic (1 Of 2) No Fault Code Testing

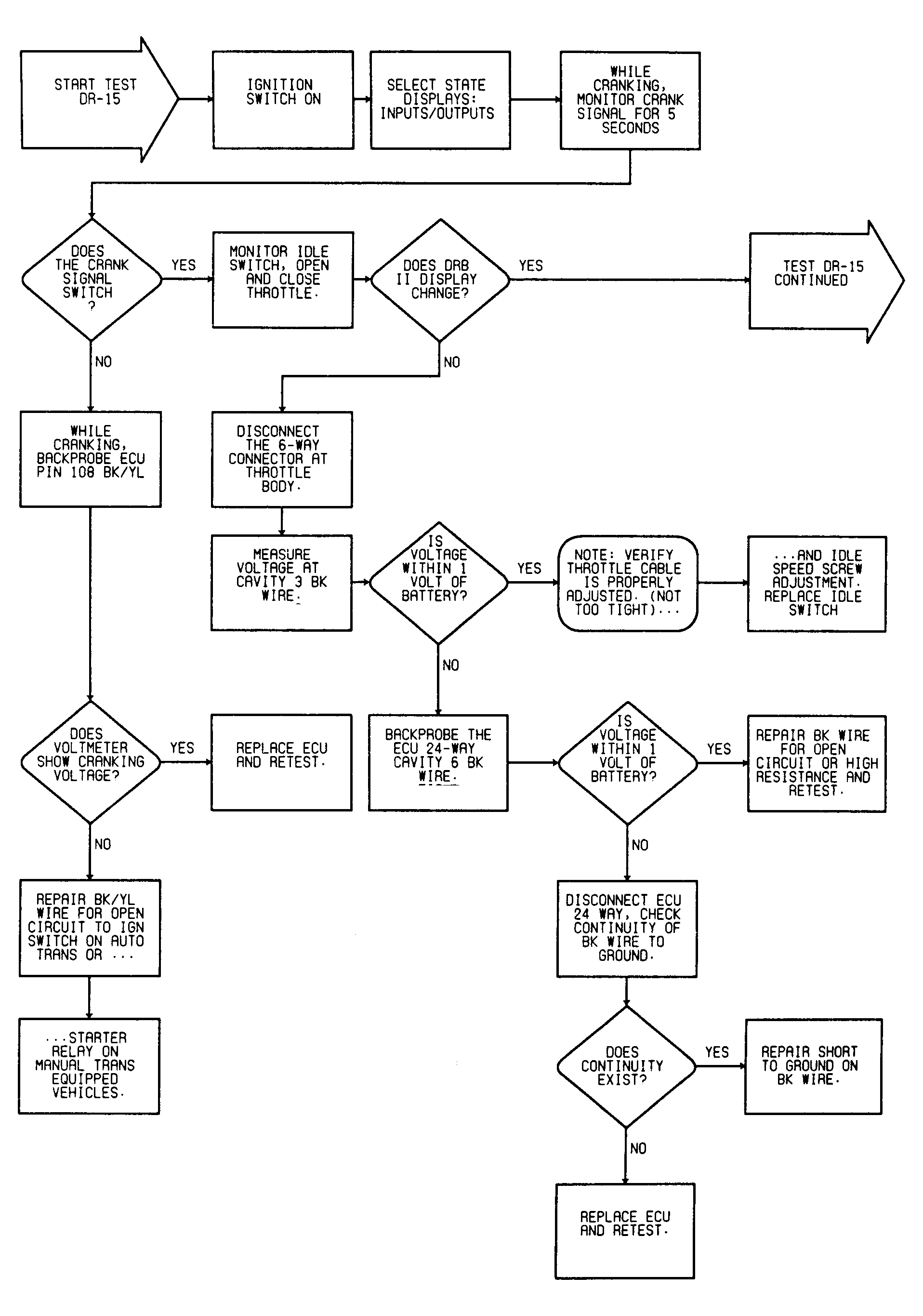

Fig 2: DR-15 Test Flow Chart (1 Of 2) No Fault Code Testing

Fig 3: DR-15 Test Schematic (2 Of 2) No Fault Code Testing

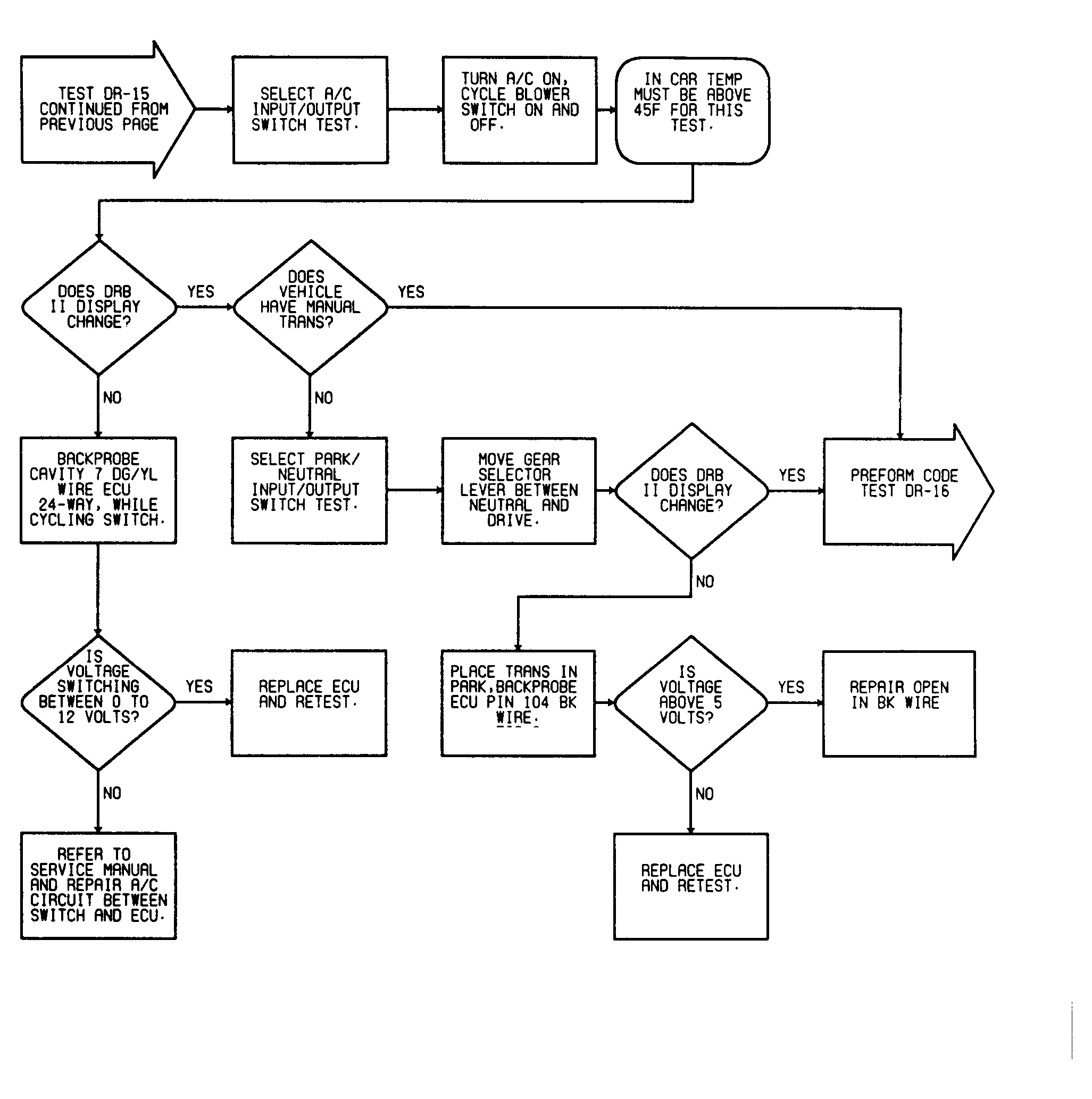

Fig 4: DR-15 Test Flow Chart (2 Of 2) No Fault Code Testing
