Dr-7: Testing Coolant Sensor

Fig 1: DR-7 Test Schematic Testing Coolant Sensor

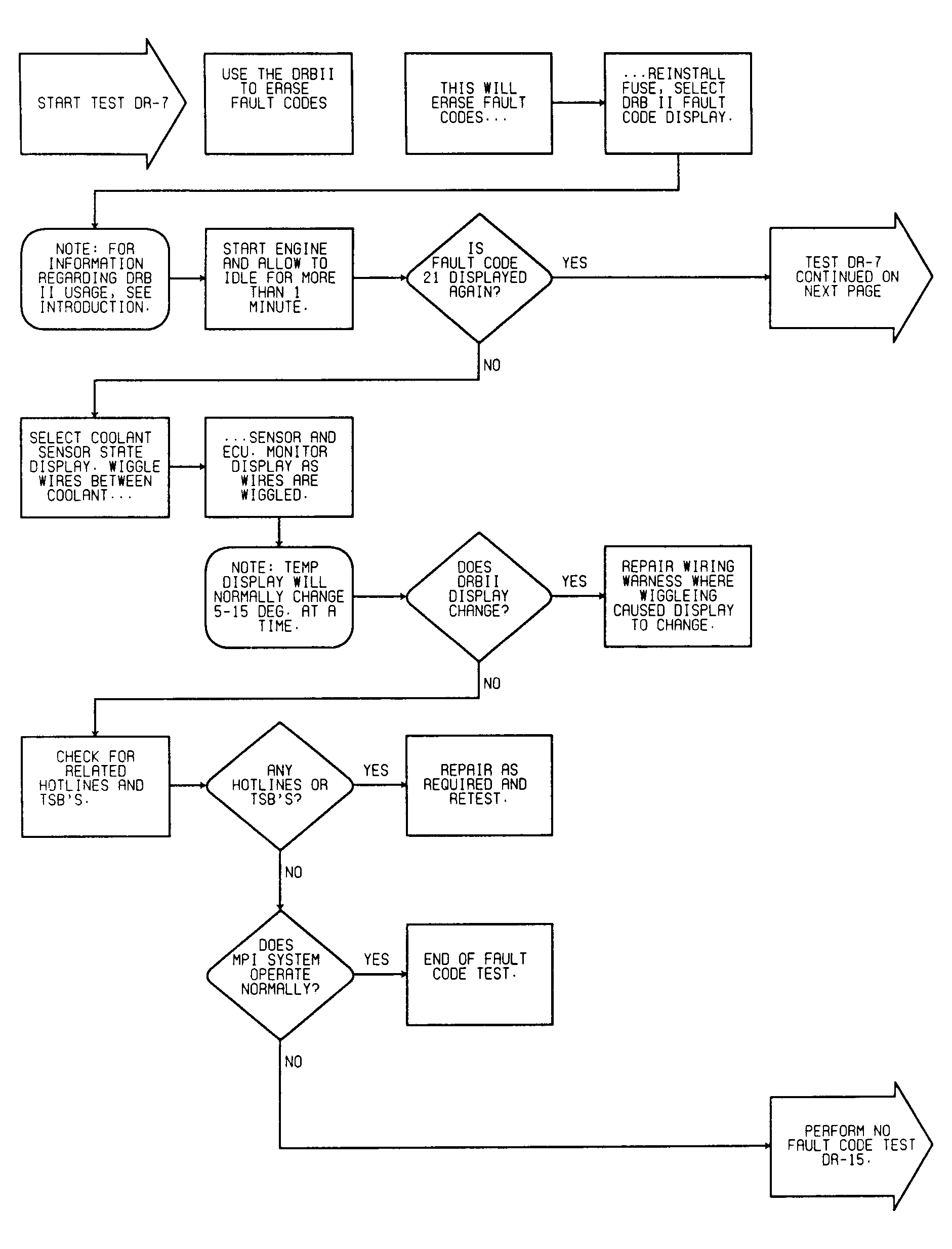

Fig 2: DR-7 Test Flow Chart (1 Of 2) Testing Coolant Sensor

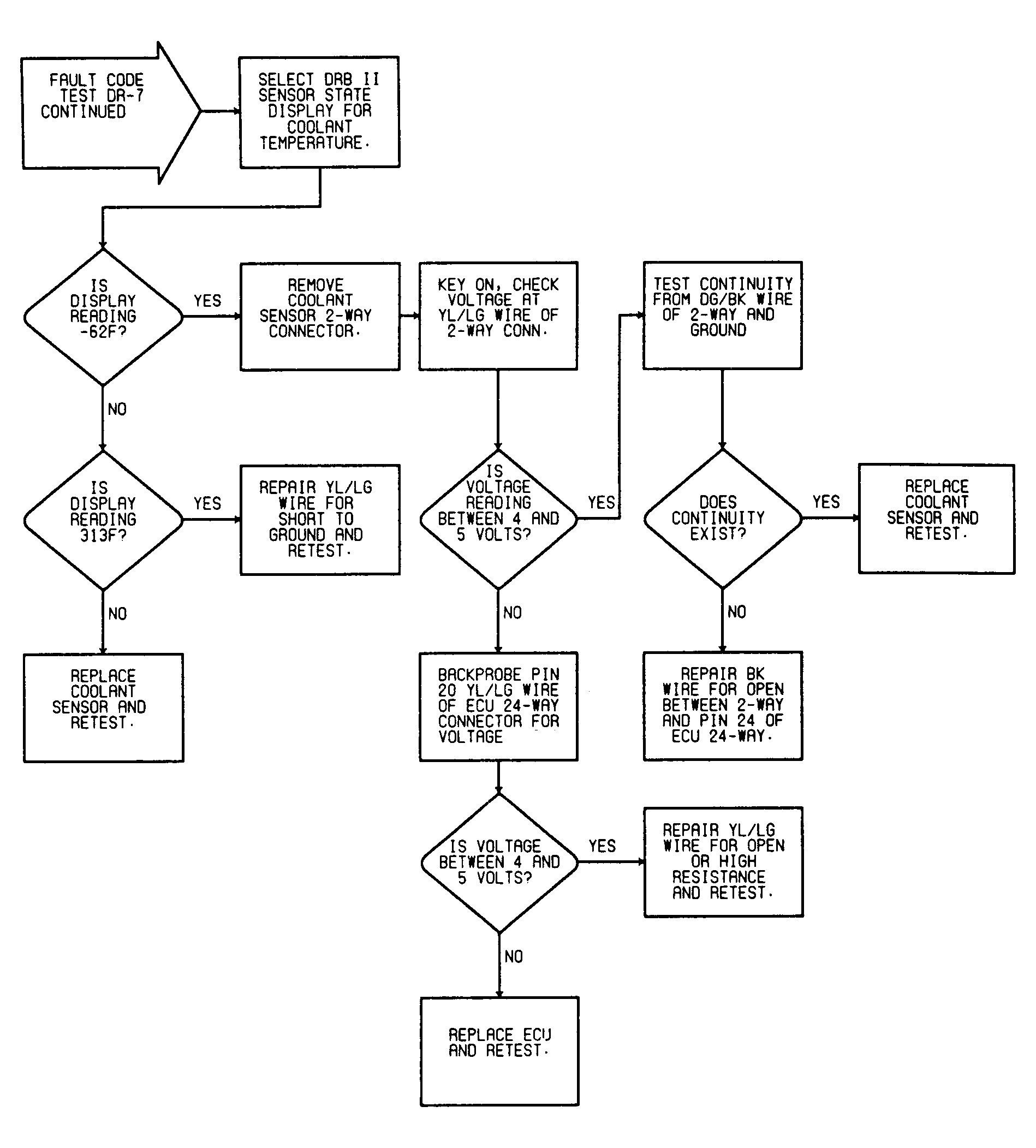

Fig 3: DR-7 Test Flow Chart (2 Of 2) Testing Coolant Sensor
