Dr-8: Testing Diagnostic Connector
Dr-8: Testing Diagnostic Connector
Fig 1: DR-8 Test Schematic Testing Diagnostic Connector

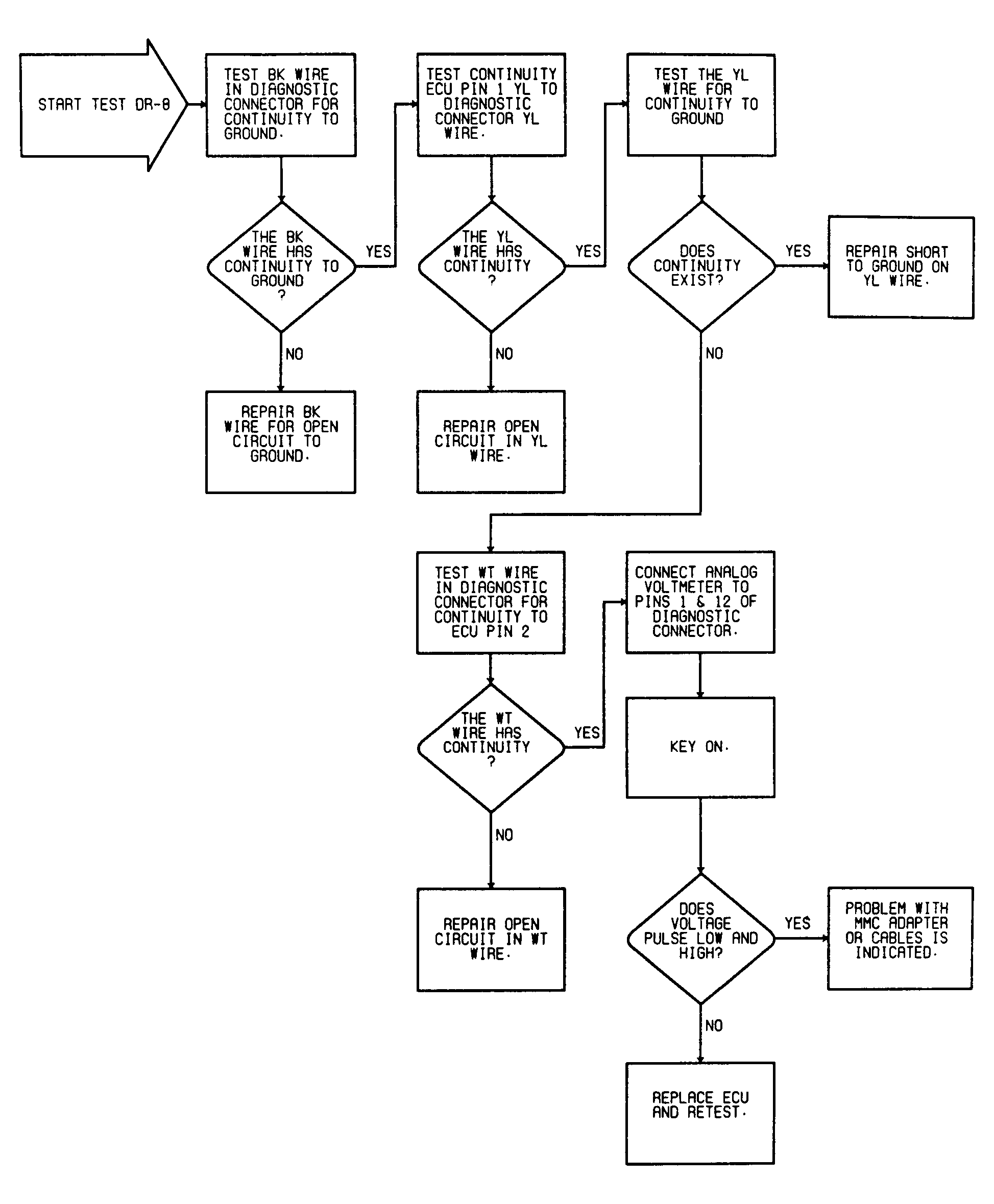

Fig 2: DR-8 Test Flow Chart Testing Diagnostic Connector
