Wiring Diagrams

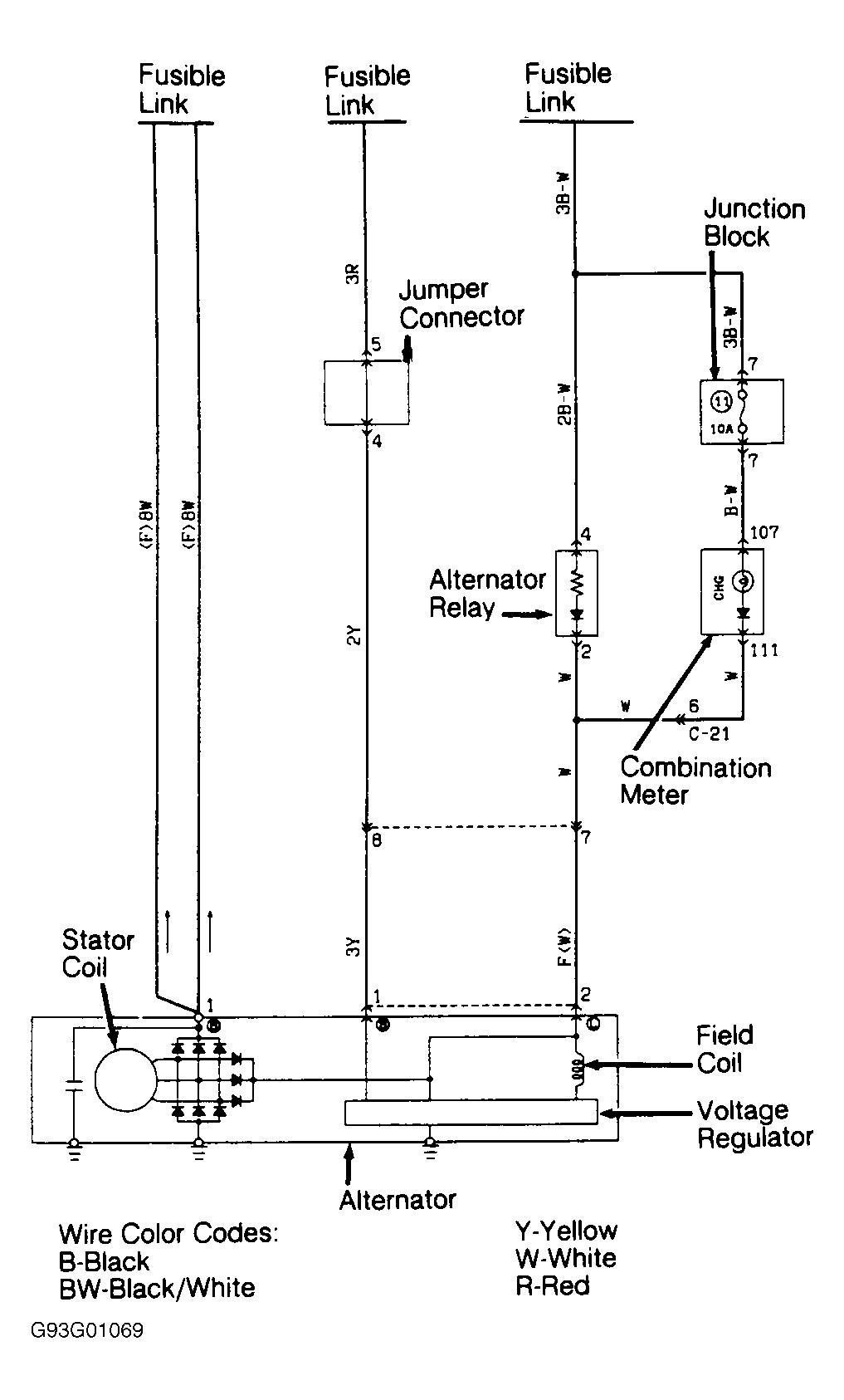

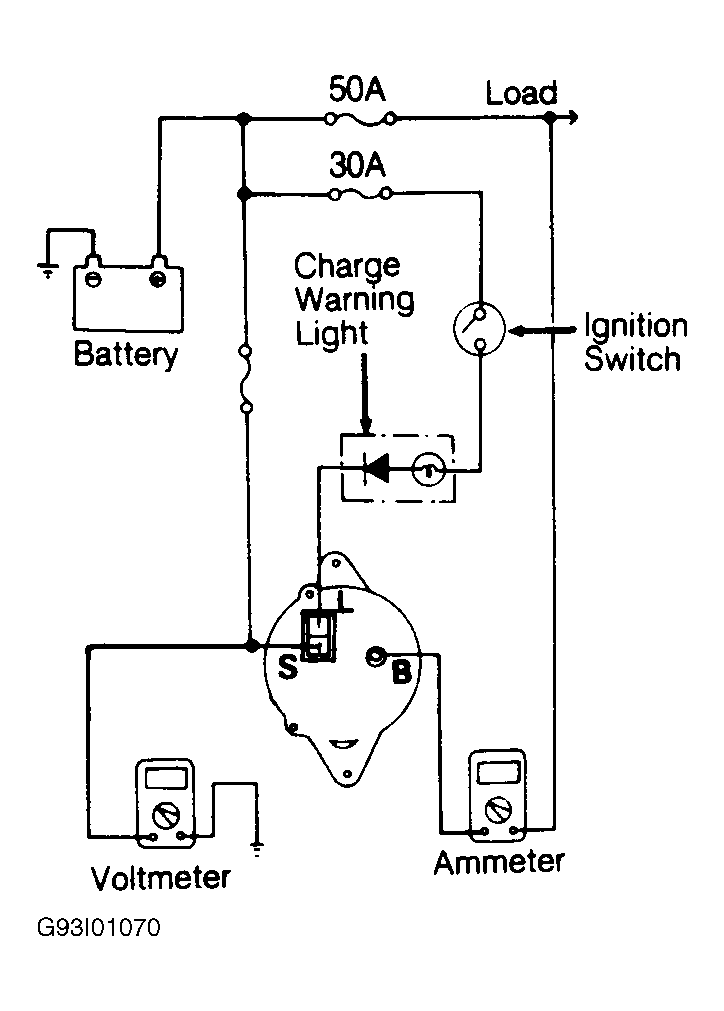

Fig 1: Charging System Schematic (Colt, Colt 200, Mirage & Summit)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

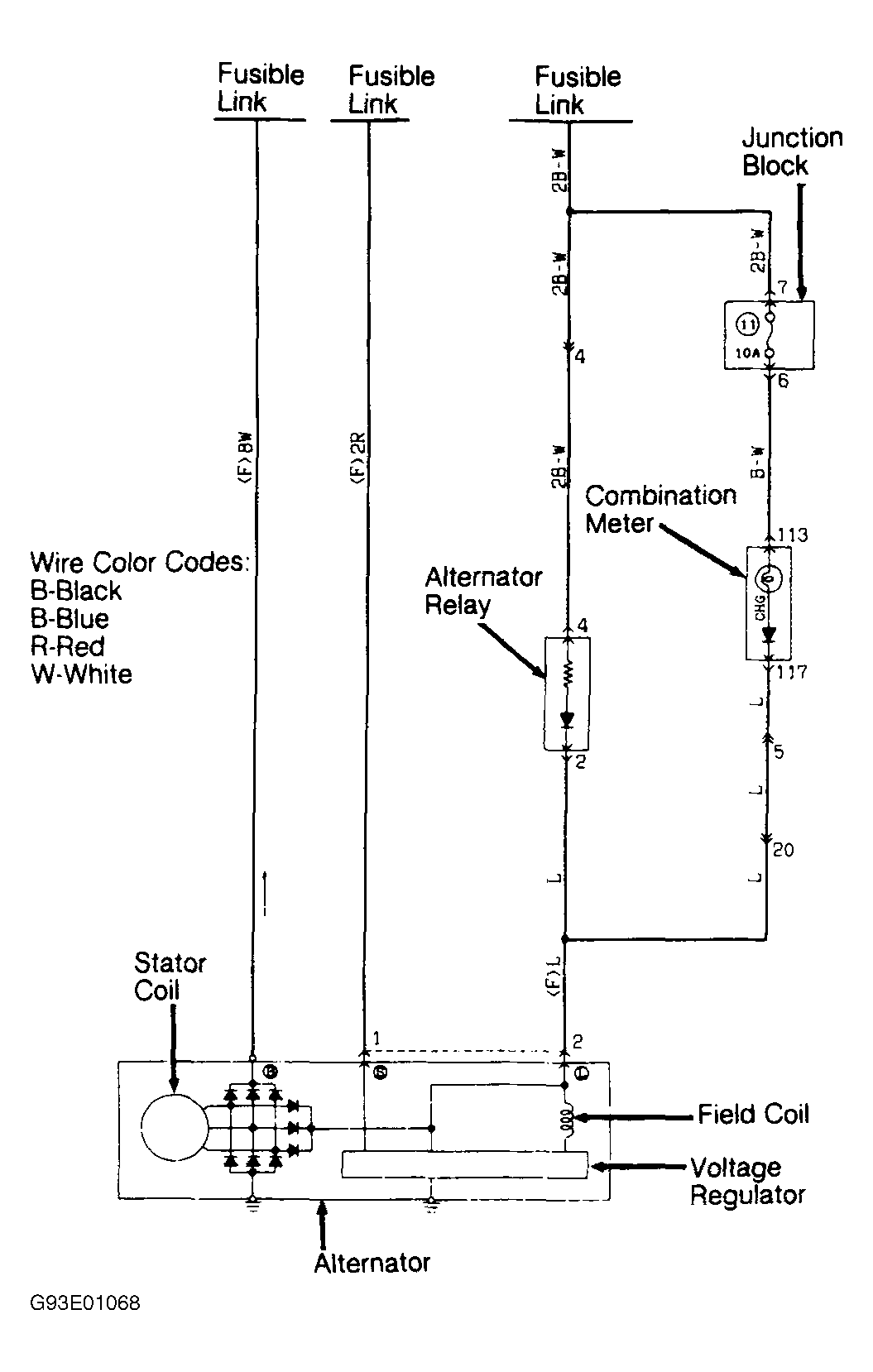

Fig 2: Charging System Schematic (Eclipse)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

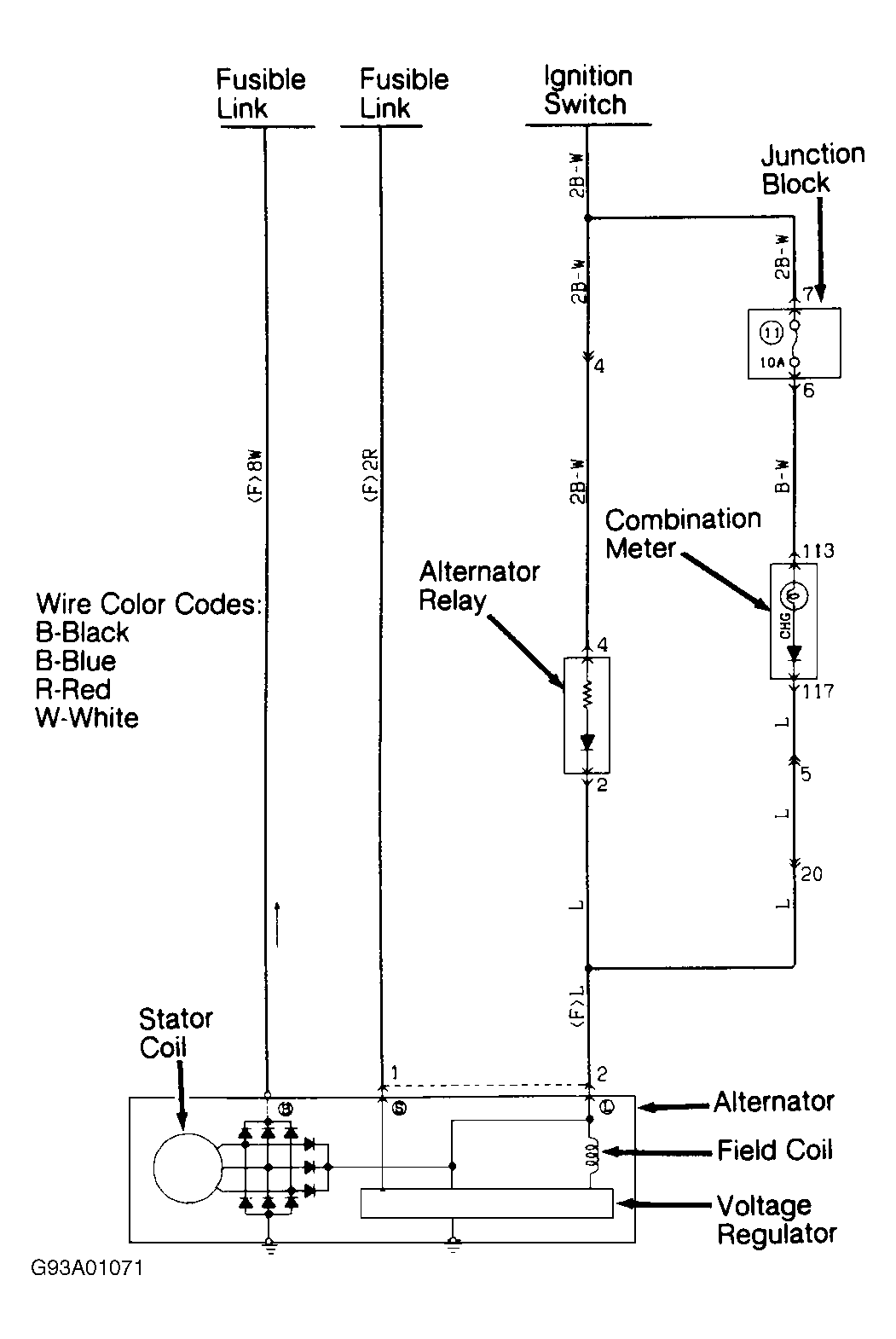

Fig 3: Charging System Schematic (Galant)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 4: Charging System Schematic (Montero)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

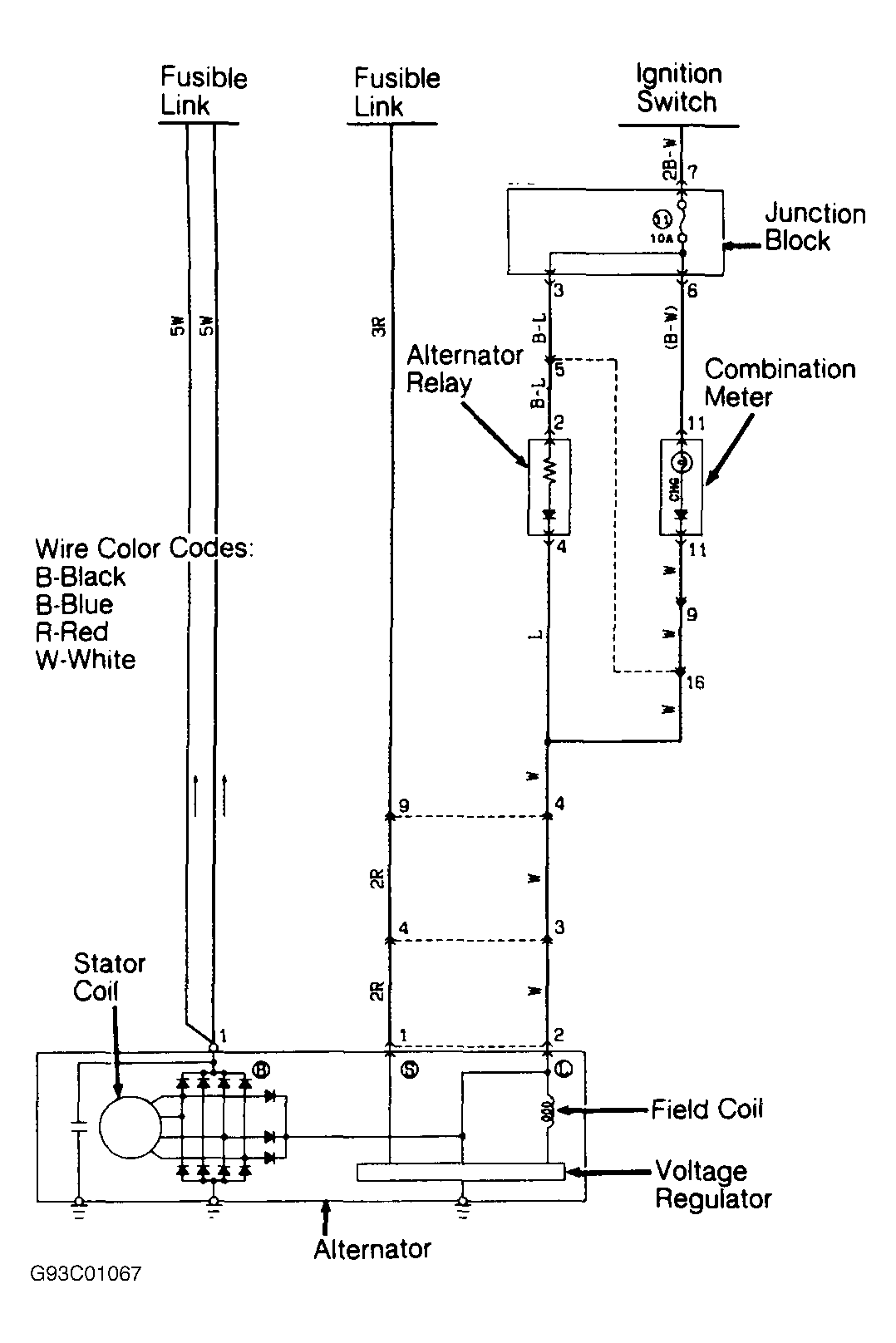

Fig 5: Charging System Schematic (Pickup & Ram-50)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 6: Charging System Schematic (Precis)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 7: Charging System Schematic (Stealth DOHC & 3000GT)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 8: Charging System Schematic (Stealth SOHC)

Courtesy of CHRYSLER MOTORS.

Fig 9: Charging System Schematic (Diamante)

Courtesy of CHRYSLER MOTORS.

Fig 10: Charging System Schematic (Expo/Expo LRV)

Courtesy of CHRYSLER MOTORS.

Fig 11: Charging System Schematic (Colt Vista & Summit Wagon)

Courtesy of CHRYSLER MOTORS.
