Wire Color Codes

WIRE COLOR CODES

Wire Color Code
Black B
Brown BR
Green G
Gray GR
Blue L
Light Blue LI
Light Green LG
Orange O
Pink P
Red R
Sky Blue SB
Violet V
White W
Yellow Y
Fig 1: Radiator Cooling Fan Wiring Diagram (Colt/Colt 200, Summit)
G90D08818Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

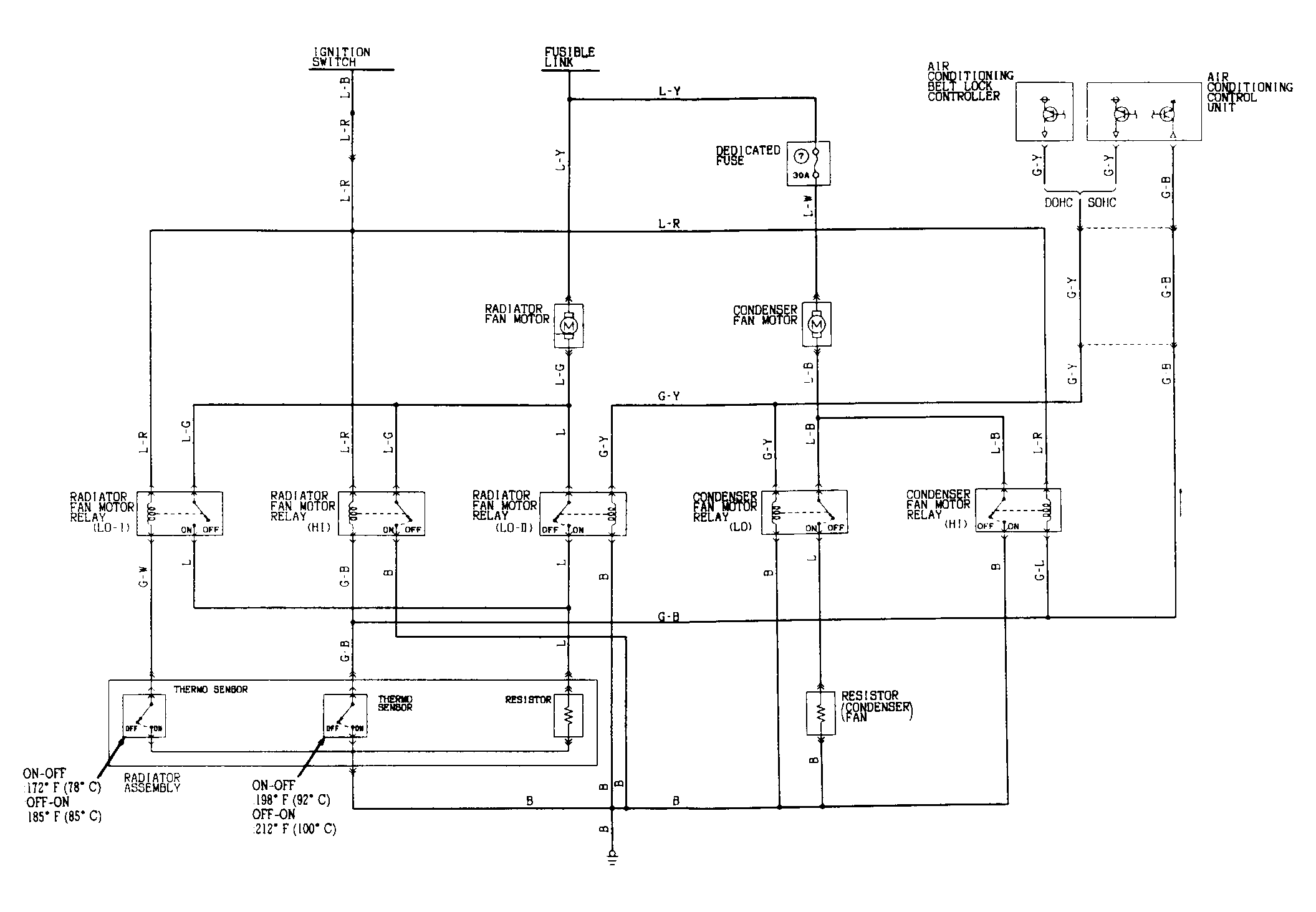

Fig 2: Radiator Cooling Fan Wiring Diagram (Diamante)
G93A00224Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

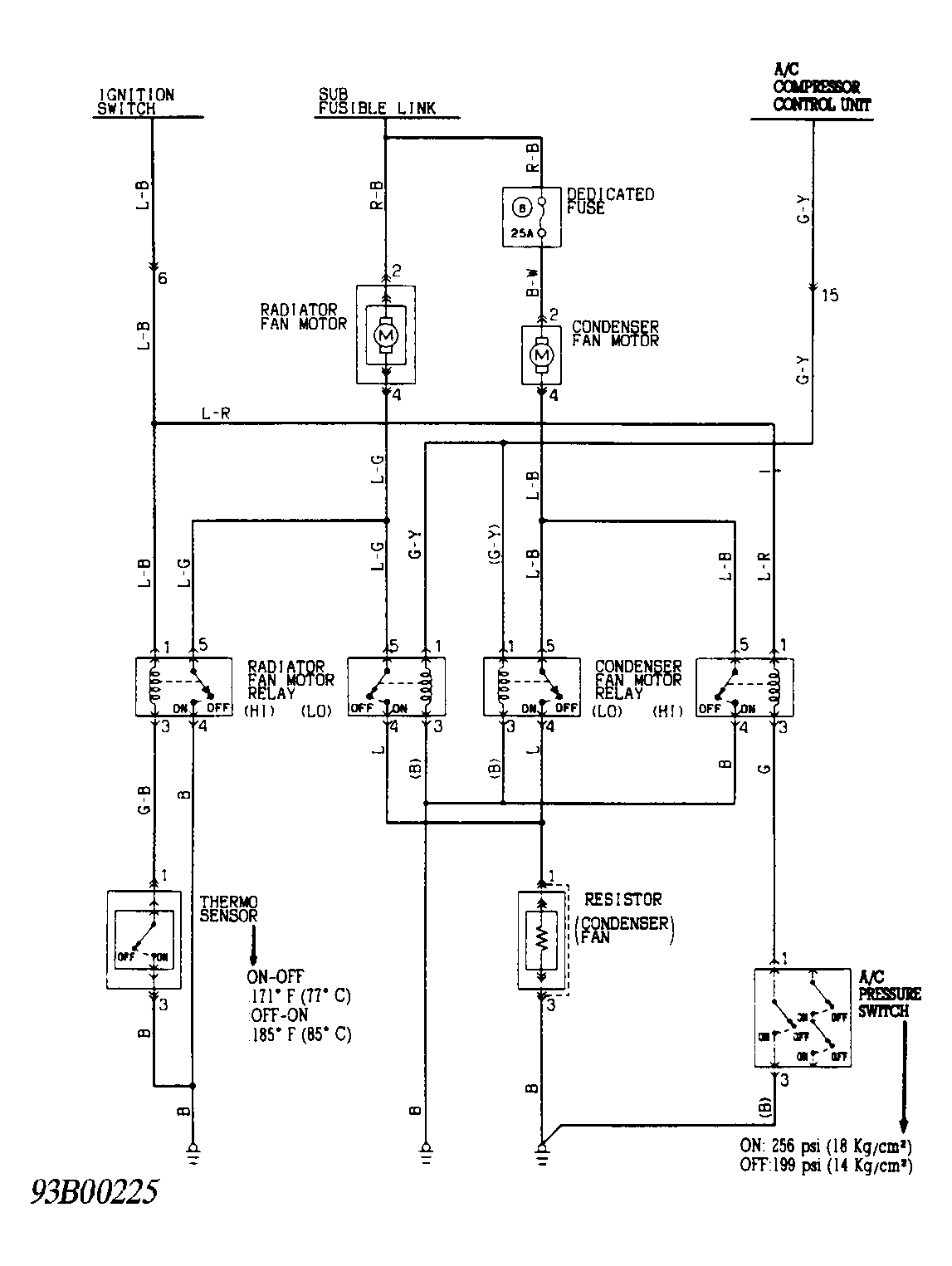

Fig 3: Radiator Cooling Fan Wiring Diagram (Colt Vista & Summit Wagon)
G93B00225Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

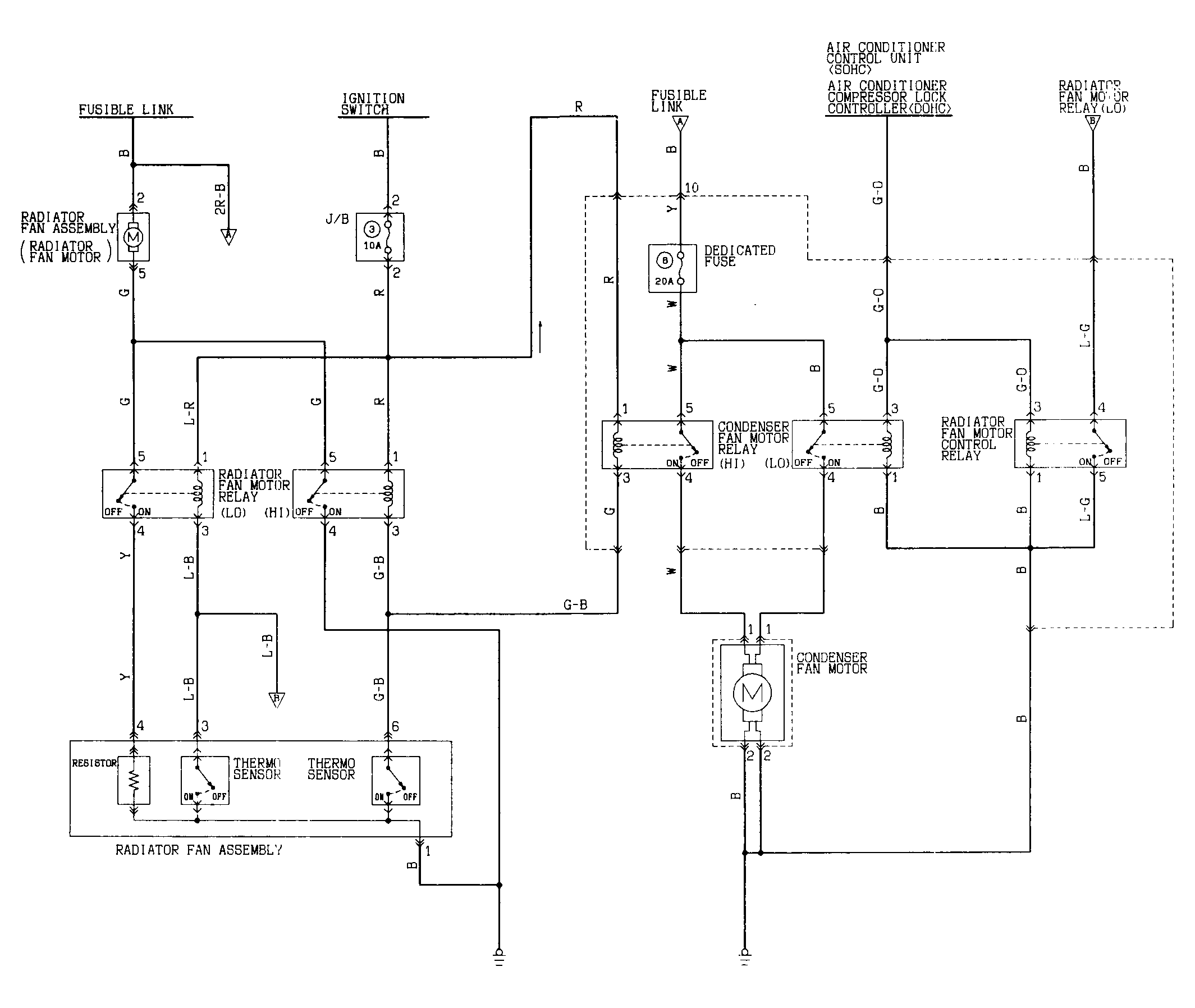

Fig 4: Radiator Cooling Fan Wiring Diagram (Stealth)
G92A00024Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
