Mirror Switch Test

Remove switch, and disconnect wiring connector. See MIRROR SWITCH R & I  under REMOVAL & INSTALLATION. Using an ohmmeter, check for continuity between switch terminals. See Fig 1 , Fig 2 , Fig 3 or Fig 4 . If ohmmeter readings are not as specified, replace switch.

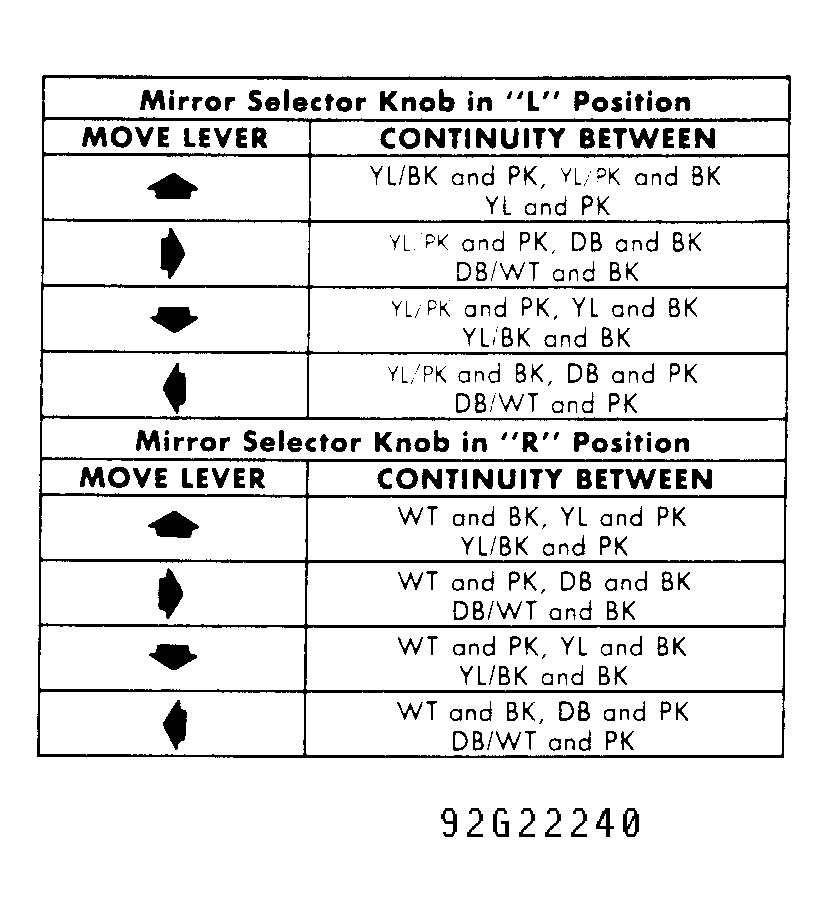

Fig 1: Mirror Switch Continuity Charts (Caravan, Town & Country, & Voyager)

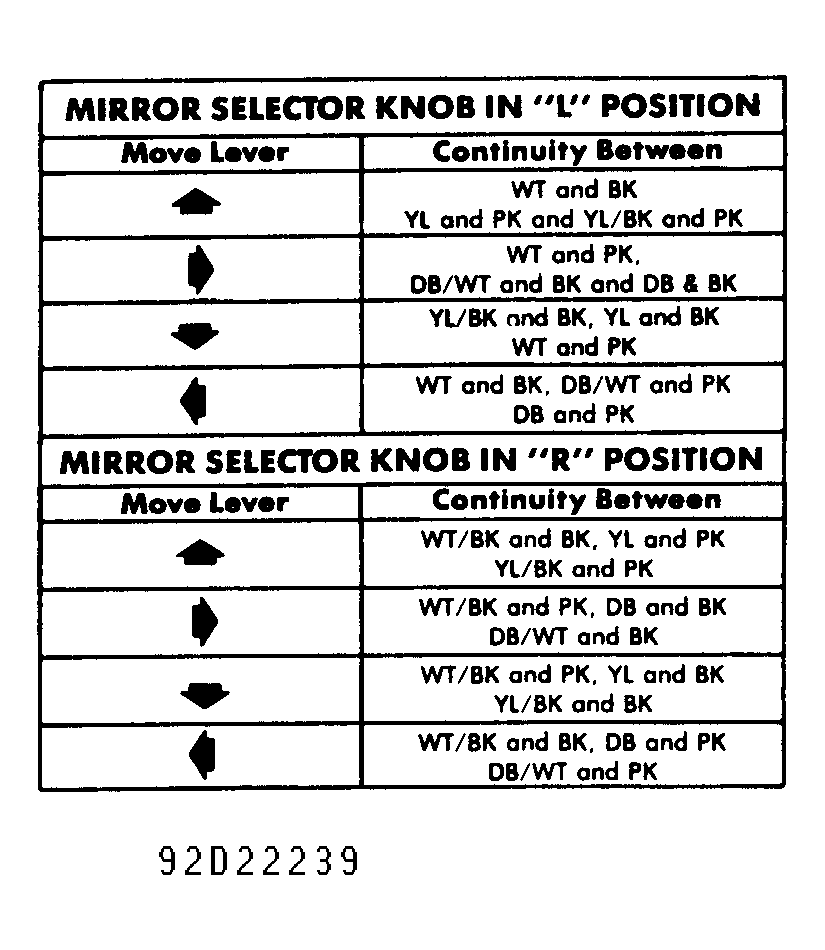

Fig 2: Mirror Switch Continuity Charts (Dakota)

Courtesy of CHRYSLER MOTORS.

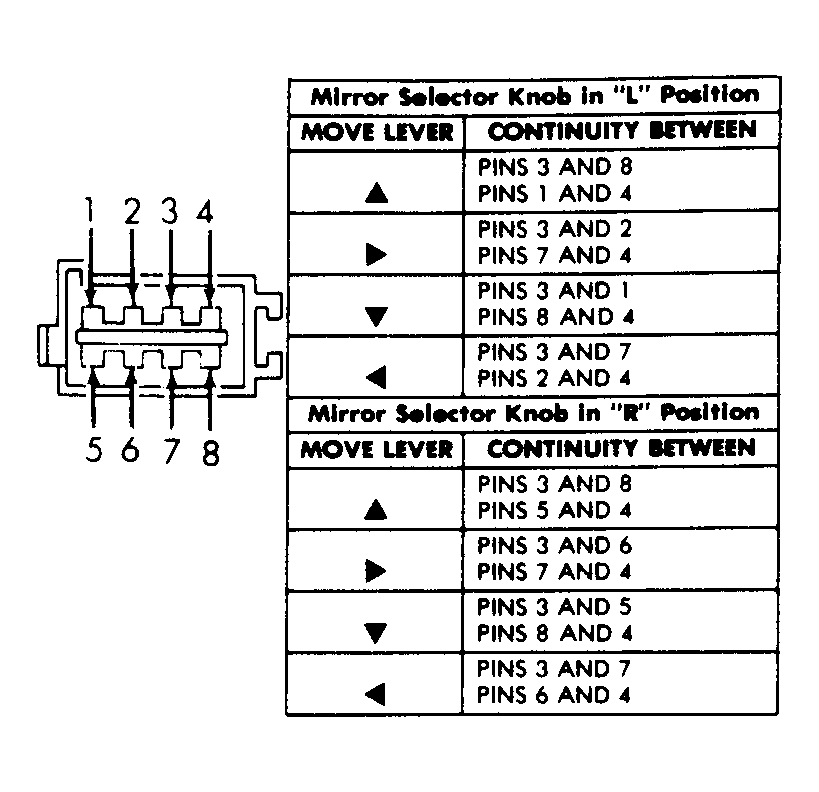

Fig 3: Mirror Switch Continuity Charts (Pickup & Ramcharger)

Courtesy of CHRYSLER MOTORS.

Fig 4: Mirror Switch Continuity Charts (RWD Van)

Courtesy of CHRYSLER MOTORS.
