Motor Test

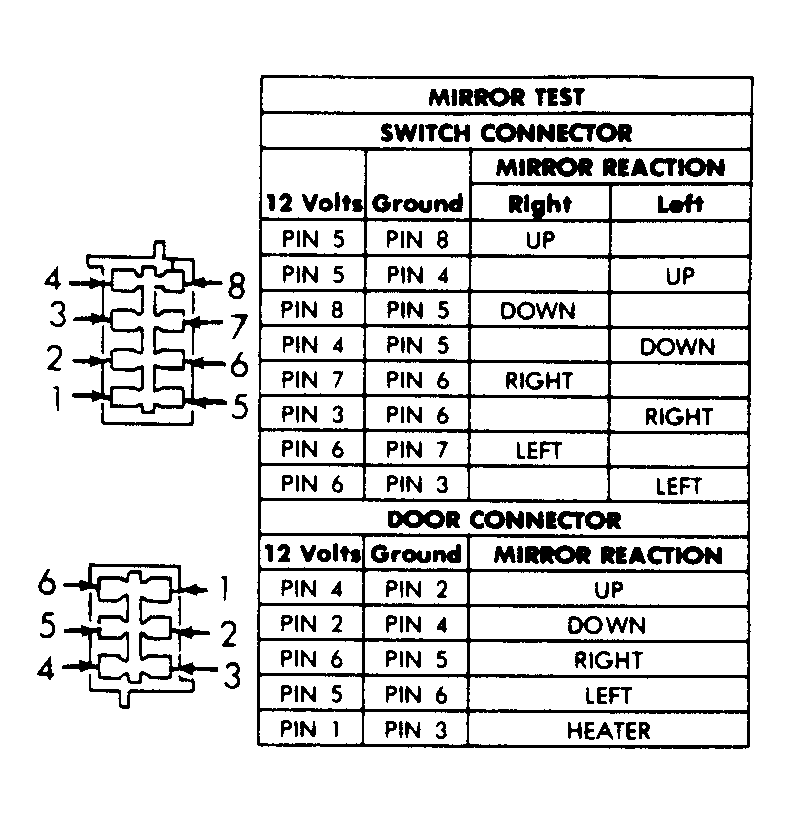

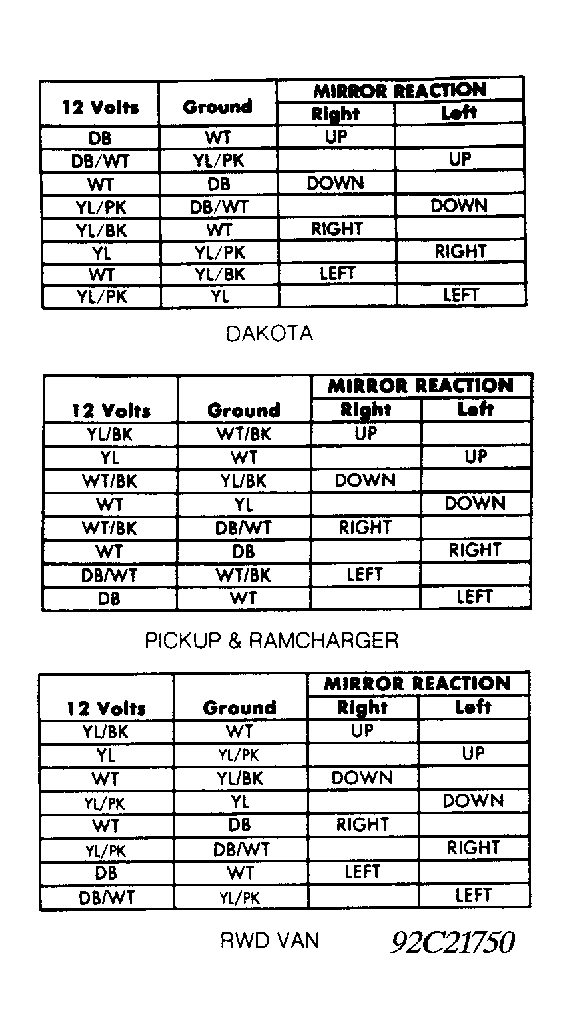

Remove power mirror switch from mounting position. See MIRROR SWITCH R & I under REMOVAL & INSTALLATION. Remove wiring harness at switch connector. Connect one jumper wire to a 12-volt source and another jumper wire to ground. Perform tests as outlined. See Fig 1 or Fig 2 . If results are not as specified, check for broken or shorted circuit. Repair or replace as necessary.
