Anti-Lock Brake System: Wiring Diagram

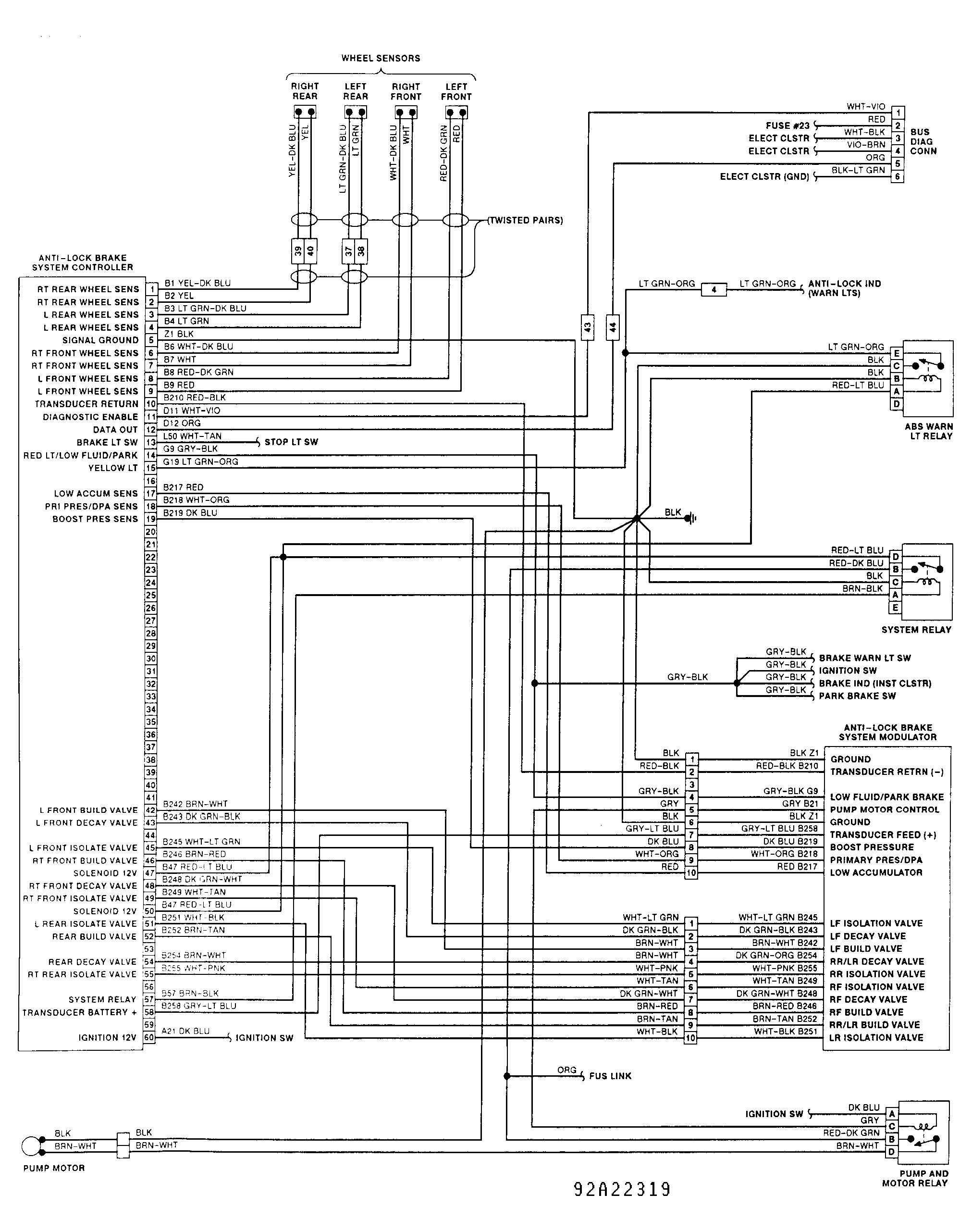

Fig 1: Bendix-10 ABS Wiring Diagram (Caravan, Town & Country, & Voyager)
