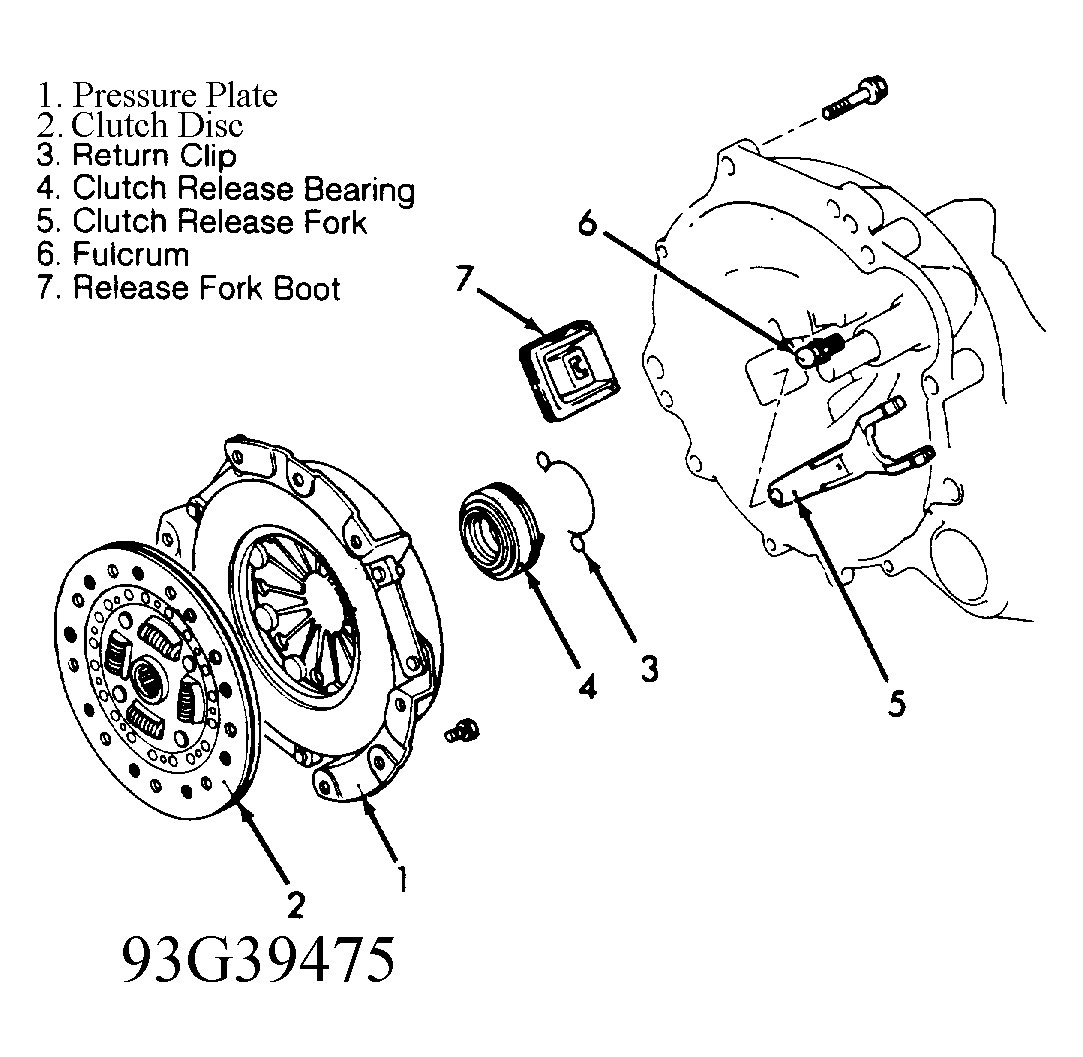

Clutch Assembly: Installation
To install, reverse removal procedure. On turbo models, protect lower radiator hose. On all models, install axle shaft so inboard joint of axle shaft is straight and not bent relative to transaxle. Apply grease to clutch release fork fingers, fulcrum and push rod cup. Apply grease to the inner surface of clutch release bearing and clutch disc splines. Tighten bolts to specification. See the TORQUE SPECIFICATIONS table at the end of this article.
