Throttle Cable: Installation

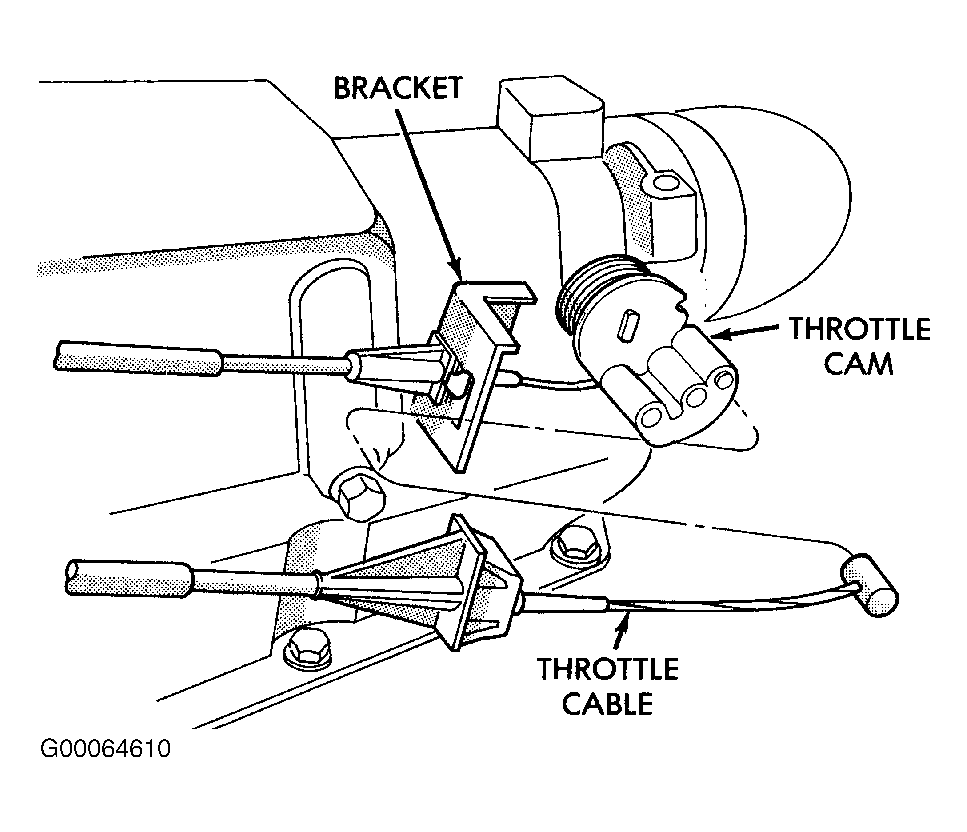

- From the engine compartment, push the housing end fitting into the dash panel grommet. Install the cable housing (throttle body end) into the cable mounting bracket on the engine.
- From inside the vehicle, hold up the pedal and install throttle cable and cable retainer in the upper end of the pedal shaft.
- At the dash panel, install the cable retainer clip between the end of the throttle cable fitting and grommet.
- From the engine compartment, rotate the throttle lever to wide open and install the throttle cable.
Courtesy of CHRYSLER CORP.
