Removal & Installation

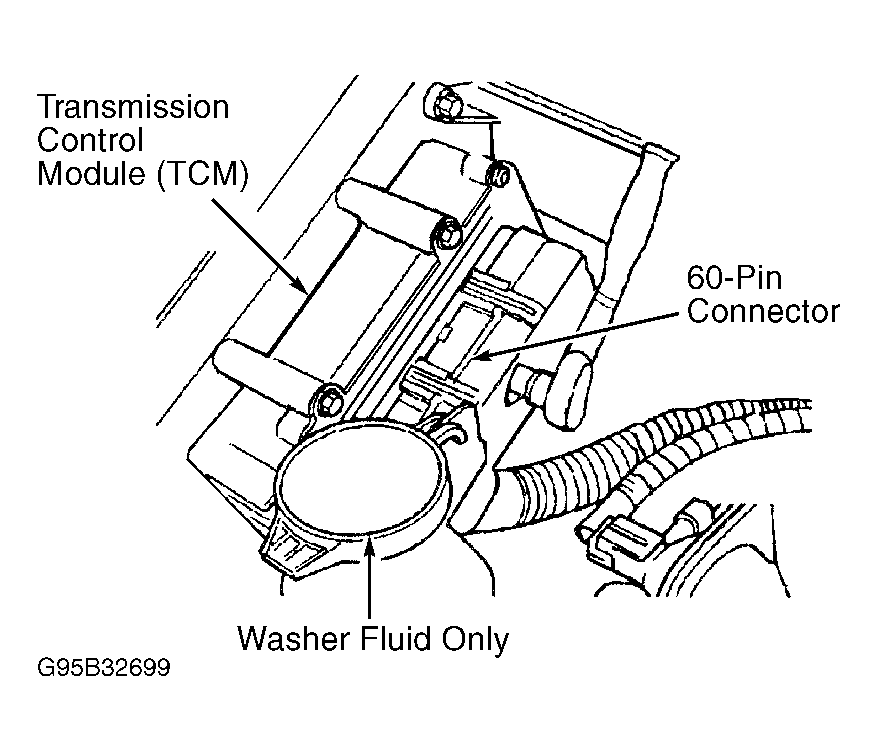

- The TCM is located on passenger's side front corner of engine compartment, on inner fender, near windshield washer reservoir. See Fig 1 .
- Disconnect negative battery cable. Loosen retaining bolt at center of 60-pin electrical connector on TCM. Disconnect electrical connector from TCM. Remove screws and TCM. To install, reverse removal procedure.
