Automatic Temperature Control Diagnosis Guide

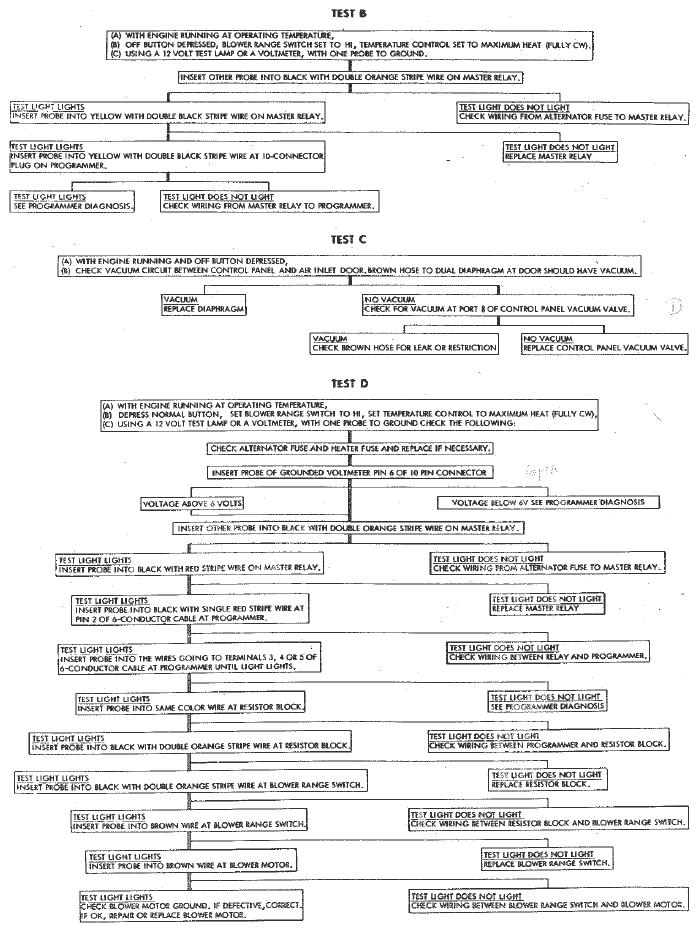

Fig 1: Automatic Temperature Control Diagnosis Chart (1 Of 5)

Courtesy of GENERAL MOTORS COMPANY

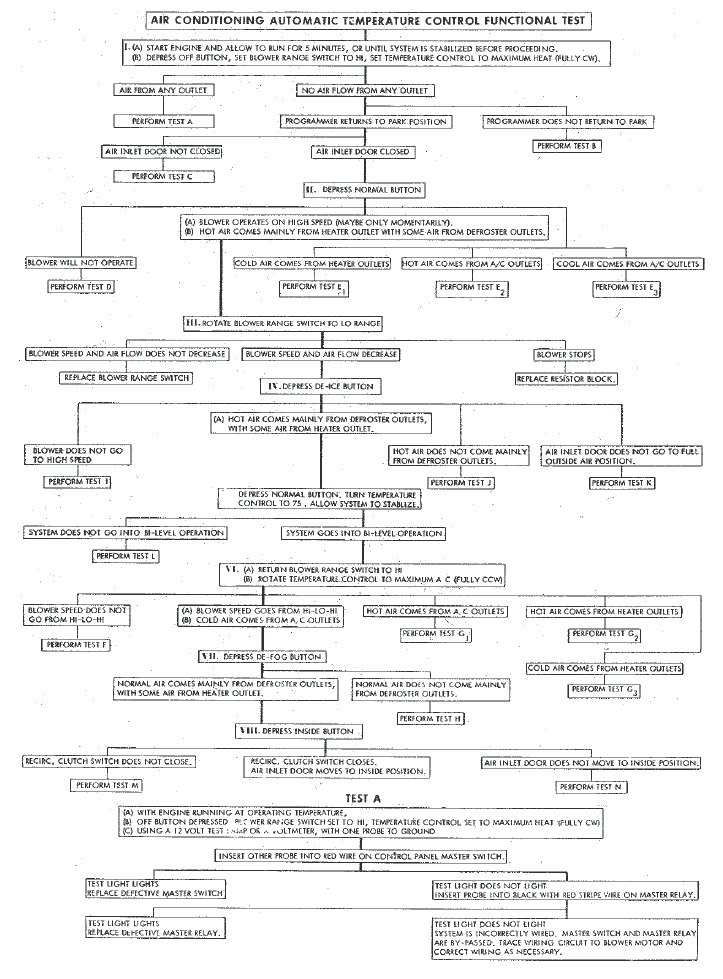

Fig 2: Automatic Temperature Control Diagnosis Chart (2 Of 5)

Courtesy of GENERAL MOTORS COMPANY

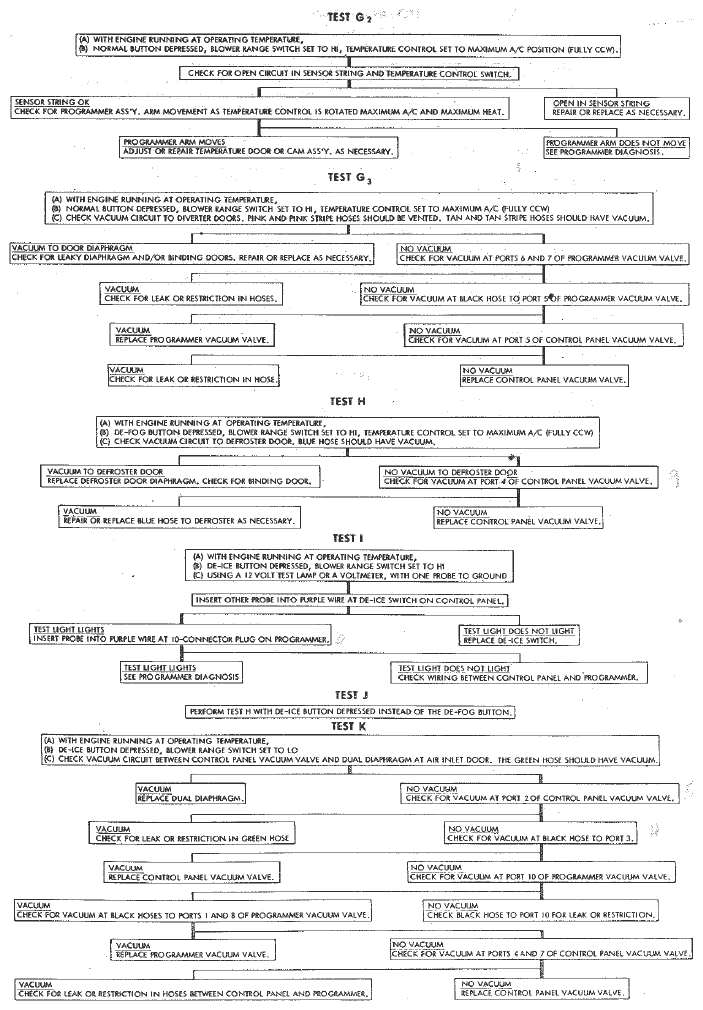

Fig 3: Automatic Temperature Control Diagnosis Chart (3 Of 5)

Courtesy of GENERAL MOTORS COMPANY

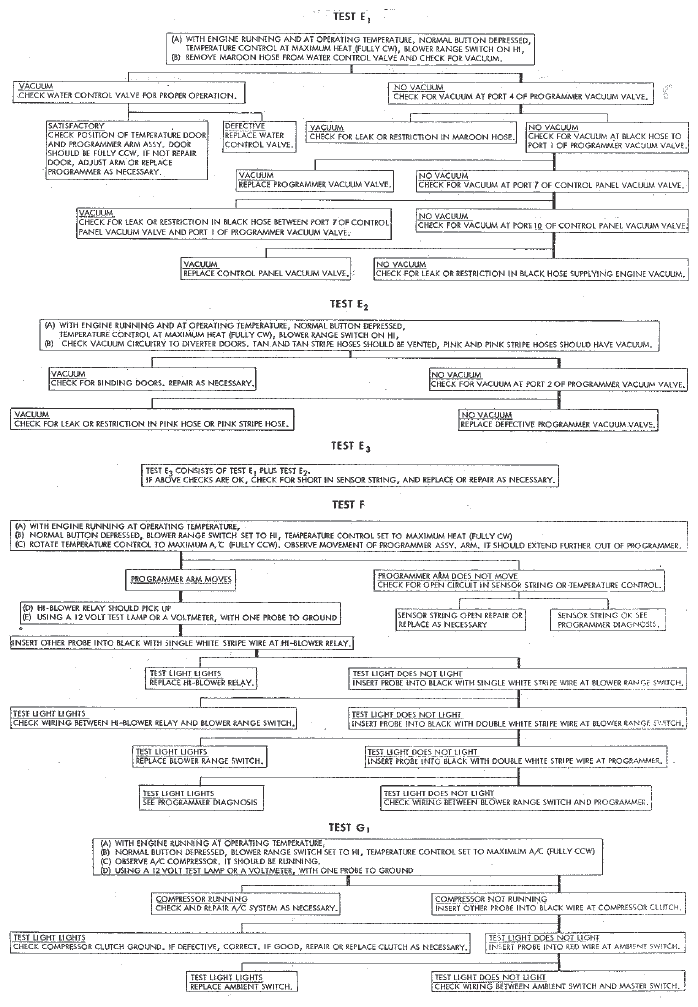

Fig 4: Automatic Temperature Control Diagnosis Chart (4 Of 5)

Courtesy of GENERAL MOTORS COMPANY

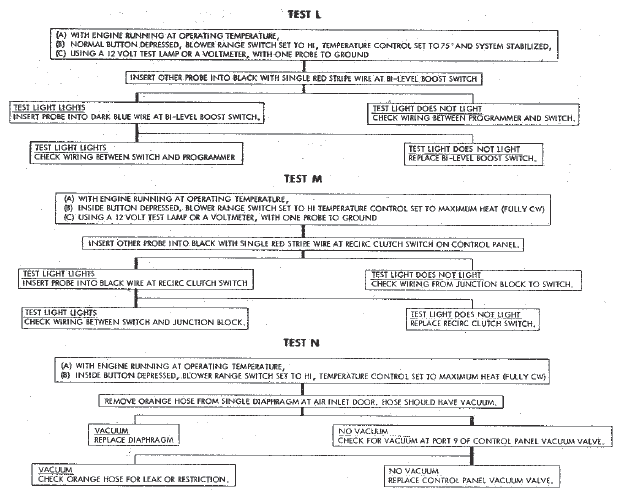

Fig 5: Automatic Temperature Control Diagnosis Chart (5 Of 5)

Courtesy of GENERAL MOTORS COMPANY

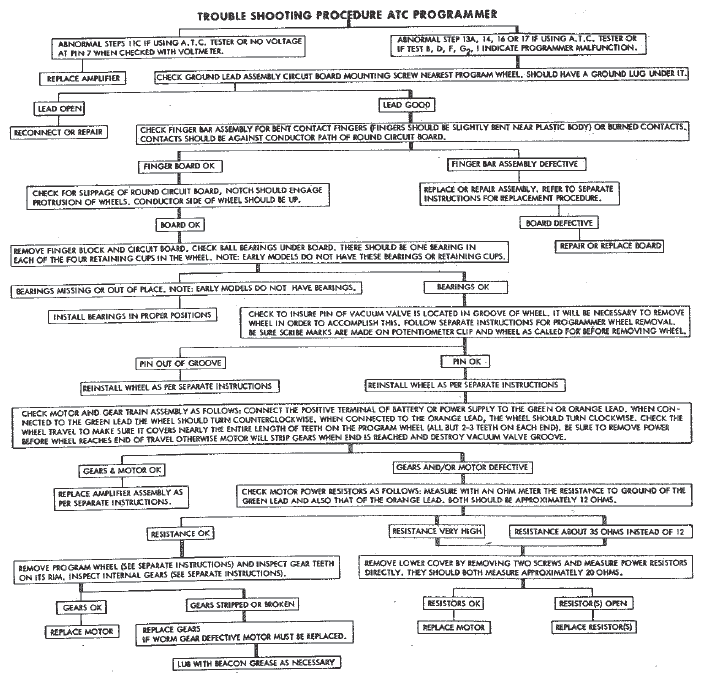

Fig 6: Trouble Shooting Procedure ATC Programmer

Courtesy of GENERAL MOTORS COMPANY
