Automatic Temperature Control Functional Test

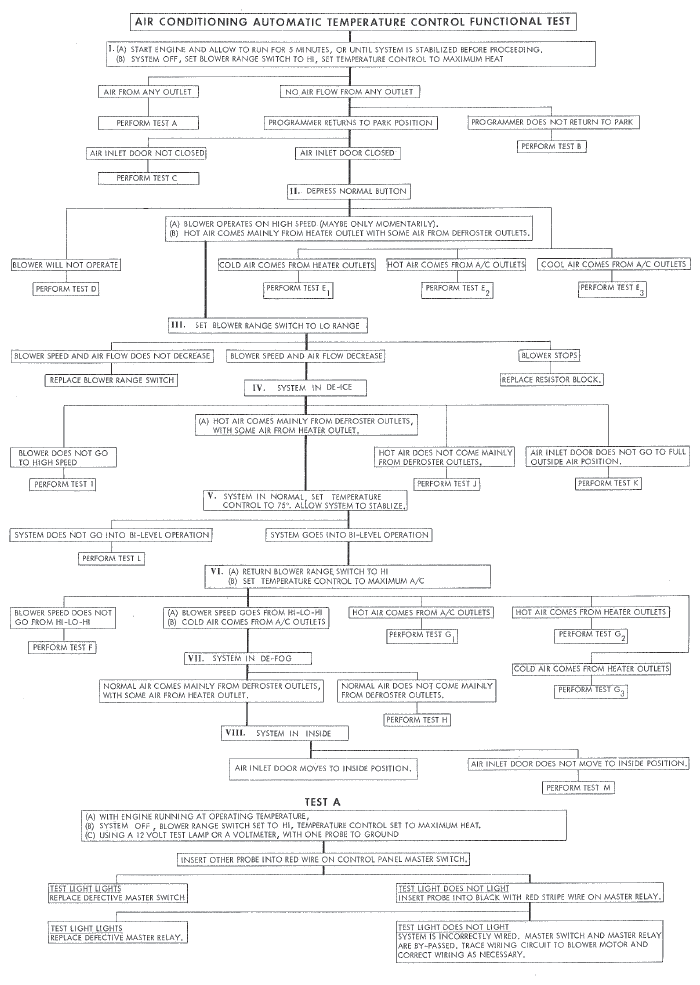

Fig 1: Automatic Temperature Control Diagnosis Guide

Courtesy of GENERAL MOTORS COMPANY

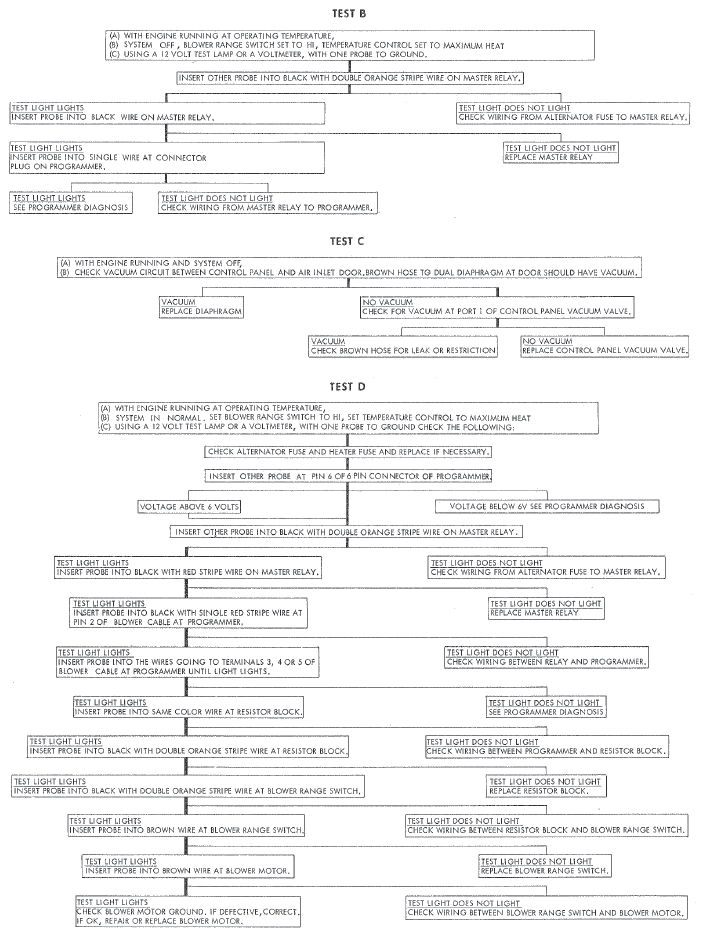

Fig 2: Test B, C & D

Courtesy of GENERAL MOTORS COMPANY

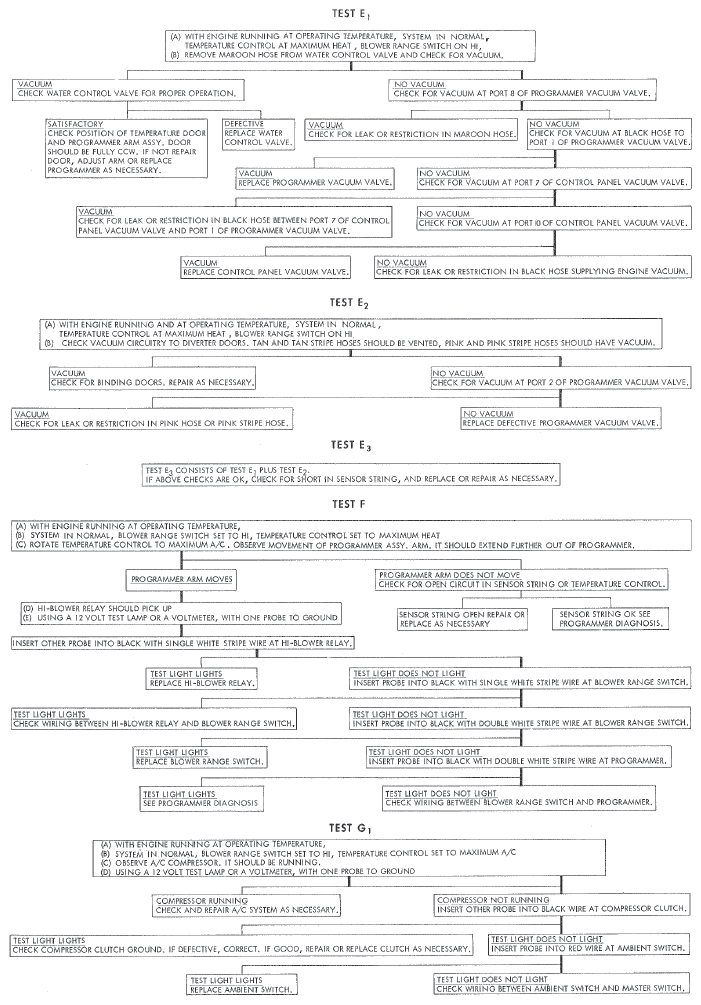

Fig 3: Test E, F & G

Courtesy of GENERAL MOTORS COMPANY

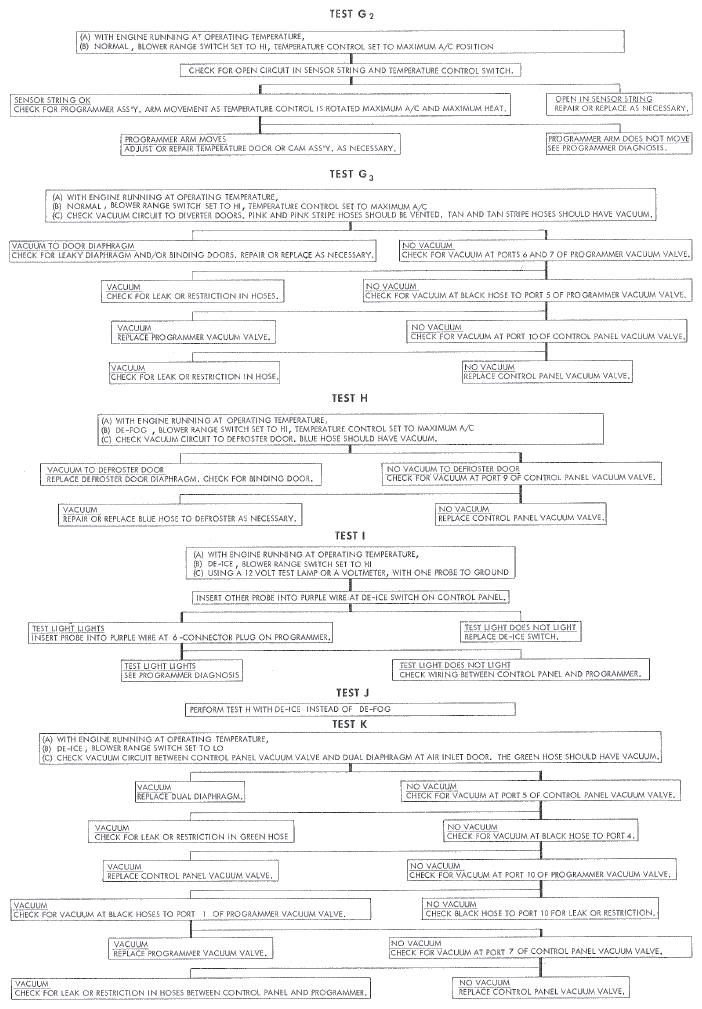

Fig 4: Test G2, G3, H, I, J & K

Courtesy of GENERAL MOTORS COMPANY

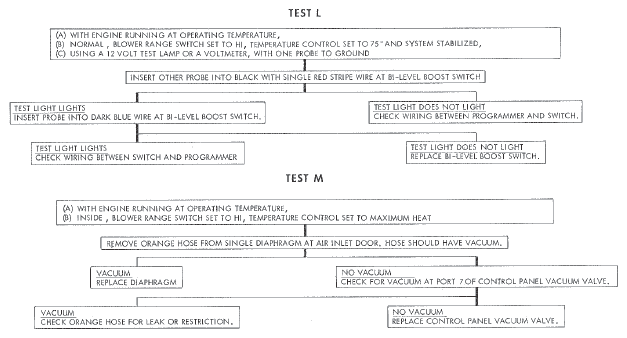

Fig 5: Test L & M

Courtesy of GENERAL MOTORS COMPANY

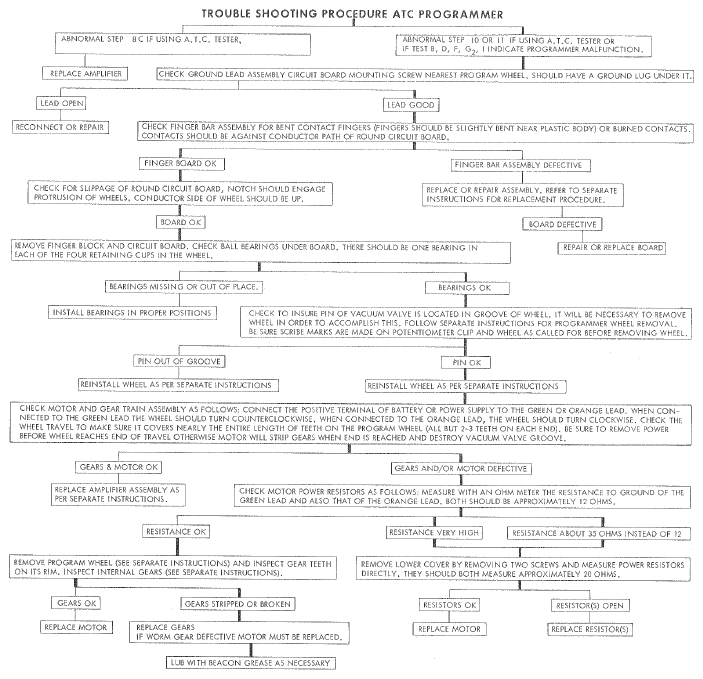

Fig 6: Trouble Shooting Procedure ATC Programmer

Courtesy of GENERAL MOTORS COMPANY
