Tune-Up Procedures - V8: Distributor

All models are equipped with High Energy Ignition systems and no adjustments are required.

NOTE: For a no start condition, check connection of Pink wire at distributor cap.

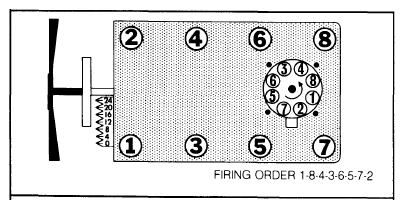

Fig 1: 1975-76 260", 301", 350" (VIN E, J, H & R), 400" & 455" Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY

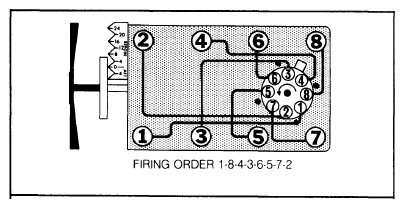

Fig 2: 1977-79 301", 350" (VIN P & R), 400" & 403" Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY

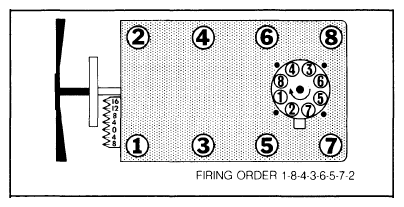

Fig 3: 1975-79 350" (VIN M & X) Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY

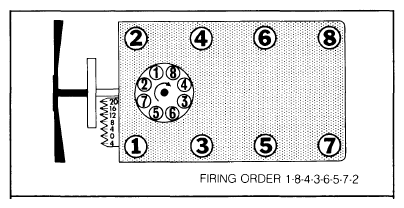

Fig 4: 1977-79 305" & 350" (VIN L) Firing Order & Timing Marks

Courtesy of GENERAL MOTORS COMPANY
