Fuel Injection System - Single Unit TBI
›
Wiring Diagrams
Wiring Diagrams

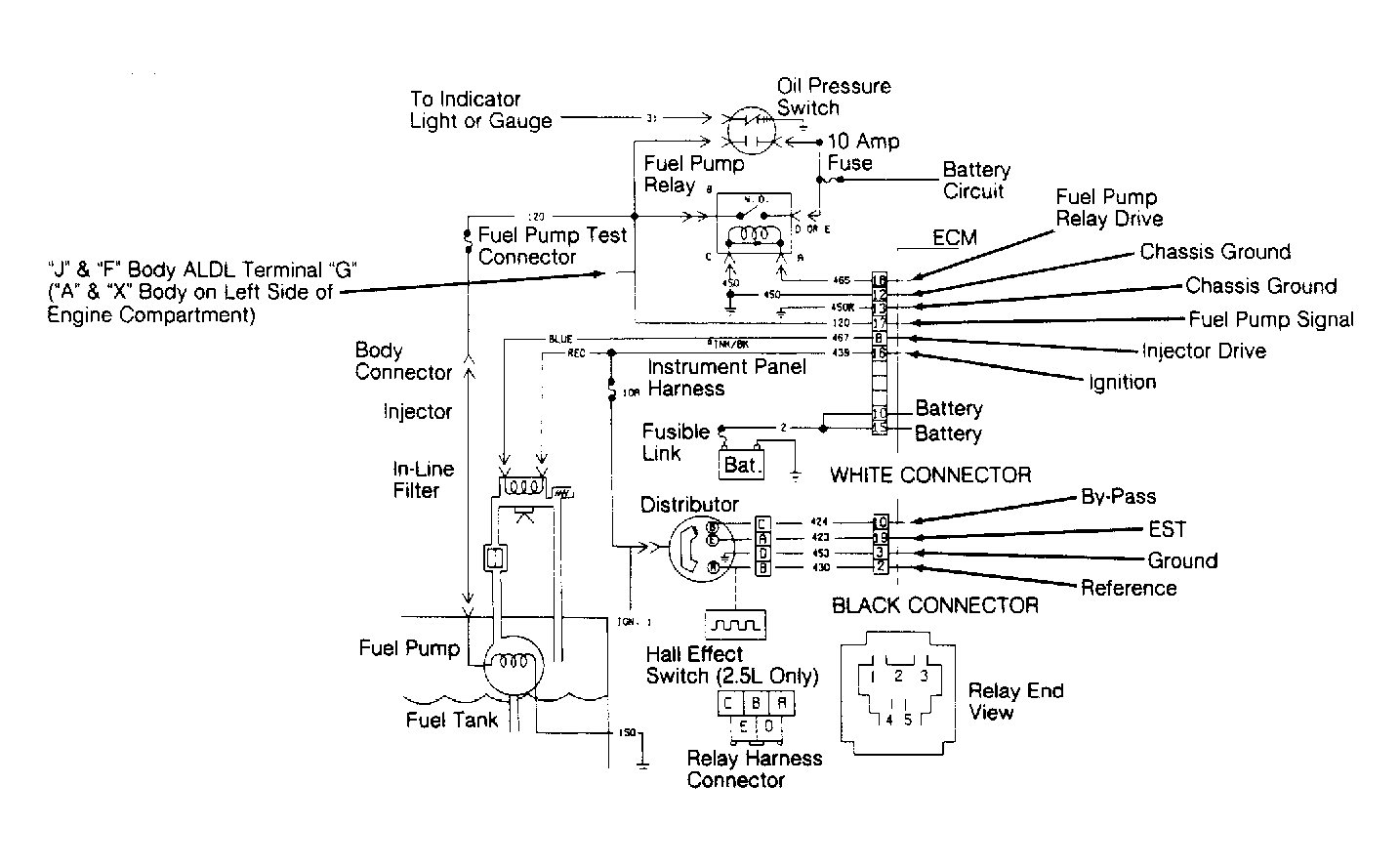

Fig 1: 1.8L & 2.5L Fuel Injection Wiring Diagram

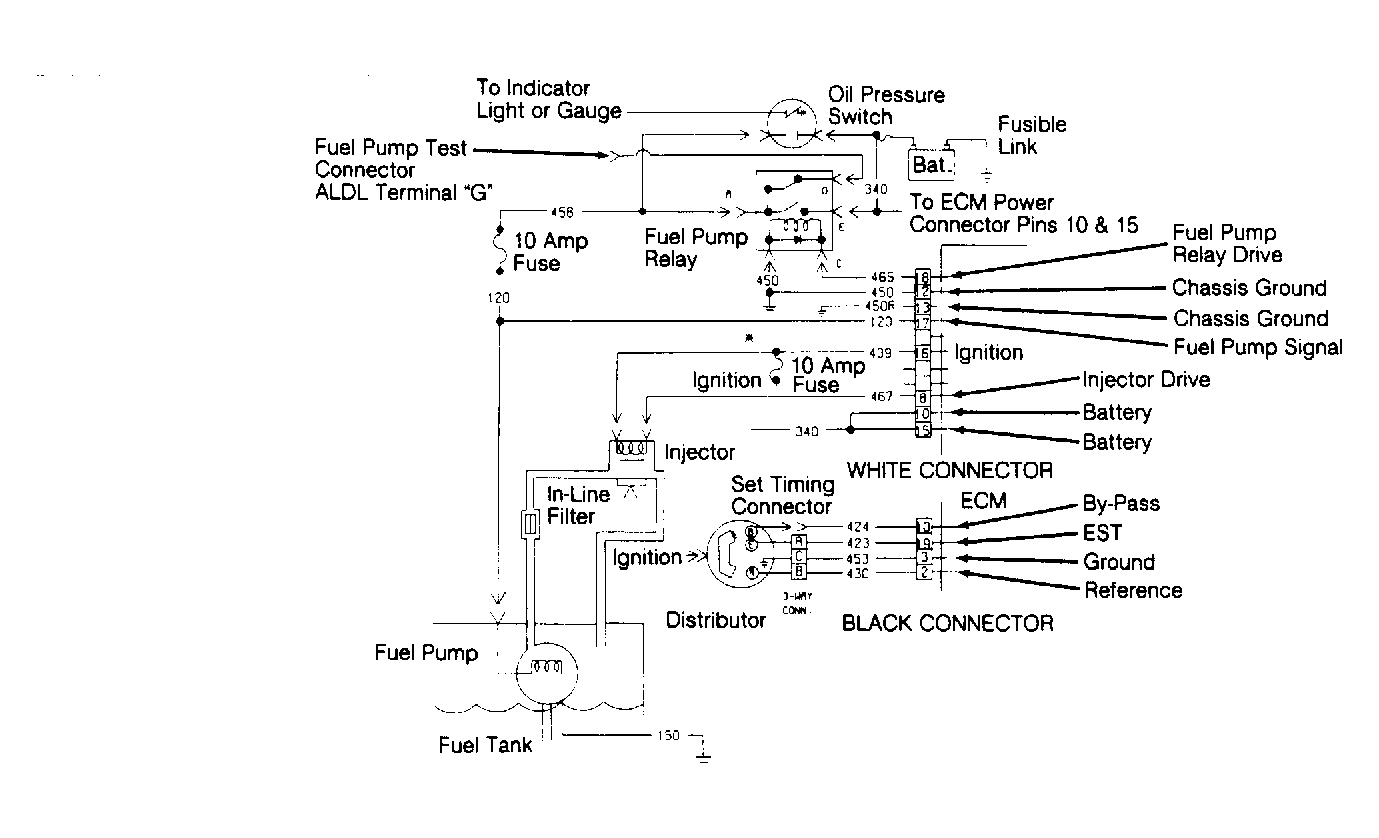

Fig 2: 2.0L Fuel Injection Wiring Diagram
