Code 13: Open O2 Sensor Circuit

Fig 1: Code 13: Open Oxygen Sensor Circuit Flow Chart

G9305

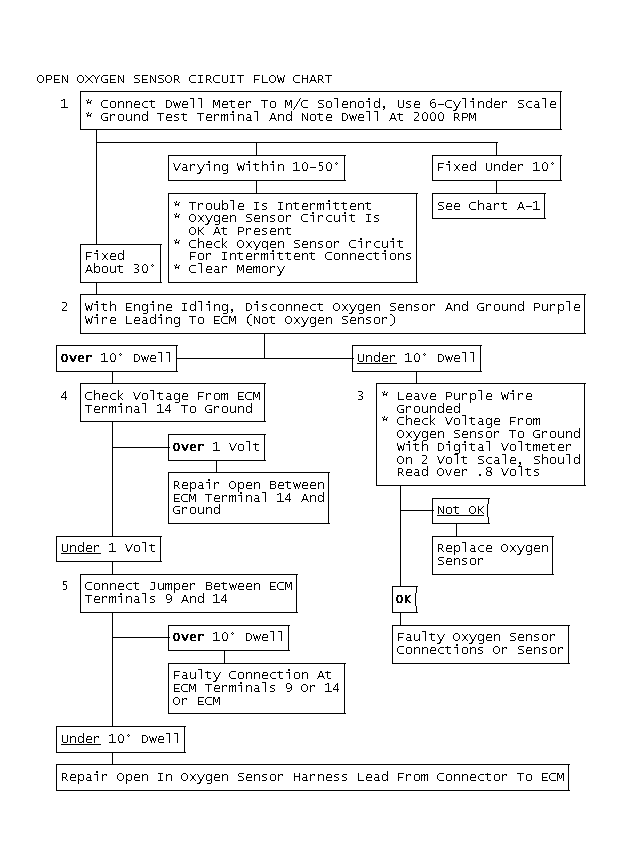

Fig 2: Open Oxygen Sensor Circuit Flow Chart

GB0045618
