Idle Speed Control (ISC) Check

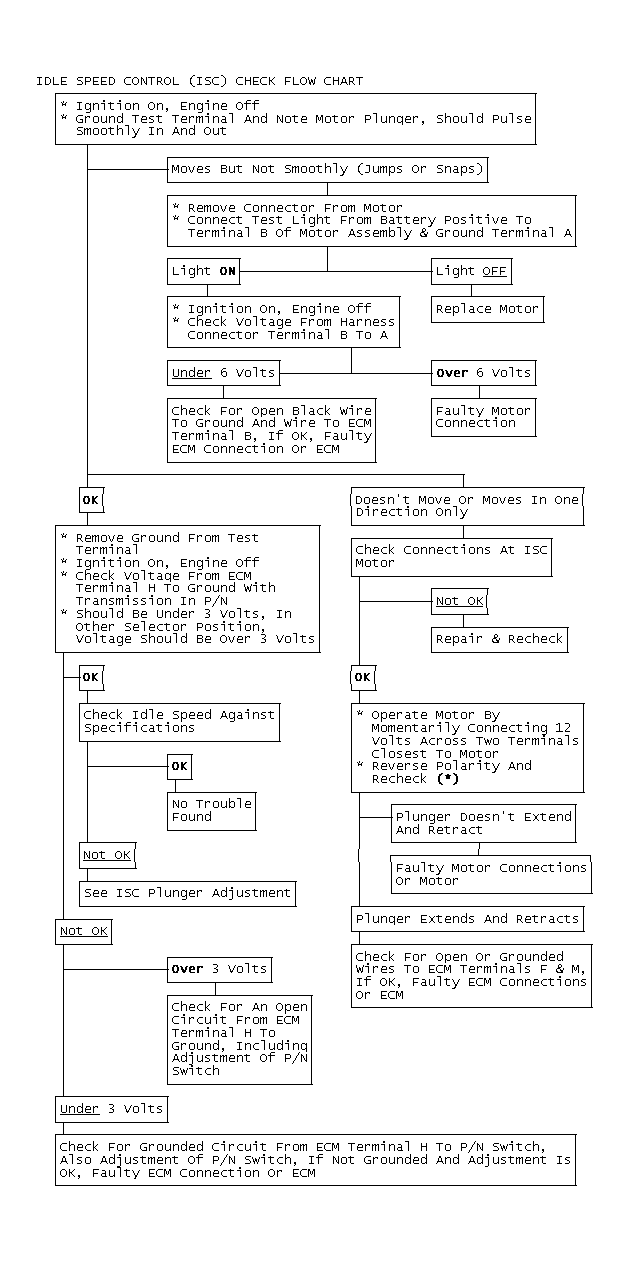

Fig 1: Idle Speed Control (ISC) Check Flow Chart

G263

Fig 2: Idle Speed Control (ISC) Check Flow Chart

GB0045611
