Fuel System Diagnosis

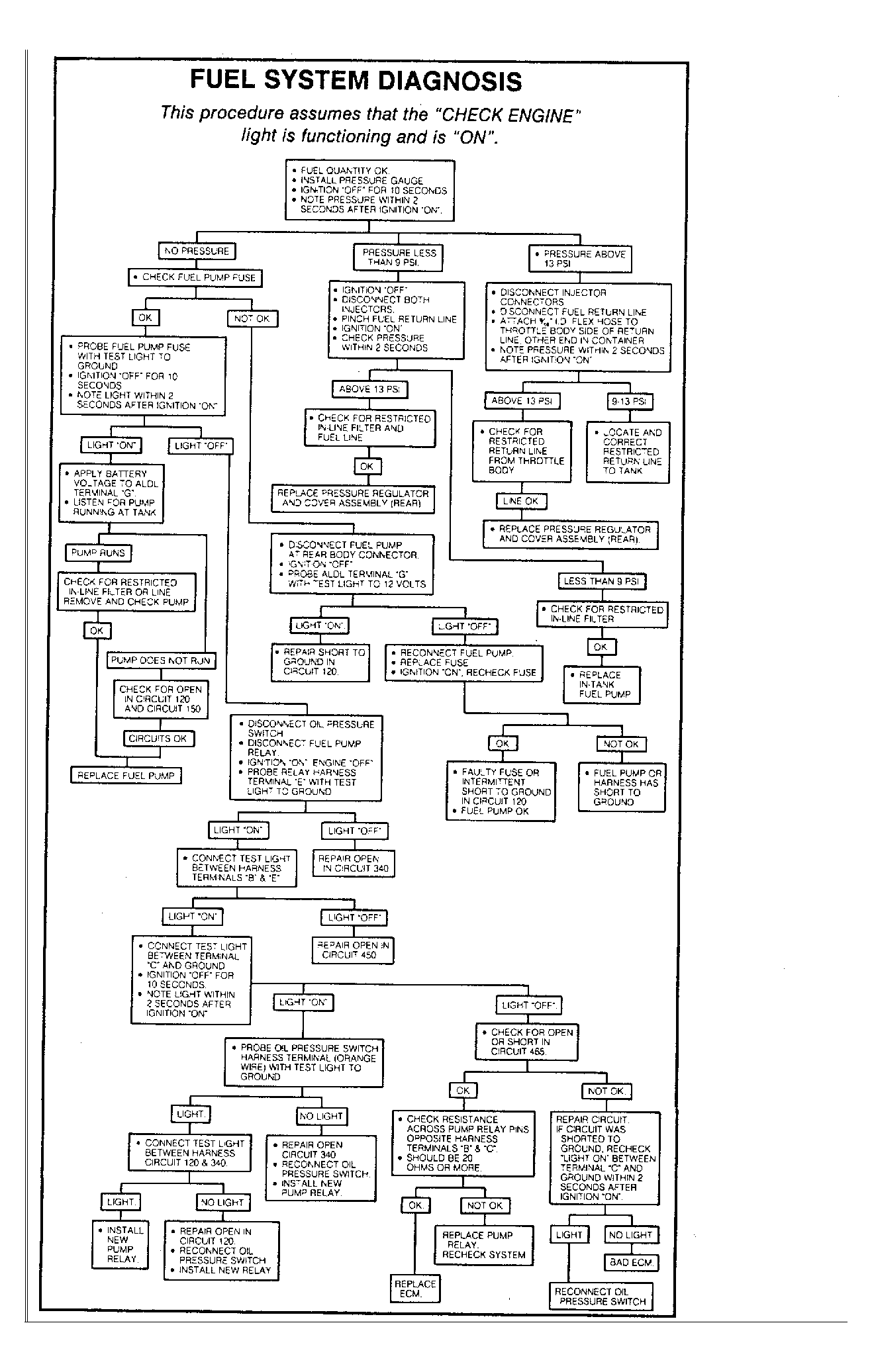

Fig 1: Fuel System Diagnosis

G614

This procedure assumes that the "CHECK ENGINE" light is functioning and is "ON".
