Miscellaneous Components
MISCELLANEOUS COMPONENTS LOCATION
| Component | Location |
|---|---|
| A/C Compressor Clutch Diode | Taped inside compressor clutch connector. |

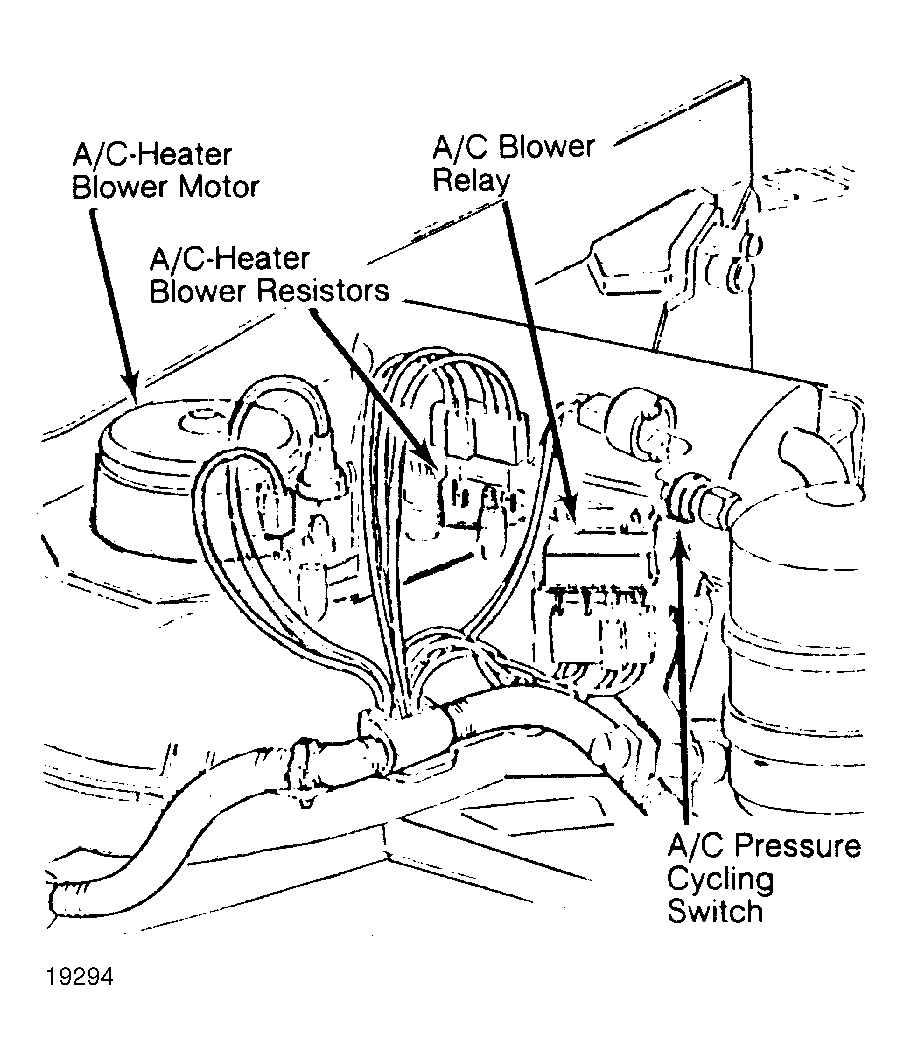

| A/C-Heater Blower Resistors | Right side of engine cowl ahead of blower motor. See Figure. |
| Cruise Control Throttle Servo | Top front portion of engine. |
| Opera Lights Voltage Inverter | In luggage compartment, on left wheelwell. |

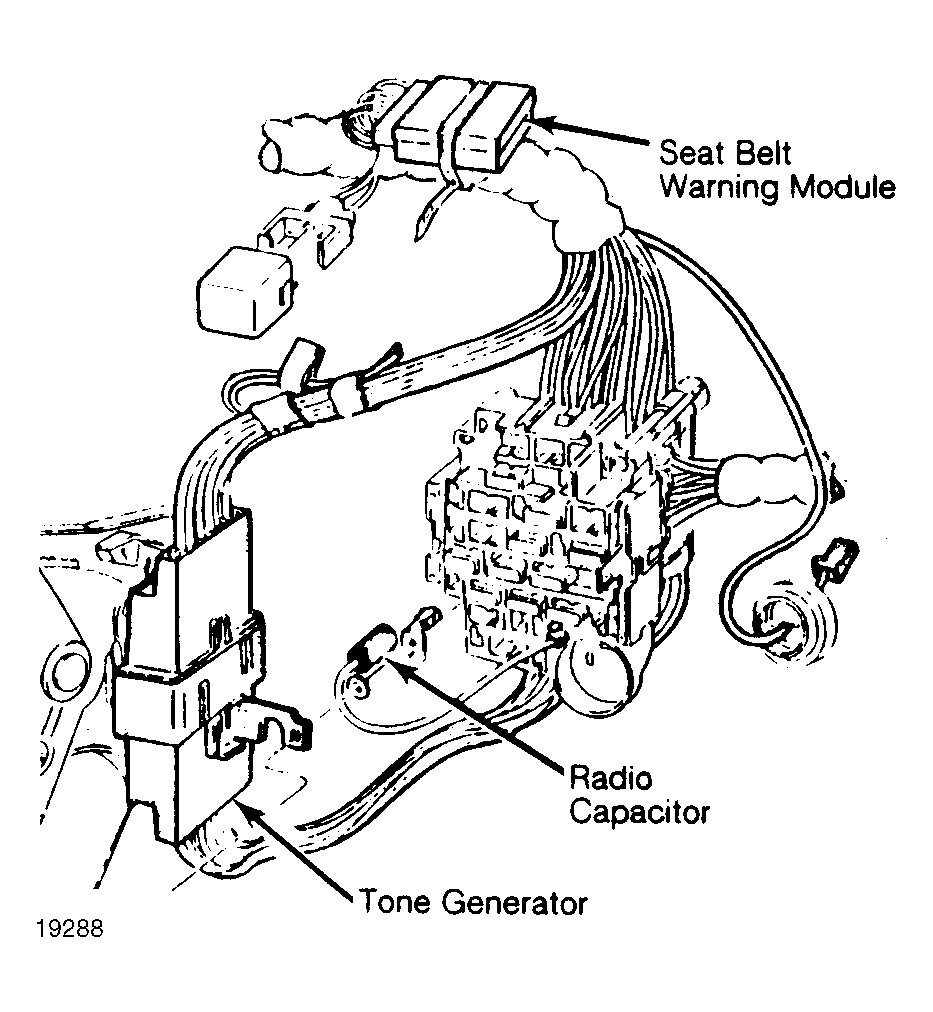

| Tone Generator | Under left side of instrument panel near park brake. See Figure. |

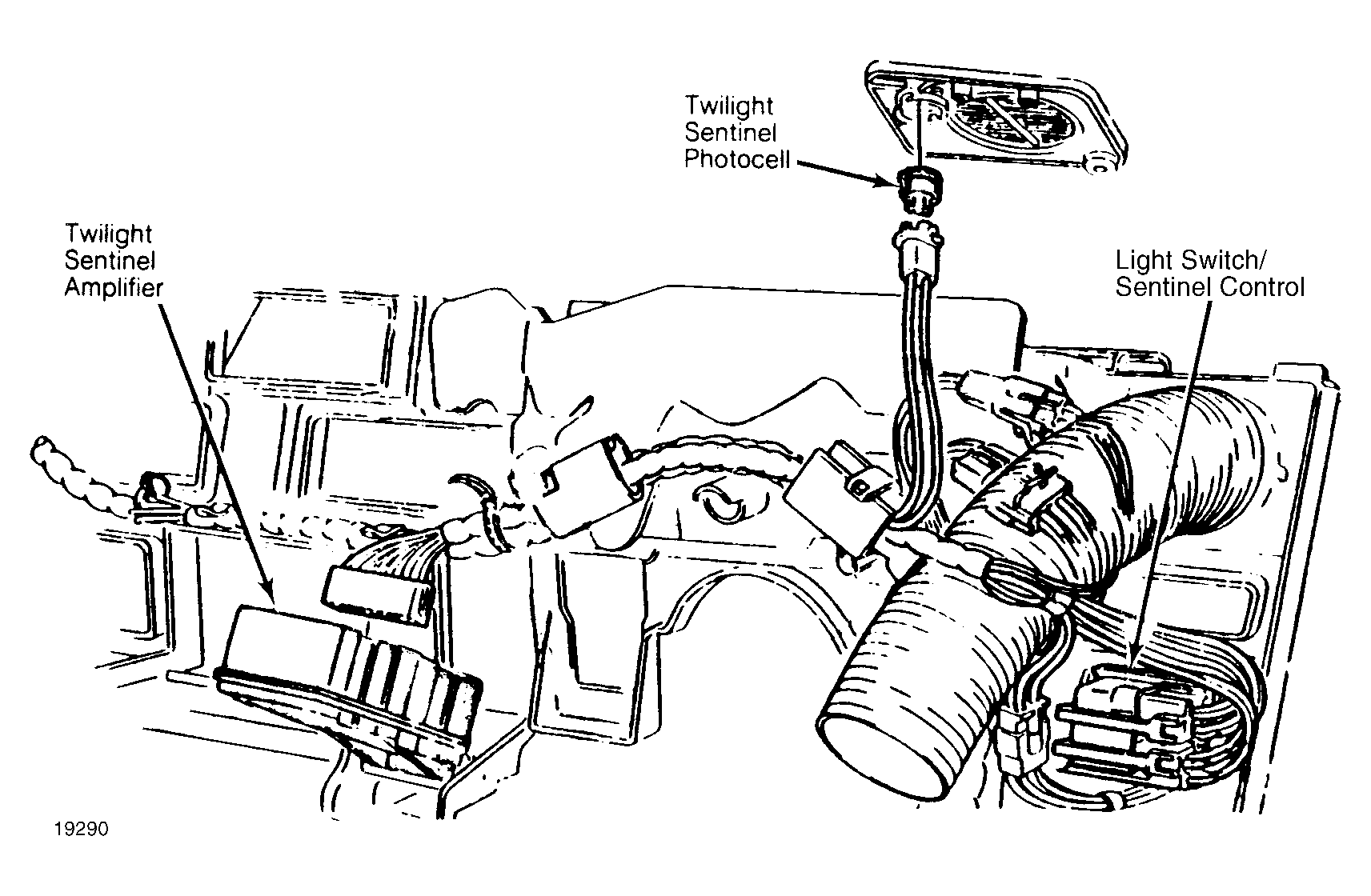

| Twilight Sentinel Amplifier | Under left side of instrument panel near park brake. See Figure. |
| Twilight Sentinel Photocell | Left side of engine cowl. See Figure. |
| Voltage Inverter (Opera Lights) | Above LH rear wheel well. |
| Wiper Motor Relay Diode | In wiper motor connector. |
