Wiring Diagrams

Fig 1: Wiring Diagram: 1.8L Turbo Fuel Injection System
G1669

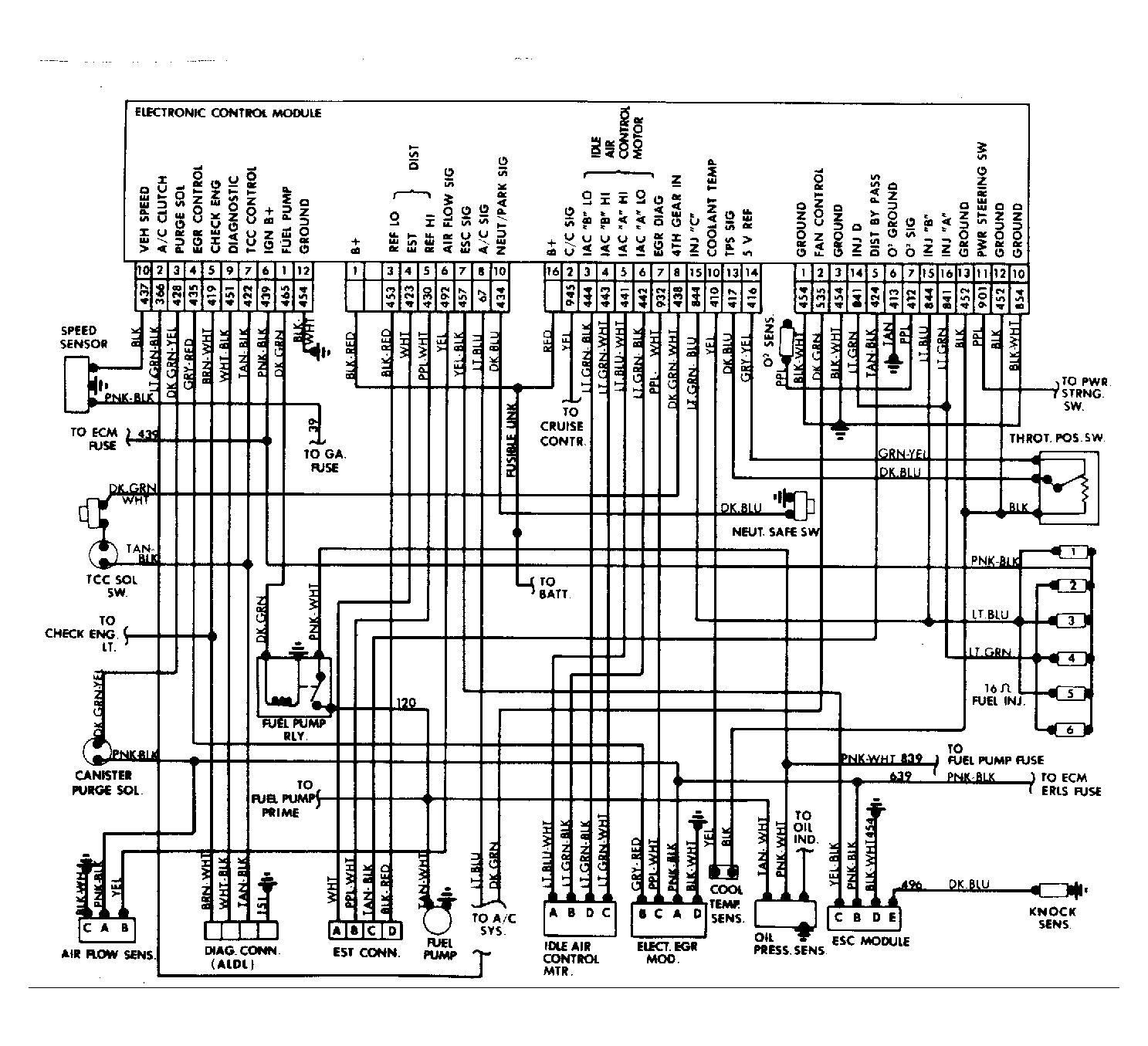

Fig 2: Wiring Diagram: 3.8L V6 Fuel Injection System (Non-Turbo Models)
G1672

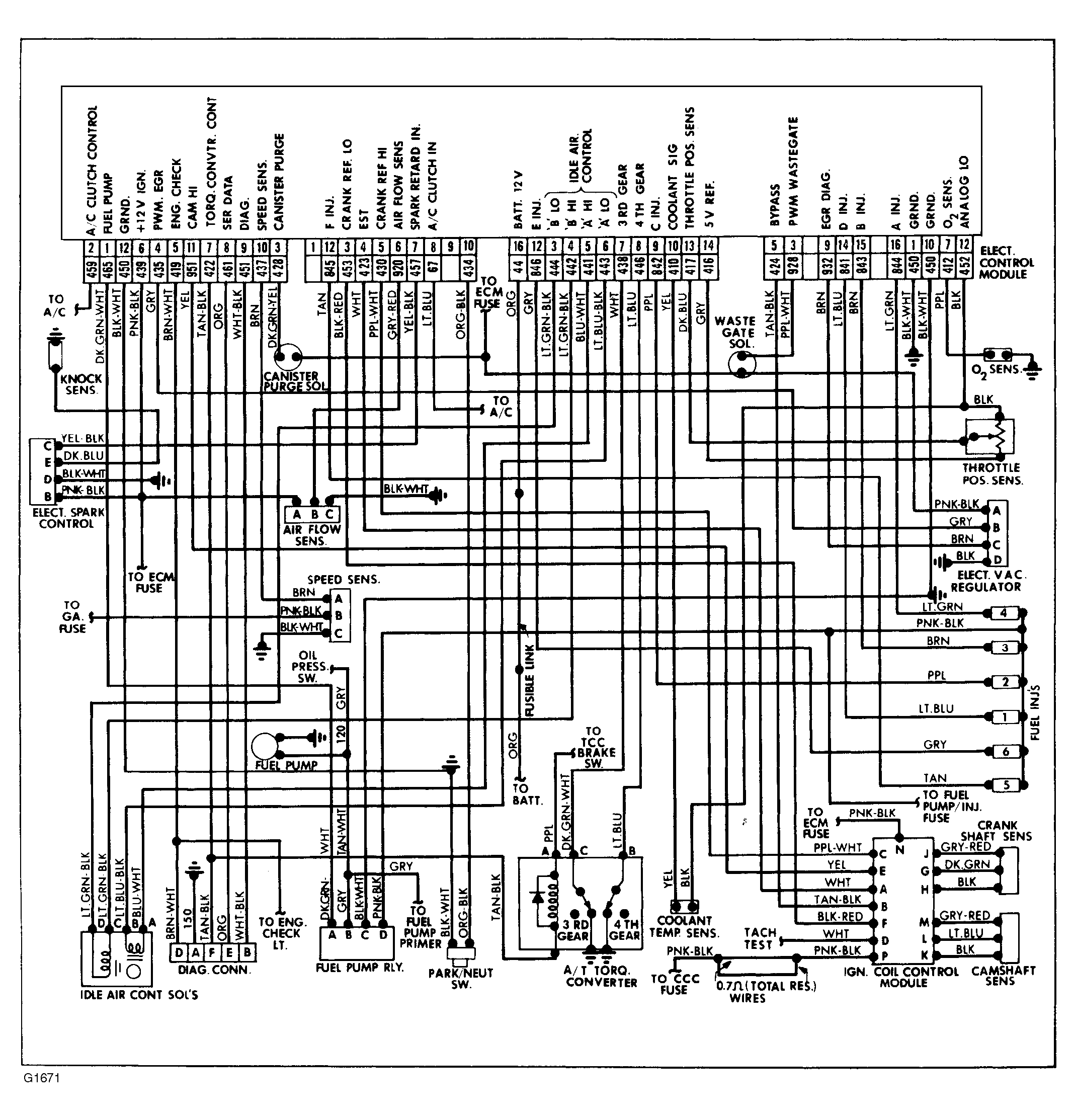

Fig 3: Wiring Diagram: 3.8L V6 Fuel Injection System (Turbo Models)
G1671
