Idle Speed Control (ISC) Check

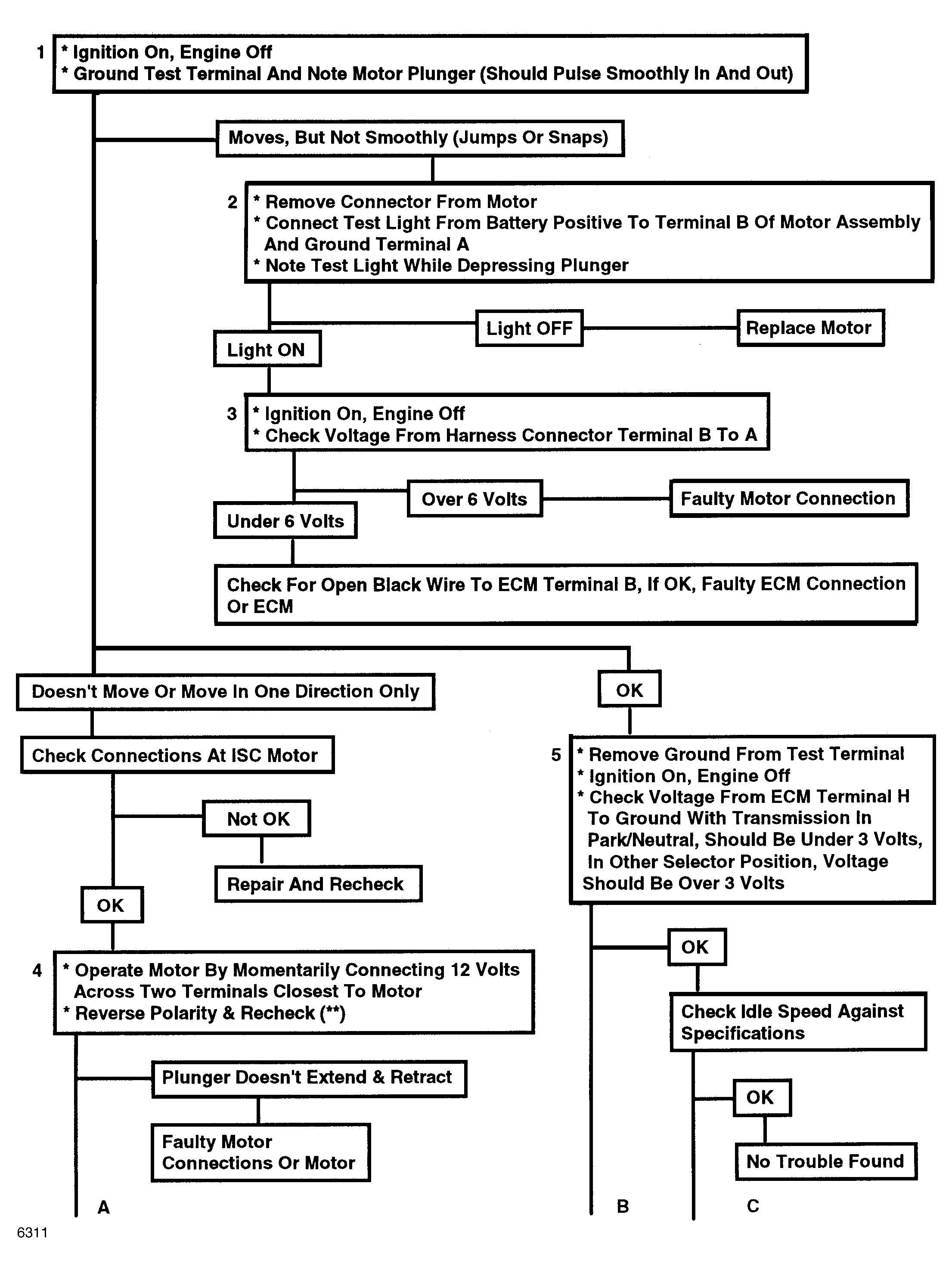

Fig 1: Flow Chart C2A - Idle Speed Control (ISC) Check (1 Of 2)

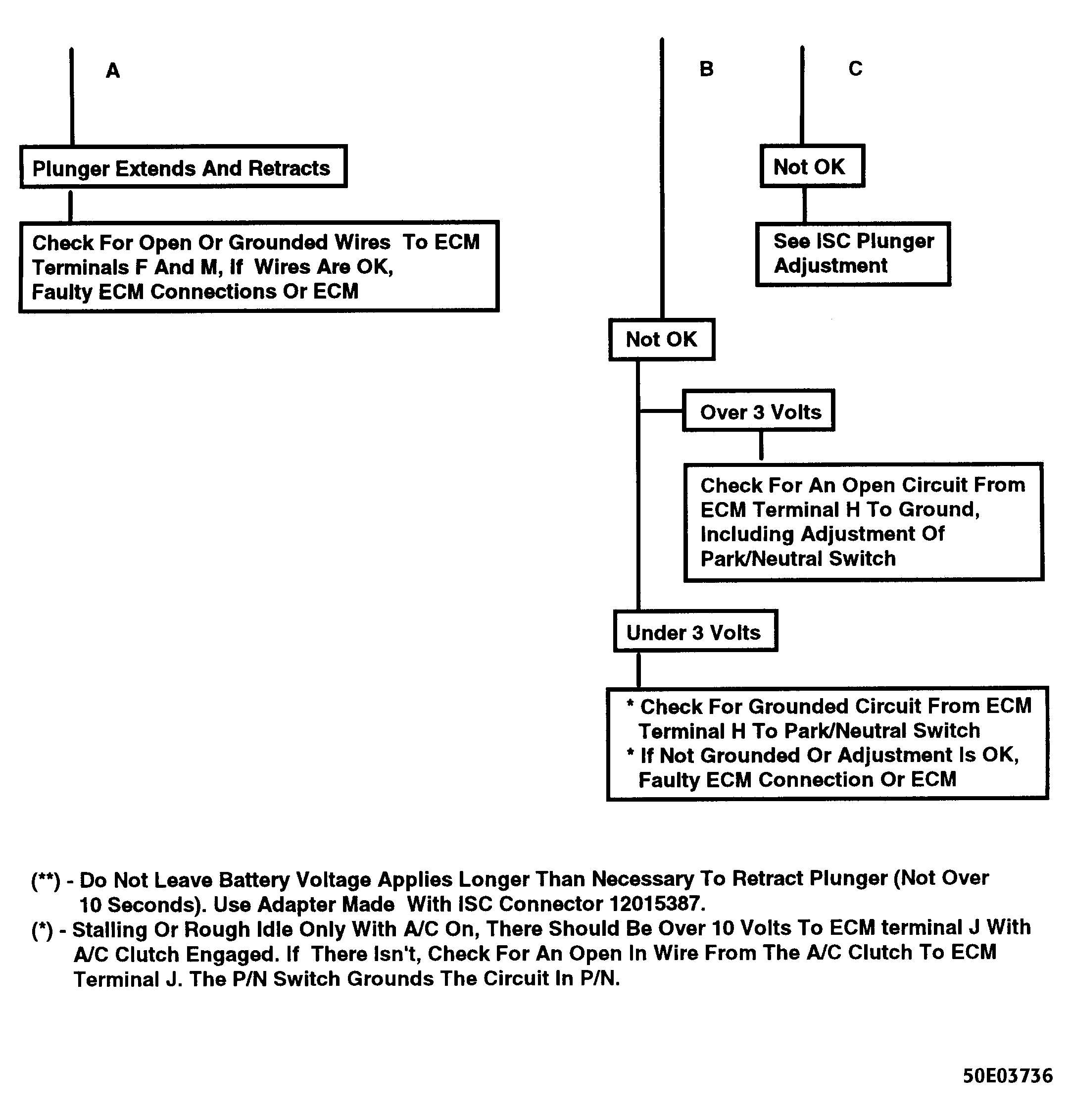

Fig 2: Flow Chart C2A - Idle Speed Control (ISC) Check (2 Of 2)

Fig 3: Flow Chart C2A - Idle Speed Control (ISC) Check (1 Of 2)

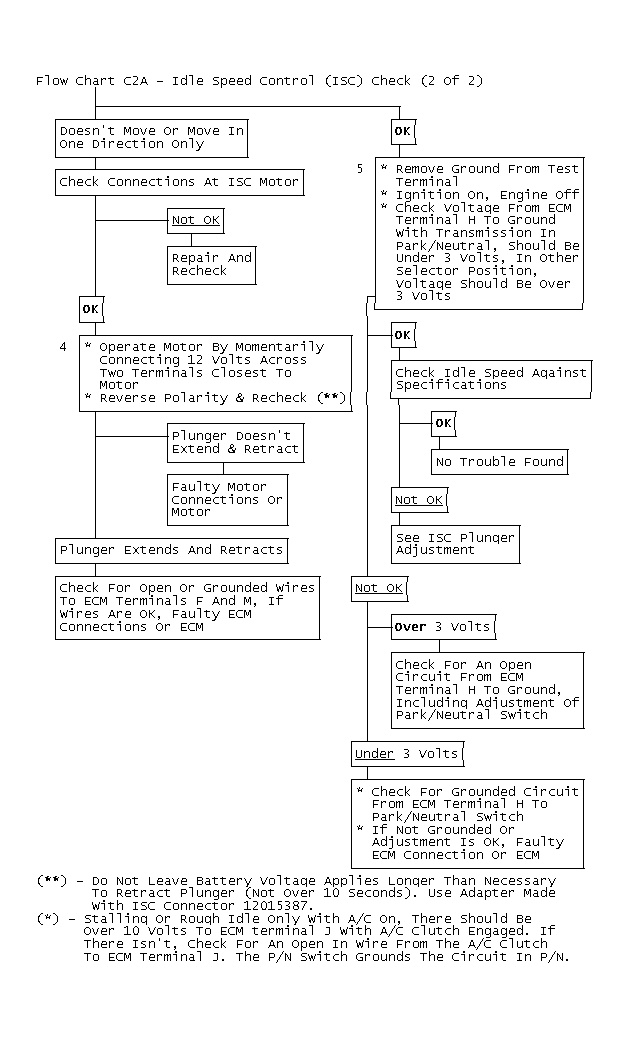

Fig 4: Flow Chart C2A - Idle Speed Control (ISC) Check (2 Of 2)
