C2F - TPS Enrichment Check

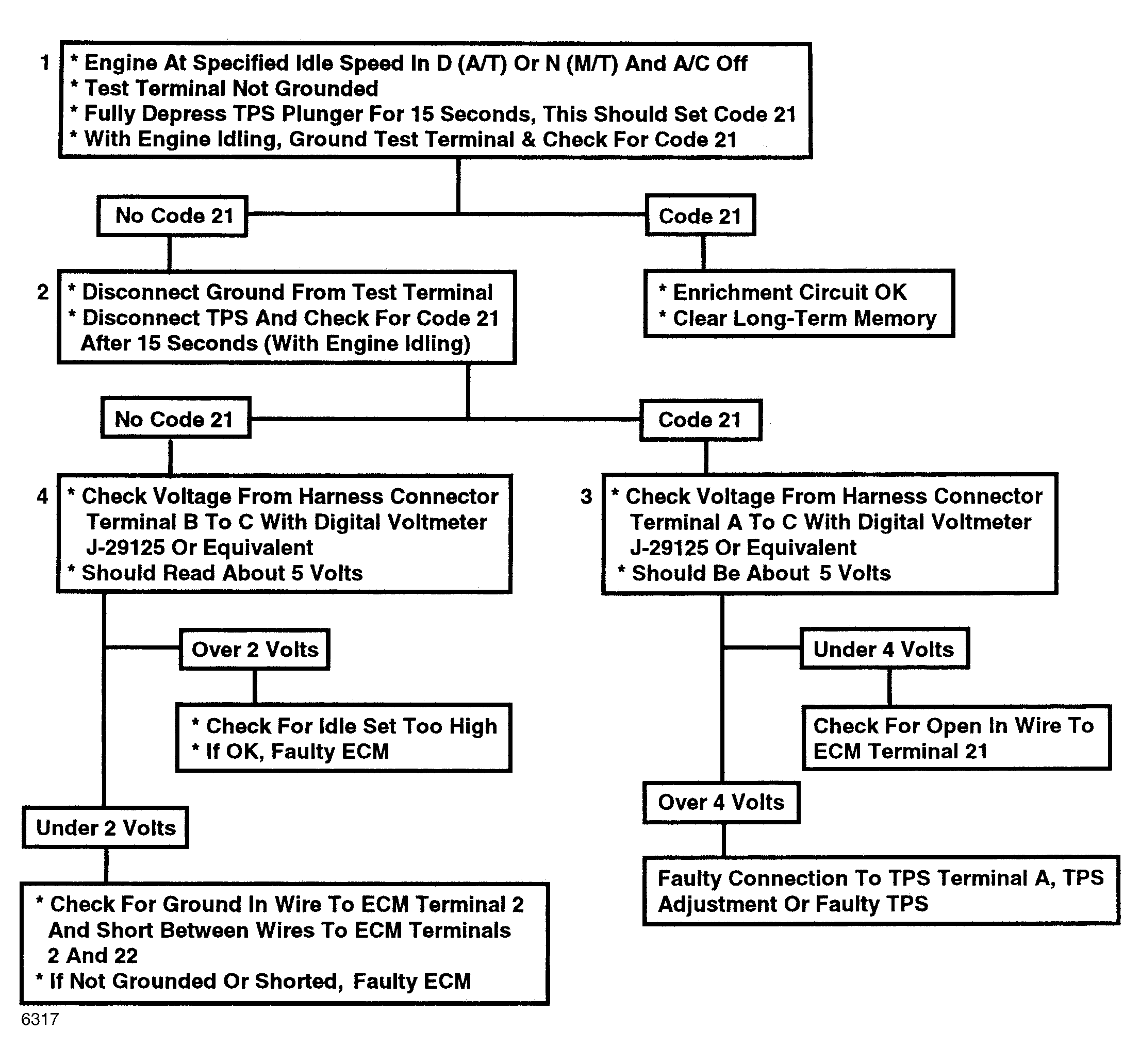

Fig 1: Flow Chart C2F - TPS Enrichment Check

G6317

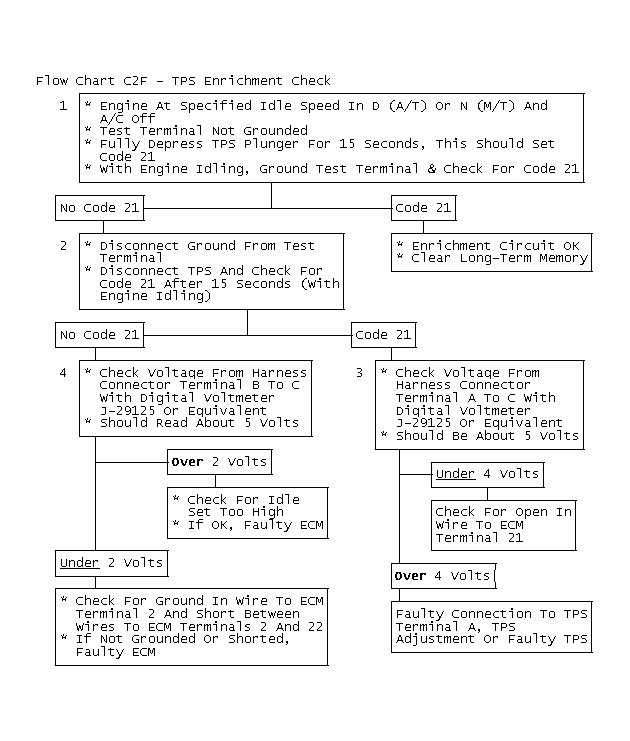

Fig 2: Flow Chart C2F - TPS Enrichment Check

GB0046368
