Wiring Diagrams

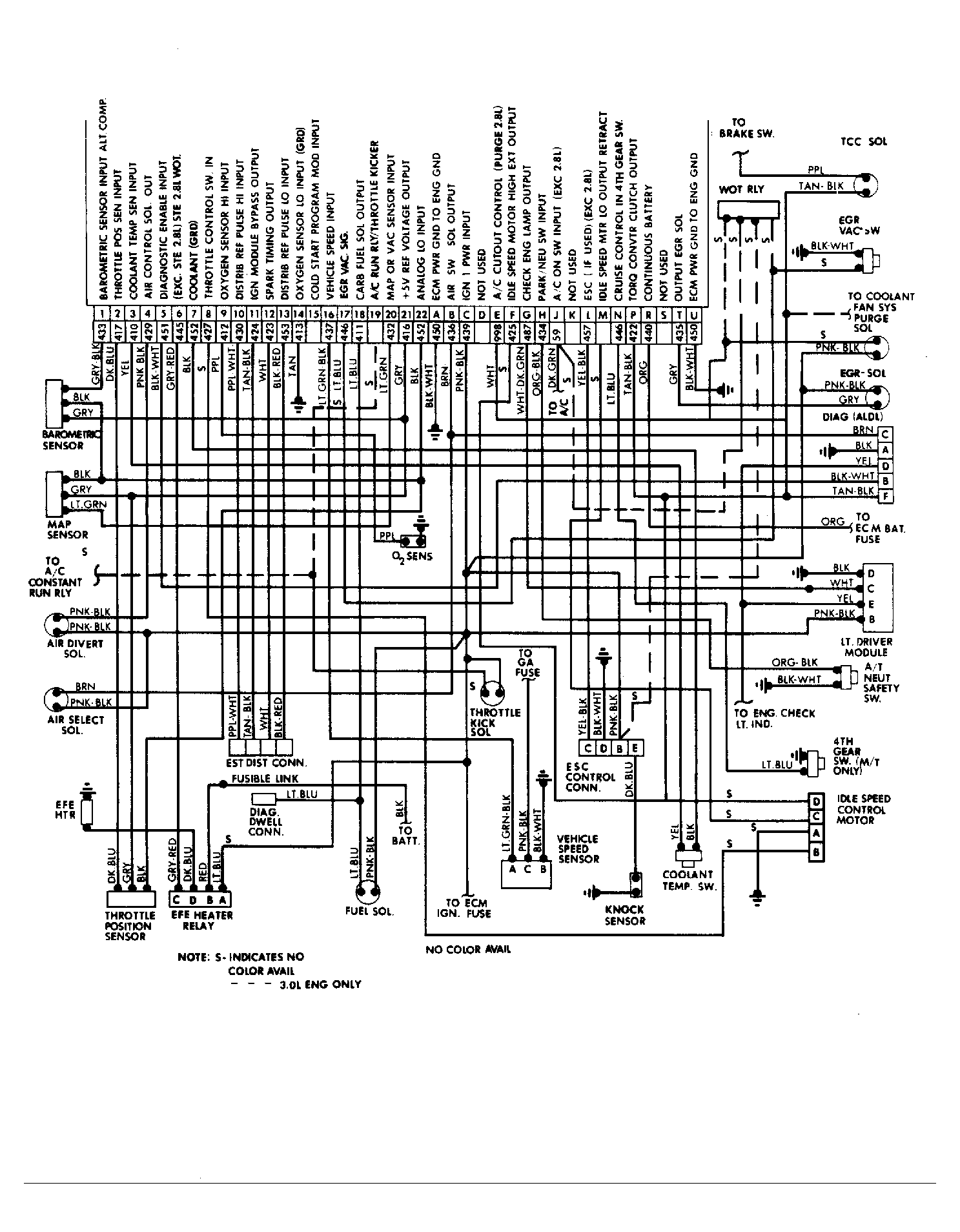

Fig 1: CCC Wiring Diagram (2.8L, 3.0L 3.8L, & 4.1L Engines)
G1335

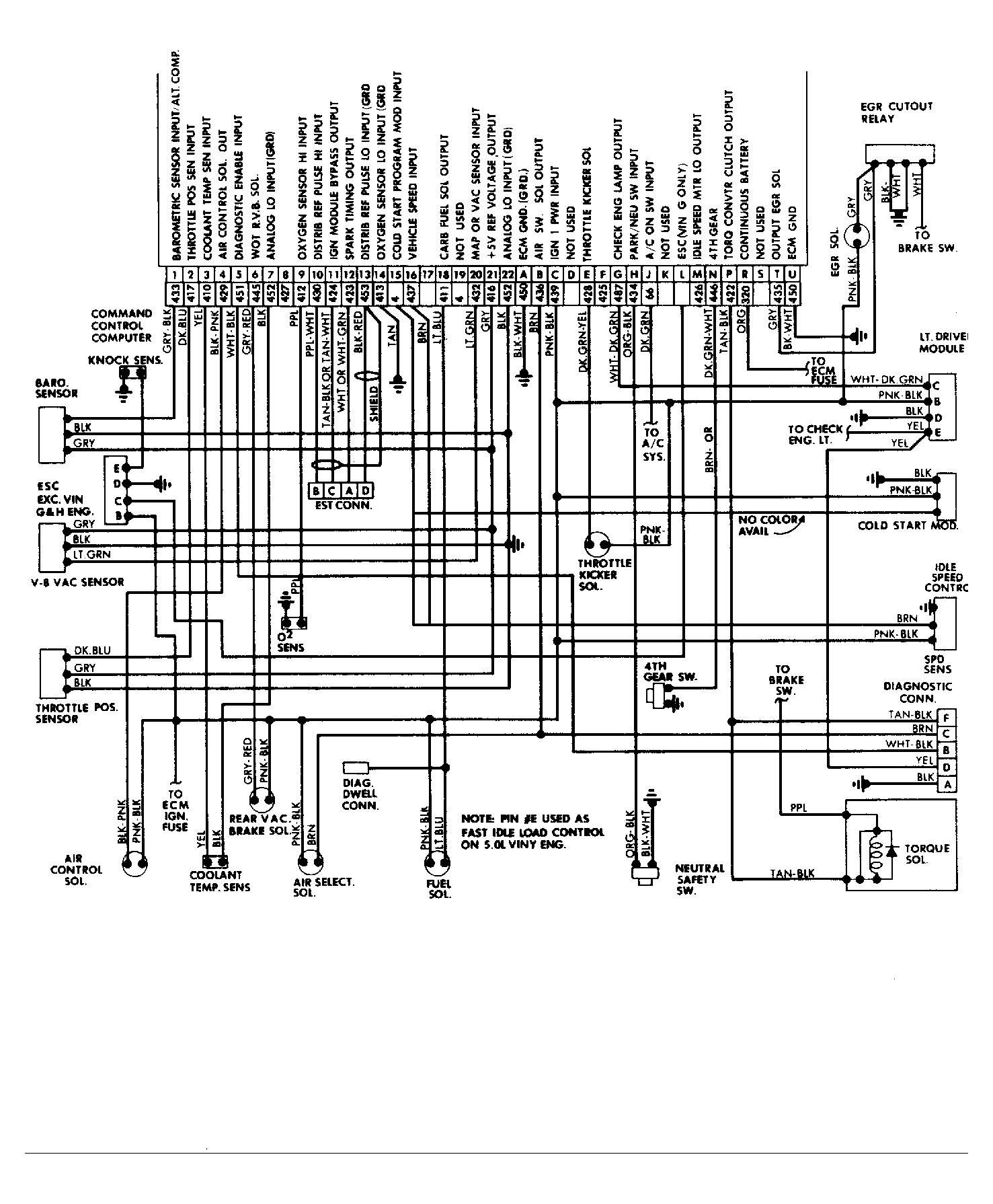

Fig 2: CCC Wiring Diagram (5.0L & 5.7L Engines)
G1338
