Chart C2C - Idle Air Control

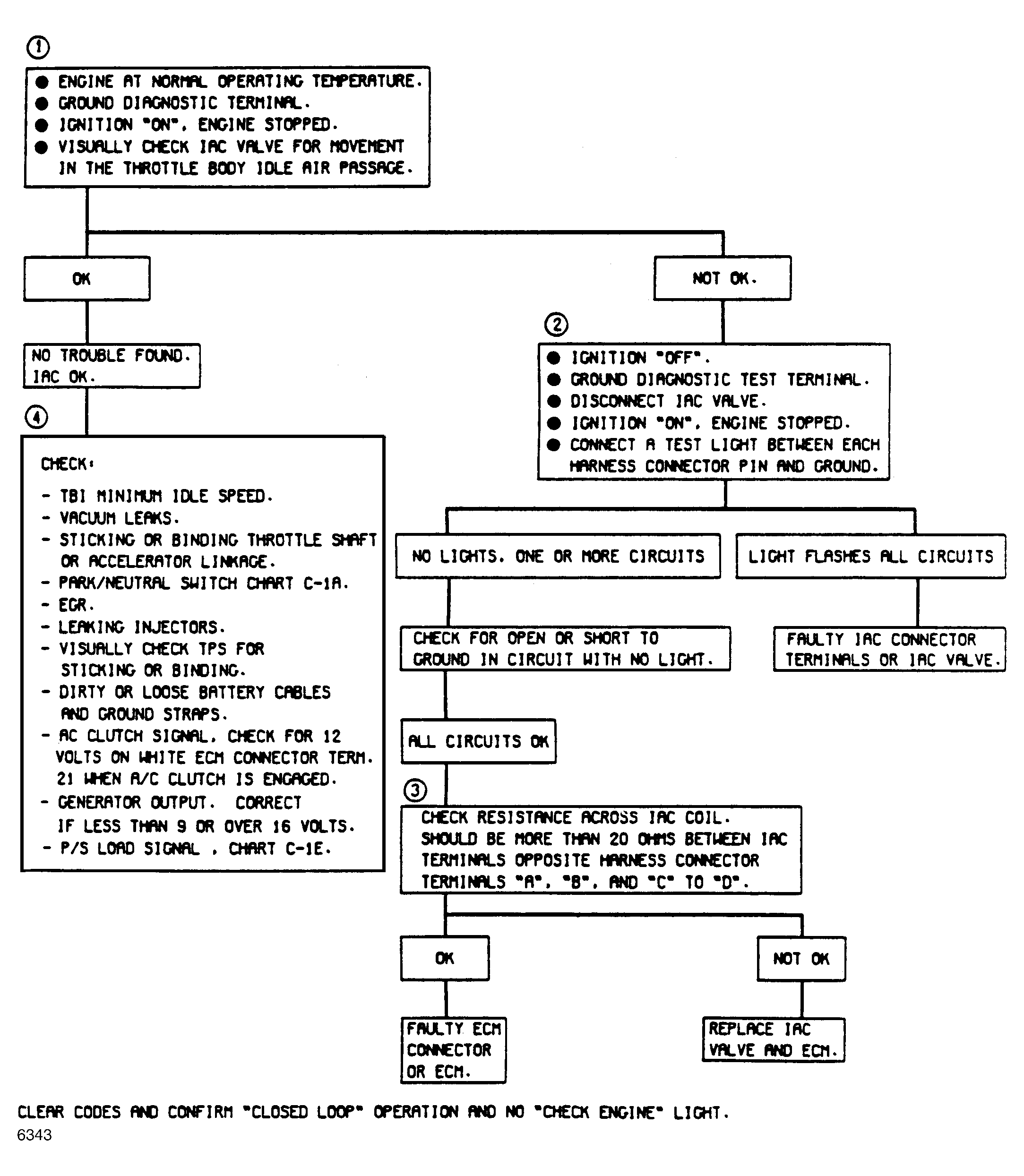

Fig 1: Chart C2C, Idle Air Control Flow Chart (Exc. Corvette)

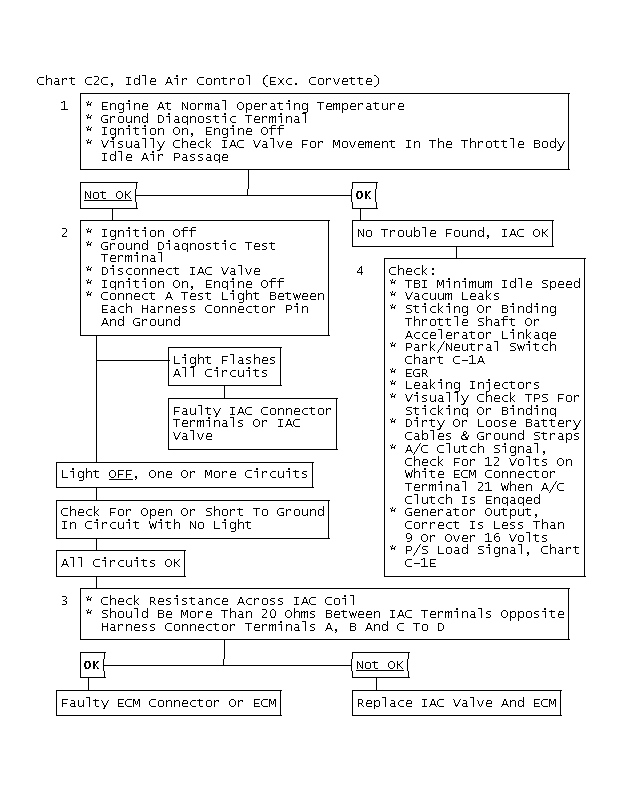

Fig 2: Chart C2C, Idle Air Control Flow Chart (Exc. Corvette)

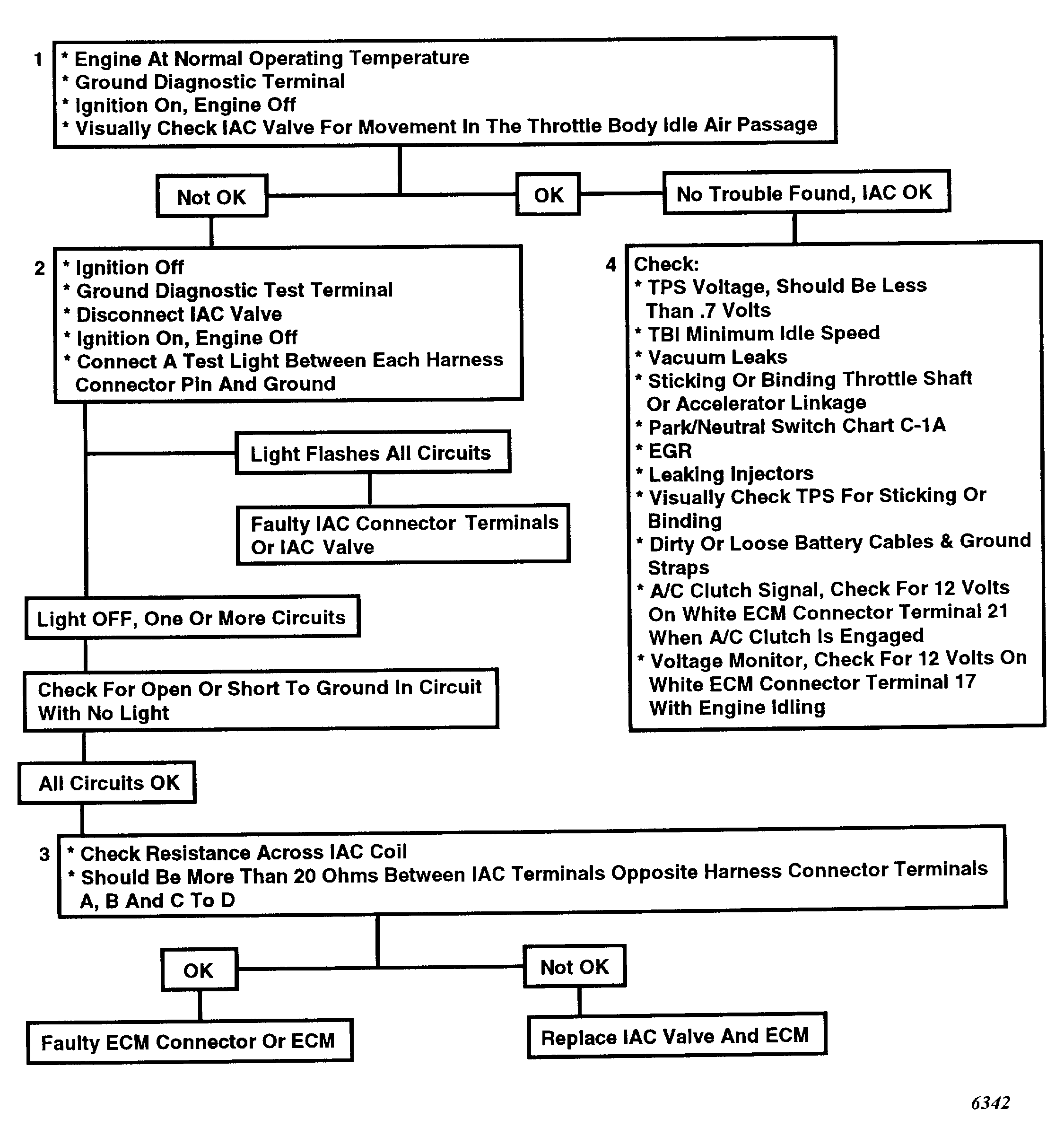

Fig 3: Chart C2C, Idle Air Control Flow Chart (Corvette)

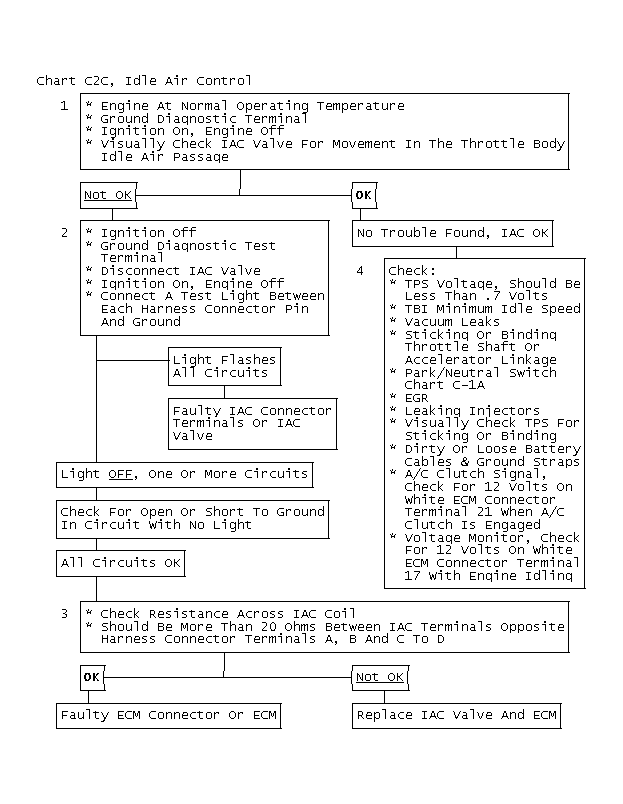

Fig 4: Chart C2C, Idle Air Control Flow Chart (Corvette)
