Wiring Diagrams
NOTE:

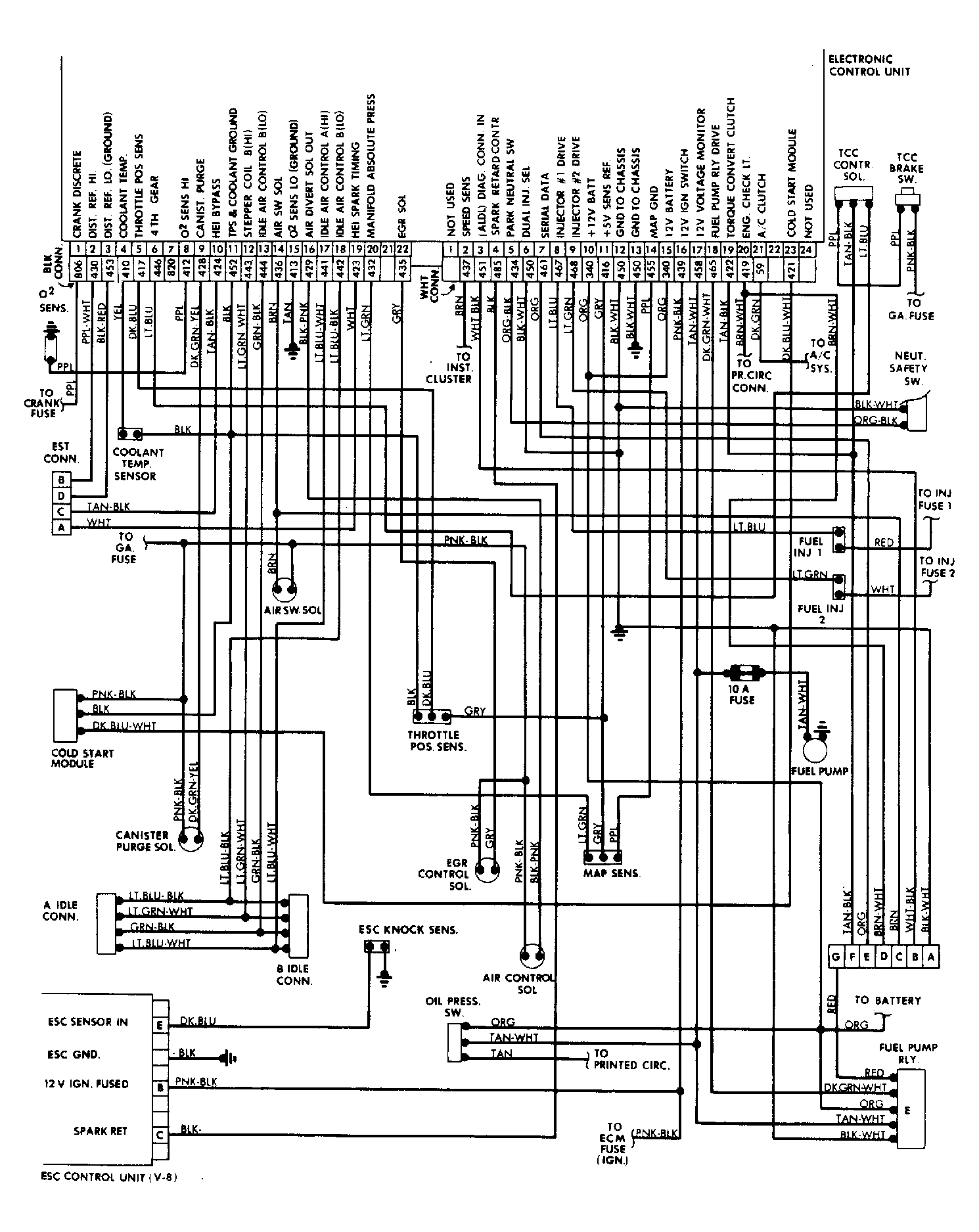

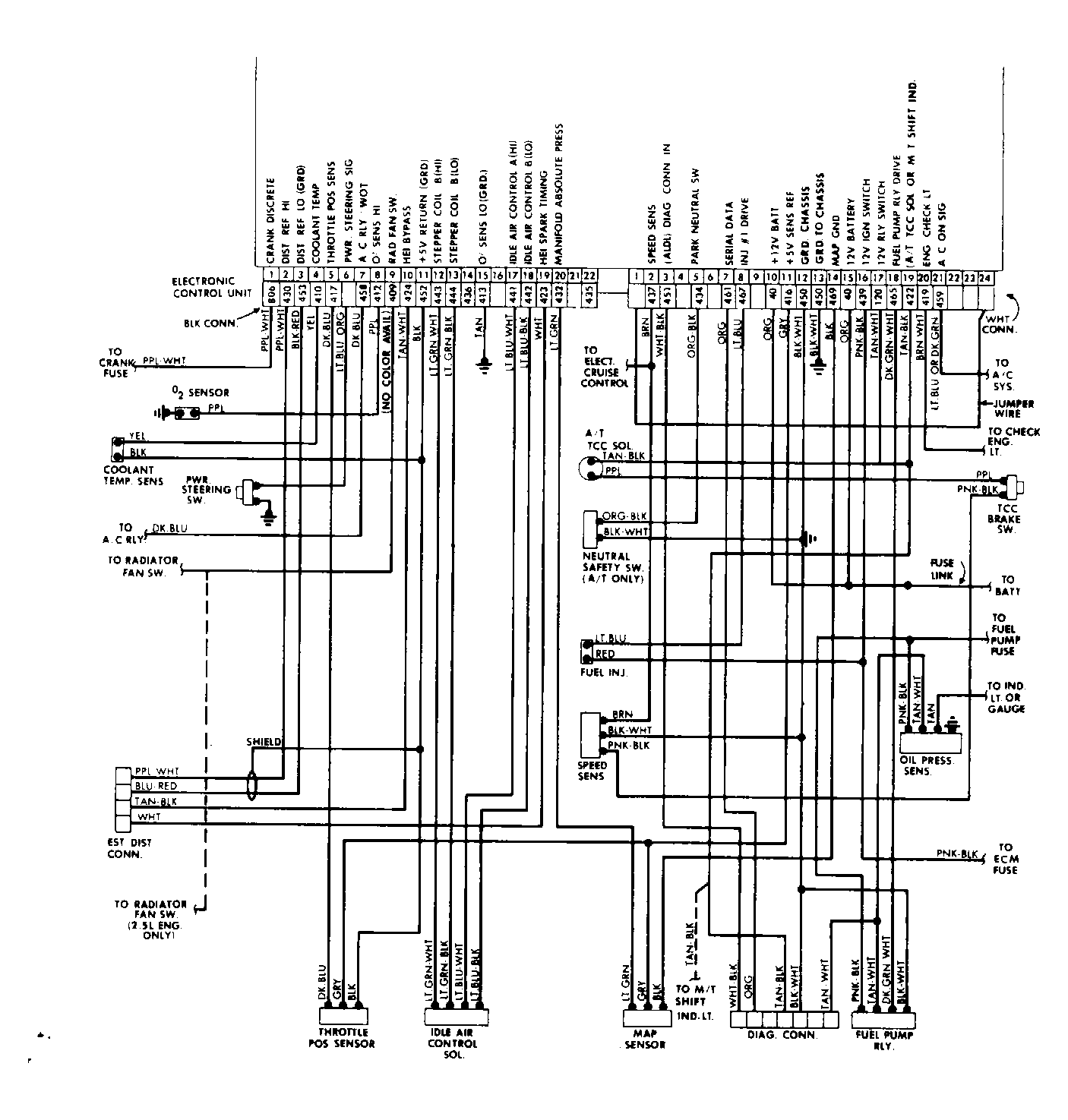

For Figure 77 (1.8L & 2.5L), Diagnostic and TPS connector identification is as follows:
DIAGNOSTIC CONNECTOR
- Wht/Blk Wire = Pin "B"
- Orange Wire = Pin "E"
- Tan/Blk Wire = Pin "F"
- Tan/Wht Wire = Pin "A"
TPS CONNECTOR
- Dark Blue Wire = Pin "B"
- Gray Wire = Pin "C"
- Black Wire = Pin "A"
