Frame Contact Hoist

Hoist adapters must contact vehicle in specified areas. See Fig 1 and Fig 2 . Adapters must be positioned to distribute load and support vehicle in a stable manner. DO NOT  allow lift pads to contact exhaust system components.

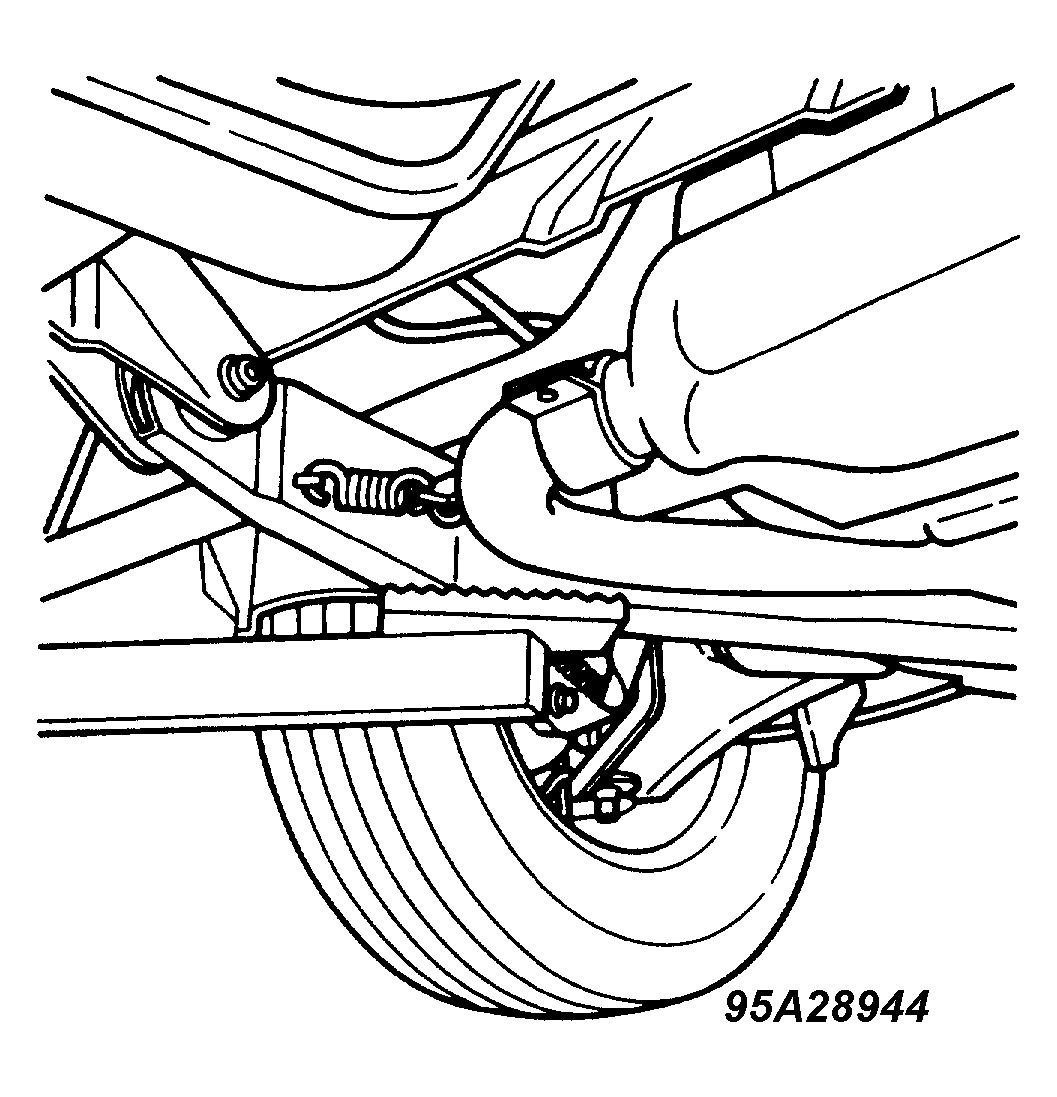

Fig 1: Using Frame Contact Hoist Rearward of Front Tire

Courtesy of GENERAL MOTORS CORP.

Fig 2: Using Frame Contact Hoist Forward of Rear Tire

Courtesy of GENERAL MOTORS CORP.
