Chart C2A - Injector Balance Test
Chart C2A - Injector Balance Test

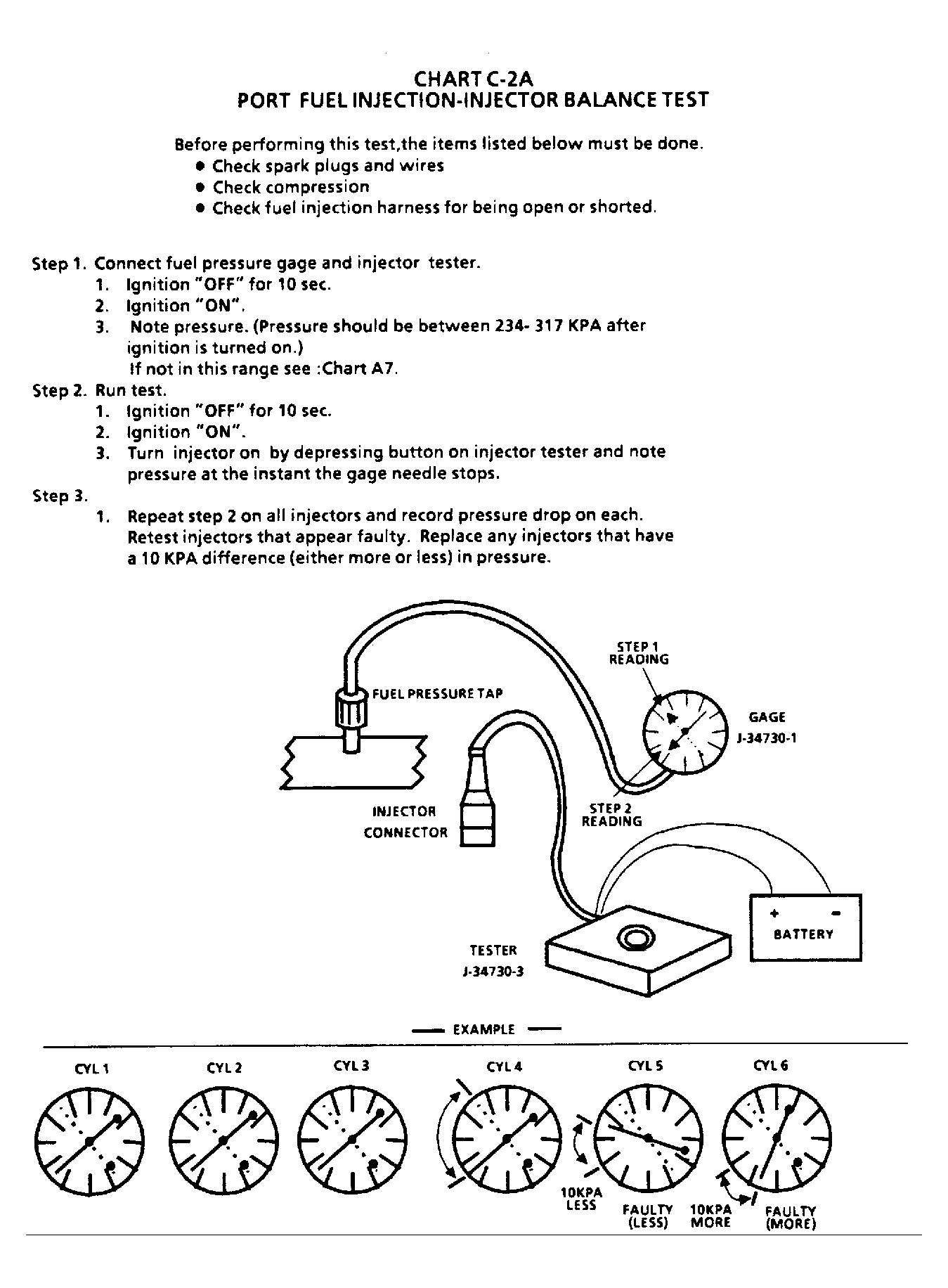

Fig 1: Chart C2A (All Engines) - Injector Balance Test
