Home › Pontiac › 1986 › 6000 STE › Repair and Diagnosis › Engine Performance › System › 2.8L Feedback Carburetor Tests W/Codes › Component Locations & Terminal Identification › Component Locations

Component Locations

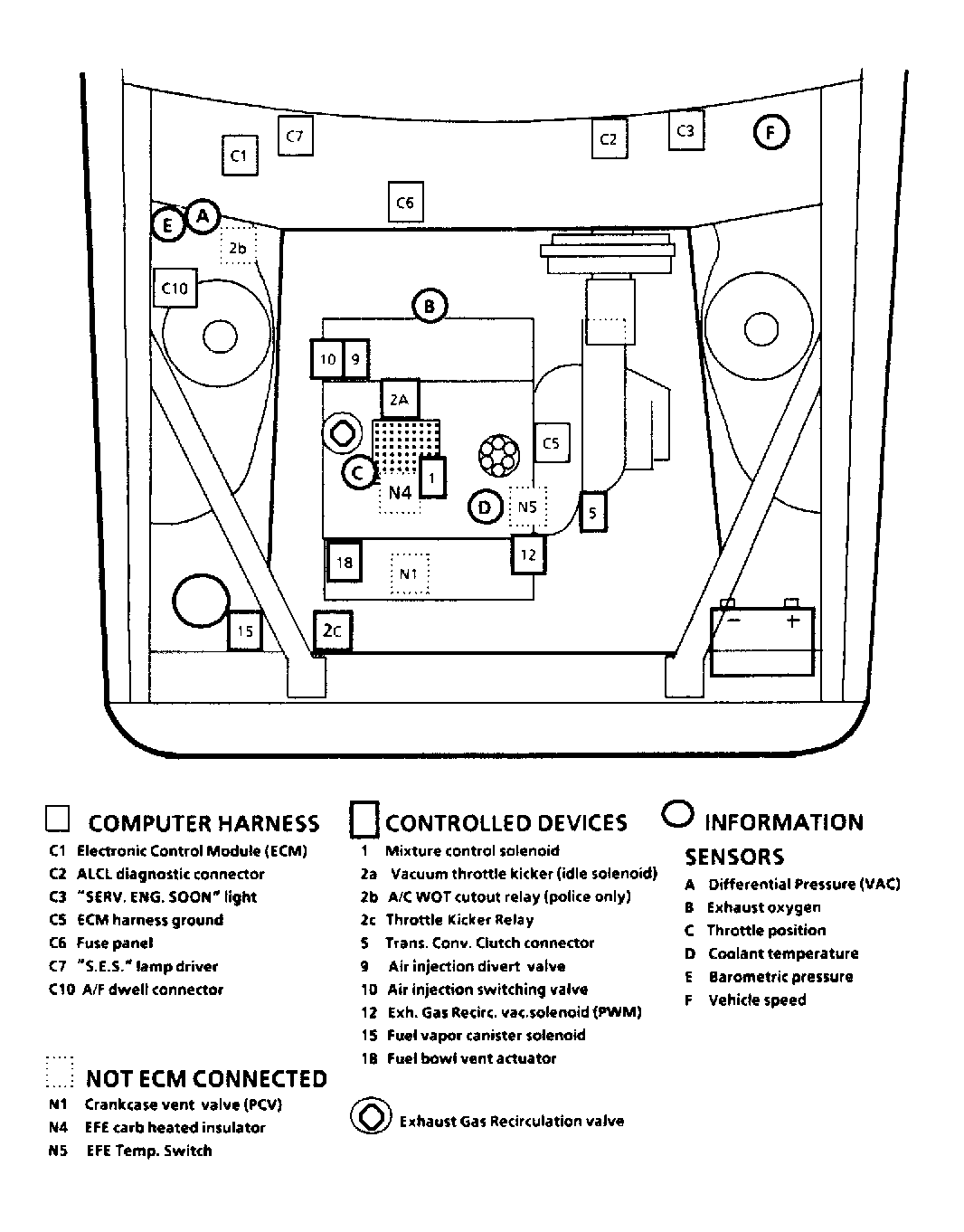

Fig 1: Component Locations "A" Body, 2.8L (VIN X)
G70628
