2.8L Feedback Carburetor Tests W/Codes
›
Component Locations & Terminal Identification
›
ECM Terminal Identification
ECM Terminal Identification

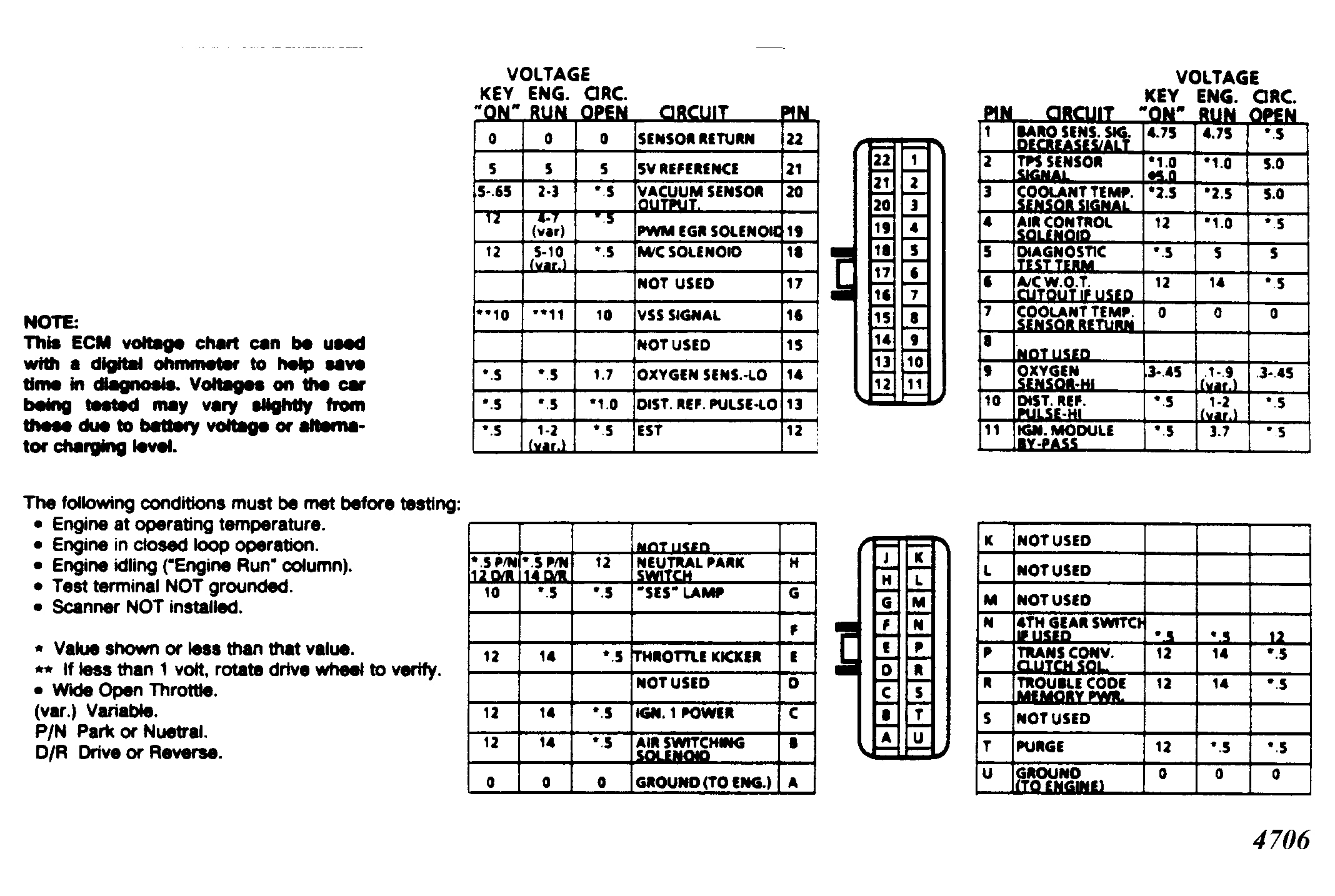

Fig 1: ECM Terminal Pin Voltages (1986 2.8L, VIN X)
