Component Locations
Component Locations
Fig 1: Component Locations (A/N Body 2.5L)

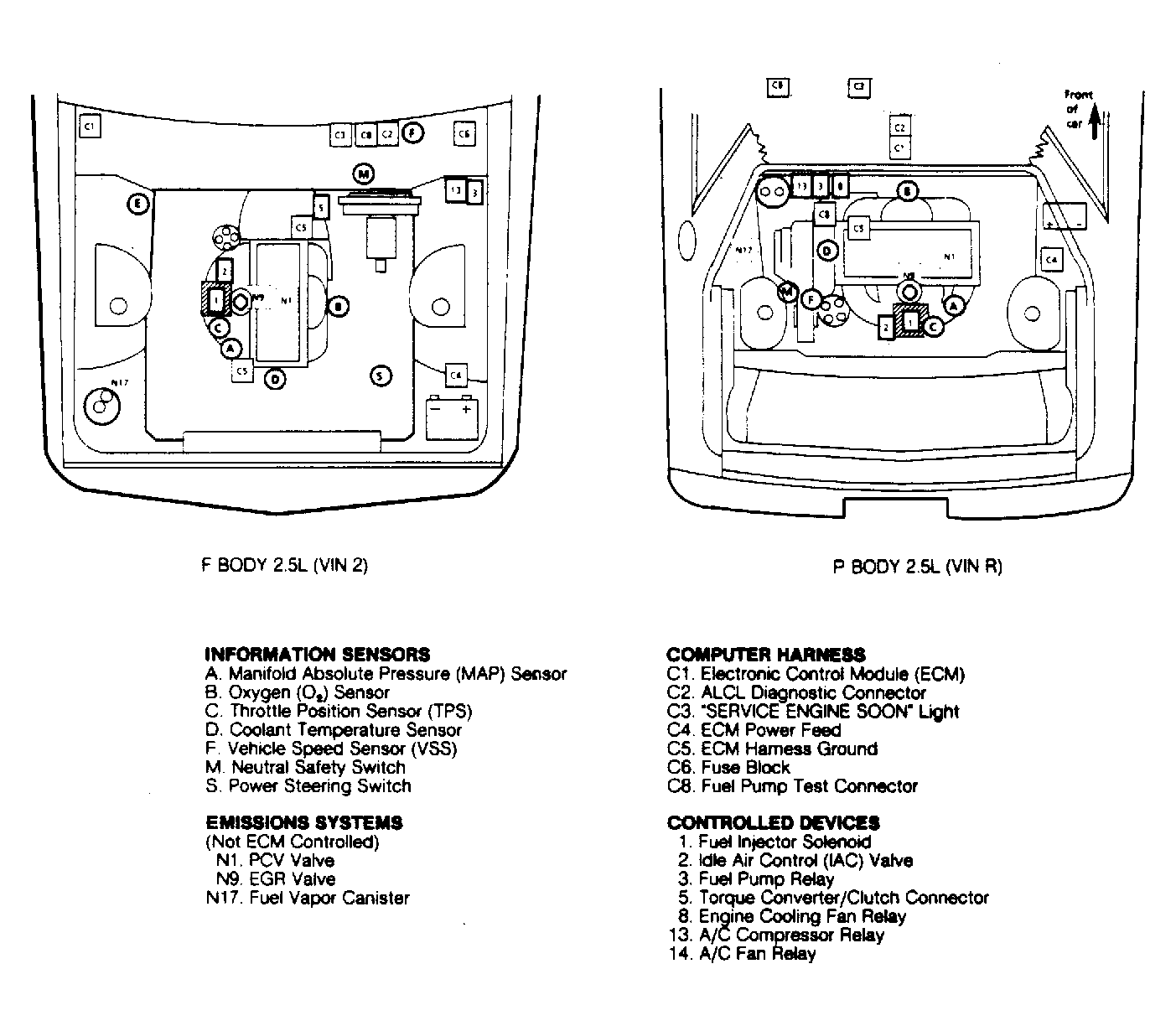

Fig 2: Component Locations (F/P Body 2.5L)
