Pontiac
›
1986
›
Fiero Base, Automatic
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Fuel Injection System - TBI
›
Wiring Diagrams
Wiring Diagrams

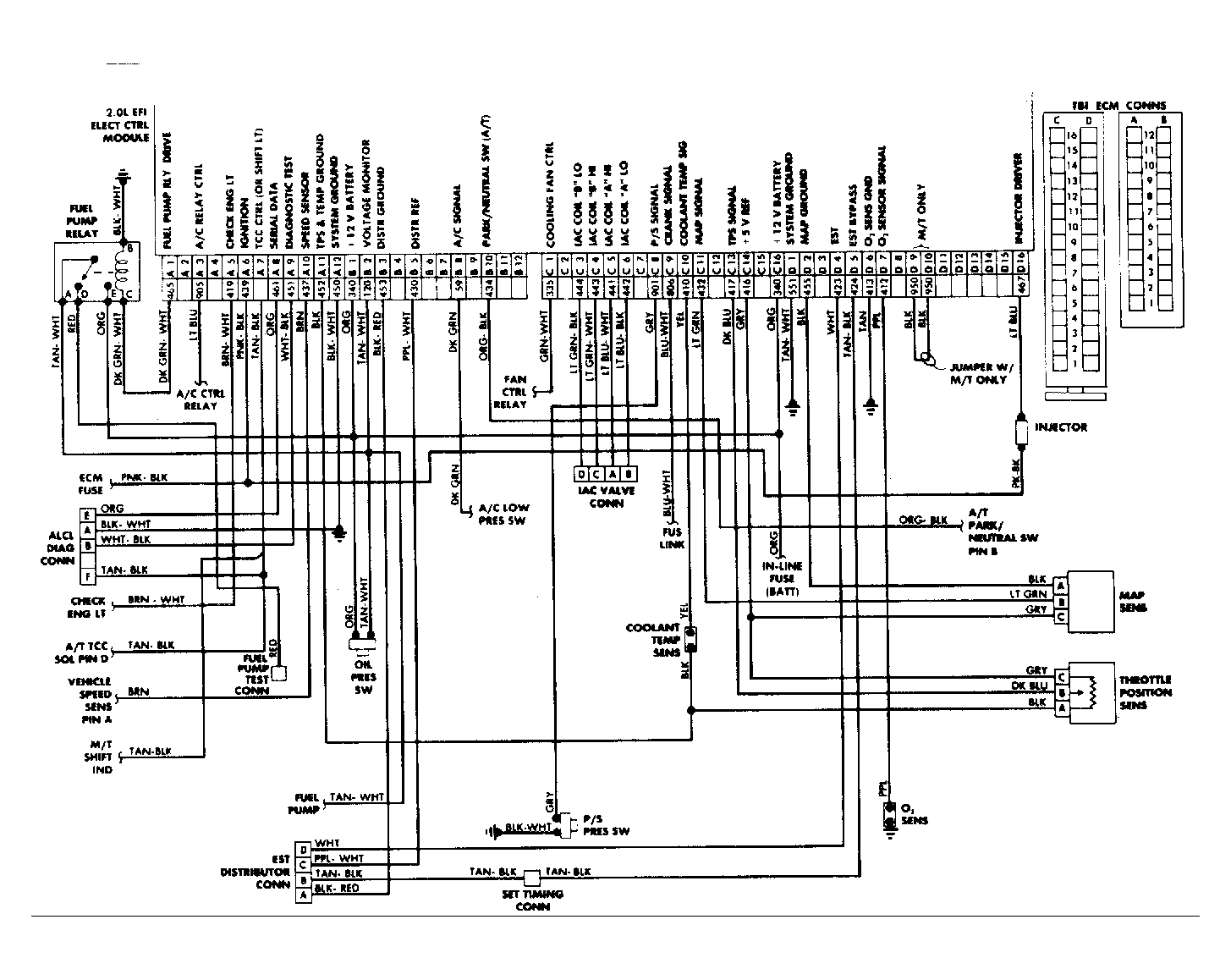

Fig 1: 1.8L & 2.5L Throttle Body Fuel Injection Wiring Diagram
Fig 2: 2.0L Throttle Body Fuel Injection Wiring Diagram

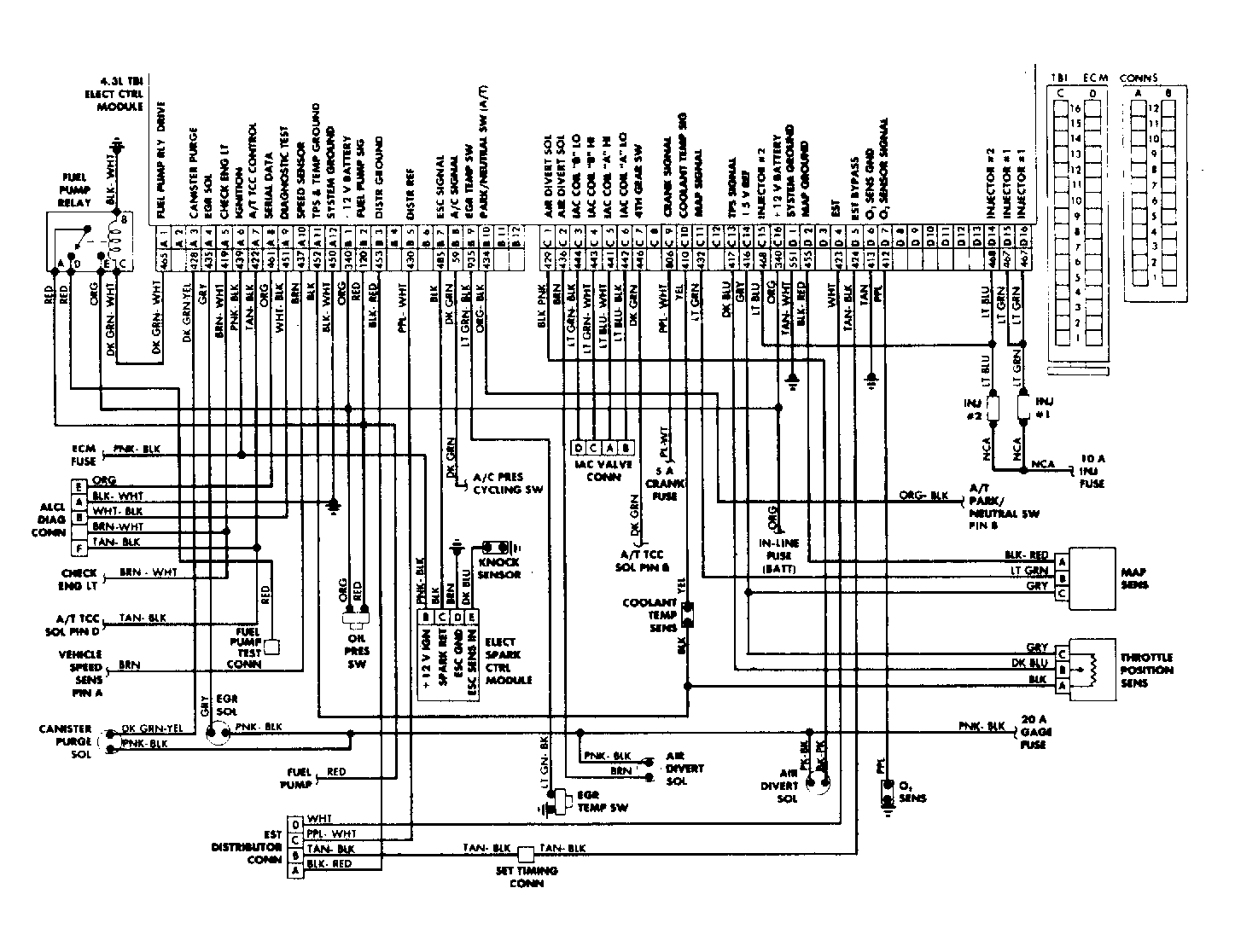

Fig 3: 4.3L Throttle Body Fuel Injection Wiring Diagram
