Home › Pontiac › 1987 › Firebird Formula, 5.0 F › Repair and Diagnosis › Engine Performance › System › 1987-88 Computerized Engine Controls › Component Locations

Component Locations

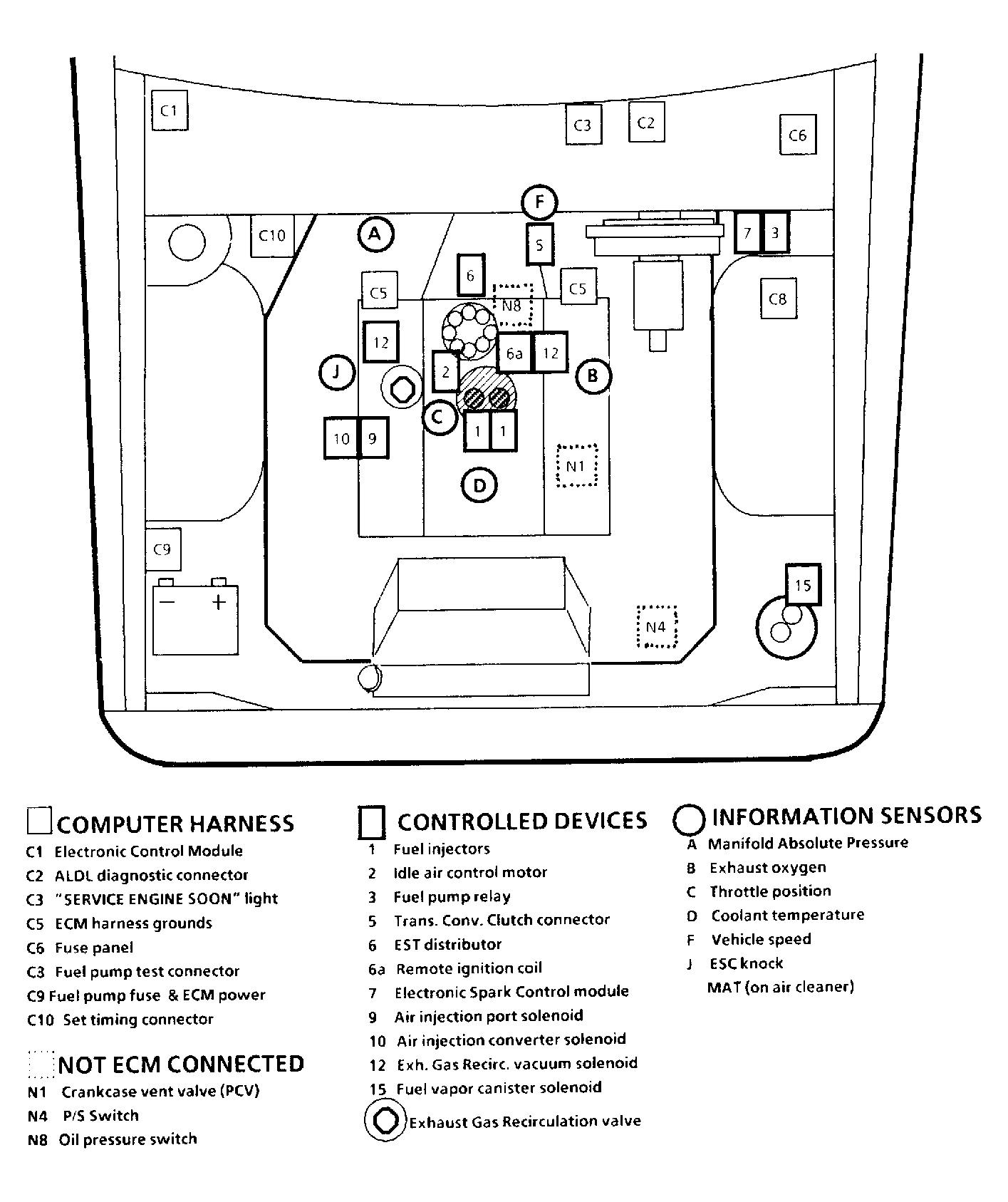

Fig 1: 5.0L TBI Component Locations ("F" Body)
G49145
