1987-88 Computerized Engine Controls
›
Wiring Diagrams
Wiring Diagrams

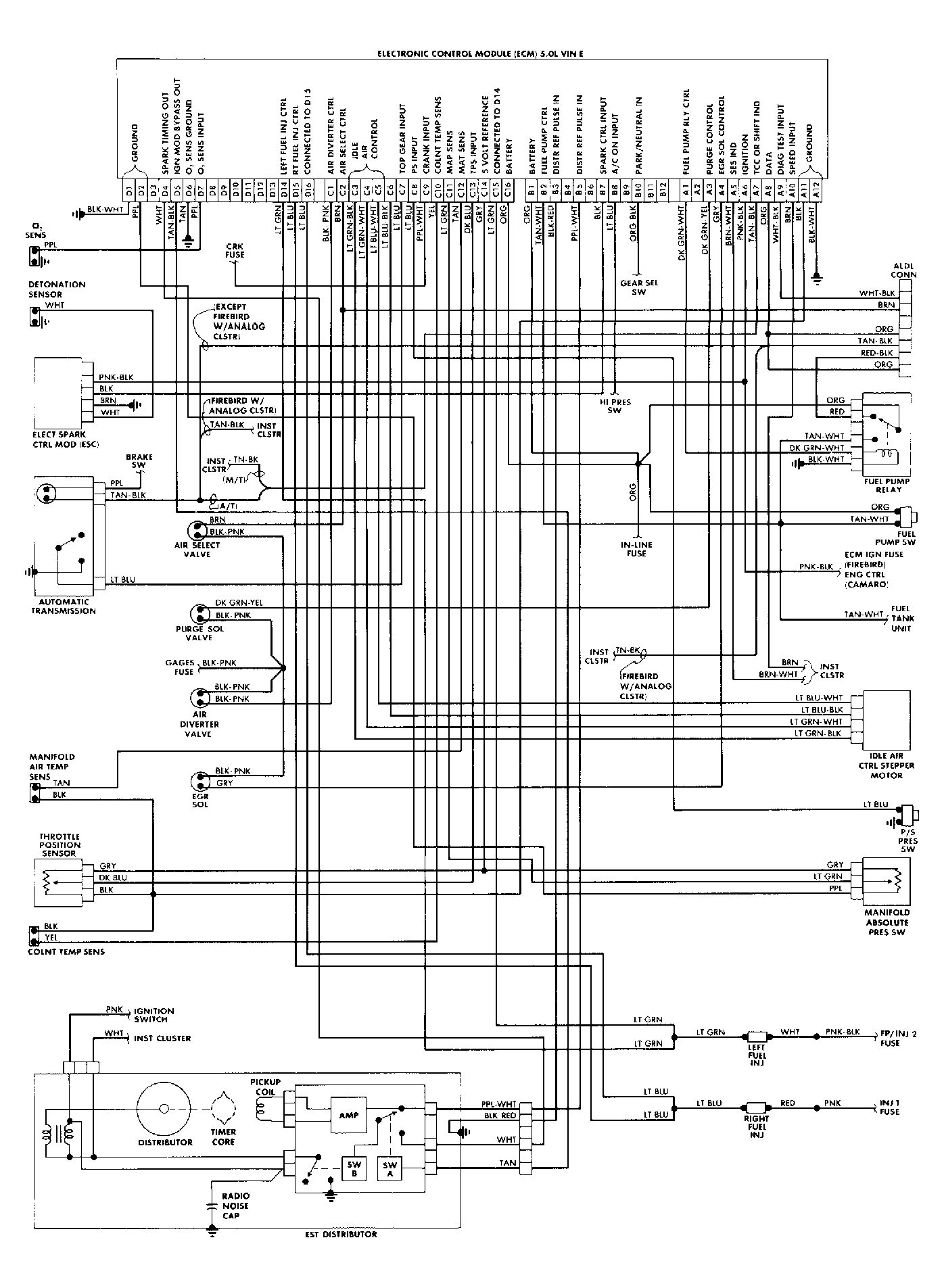

Fig 1: 5.0L TBI CCC Wiring Diagram (1988 "F" Body)
