Wiring Diagrams
Wiring Diagrams

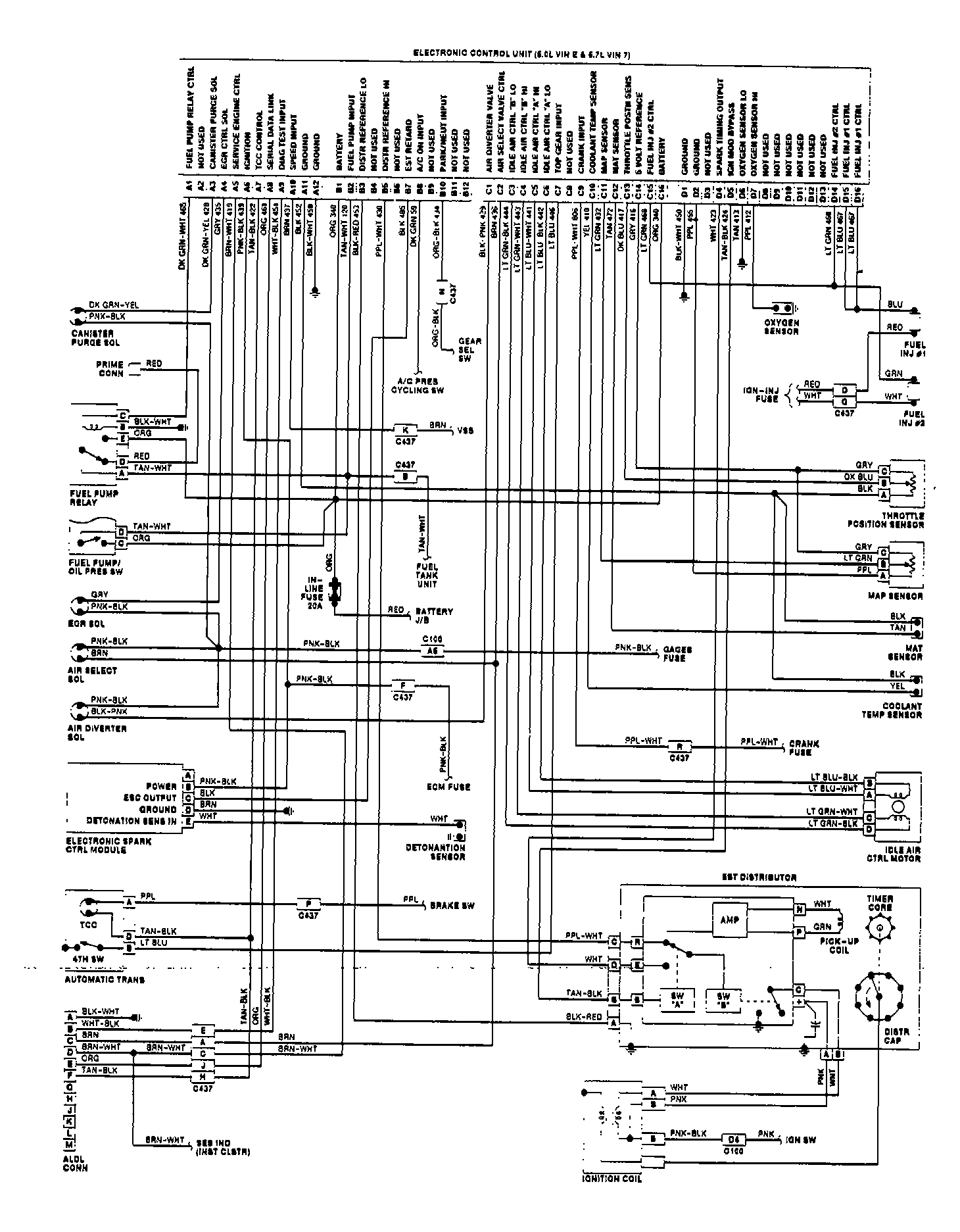

Fig 1: CCC Wiring Diagram (5.0L VIN E & 5.7L VIN 7, "B" Body)

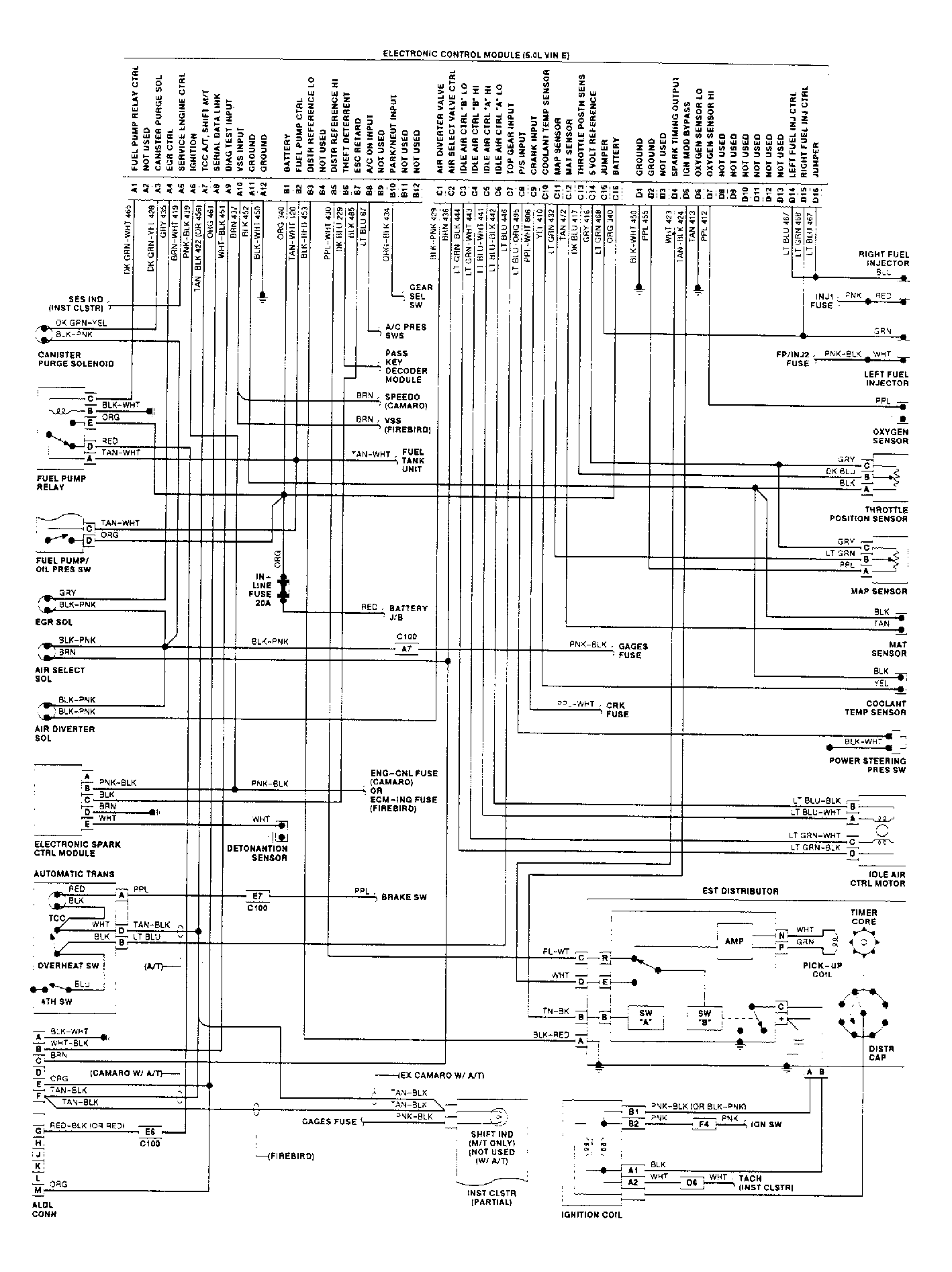

Fig 2: CCC Wiring Diagram (5.0L VIN E, "F" Body)
