Mat Resistance: Notes

MAT SENSOR RESISTANCE SPECIFICATIONS

Temperature °F (°C)	Ohms
210 (99)	185
160 (71)	450
100 (38)	1800
70 (21)	3400
40 (4)	7500
20 (-7)	13,500
0 (-18)	25,000
-40 (-40)	100,700

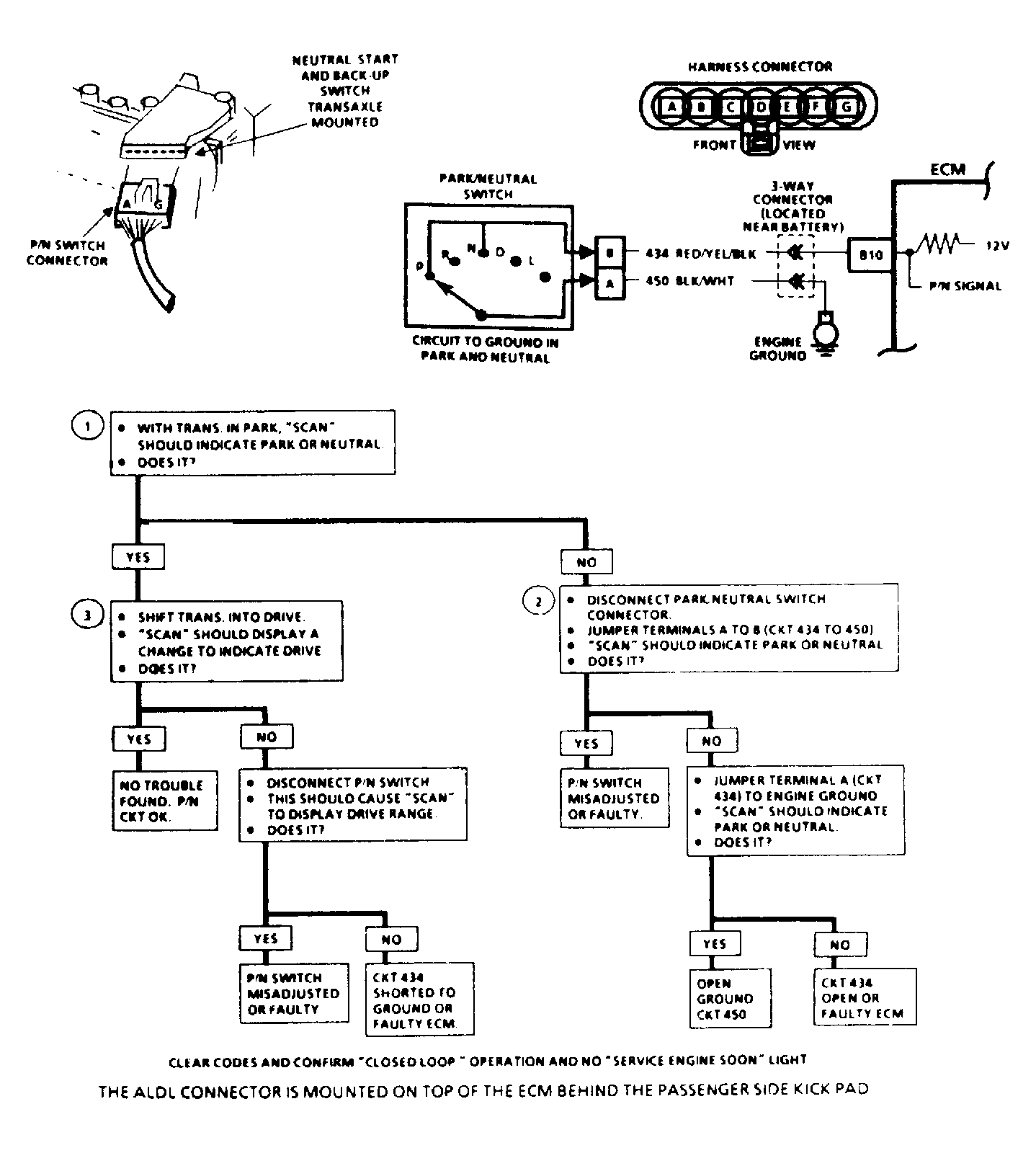

Fig 1: P/N Switch Circuits

G121783

Courtesy of GENERAL MOTORS CORP.
