Idle Air Control Valve (IACV)

Use circuit wiring diagram and diagnostic flow chart (C-2C) to diagnose and service IACV. See Fig 1 . For additional fuel system testing, see BASIC TESTING article.

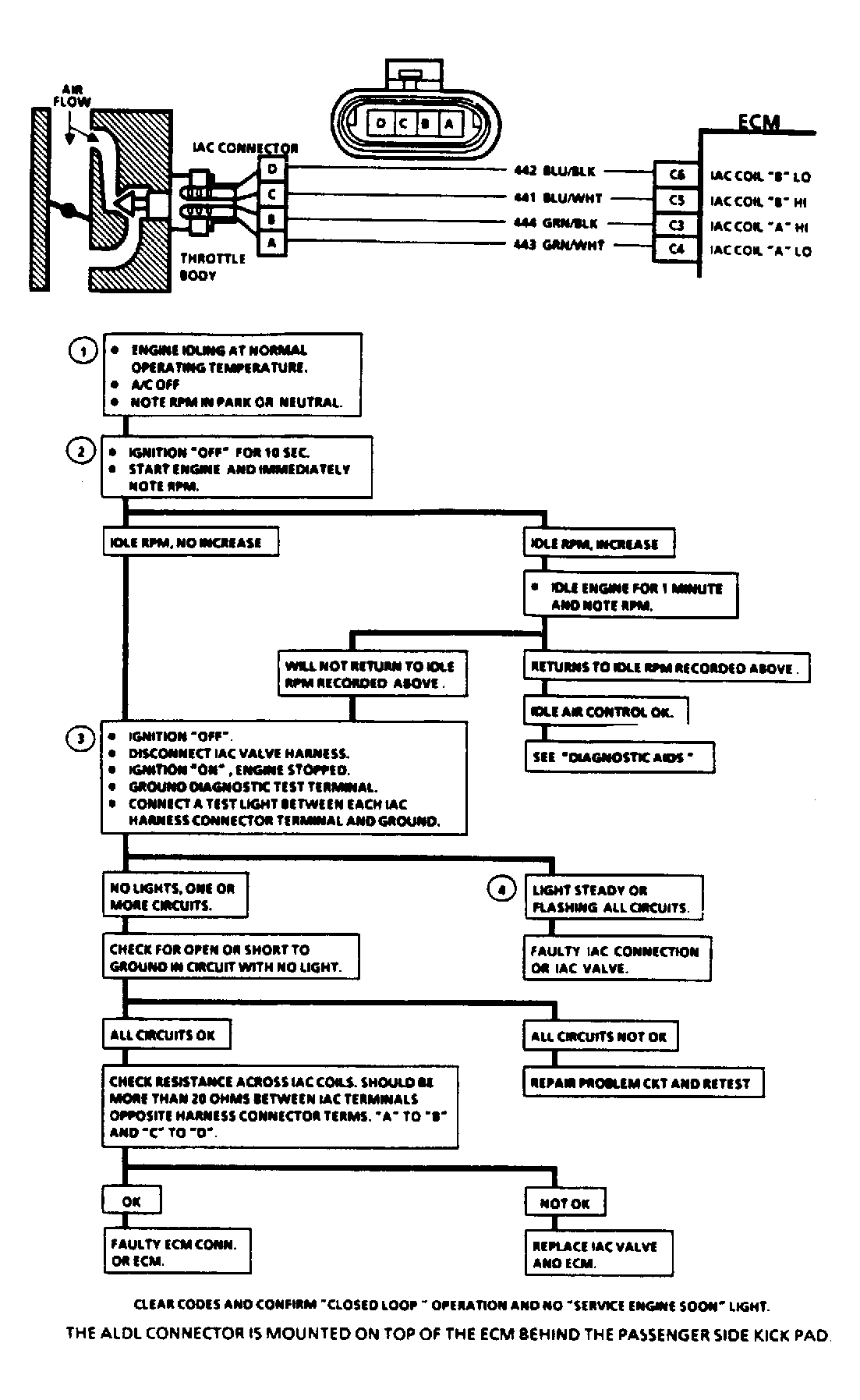

Fig 1: Chart C-2C, Circuit Wiring Diagram & Flow Chart

Courtesy of GENERAL MOTORS CORP.
