Shift Light (Manual Transmissions)

Use circuit wiring diagram and diagnostic flow chart (C-8B) to diagnose shift light on manual transmission vehicles. See Fig 1 .

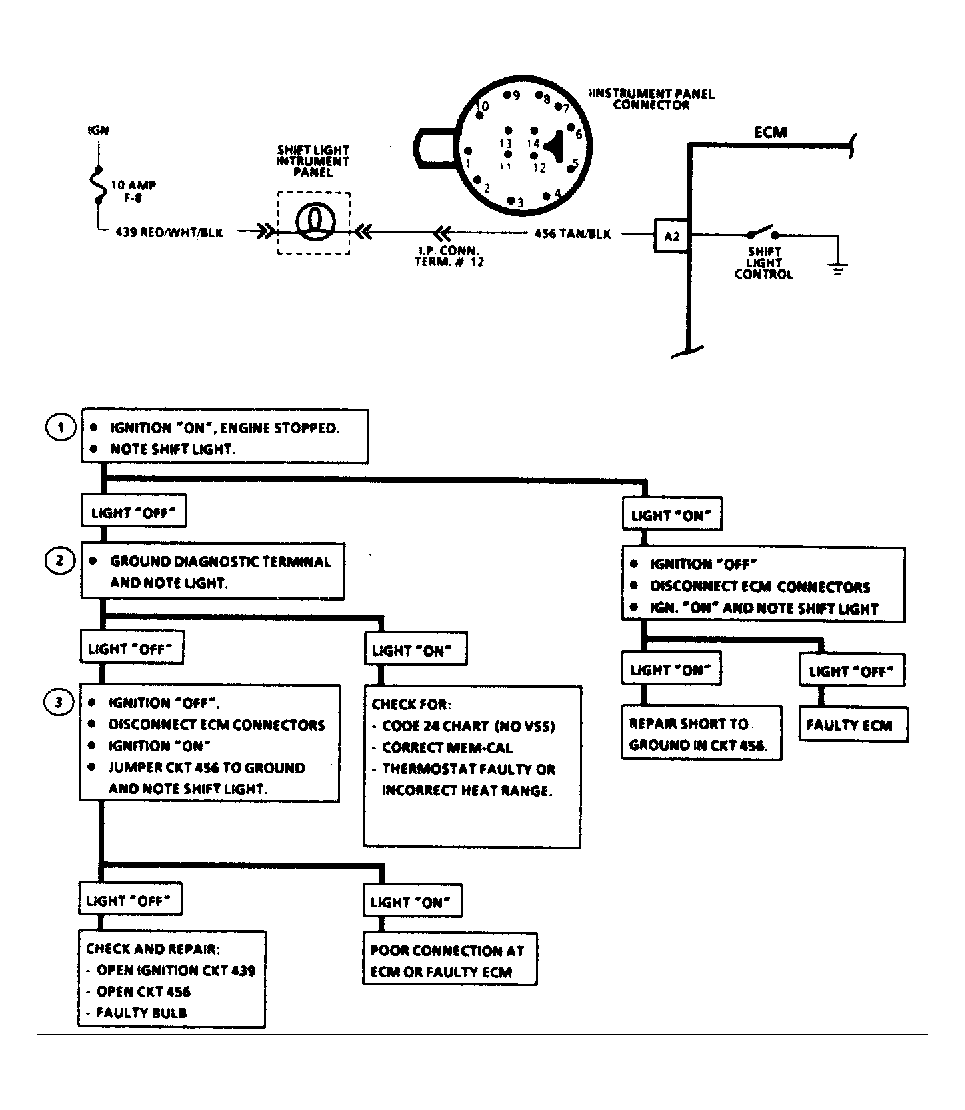

Fig 1: Shift Light Diagnostic Flow Chart (C-8B)

Courtesy of GENERAL MOTORS CORP.
