Diagnostic Aids

The Scan tester cannot help diagnose Code 42 problems. If Code 42 is intermittent, see INTERMITTENTS in TROUBLE SHOOTING - NO CODES article.

Fig 1: Circuit Diagram Code 42

Courtesy of GENERAL MOTORS CORP.

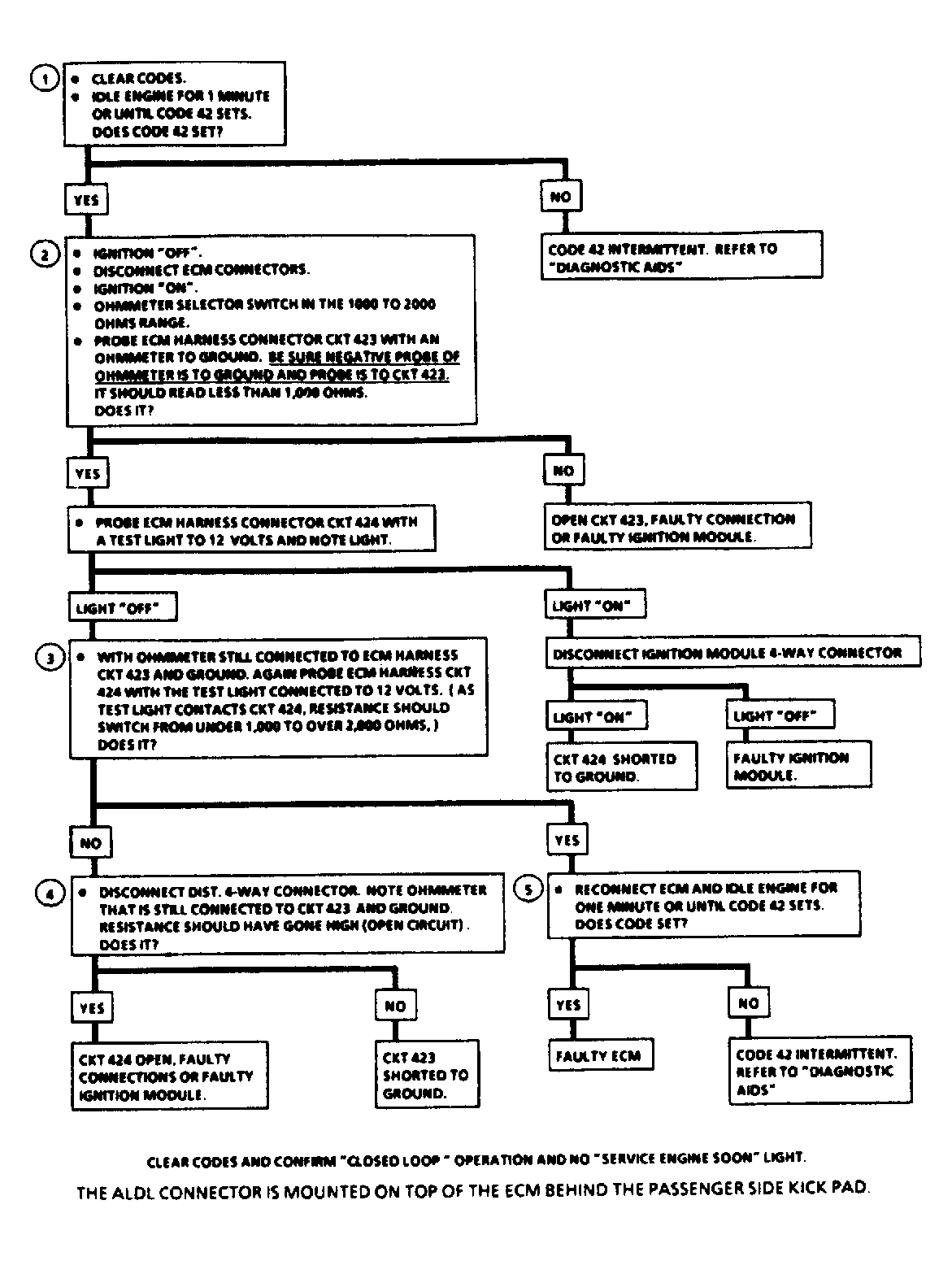

Fig 2: Flow Chart Code 42

Courtesy of GENERAL MOTORS CORP.
