Home › Pontiac › 1990 › LeMans Base › Repair and Diagnosis › Engine Performance › Wiring Diagrams › Wiring Diagram

Wiring Diagrams: Wiring Diagram

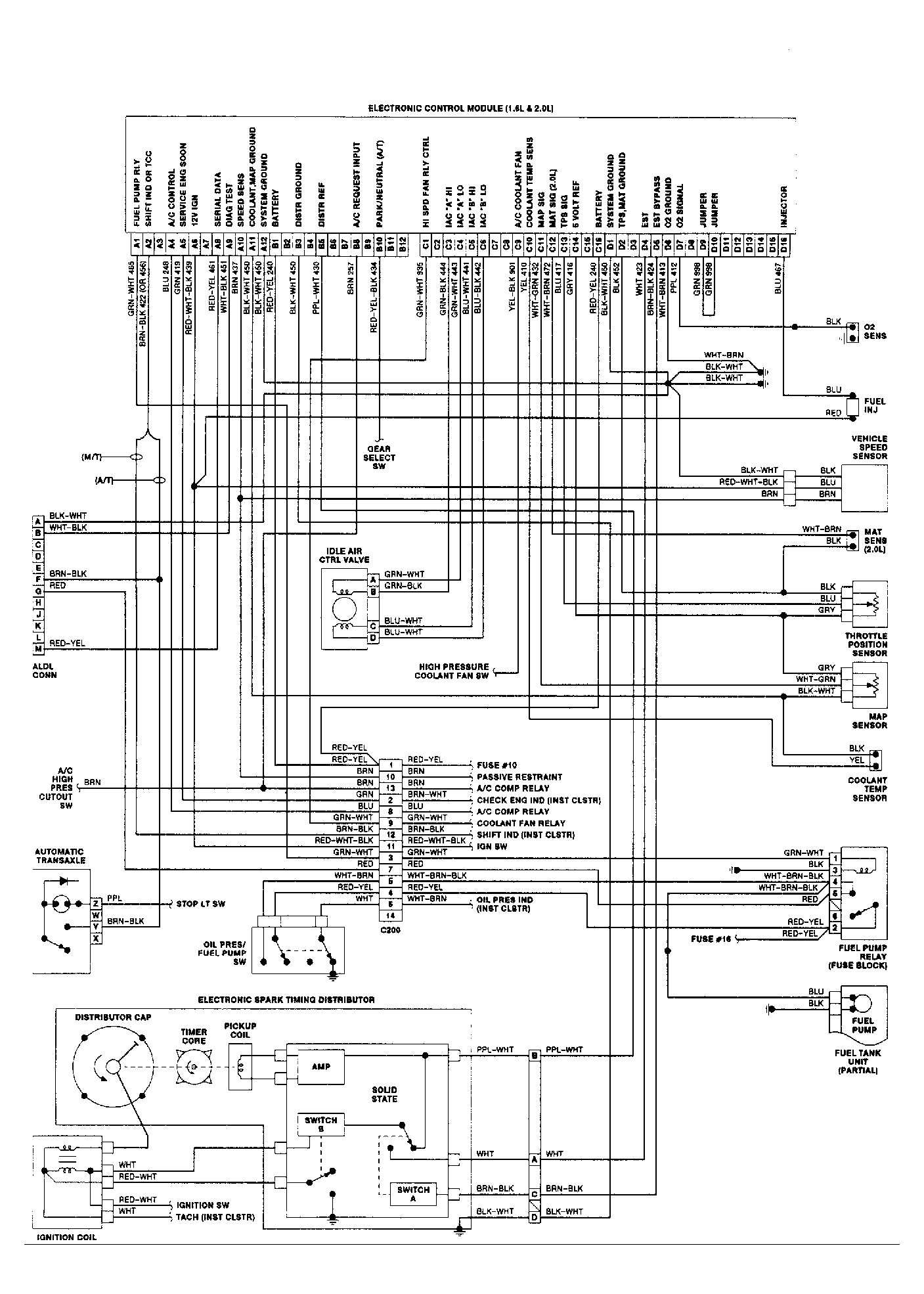

Fig 1: LeMans 1.6L & 2.0L Wiring Diagram
G90G21705
