TECHNICAL SERVICE BULLETIN

Reference Number(s): 90-8-25, Date of Issue: July 17, 1990

SMU SECTION 8A - MID-YEAR VEHICLE DESIGN CHANGE

Model(s): 1990 Pontiac LeMans

Bulletin No.: 90-8-25

Date: July 17, 1990

FIGURES

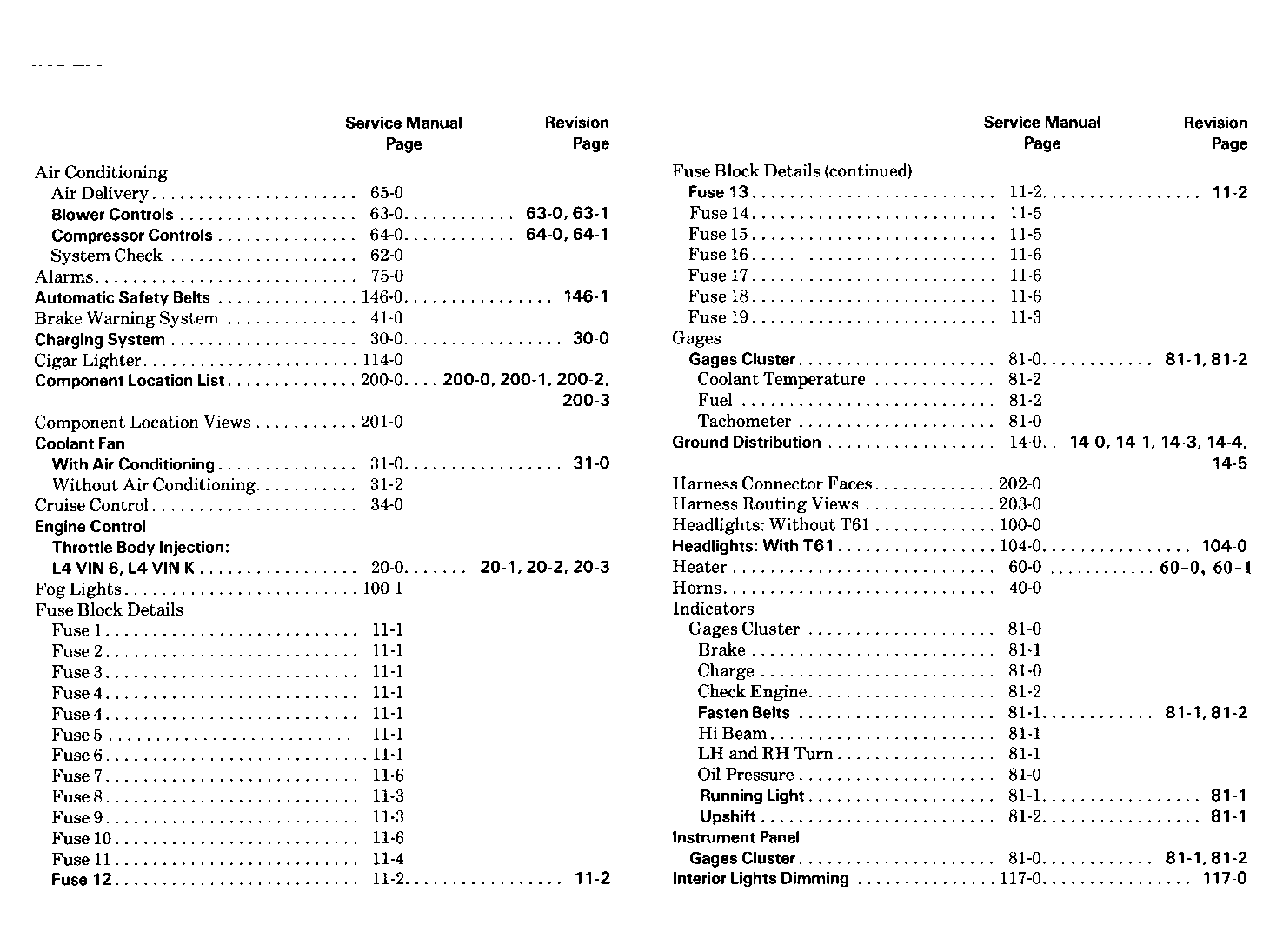

Fig 1: Revision Page - Information

GE00W007101

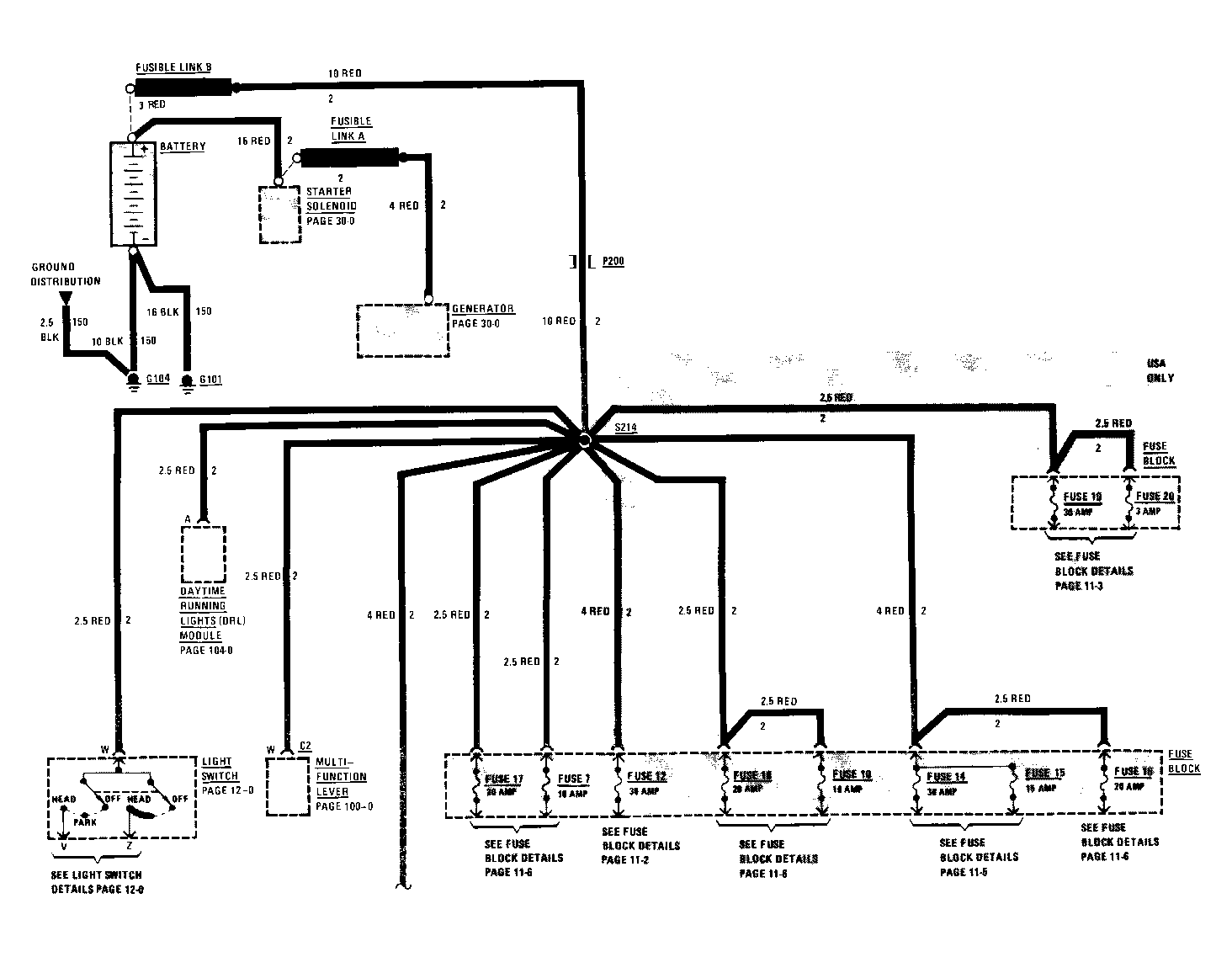

Fig 2: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (1 Of 25)

GE01W007101

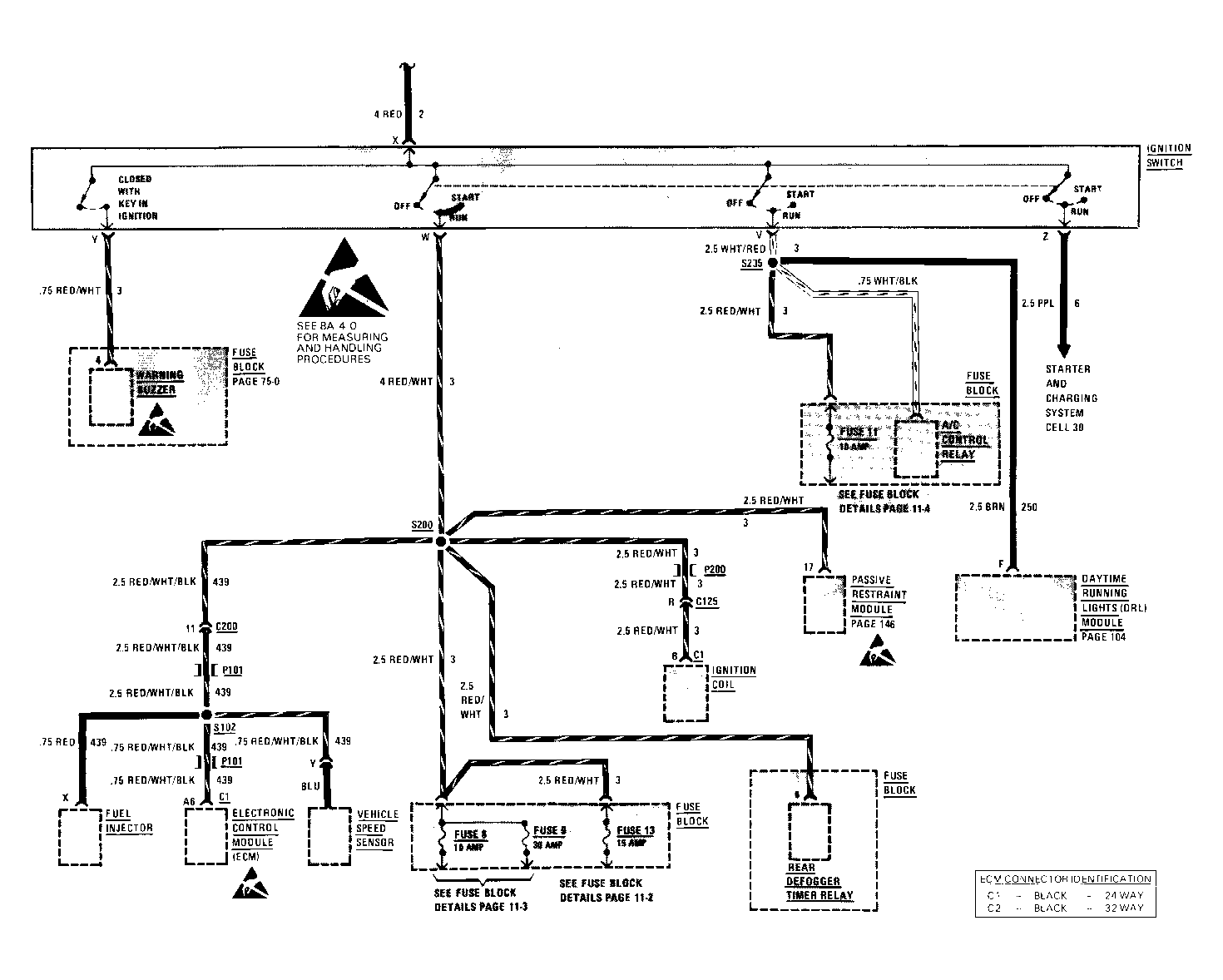

Fig 3: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (2 Of 25)

GE02W007101

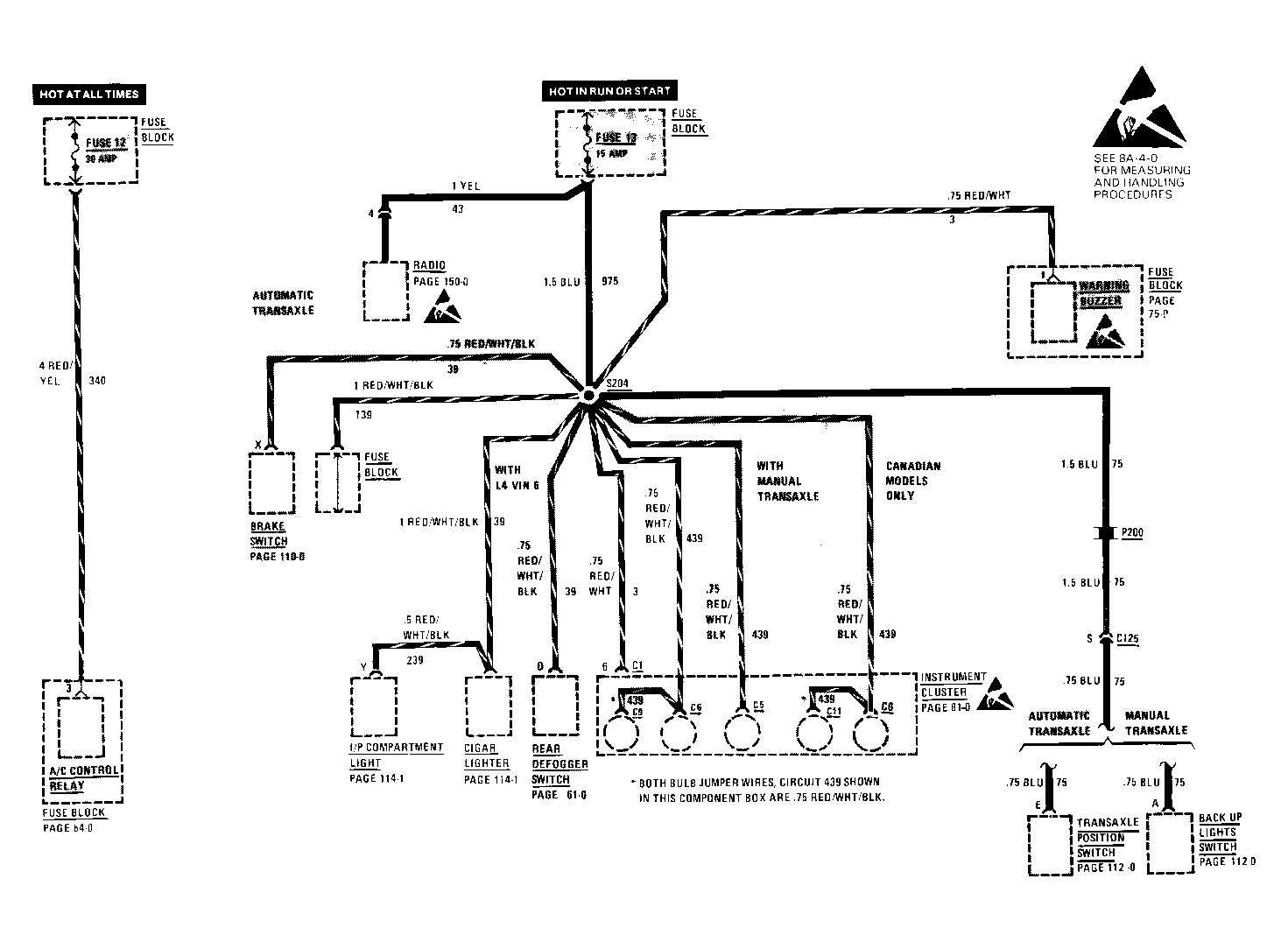

Fig 4: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (3 Of 25)

GE03W007101

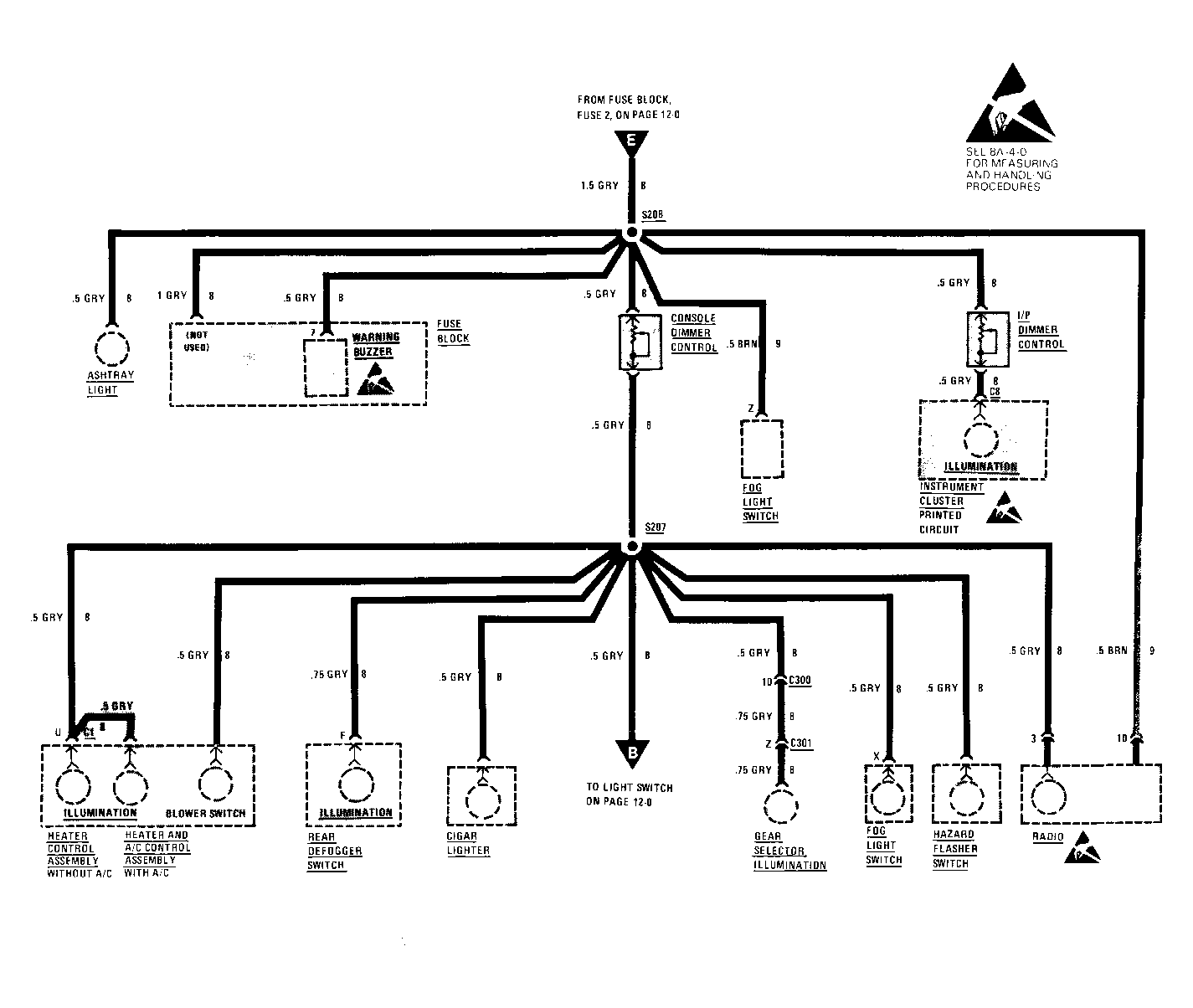

Fig 5: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (4 Of 25)

GE04W007101

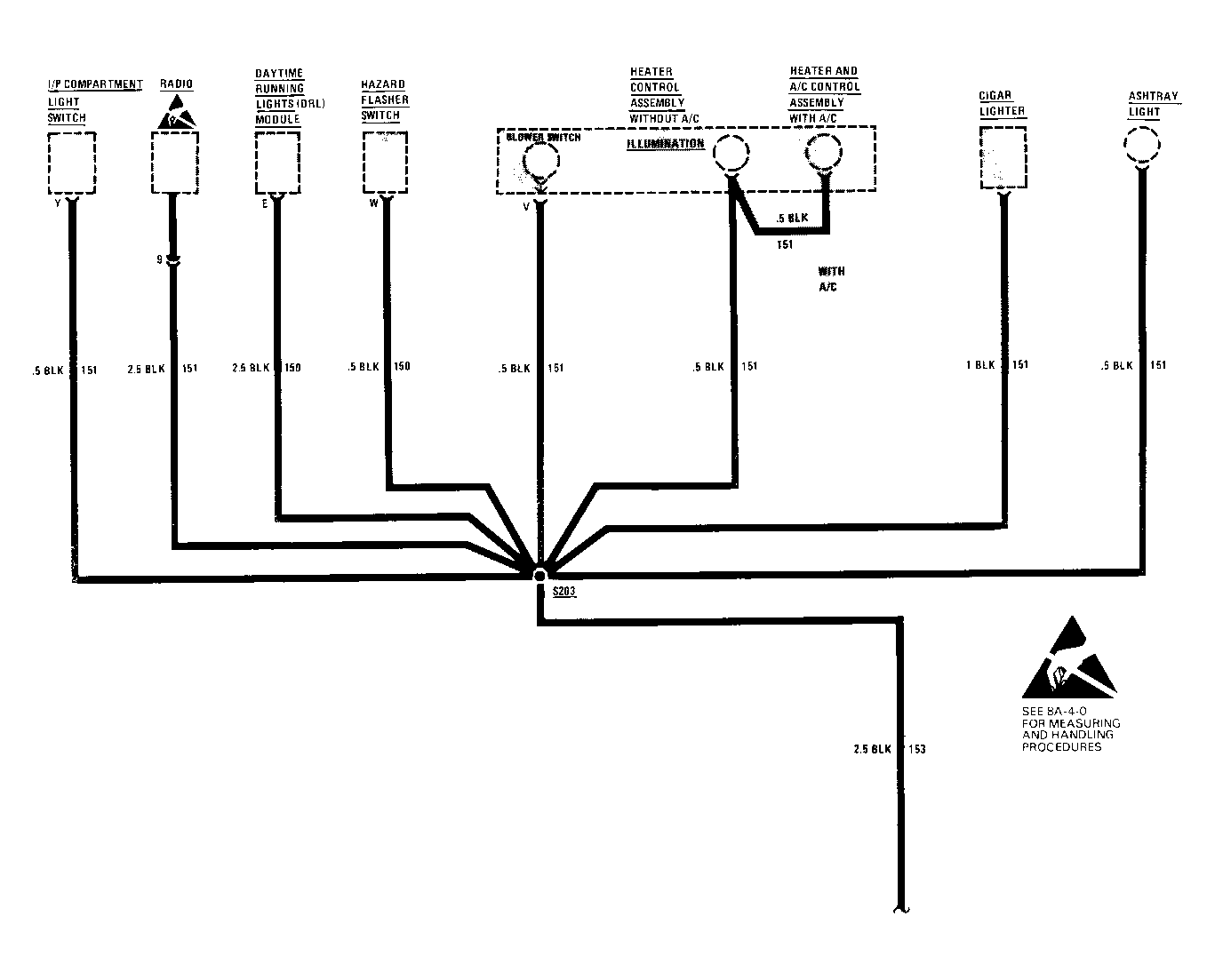

Fig 6: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (5 Of 25)

GE05W007101

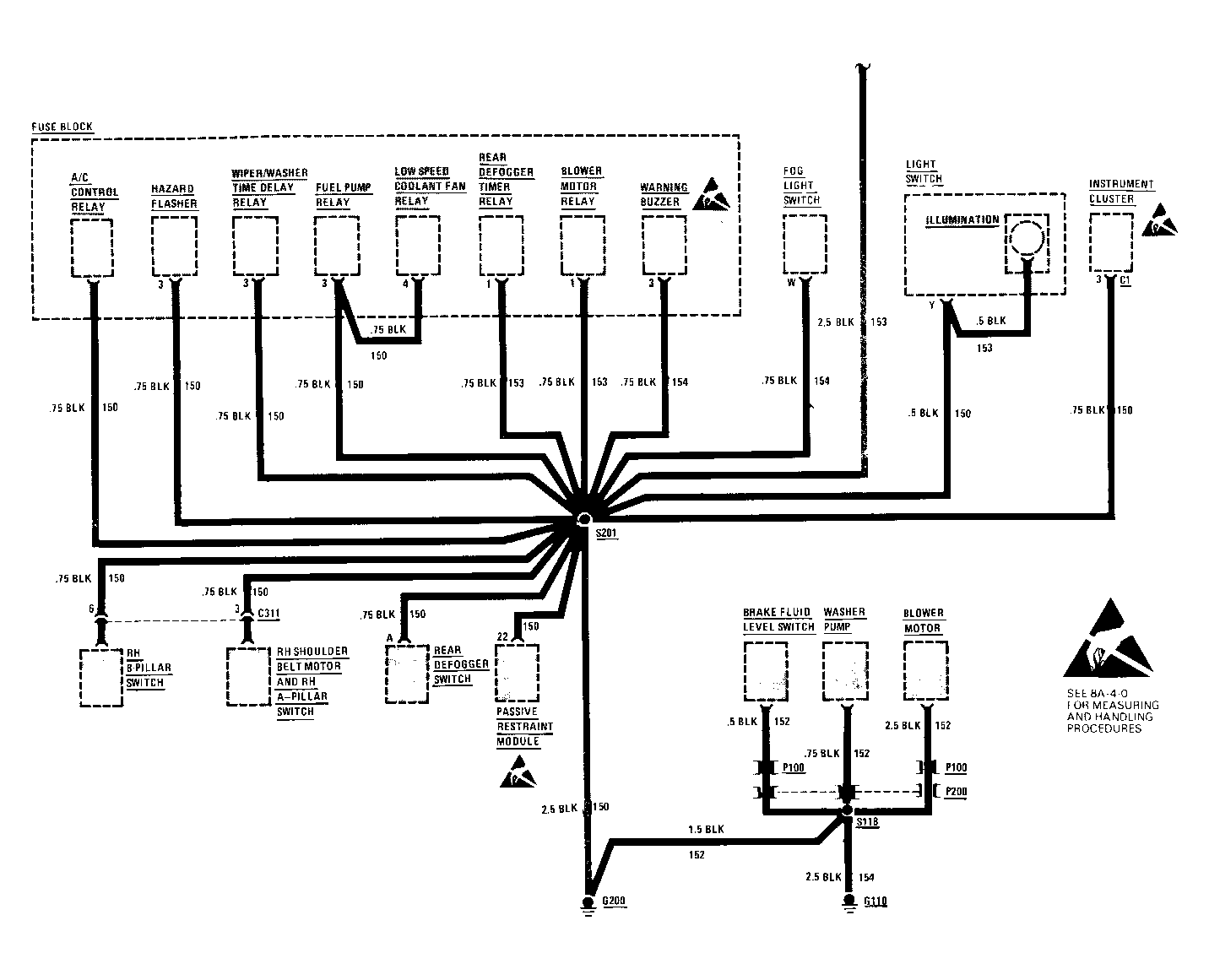

Fig 7: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (6 Of 25)

GE06W007101

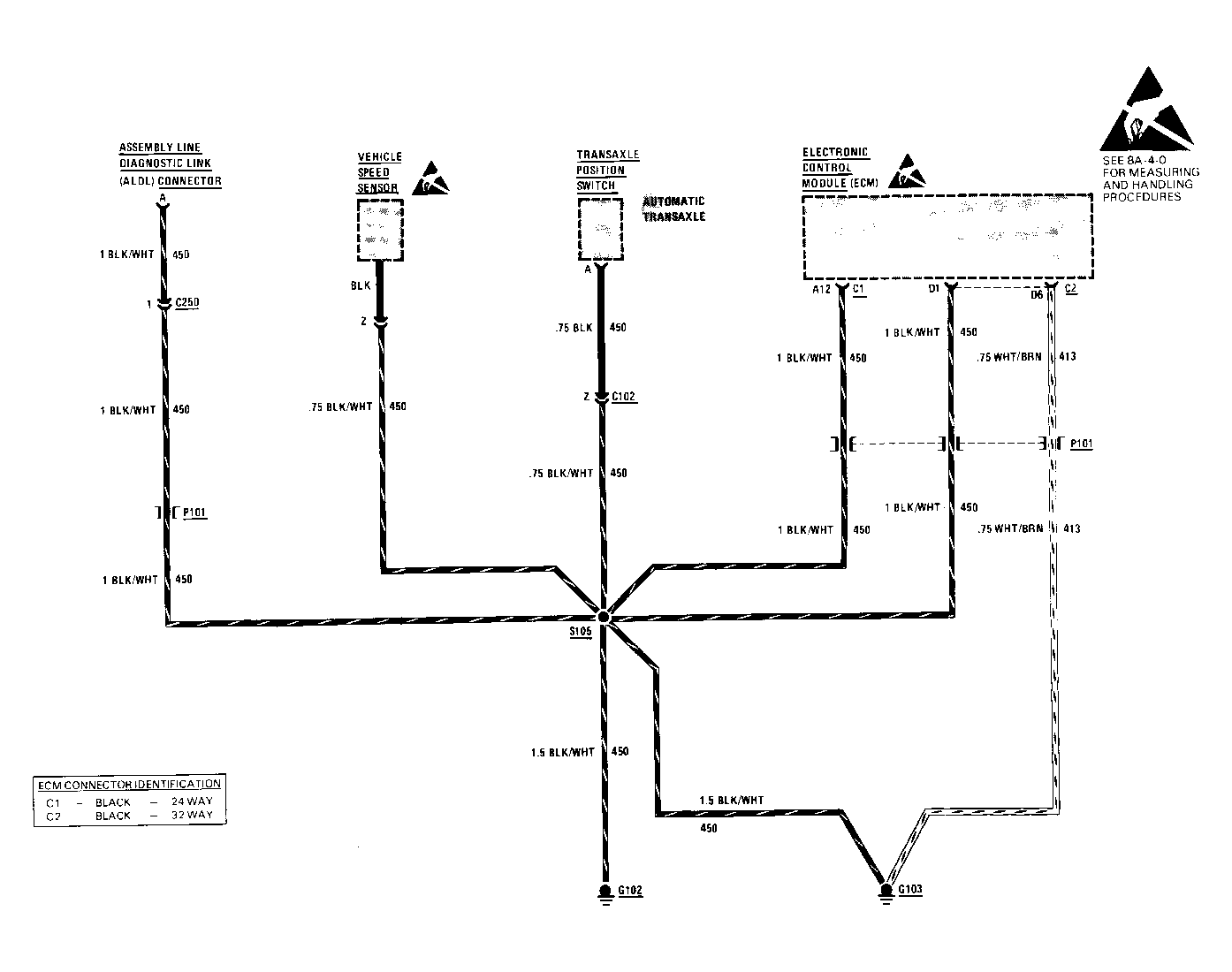

Fig 8: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (7 Of 25)

GE07W007101

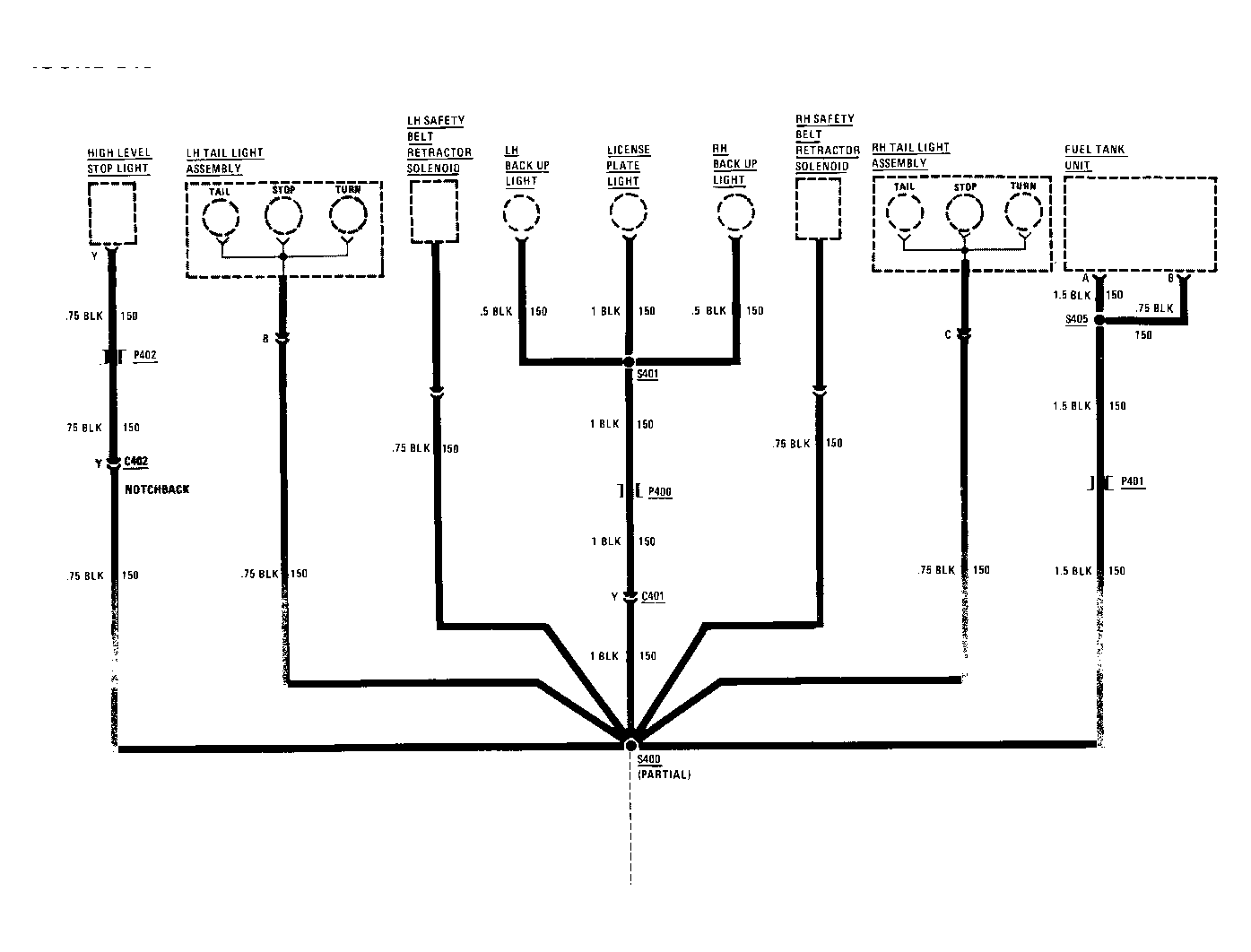

Fig 9: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (8 Of 25)

GE08W007101

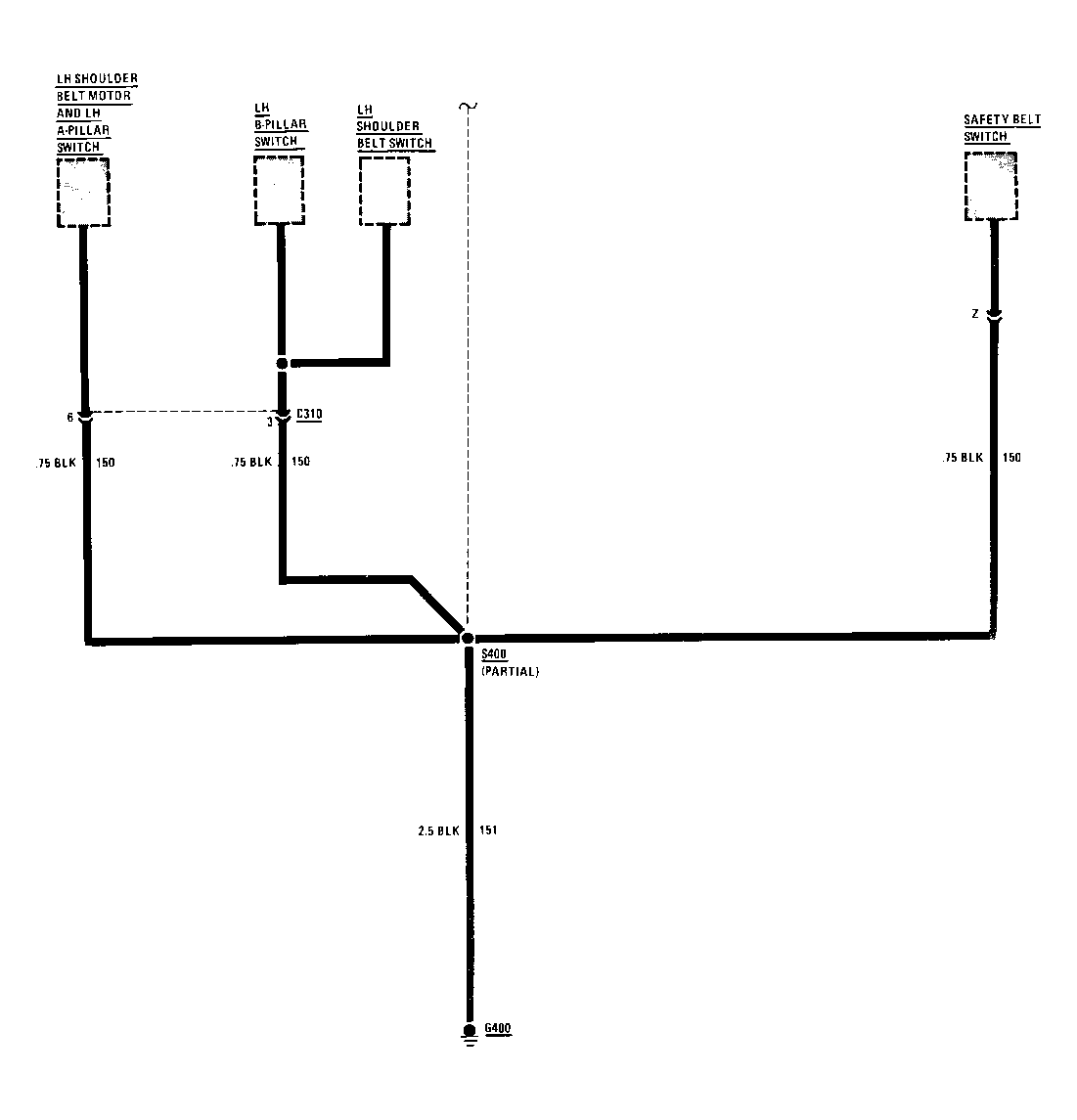

Fig 10: 1990 Pontiac LeMans Mid-Year Vehicle Design Change (9 Of 25)

GE09W007101

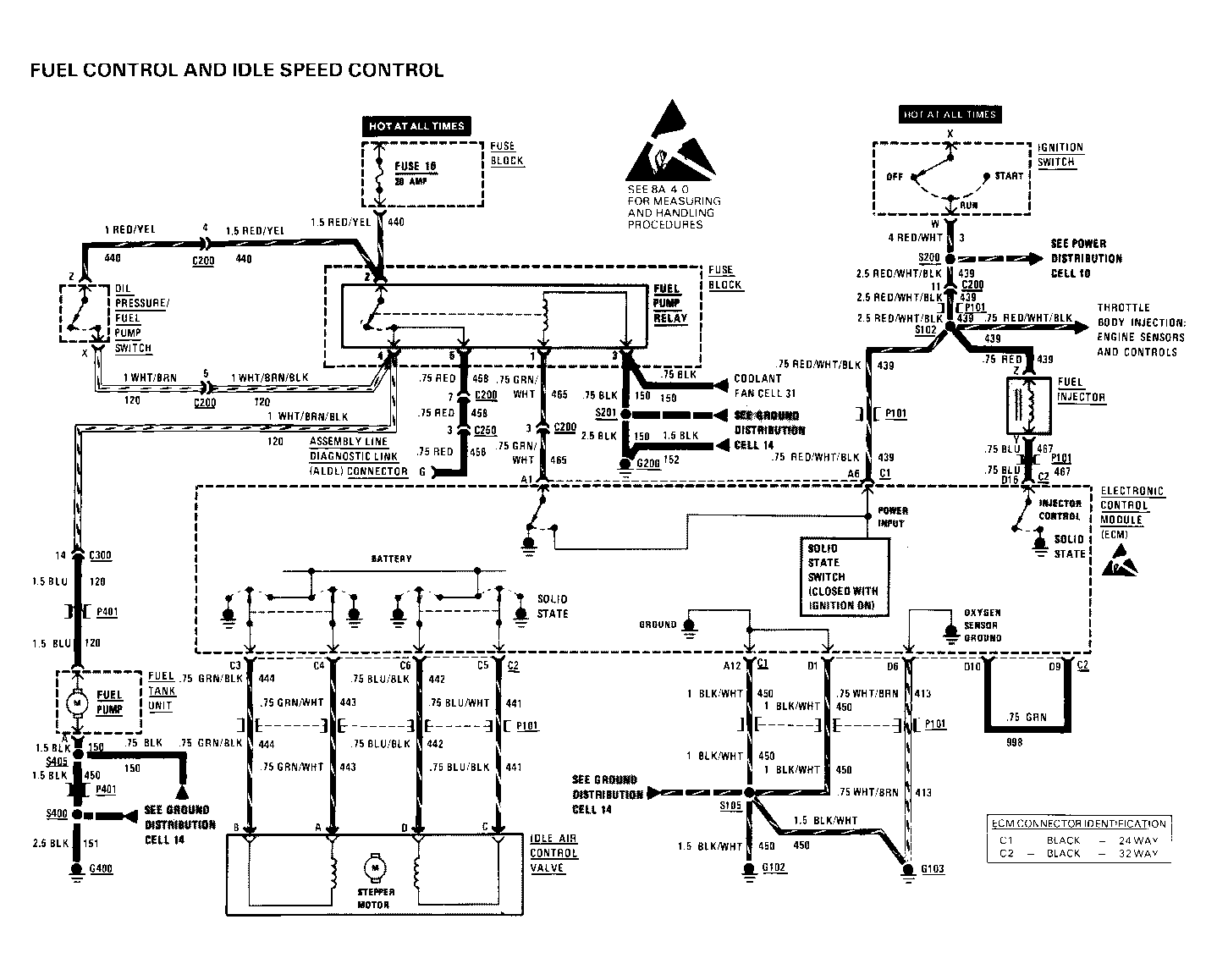

Fig 11: 1990 Pontiac LeMans Mid-Year Veh Design Change (10 Of 25)

GE10W007101

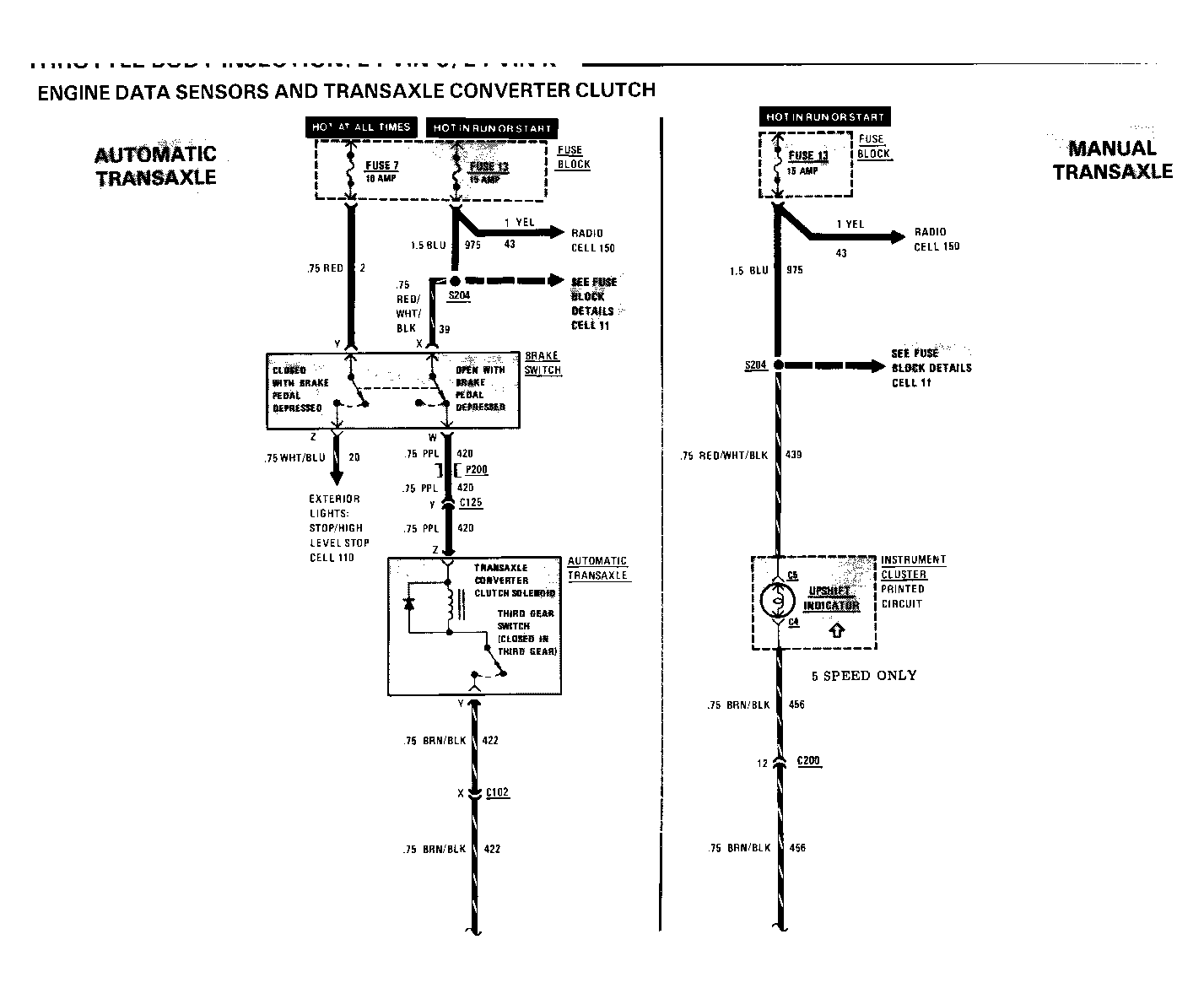

Fig 12: 1990 Pontiac LeMans Mid-Year Veh Design Change (11 Of 25)

GE11W007101

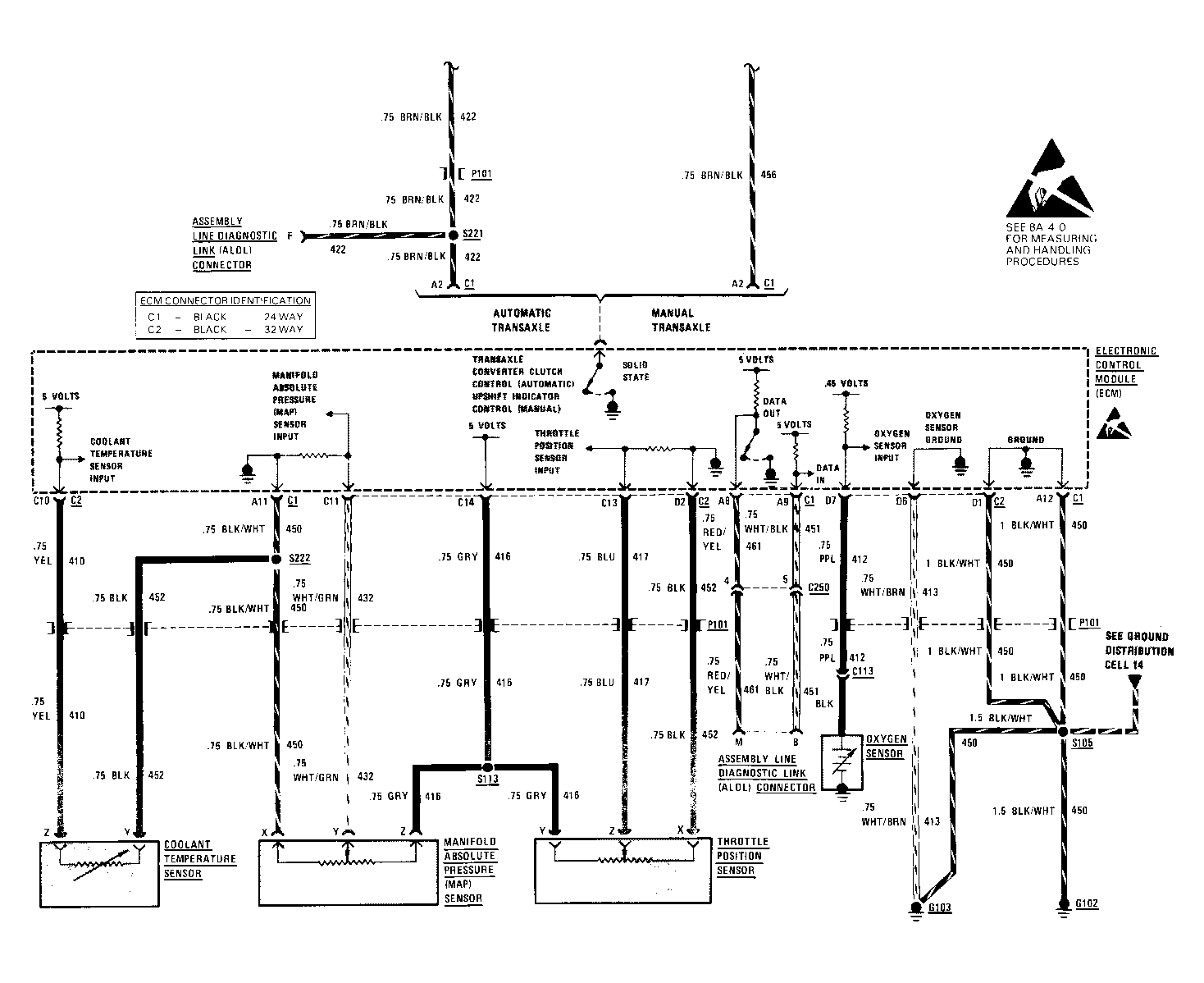

Fig 13: 1990 Pontiac LeMans Mid-Year Veh Design Change (12 Of 25)

GE12W007101

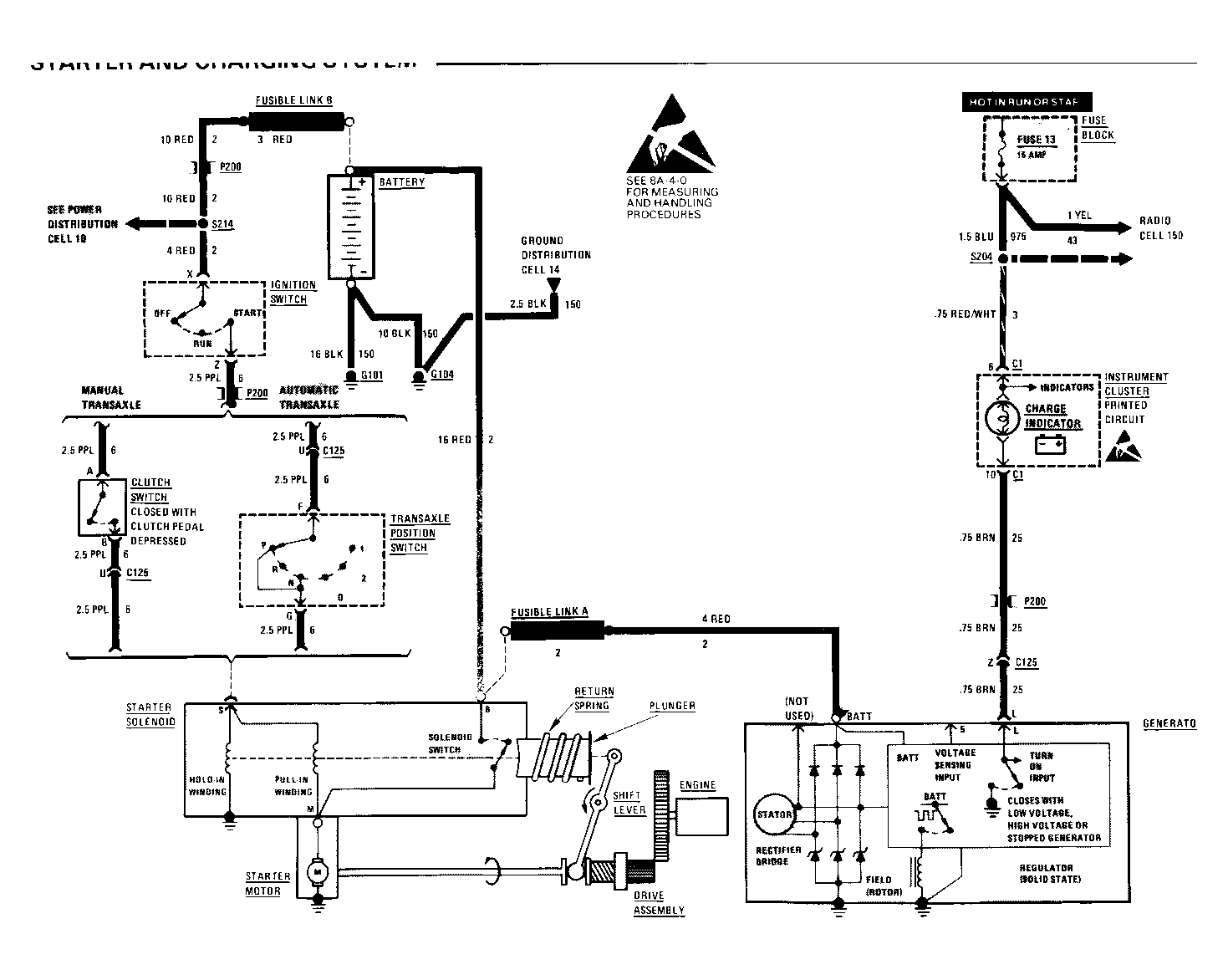

Fig 14: 1990 Pontiac LeMans Mid-Year Veh Design Change (13 Of 25)

GE13W007101

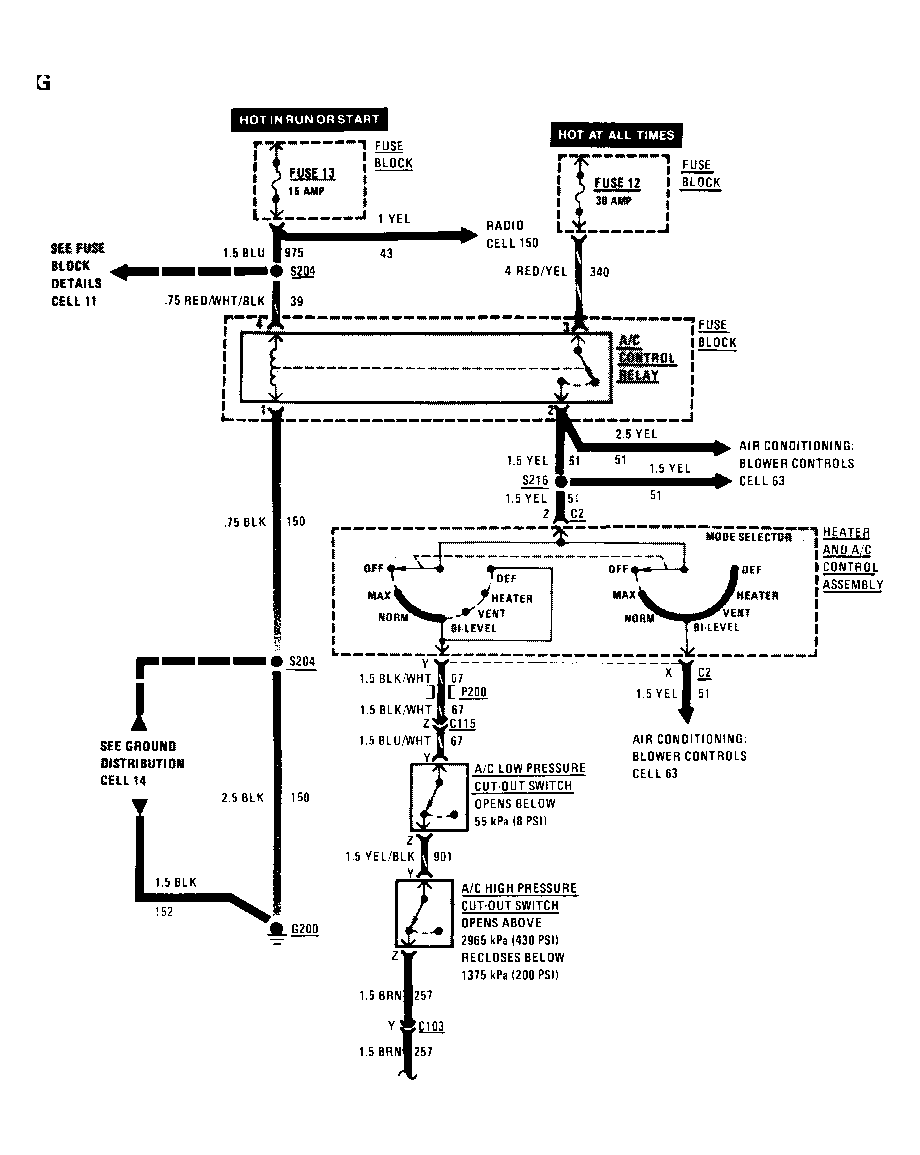

Fig 15: 1990 Pontiac LeMans Mid-Year Veh Design Change (14 Of 25)

GE14W007101

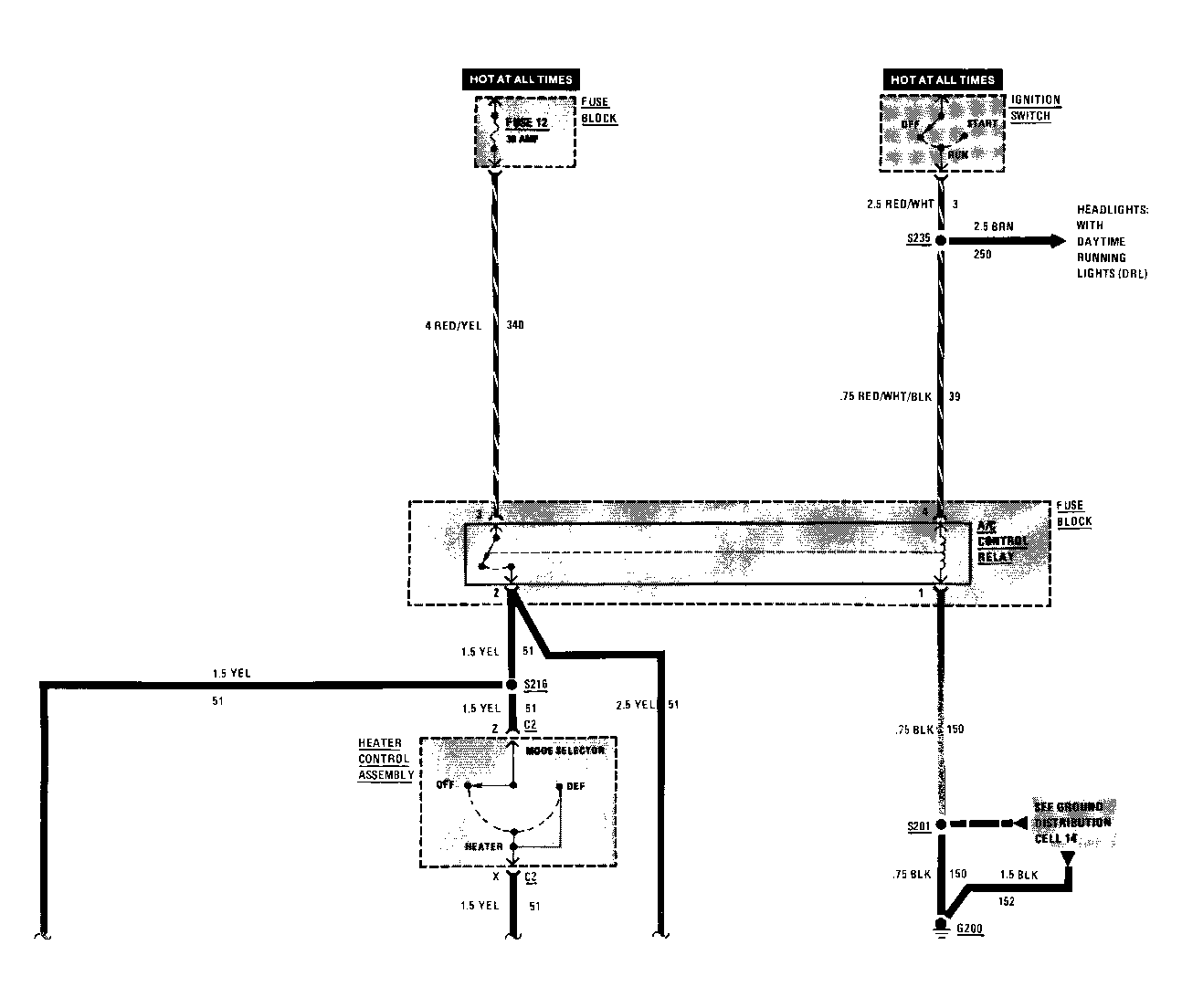

Fig 16: 1990 Pontiac LeMans Mid-Year Veh Design Change (15 Of 25)

GE15W007101

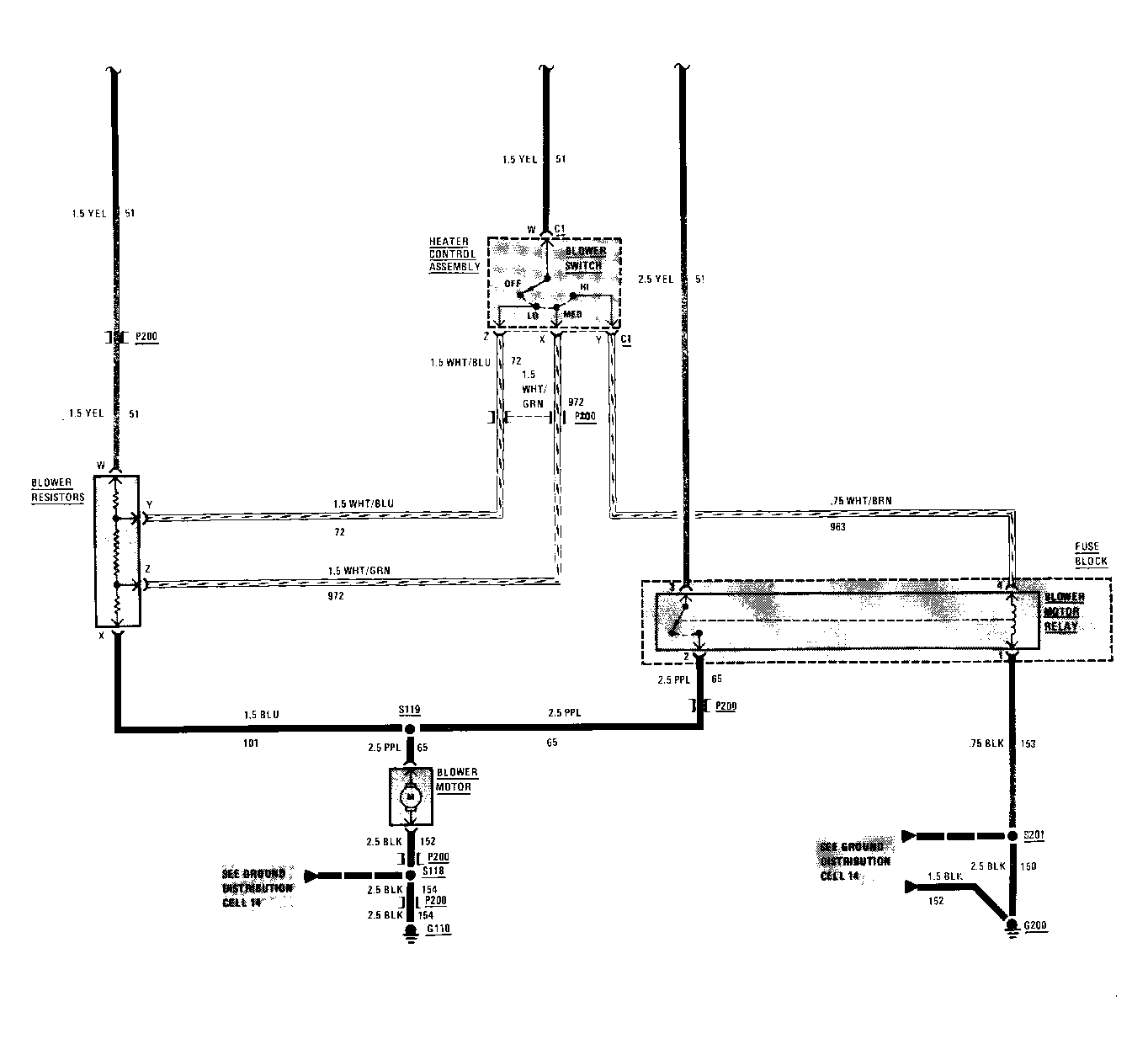

Fig 17: 1990 Pontiac LeMans Mid-Year Veh Design Change (16 Of 25)

GE16W007101

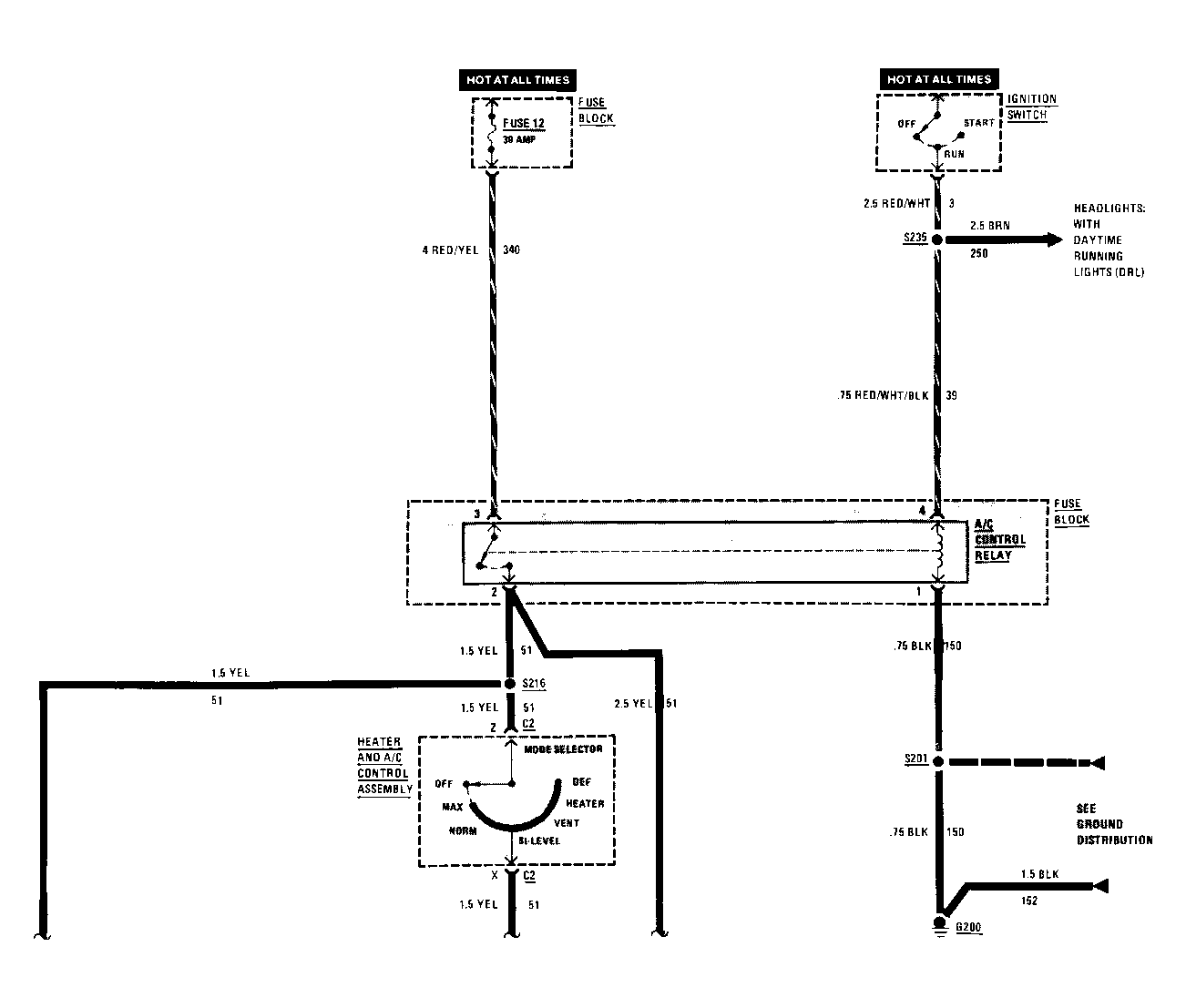

Fig 18: 1990 Pontiac LeMans Mid-Year Veh Design Change (17 Of 25)

GE17W007101

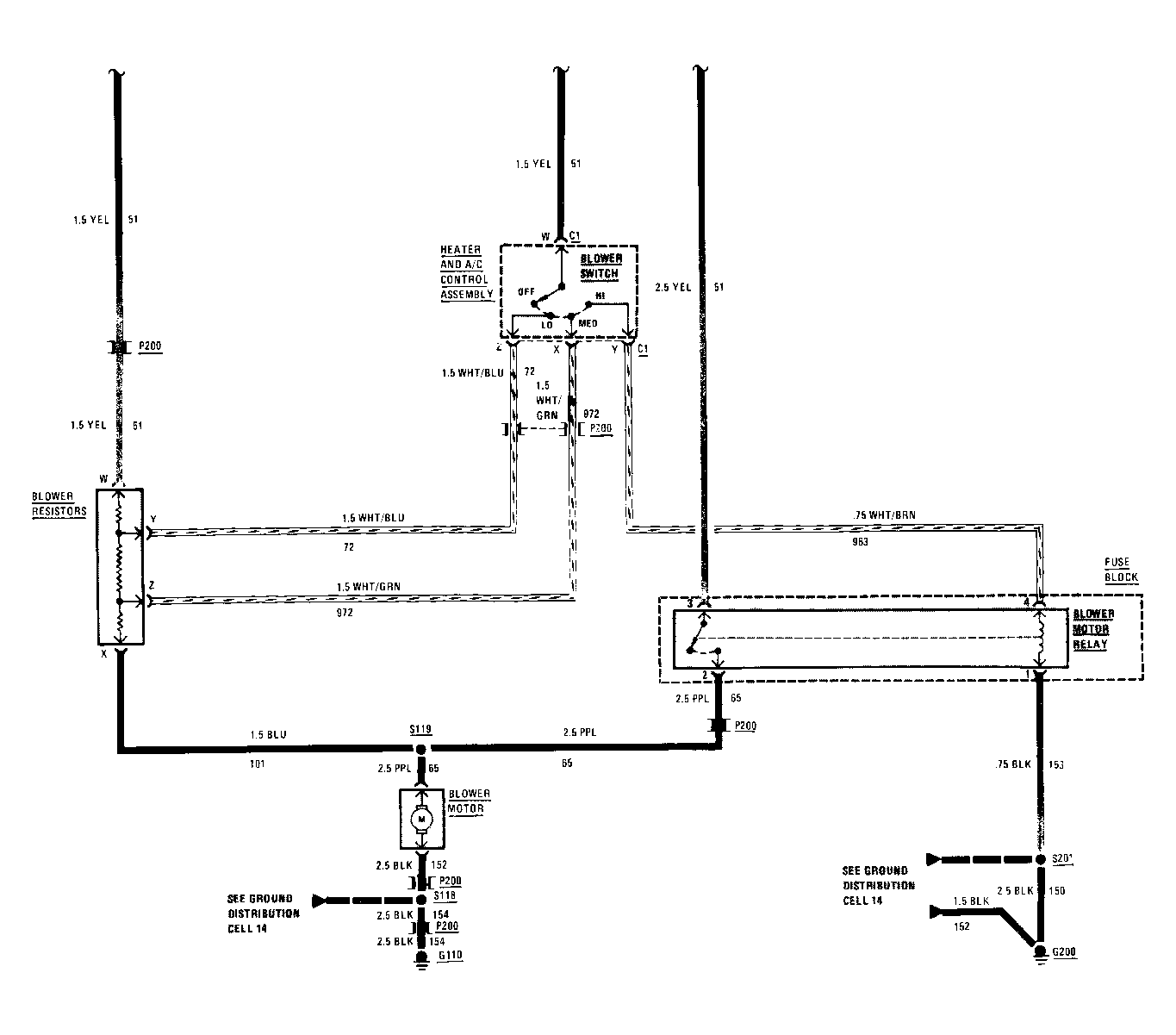

Fig 19: 1990 Pontiac LeMans Mid-Year Veh Design Change (18 Of 25)

GE18W007101

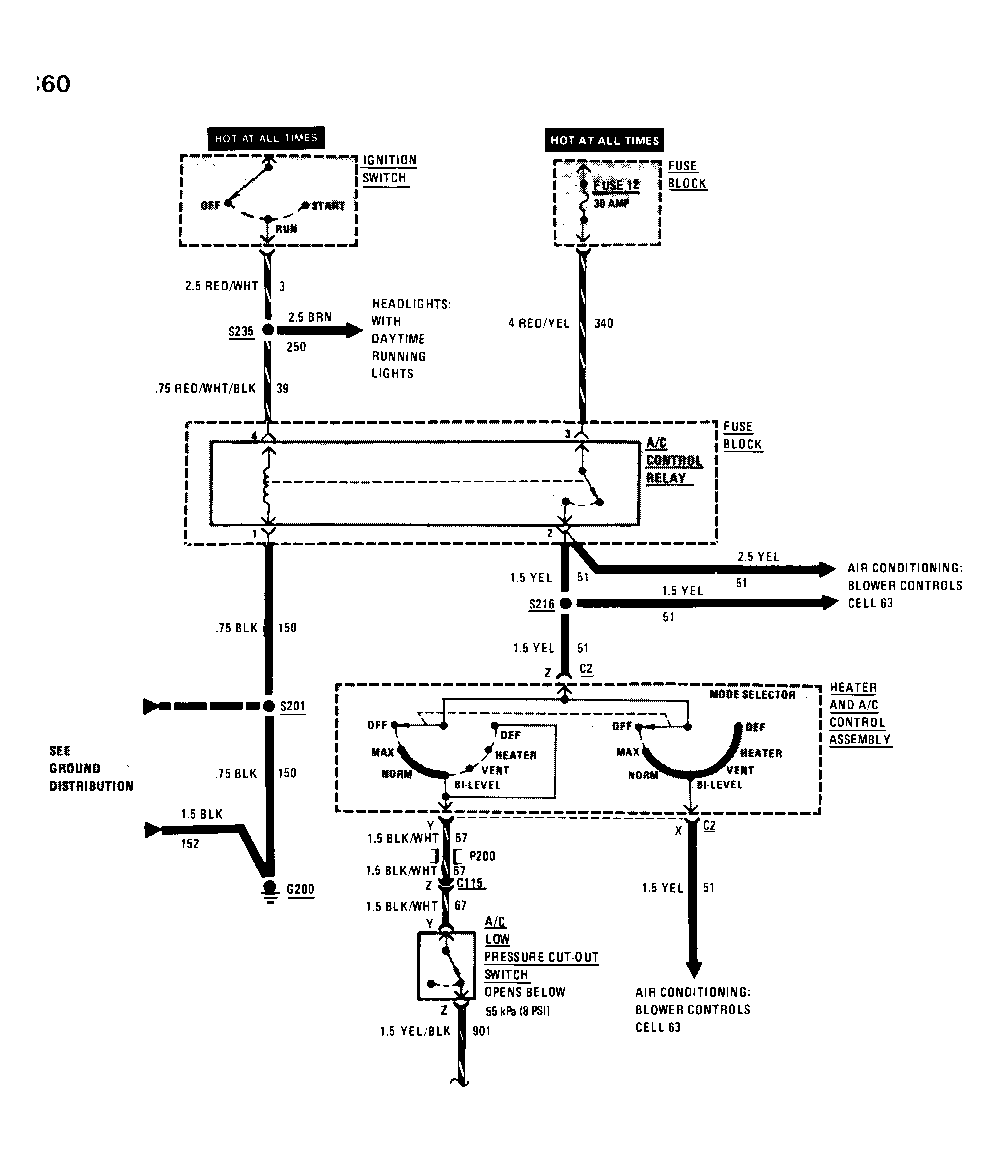

Fig 20: 1990 Pontiac LeMans Mid-Year Veh Design Change (19 Of 25)

GE19W007101

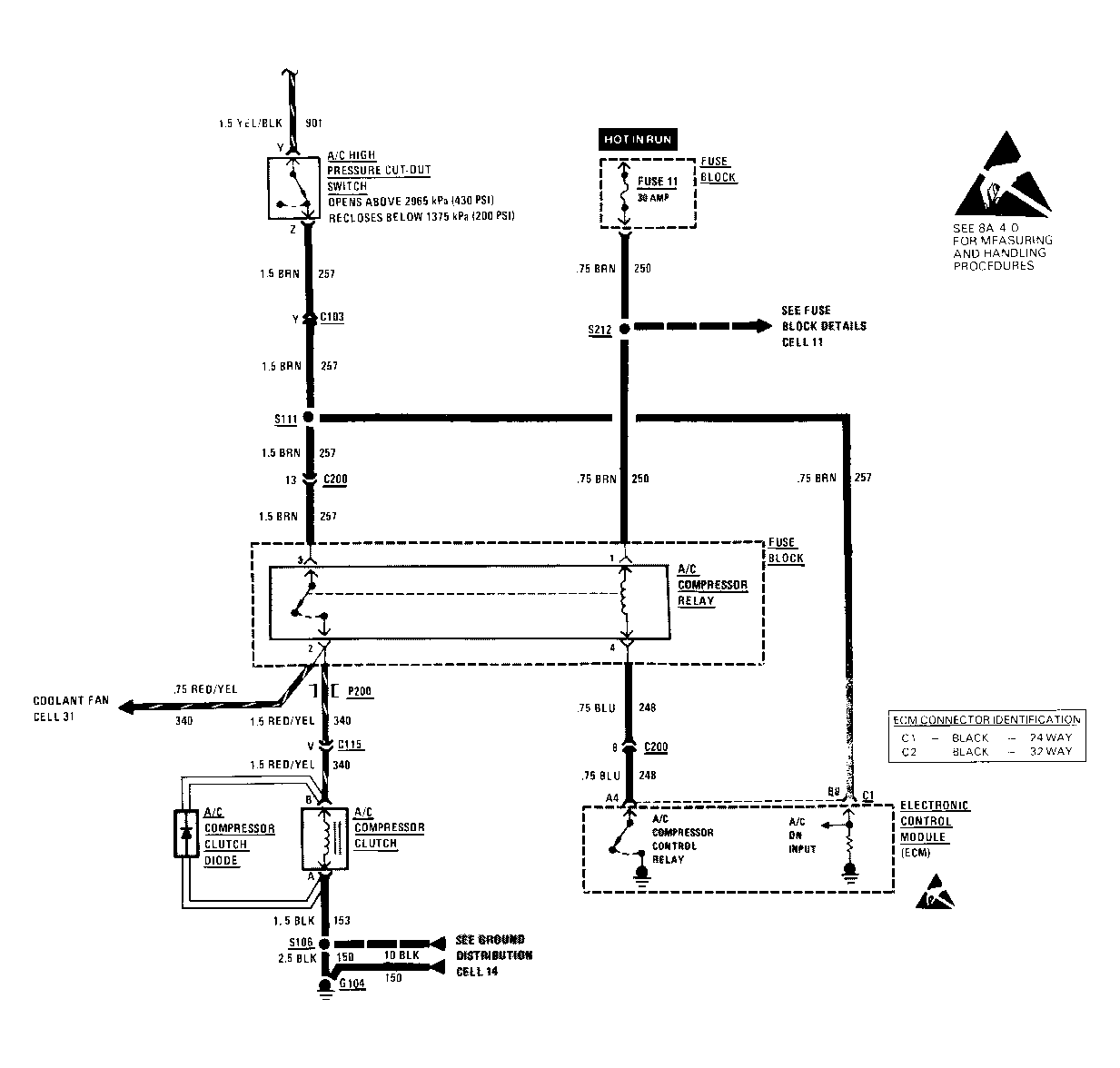

Fig 21: 1990 Pontiac LeMans Mid-Year Veh Design Change (20 Of 25)

GE20W007101

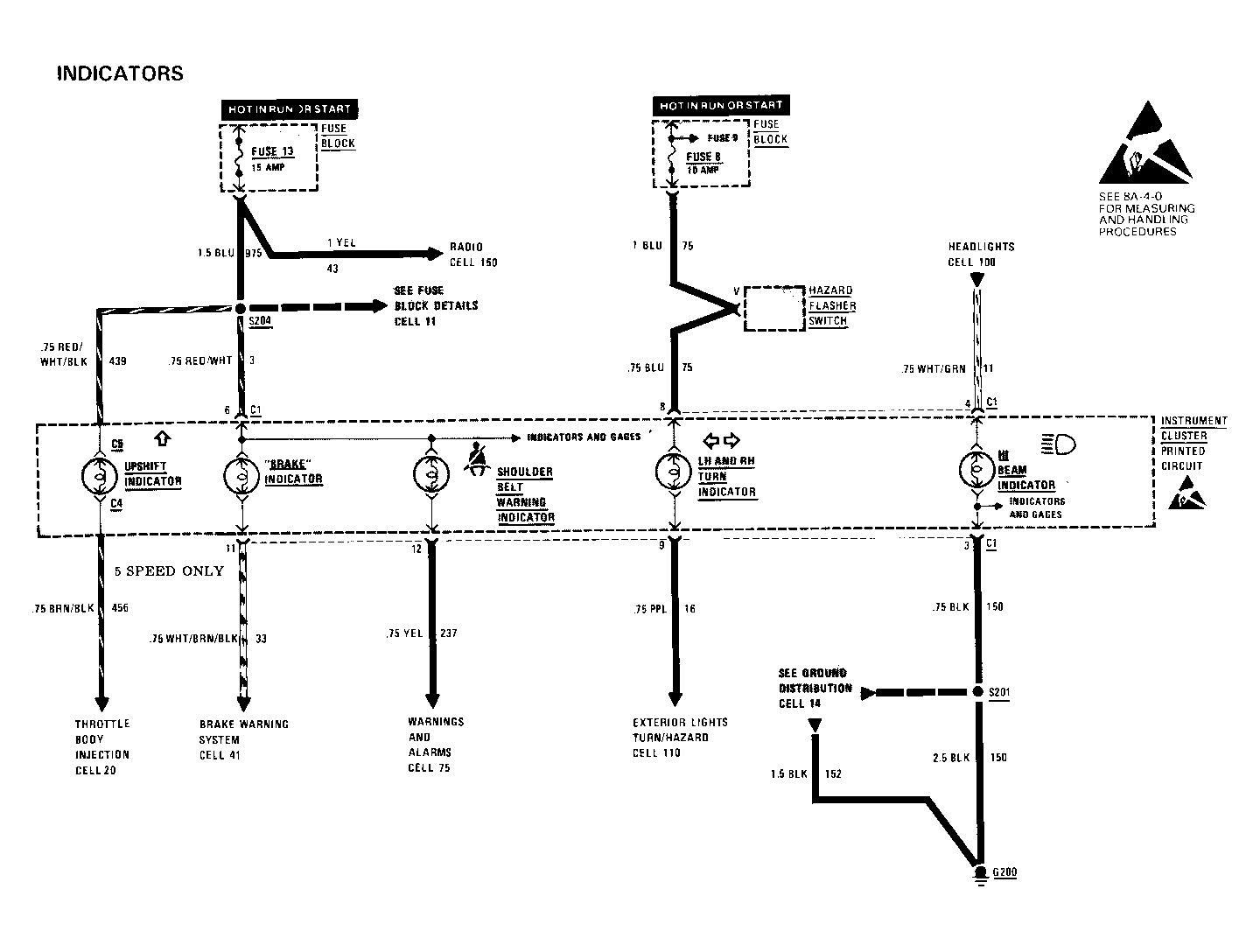

Fig 22: 1990 Pontiac LeMans Mid-Year Veh Design Change (21 Of 25)

GE21W007101

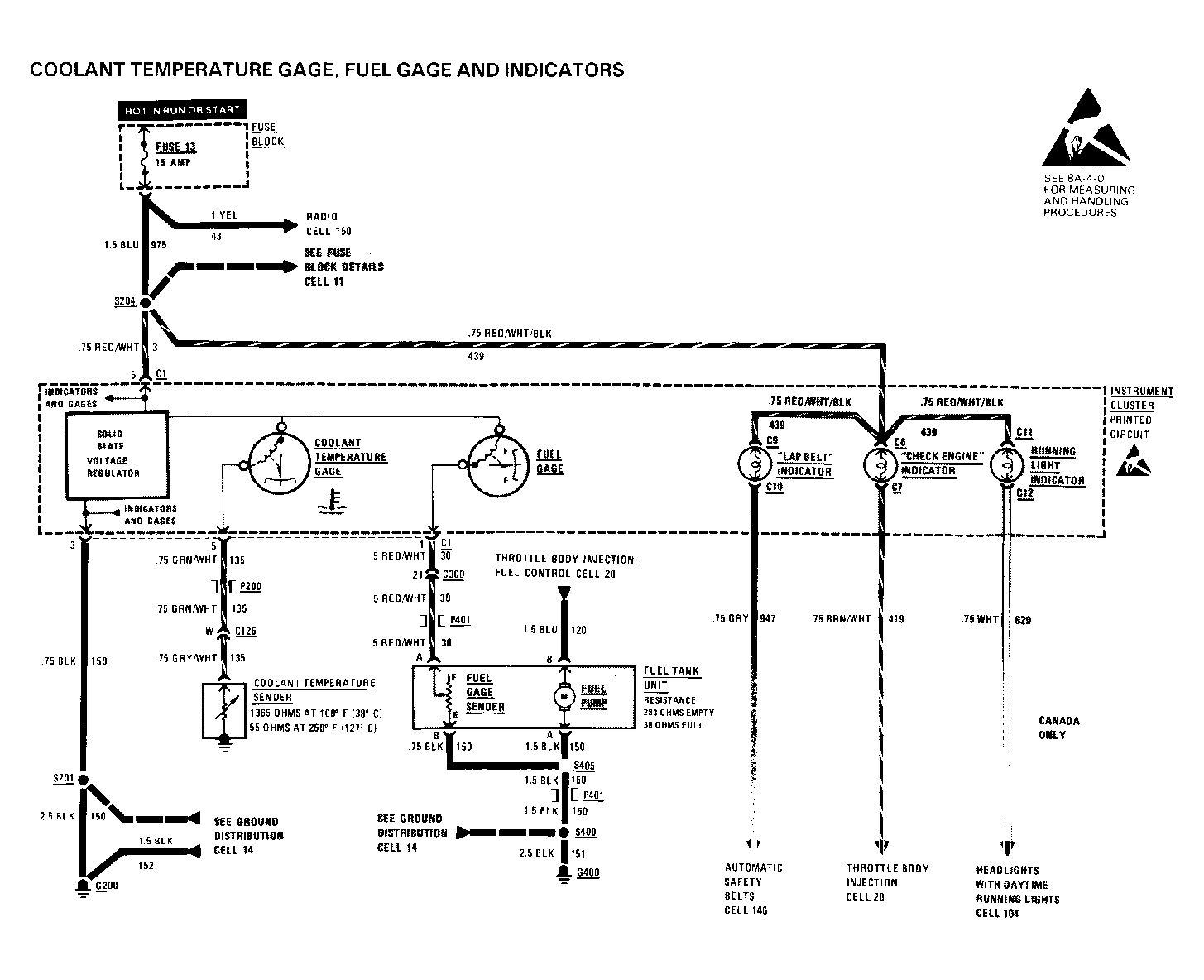

Fig 23: 1990 Pontiac LeMans Mid-Year Veh Design Change (22 Of 25)

GE22W007101

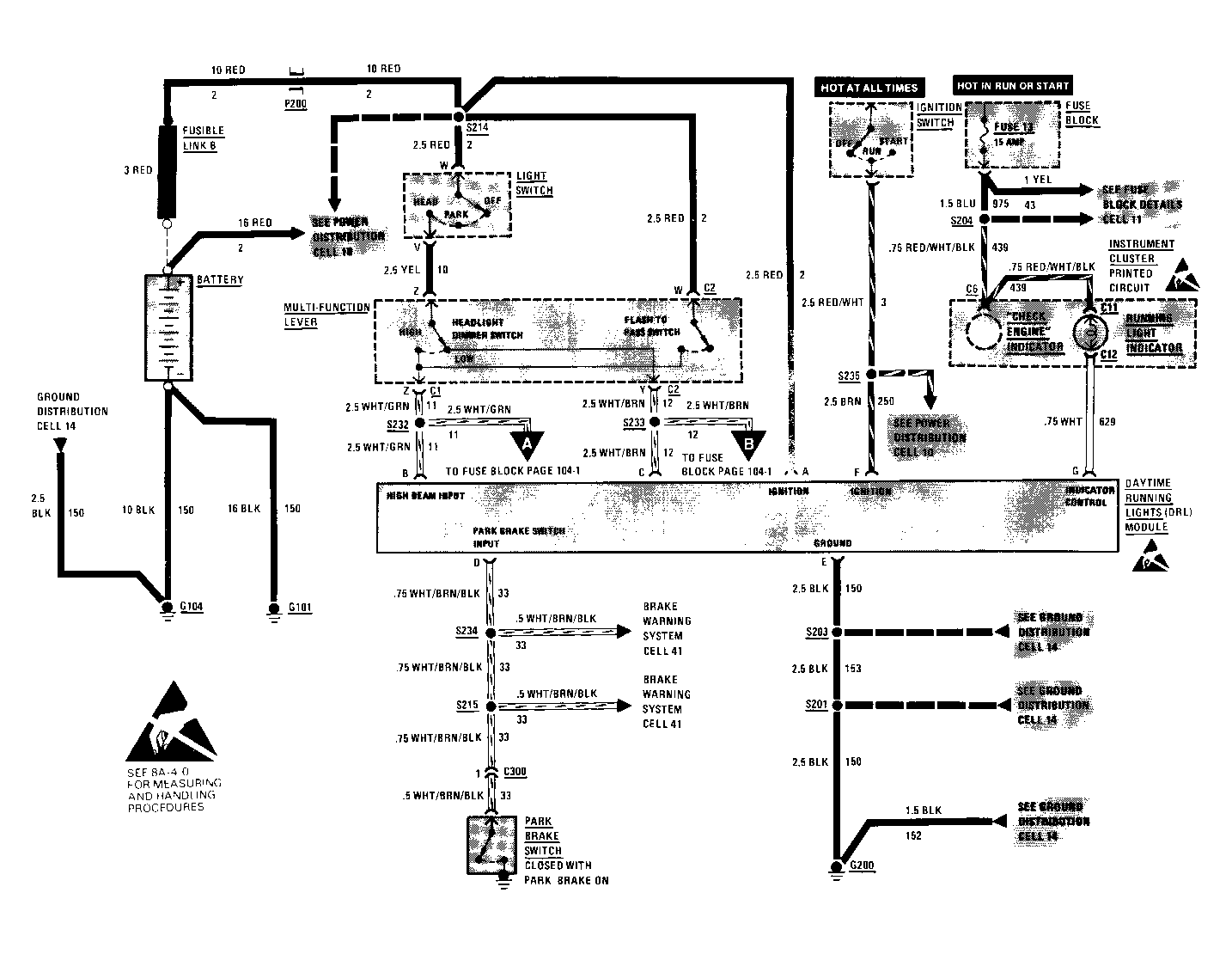

Fig 24: 1990 Pontiac LeMans Mid-Year Veh Design Change (23 Of 25)

GE23W007101

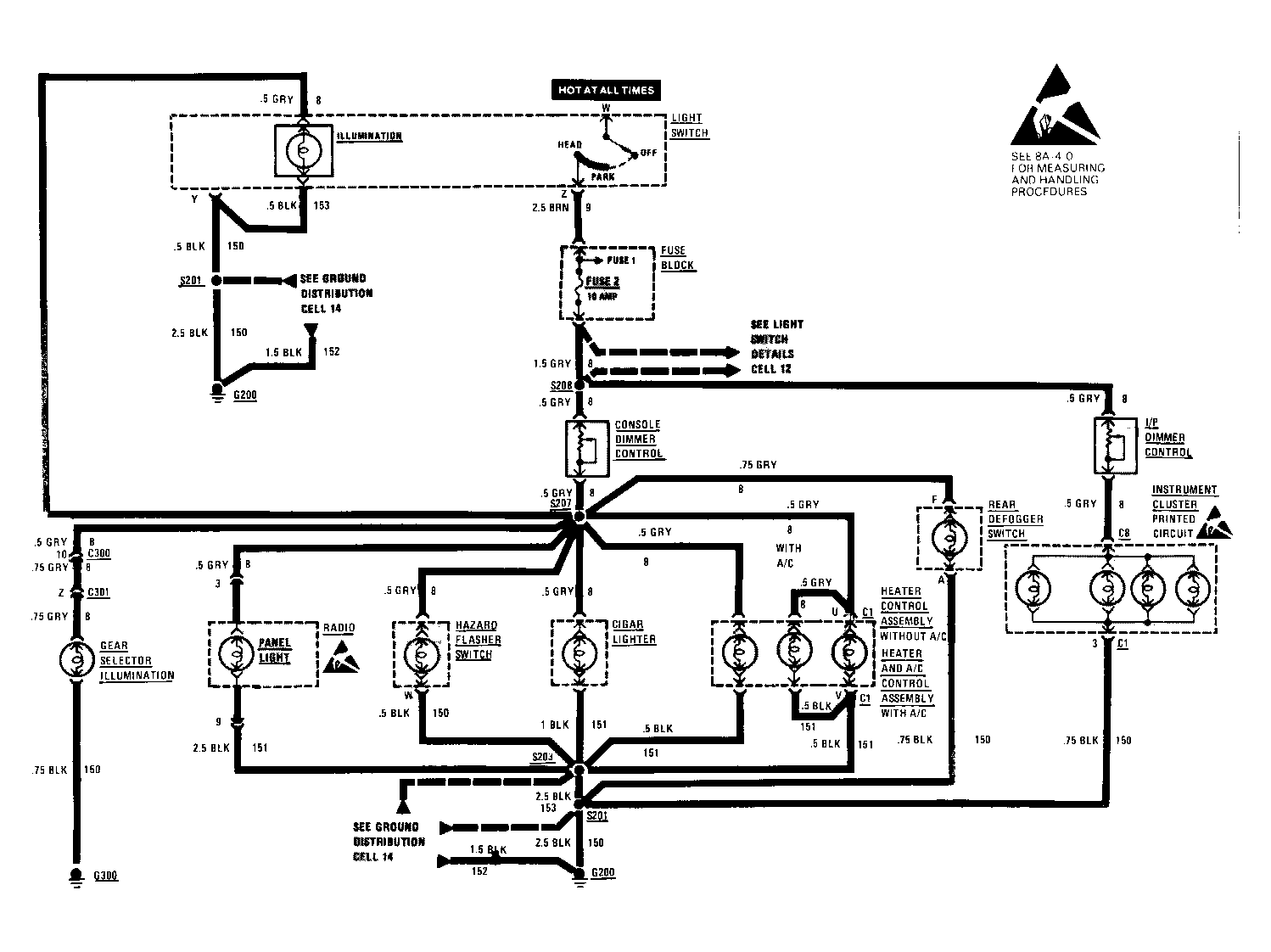

Fig 25: 1990 Pontiac LeMans Mid-Year Veh Design Change (24 Of 25)

GE24W007101

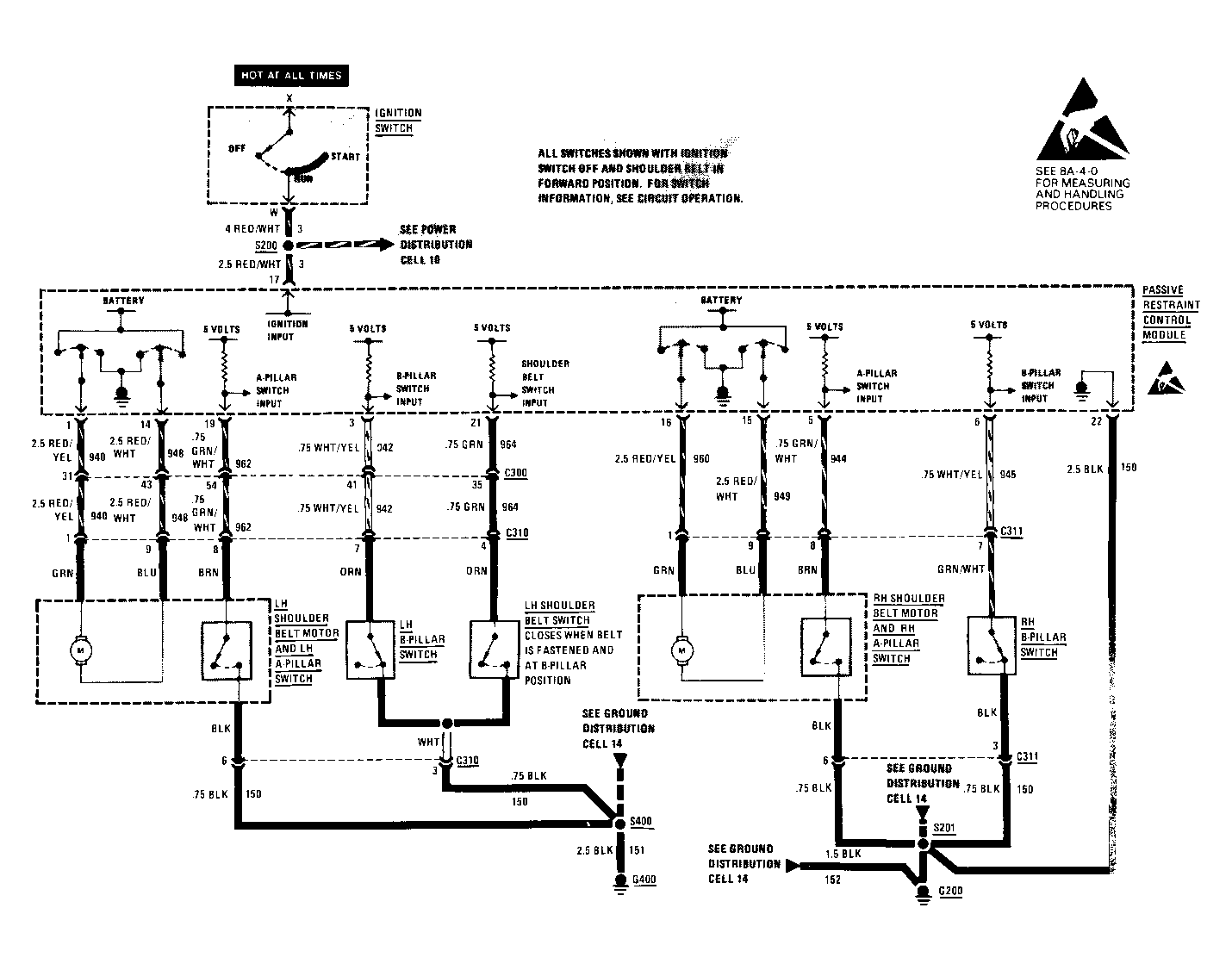

Fig 26: 1990 Pontiac LeMans Mid-Year Veh Design Change (25 Of 25)

GE25W007101

SERVICE MANUAL UPDATE

The following information is revisions to Section 8A of the 1990 Pontiac LeMans Service Manual. These revisions reflect mid-year vehicle design changes, and therefore serve to supplement (not replace) the existing Section 8A.

See Fig 1 for Page Revision Information.
See Fig 2 thru Fig 26 for The Mid-Year Vehicle Design Changes.

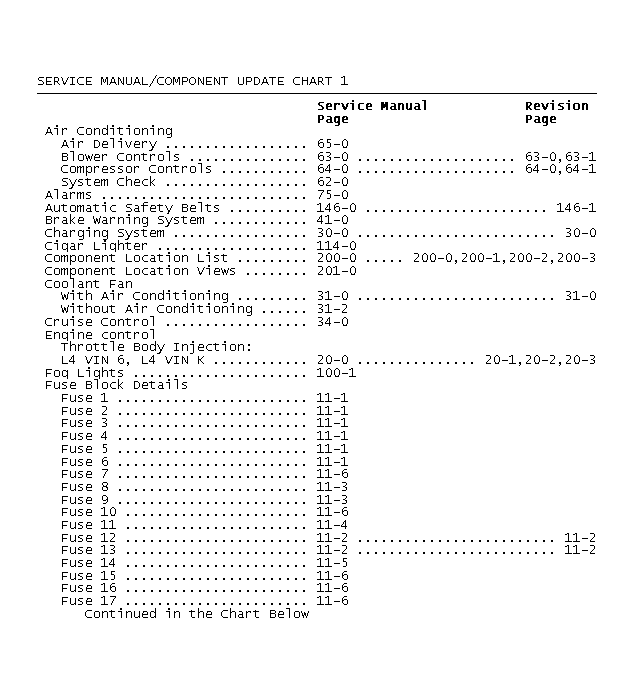

Fig 27: SERVICE MANUAL/COMPONENT UPDATE CHART 1

GB0028932

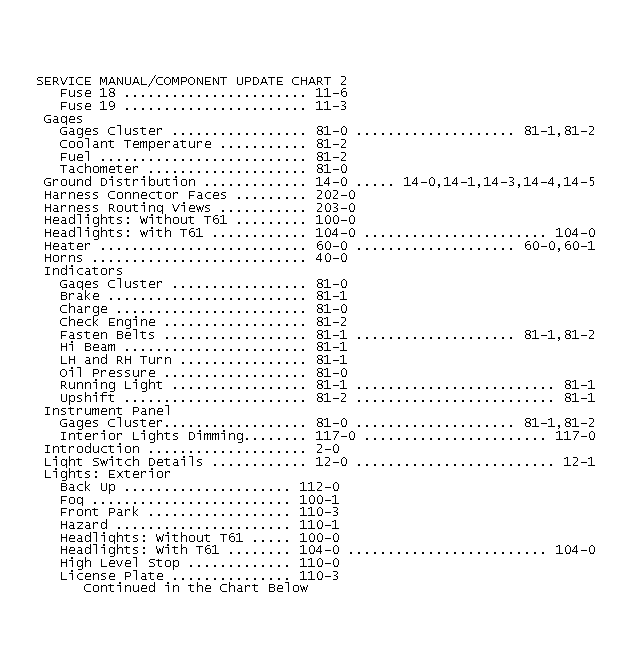

Fig 28: SERVICE MANUAL/COMPONENT UPDATE CHART 2

GB0028933

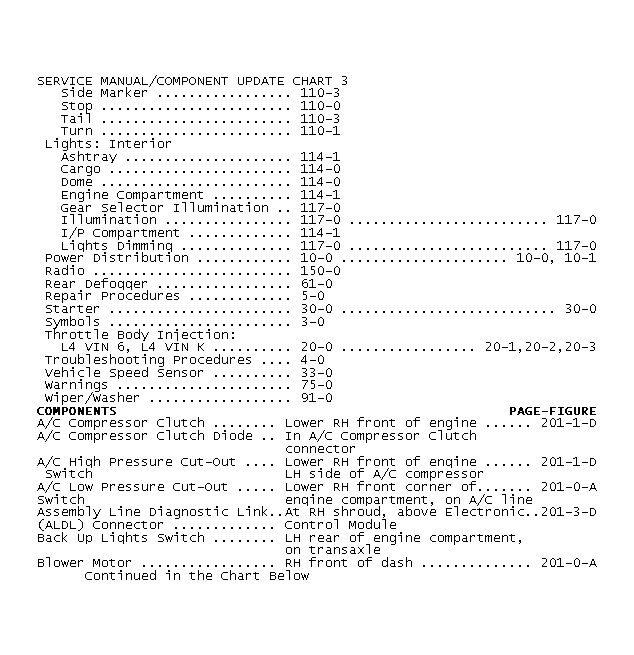

Fig 29: SERVICE MANUAL/COMPONENT UPDATE CHART 3

GB0028934

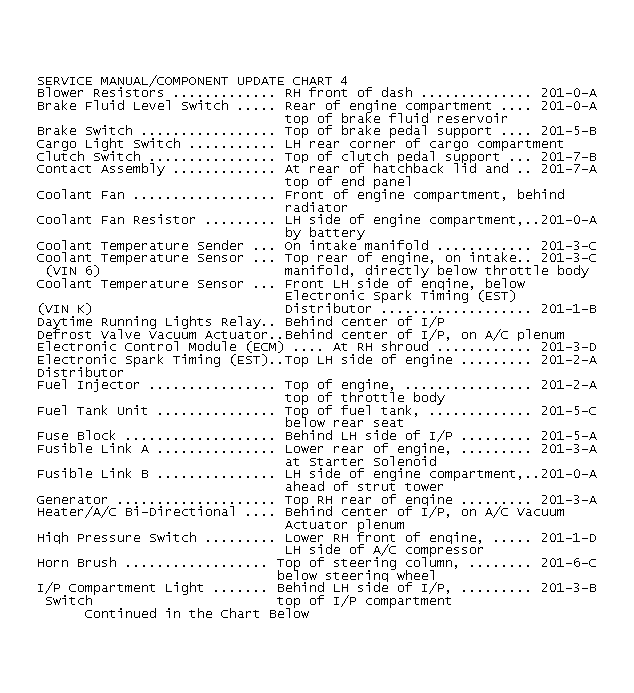

Fig 30: SERVICE MANUAL/COMPONENT UPDATE CHART 4

GB0028935

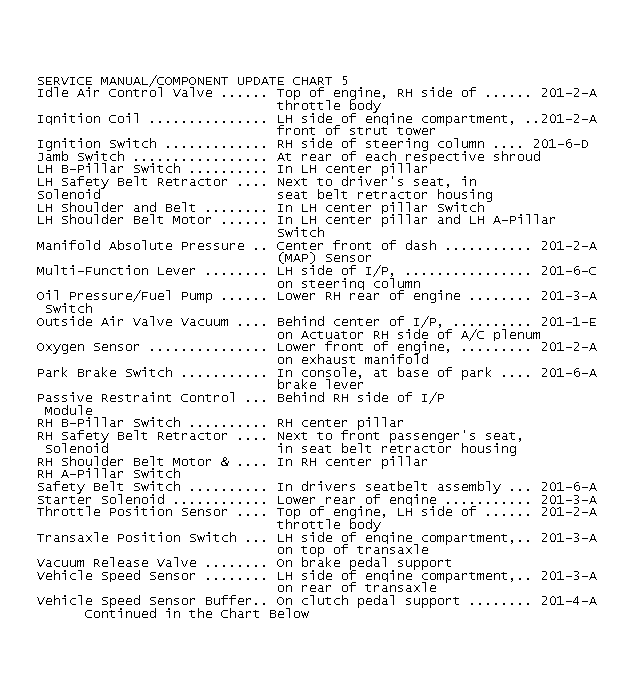

Fig 31: SERVICE MANUAL/COMPONENT UPDATE CHART 5

GB0028936

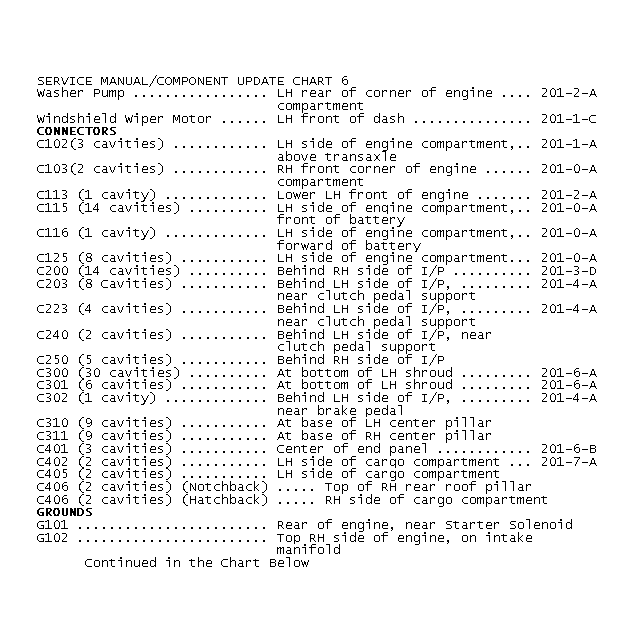

Fig 32: SERVICE MANUAL/COMPONENT UPDATE CHART 6

GB0028937

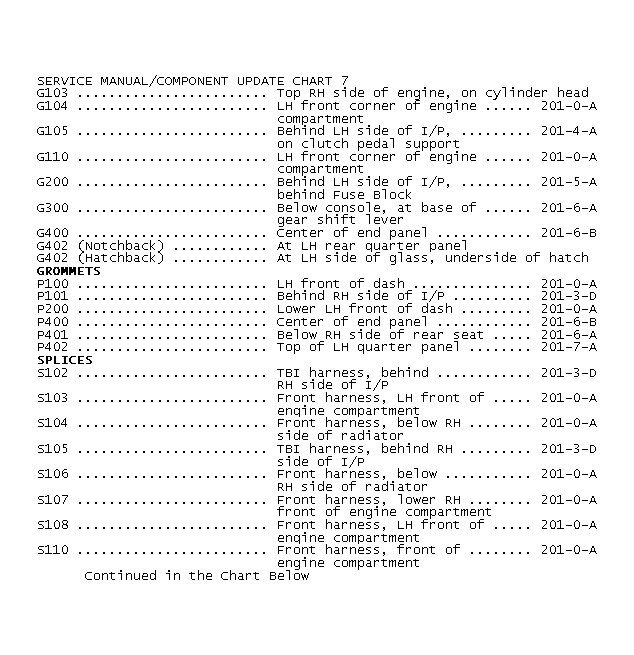

Fig 33: SERVICE MANUAL/COMPONENT UPDATE CHART 7

GB0028938

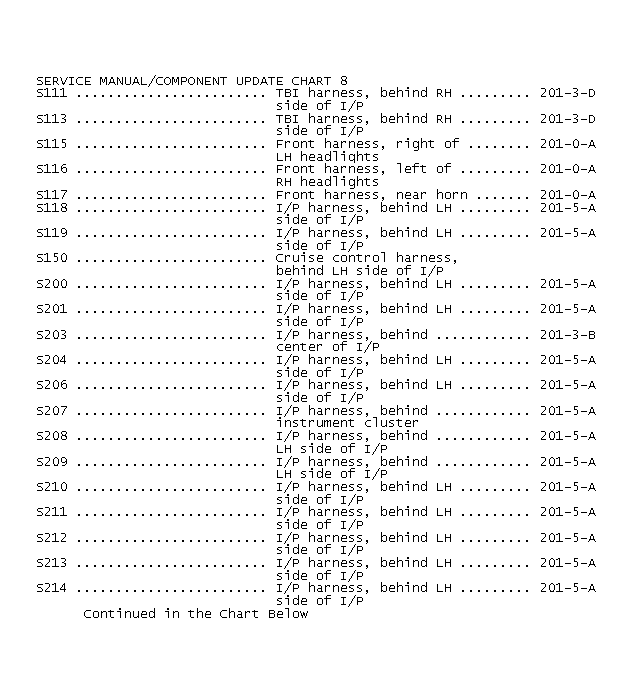

Fig 34: SERVICE MANUAL/COMPONENT UPDATE CHART 8

GB0028939

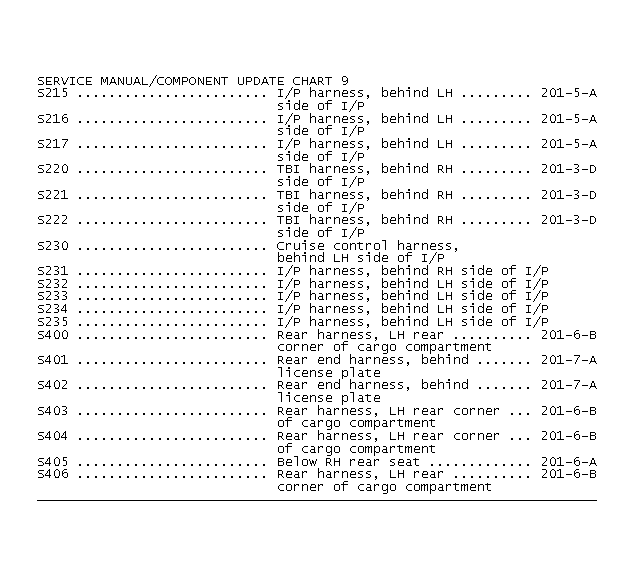

Fig 35: SERVICE MANUAL/COMPONENT UPDATE CHART 9

GB0028940
