Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION

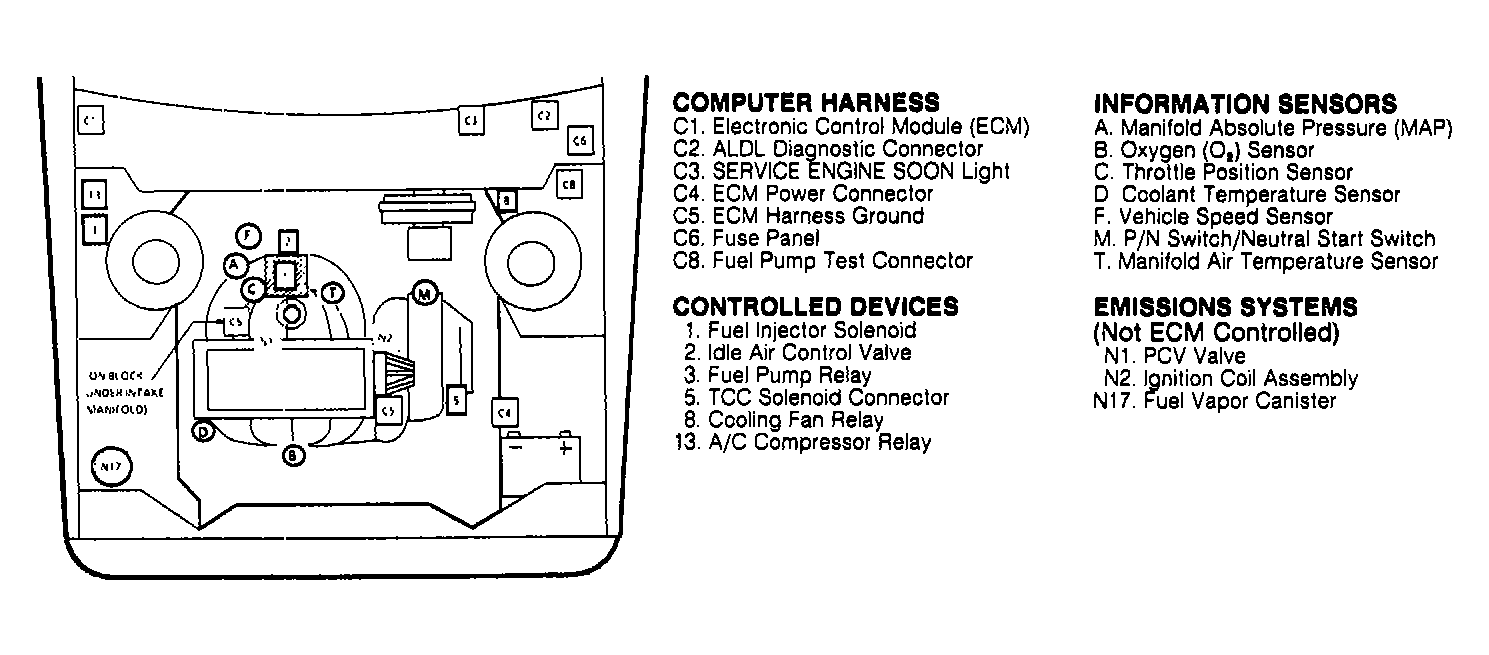

| Component | Location | |
|---|---|---|
| Circuit Breakers | On fuse block. | |
| ECM Fuse (VIN G) | On left side of firewall, on relay bracket. See Figure . | |
| ECM/Fuel Pump Fuse (VIN T) | On left side of firewall, on relay bracket. See Figure . | |
| Fuse Block | ||
| 2.0L (VIN K) Sunbird | Behind lower left side of dash. See Figure . | |
| 2.0L Turbo (VIN M) Sunbird | Behind lower left side of dash. See Figure . | |
| 2.2L (VIN G) Cavalier & Sunbird | Behind lowerr left side of dash. See Figure . | |
| 3.1L (VIN T) Cavalier | Behind lower left side of dash. See Figure . | |
| Fusible Links | ||
| Charging System (Gray & Rust) | Near starter solenoid. | |
| Cooling Fan (Gray) | Between battery junction block and cooling fan relay. See Figure . | |
| ECM (Gray) | In left front of engine compartment, behind battery. | |
| Headlight Door Module (Gray) | In headlight door module harness before connector. | |
| Headlight Switch (Rust) | Near starter solenoid. | |
