COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Door Lock Motor | In Front Of Respective Door. See Fig 1 |

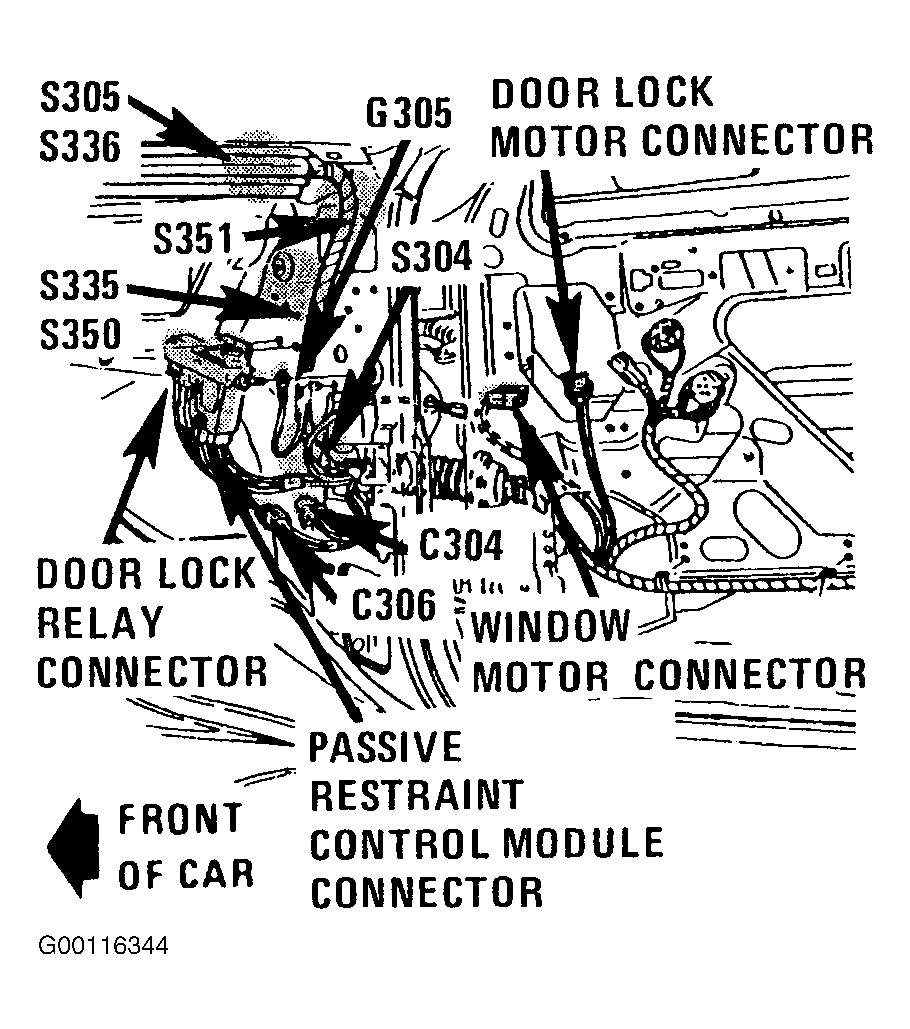

| Door Lock Relay | Right Hand Shroud, Above Center Access Hole. See Fig 1 |

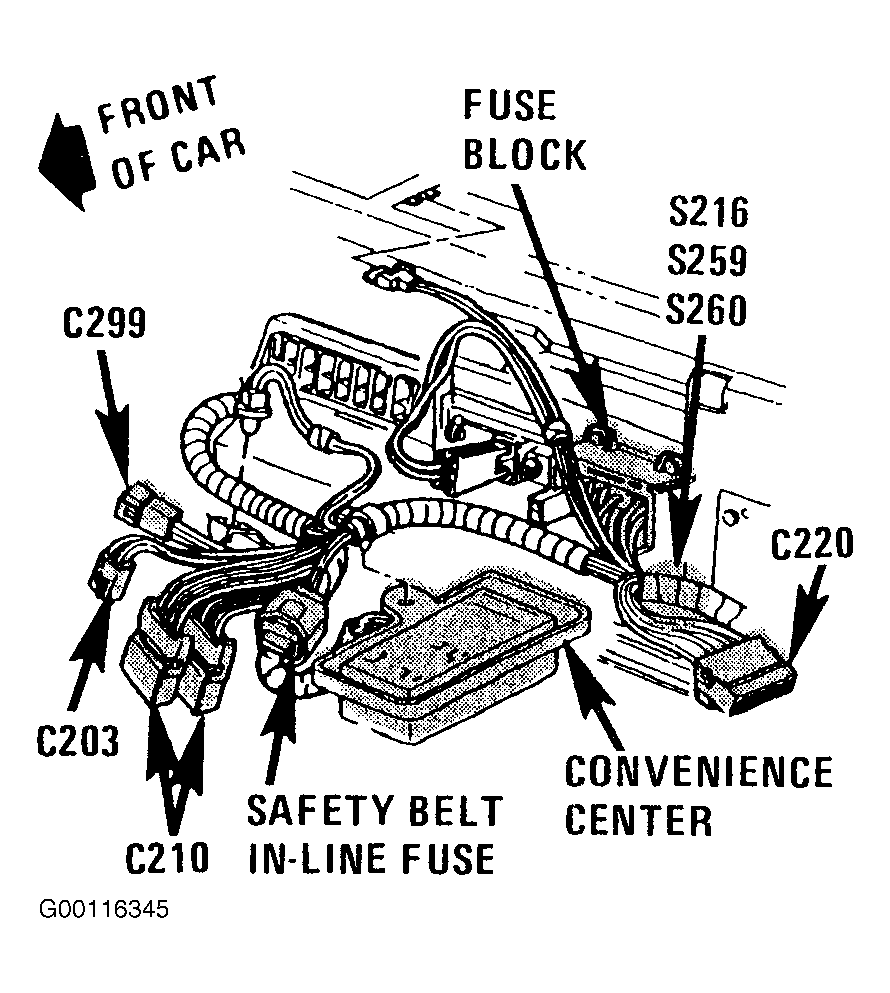

| Fuse Block | Behind Right Hand Side Of Instrument Panel, In Instrument Panel Compartment. See Fig 2 |

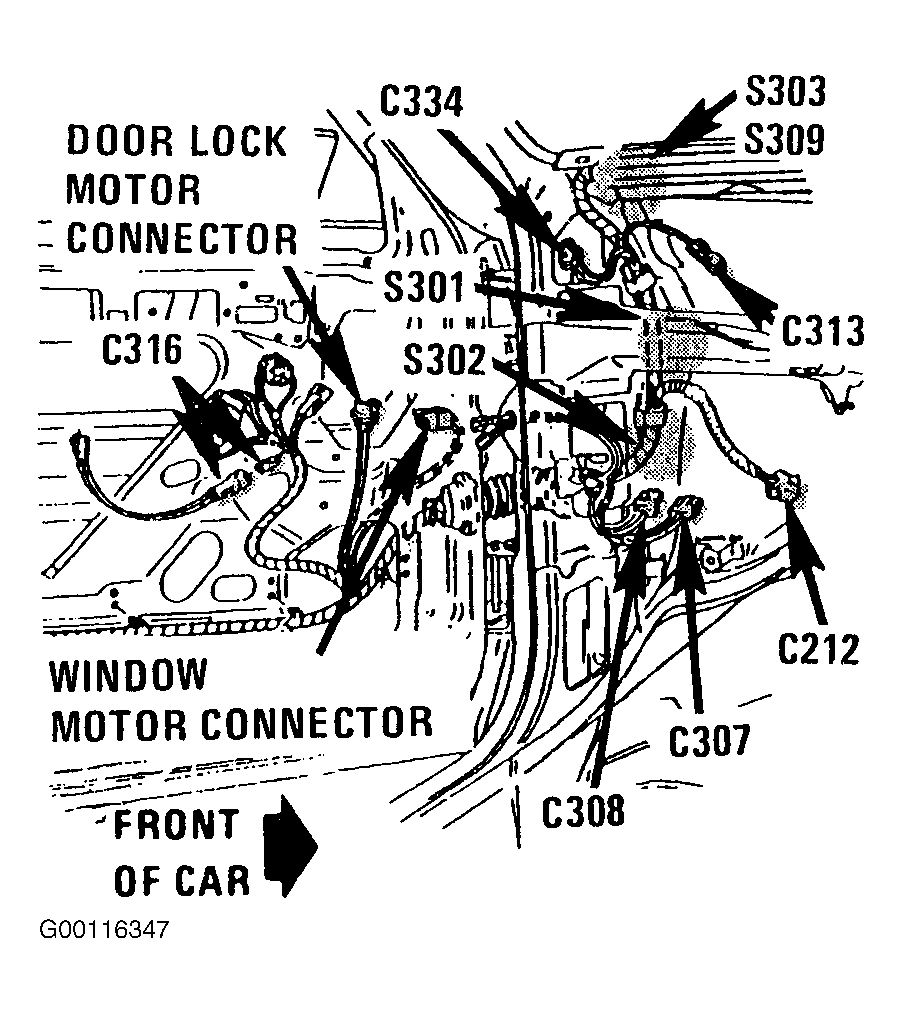

| C212 (8 cavities) | Behind Left Hand Side Of Instrument Panel, At Shroud. See Fig 3 |
| C306 (2 cavities) | Right Hand Shroud, Near Center Access Hole. See Fig 1 |

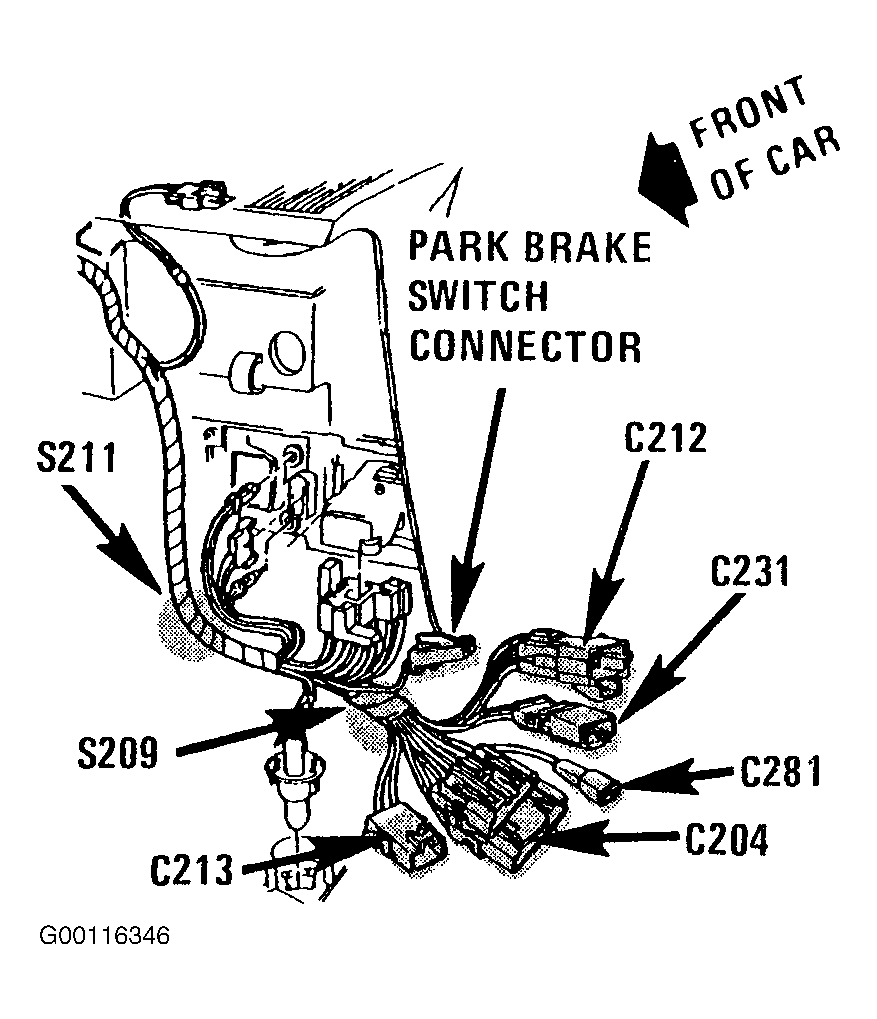

| C307 (2 cavities) | Left Hand Shroud, Near Center Access Hole. See Fig 4 |
| G305 | At Right Hand Shroud, Near Center Access Hole. See Fig 1 |

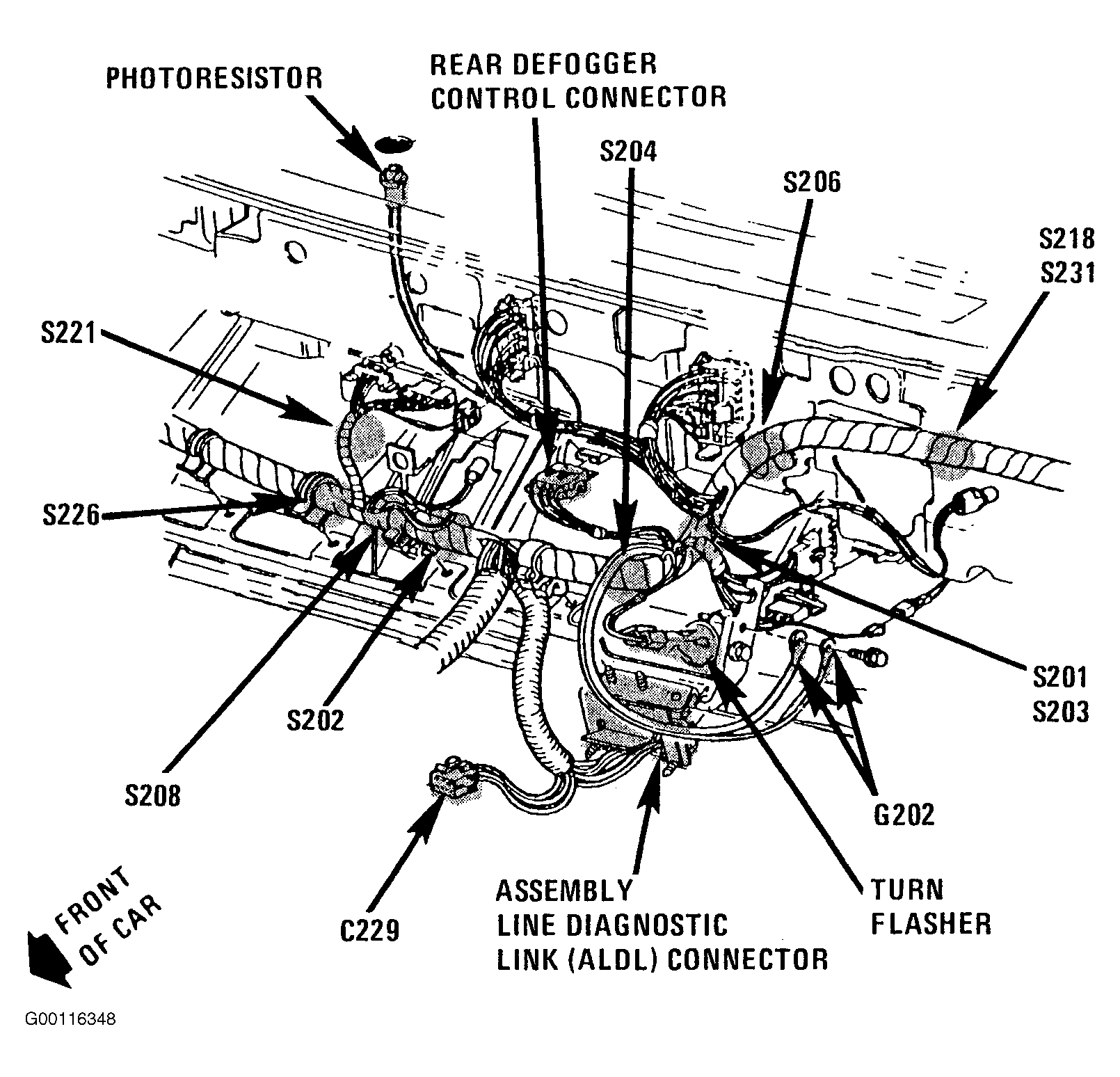

| S202 | Instrument Panel Harness, Behind Radio. See Fig 5 |
| S206 | Instrument Panel Harness, Behind Center Of Instrument Panel, Left Of Instrument Cluster. See Fig 5 |
| S303 | Crosscar Harness, Behind Left Hand Side Of Instrument Panel Near Windshield Pillar. See Fig 4 |
| S304 | Crosscar Harness, Behind Right Hand Side Of Instrument Panel, At Shroud. See Fig 1 |
| S305 | Crosscar Harness, Behind Right Hand Side Of Instrument Panel, Near Windshield Pillar. See Fig 1 |
| S309 | Crosscar Harness, Behind Left Hand Side Of Instrument Panel, Near Windshield Pillar. See Fig 4 |
| S335 | Crosscar Harness, Behind Right Hand Side Of Instrument Panel, At Shroud. See Fig 1 |
| S336 | Crosscar Harness, Behind Right Hand Side Of Instrument Panel, Near Windshield Pillar. See Fig 1 |
| S351 | Crosscar Harness, Behind Right Hand Side Of Instrument Panel, Below Windshield Pillar. See Fig 1 |
