Component Locations

COMPONENT LOCATIONS

Component Location
Capacitor A Below Left Front Seat. See Fig 1 .
Fuse Block Behind Right Side Of Instrument Panel. See Fig 2 .
C212 (8 Cavities) Behind Left Side Of Instrument Panel, Near Shroud. See Fig 3 .
C313 (1 Cavity) Behind Left Side Of Instrument Panel, Near Windshield Pillar. See Fig 1 .
C328 (2 Cavities) Under Left Front Seat. See Fig 1 .
C347 (6 Cavities) Under Left Front Seat. See Fig 4 .
G306 Below Left Front Seat, Near Door Sill. See Fig 5 .
S206 Instrument Panel Harness, Behind Instrument Cluster. See Fig 3 .
S309 Cross Car Harness, Behind Left Side Of Instrument Panel, Near Base Of Windshield Pillar. See Fig 6 .
S310 Power Seat Feed Harness, Under Right Front Seat. See Fig 4 .
S311 Power Seat Feed Harness, Under Right Front Seat. See Fig 4 .
S317 Power Seat Feed Harness, Below Left Front Seat. See Fig 1 .
S318 Power Seat Feed Harness, Below Left Front Seat. See Fig 1 .
S324 Power Seat Harness, Under Left Front Seat. See Fig 7 .
S325 Power Seat Harness, Under Left Front Seat. See Fig 7 .
S364 Power Seat Feed Harness, Below Left Front Seat. See Fig 1 .
S365 Power Seat Feed Harness, Below Left Front Seat. See Fig 1 .

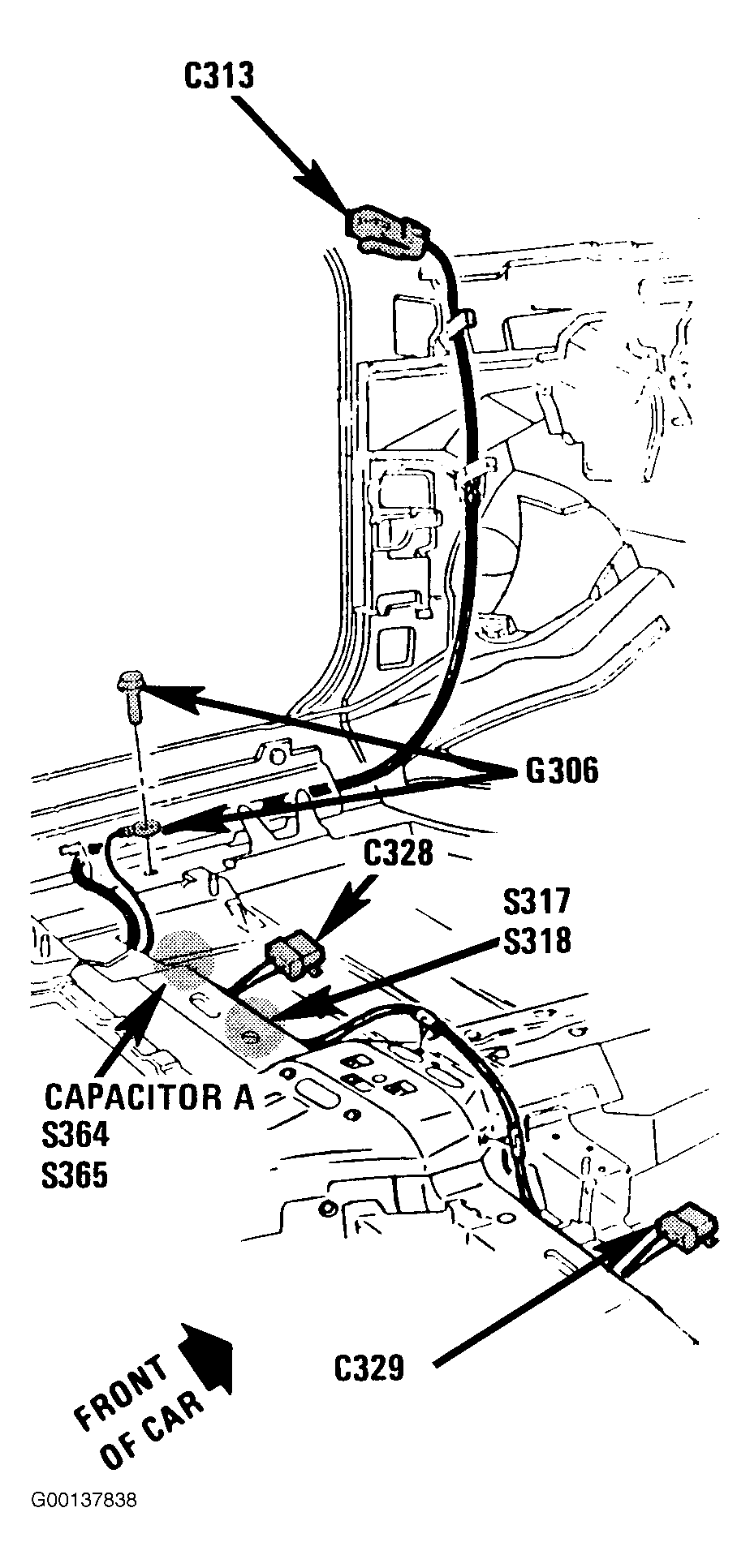

Fig 1: Identifying Power Sear System Components (1 Of 7)
G00137838Courtesy of GENERAL MOTORS CORP.

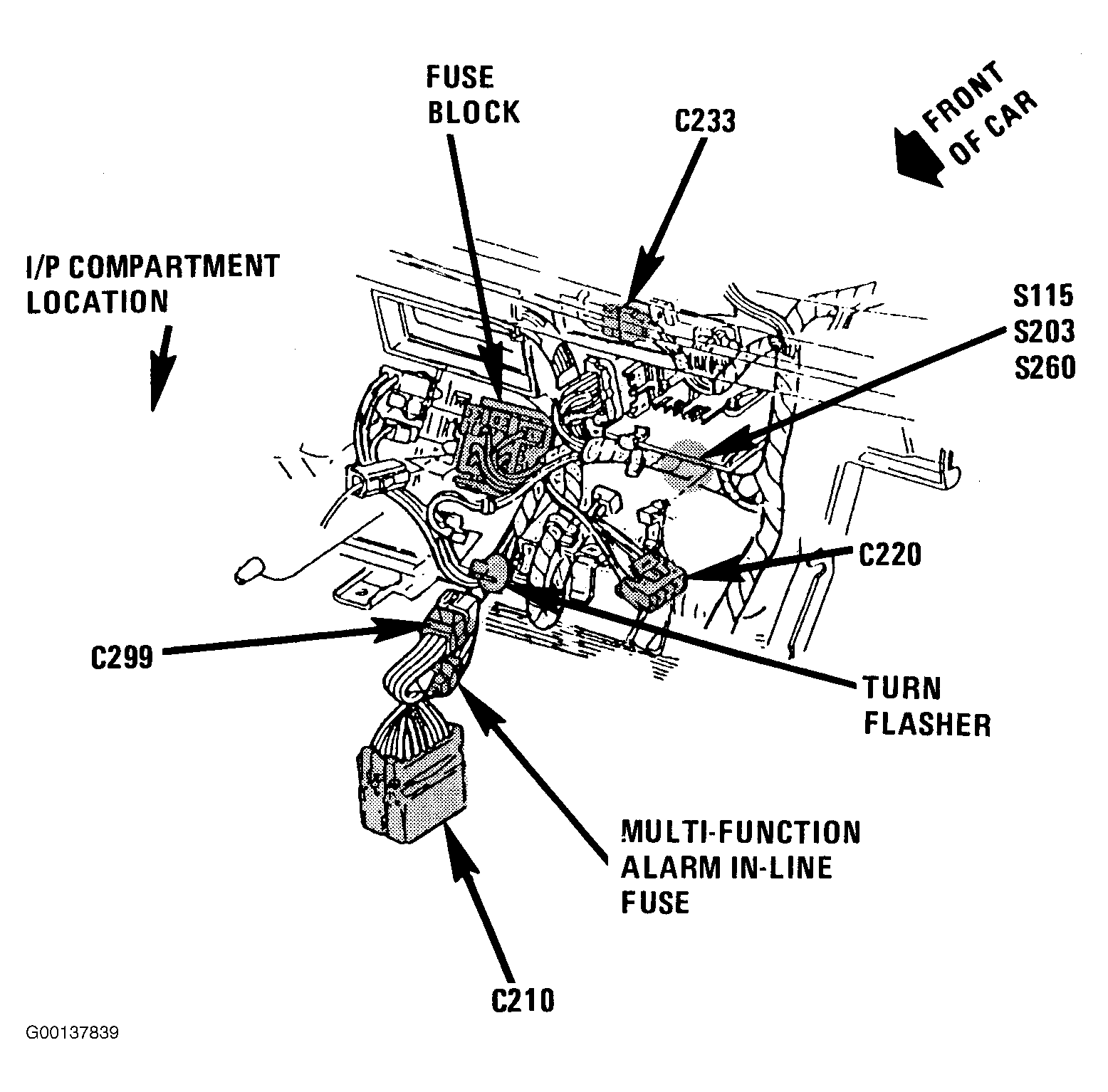

Fig 2: Identifying Power Sear System Components (2 Of 7)
G00137839Courtesy of GENERAL MOTORS CORP.

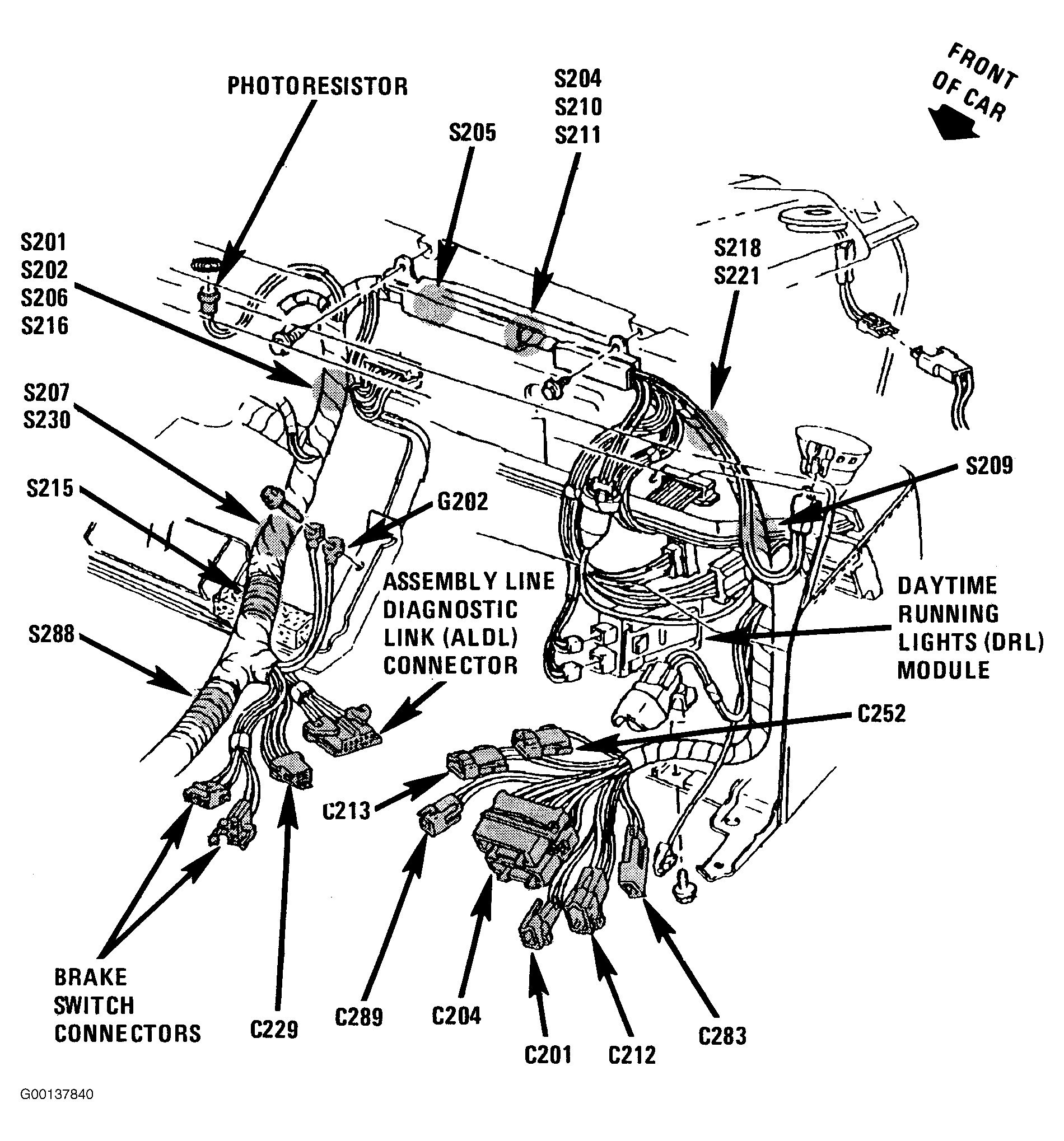

Fig 3: Identifying Power Sear System Components (3 Of 7)
G00137840Courtesy of GENERAL MOTORS CORP.

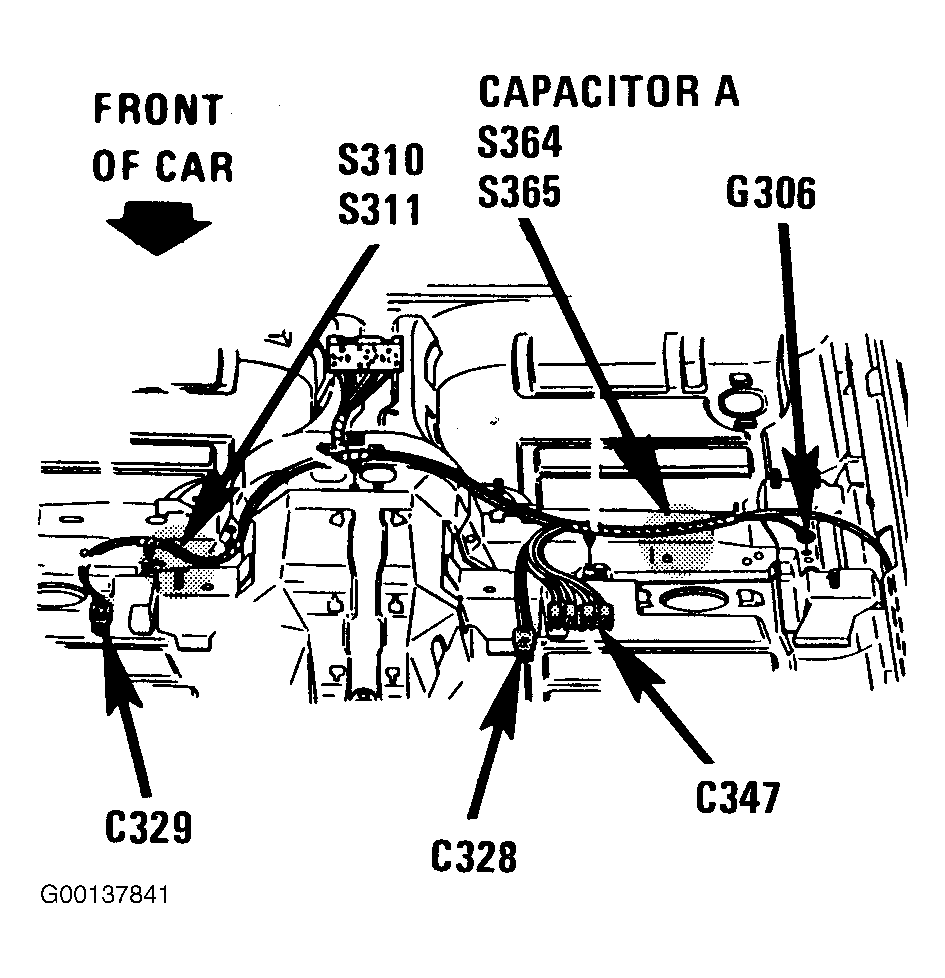

Fig 4: Identifying Power Sear System Components (4 Of 7)
G00137841Courtesy of GENERAL MOTORS CORP.

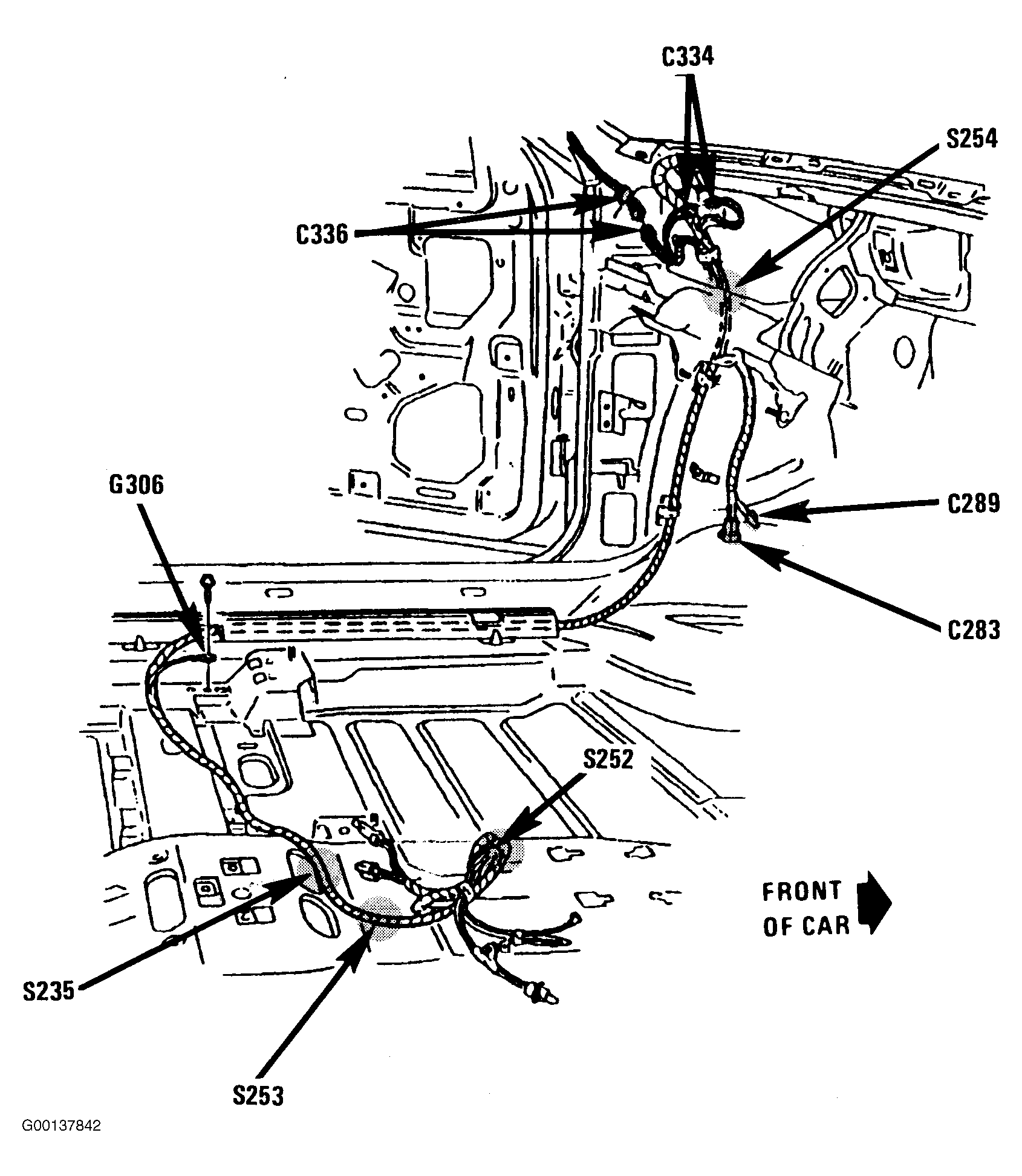

Fig 5: Identifying Power Sear System Components (5 Of 7)
G00137842Courtesy of GENERAL MOTORS CORP.

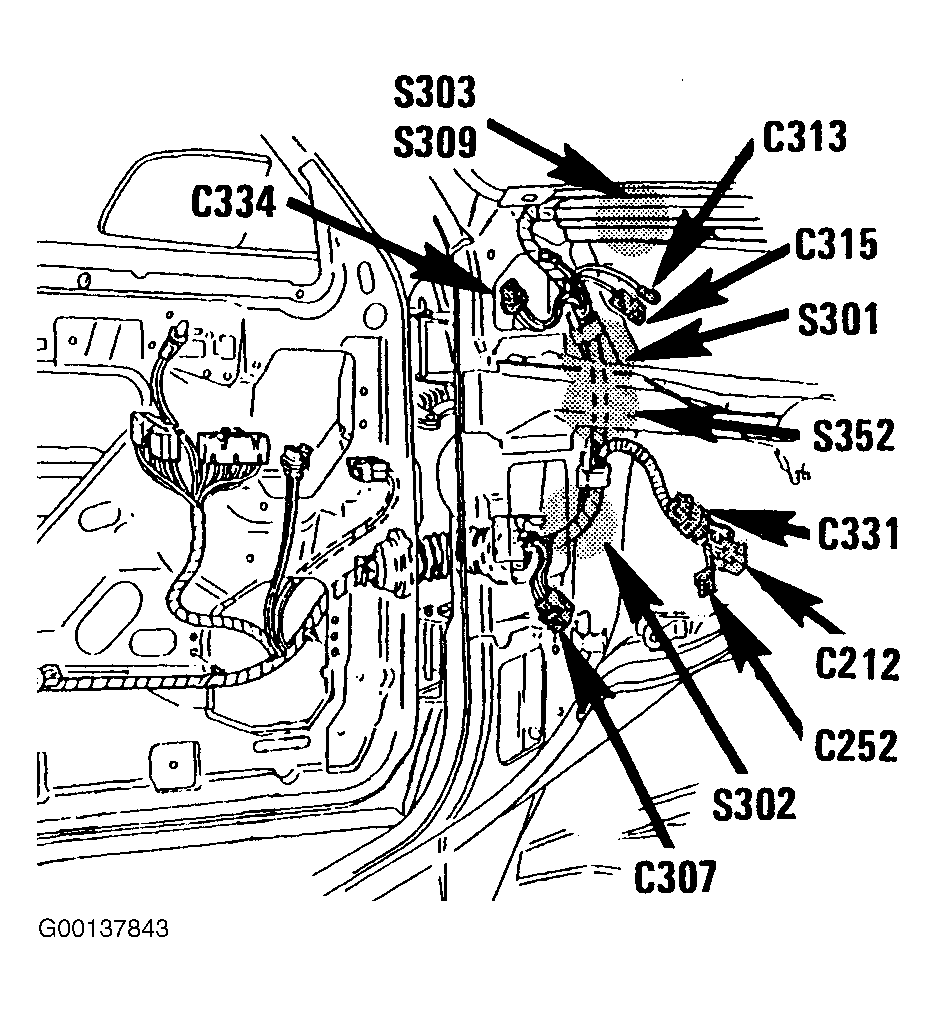

Fig 6: Identifying Power Sear System Components (6 Of 7)
G00137843Courtesy of GENERAL MOTORS CORP.

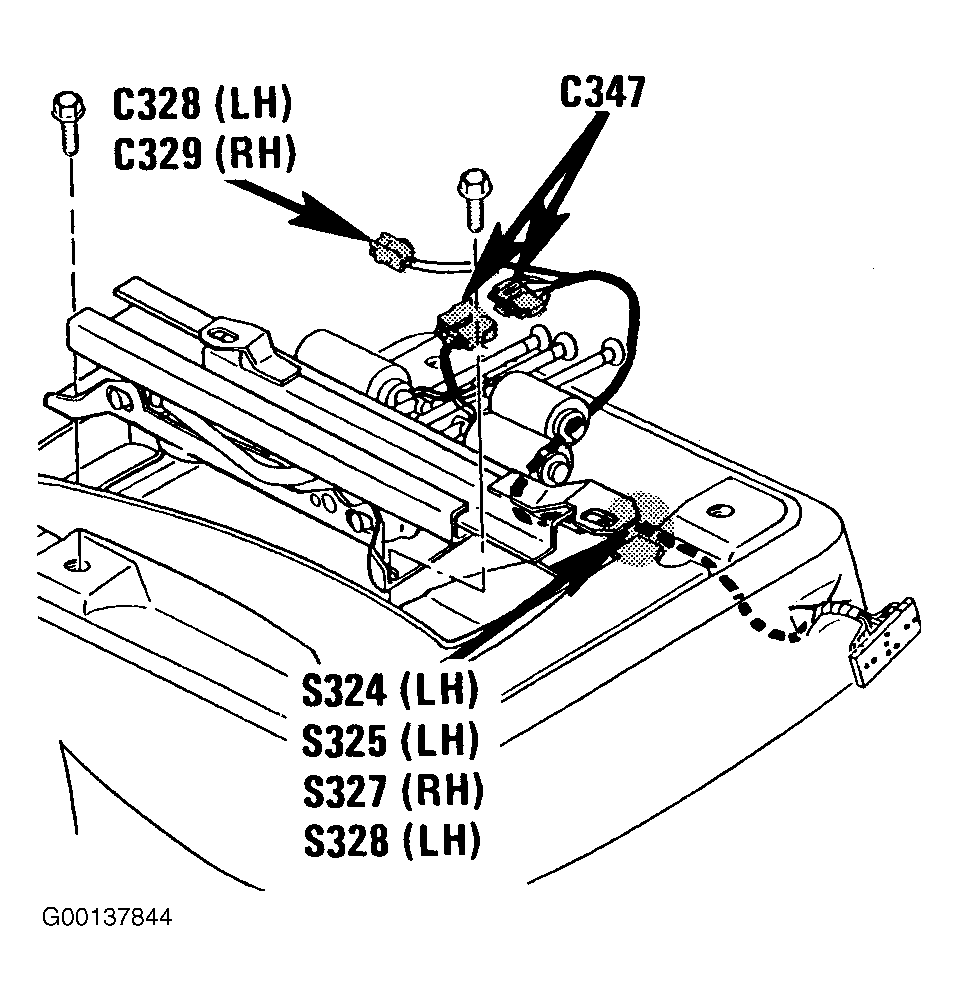

Fig 7: Identifying Power Sear System Components (7 Of 7)
G00137844Courtesy of GENERAL MOTORS CORP.
