Engine Controls - Basic Testing - 2.5L/151 TBI In-Line 4 VIN [U]
›
Computerized Engine Control System
›
ECM/Pcm Wiring Diagram(S)
ECM/Pcm Wiring Diagram(S)

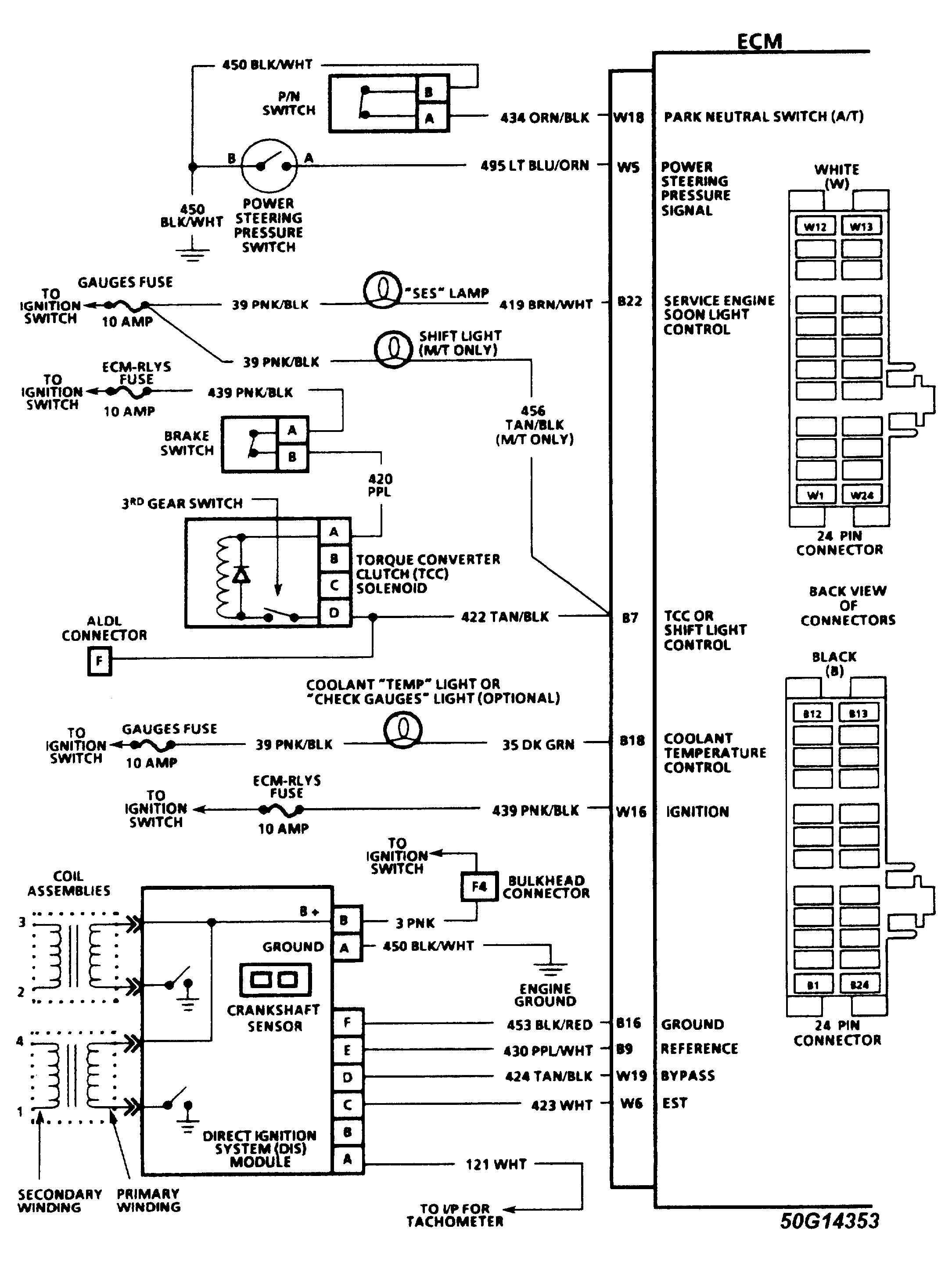

Fig 1: ECM Wiring Diagram - 2.5L VIN U (1 Of 3)
Courtesy of GENERAL MOTORS CORP.

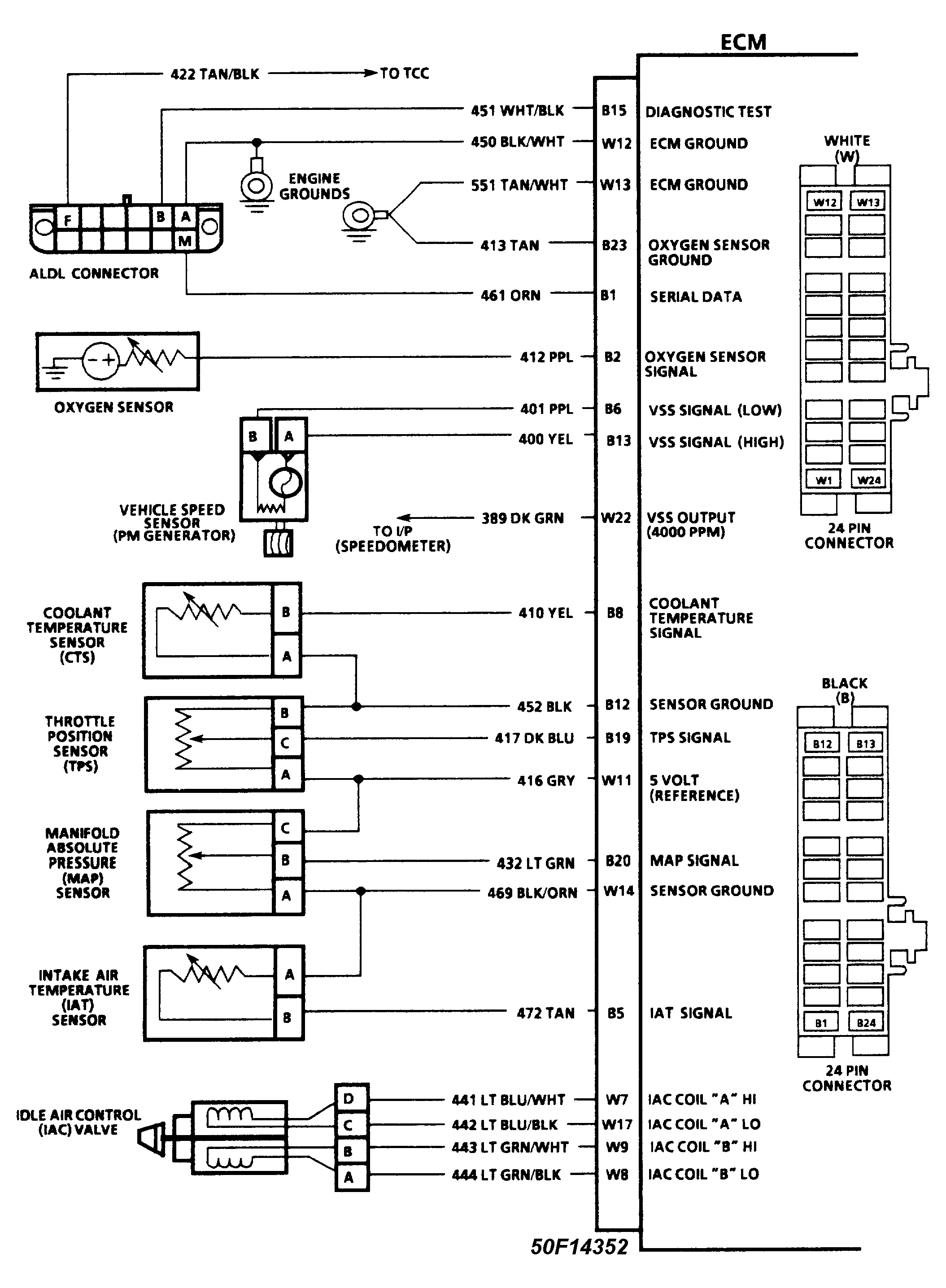

Fig 2: ECM Wiring Diagram - 2.5L VIN U (2 Of 3)
Courtesy of GENERAL MOTORS CORP.

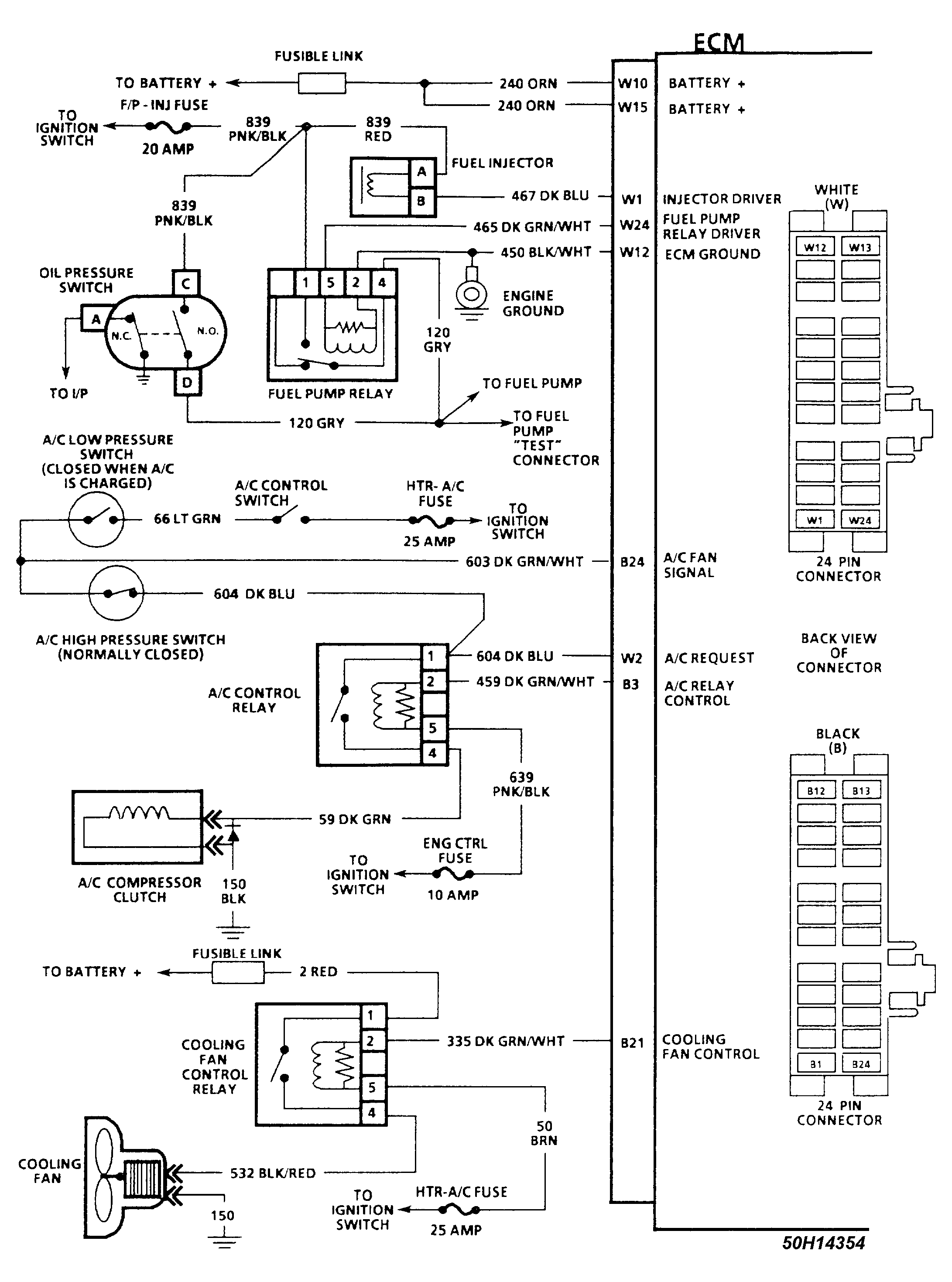

Fig 3: ECM Wiring Diagram - 2.5L VIN U (3 Of 3)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
