Removal & Installation

Remove rear-to-back window trim panel.
Remove plastic rivets. See Fig 1 or Fig 2 .
Remove the receiver from the panel.
Disconnect electrical connection from the receiver.
To install, reverse removal procedure. If coding the system is necessary, refer to CODING TRANSMITTER .

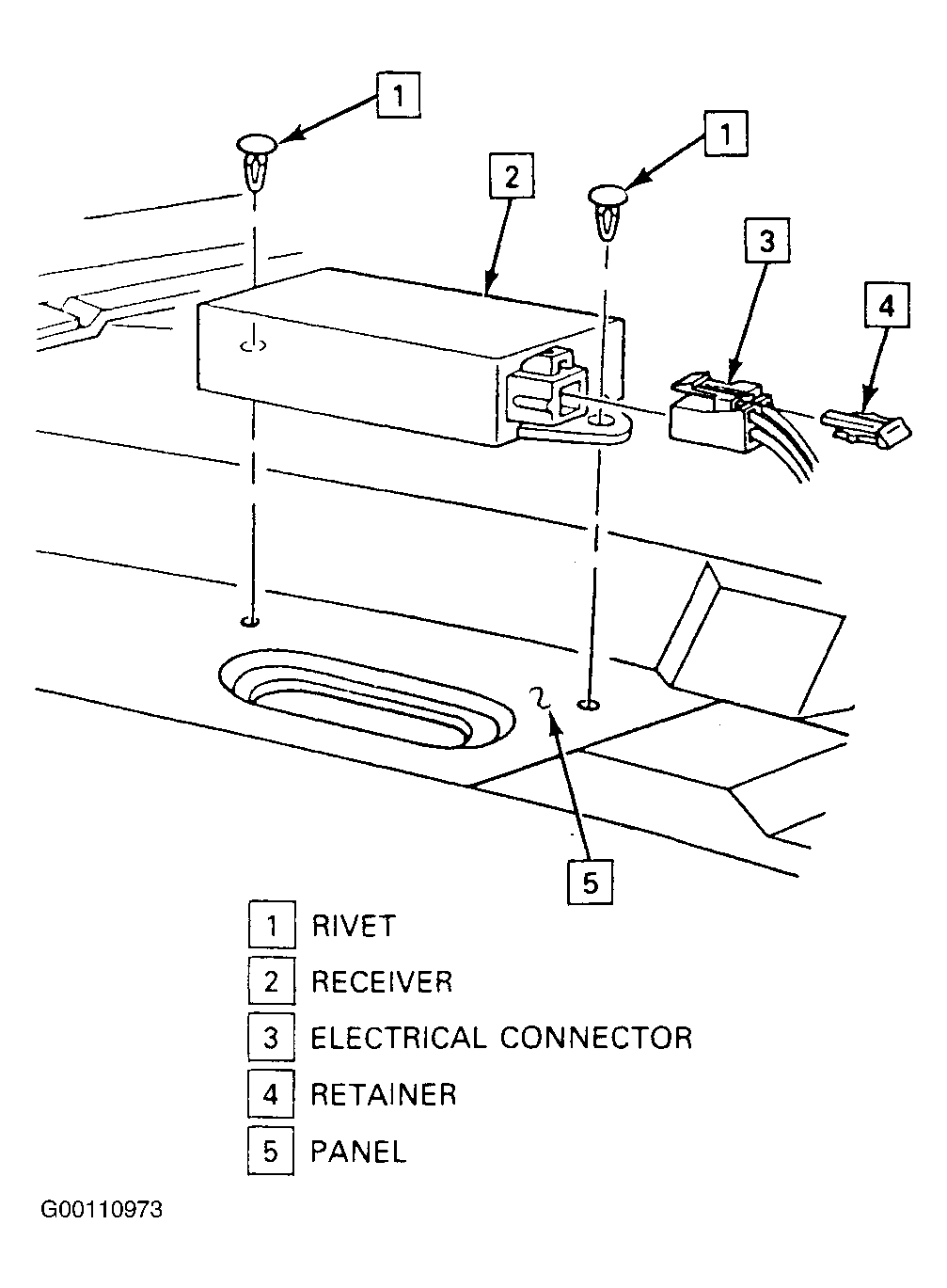

Fig 1: Removing & Installing Remote Door Lock Receiver (Coupe)

Courtesy of GENERAL MOTORS CORP.

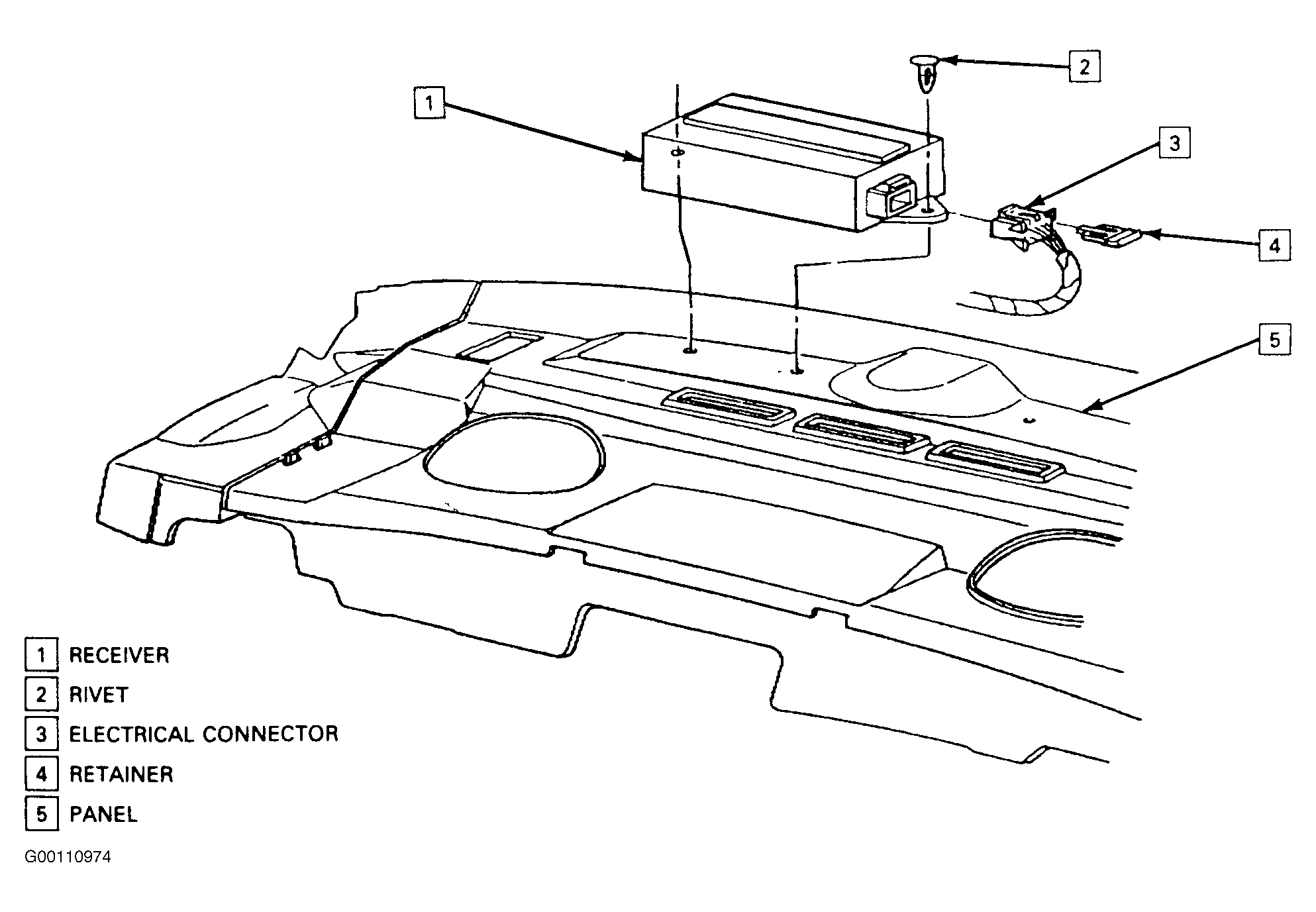

Fig 2: Removing & Installing Remote Door Lock Receiver (Sedan)

Courtesy of GENERAL MOTORS CORP.
