Trouble Shooting: Notes

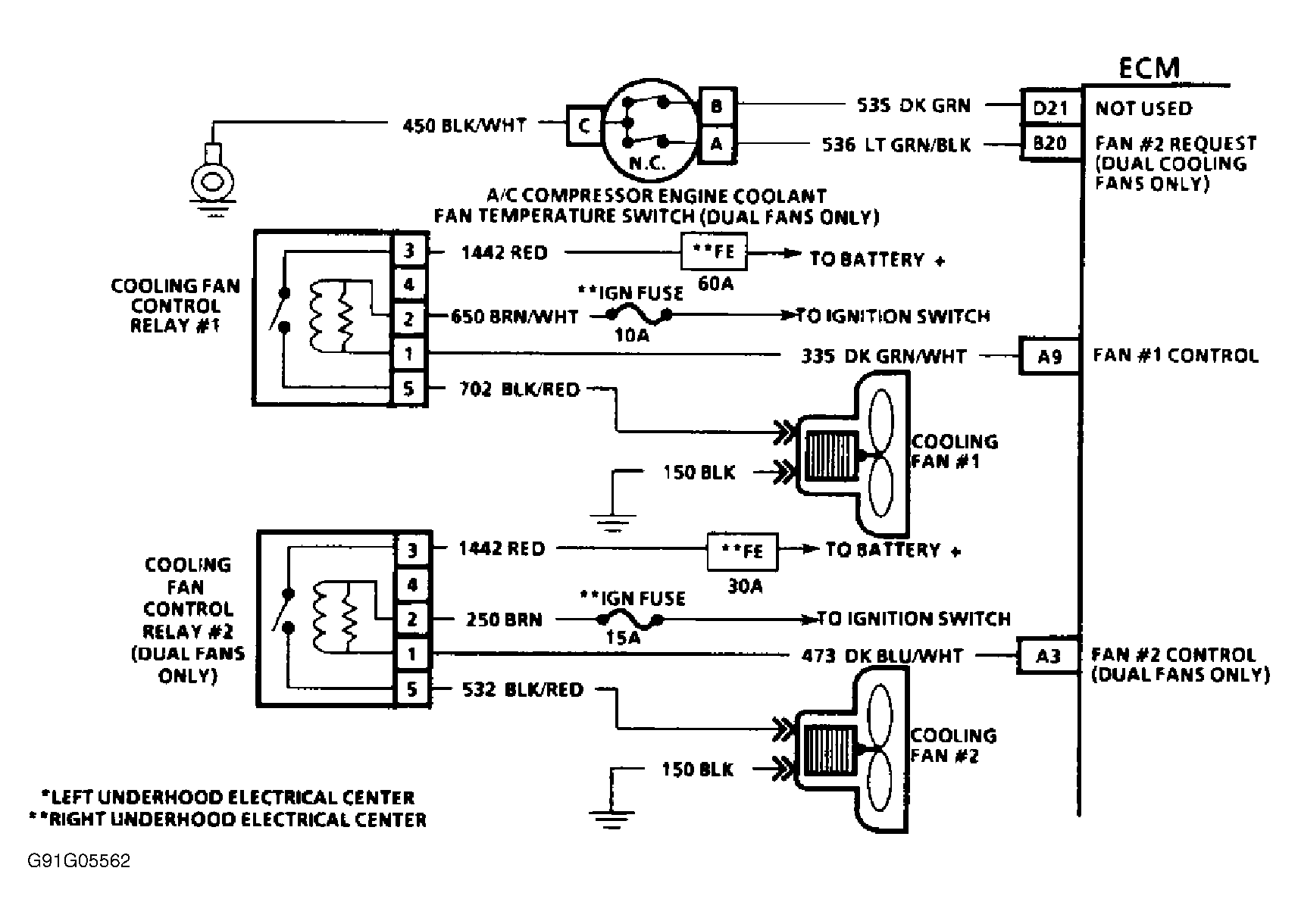

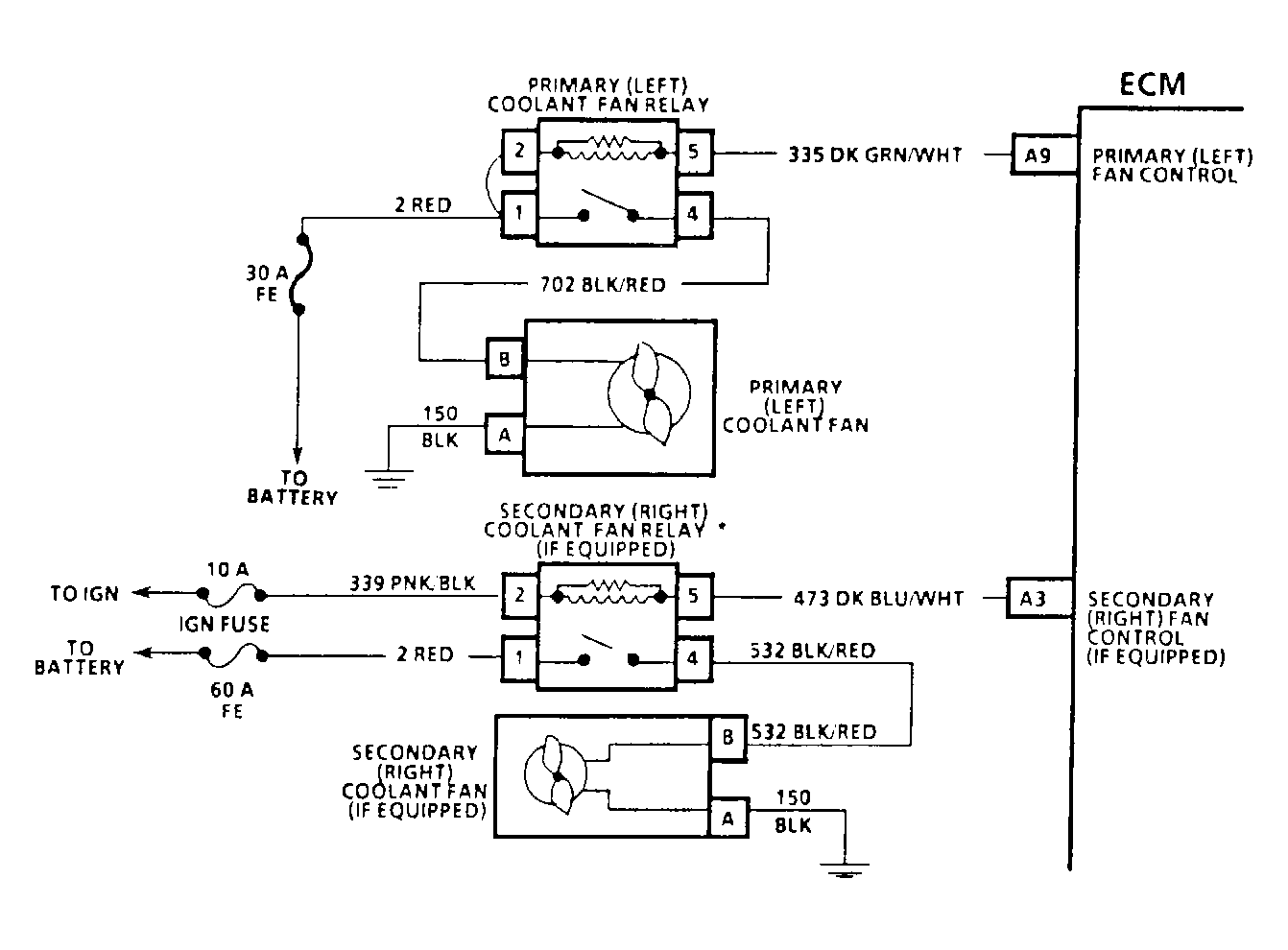

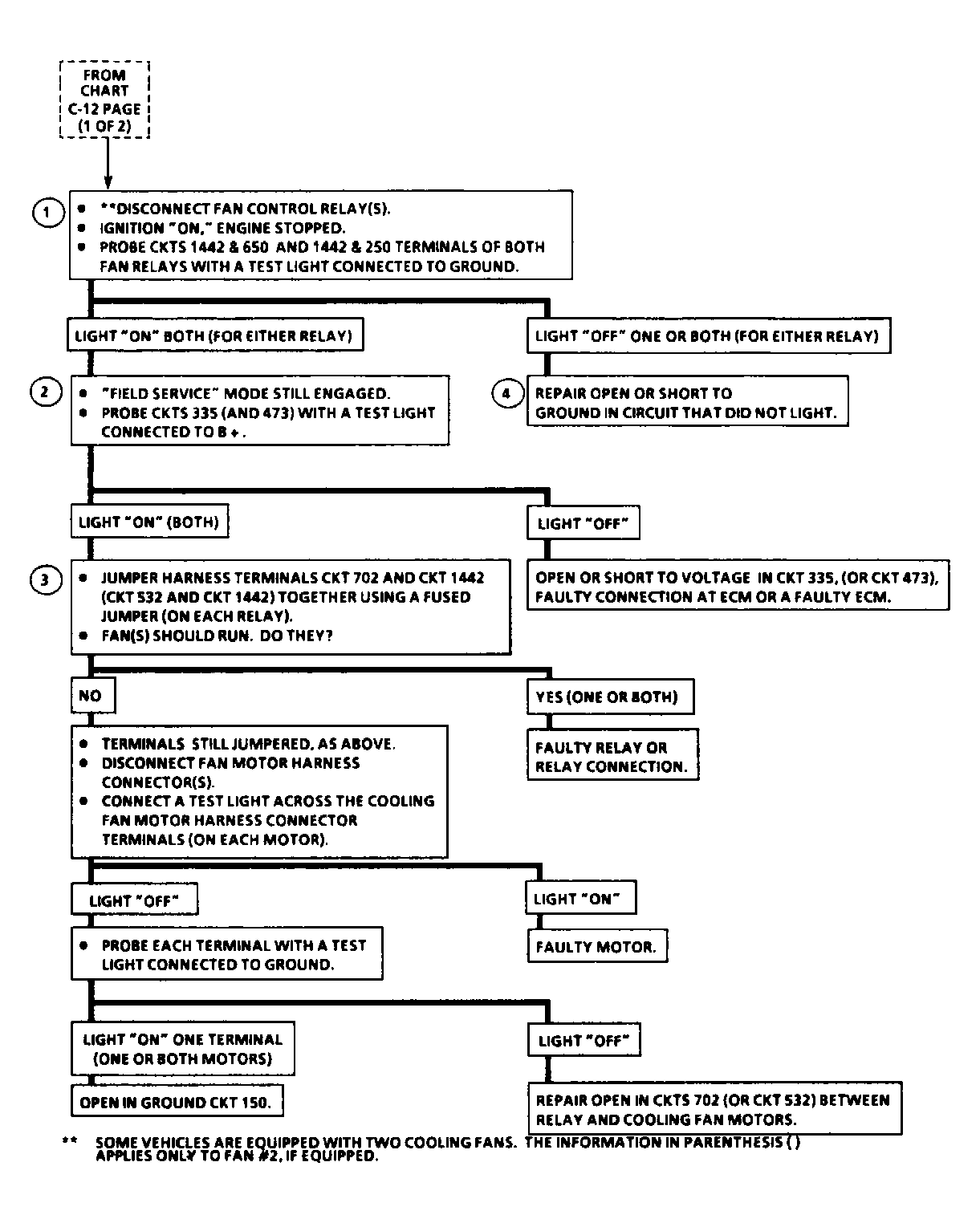

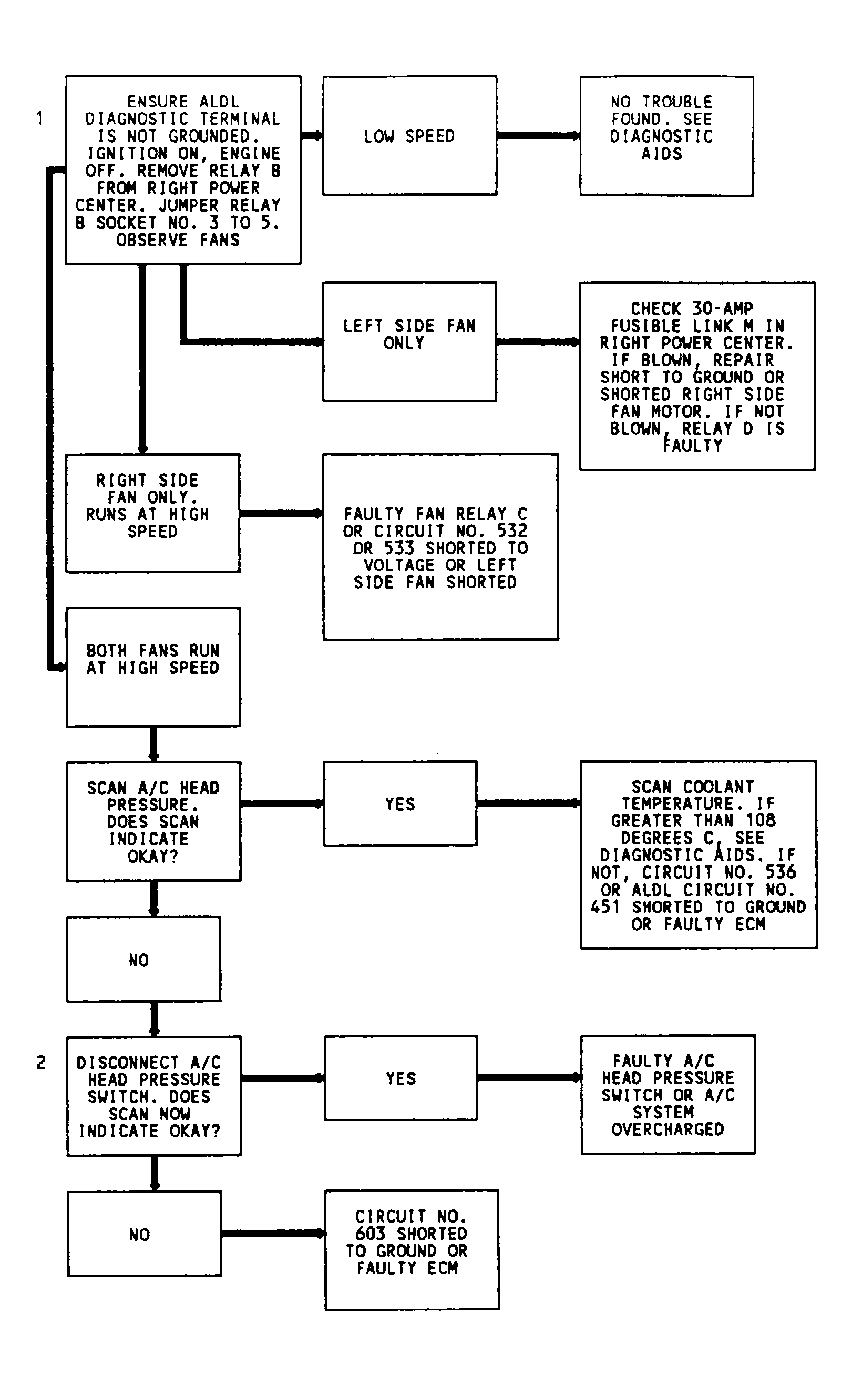

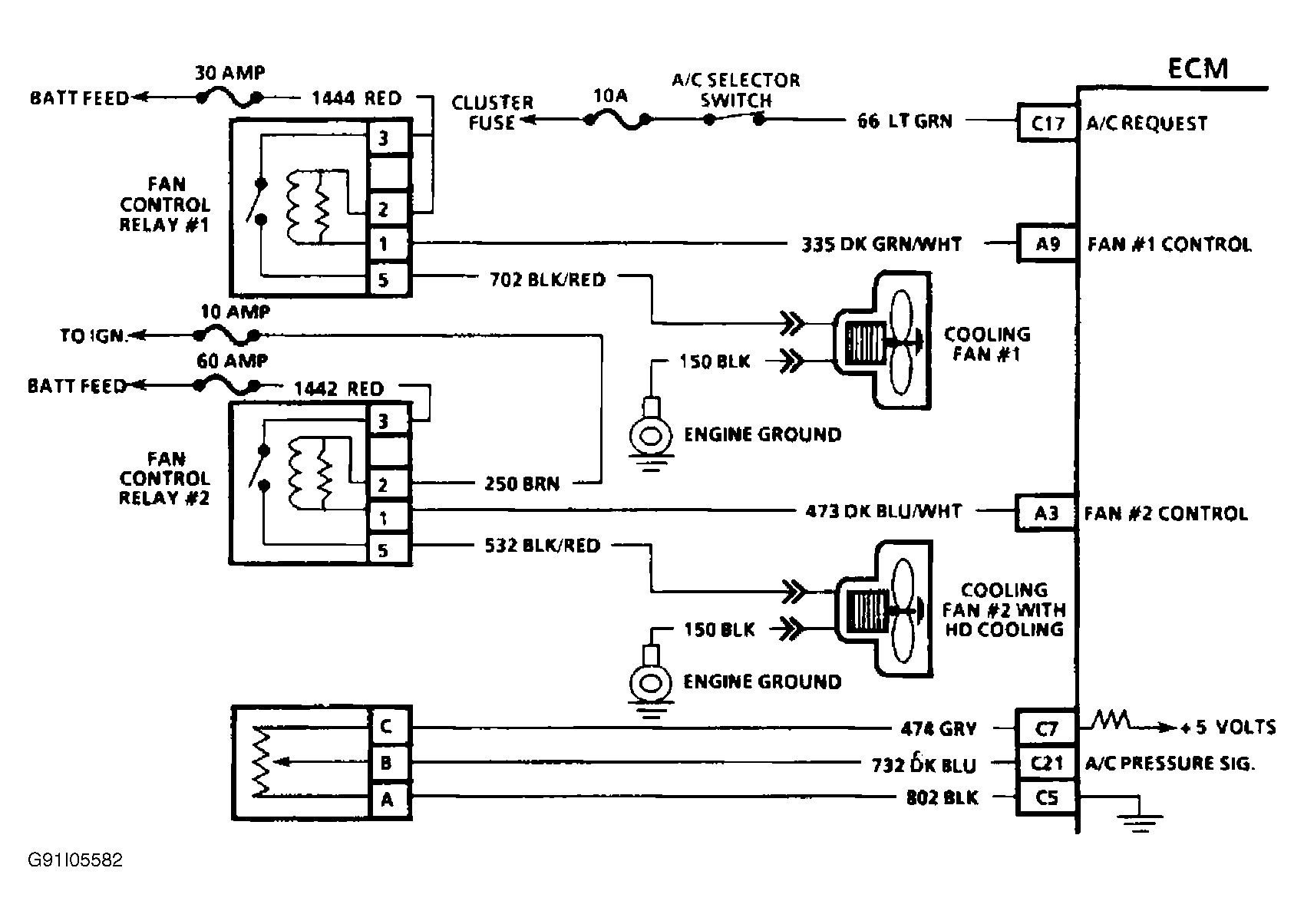

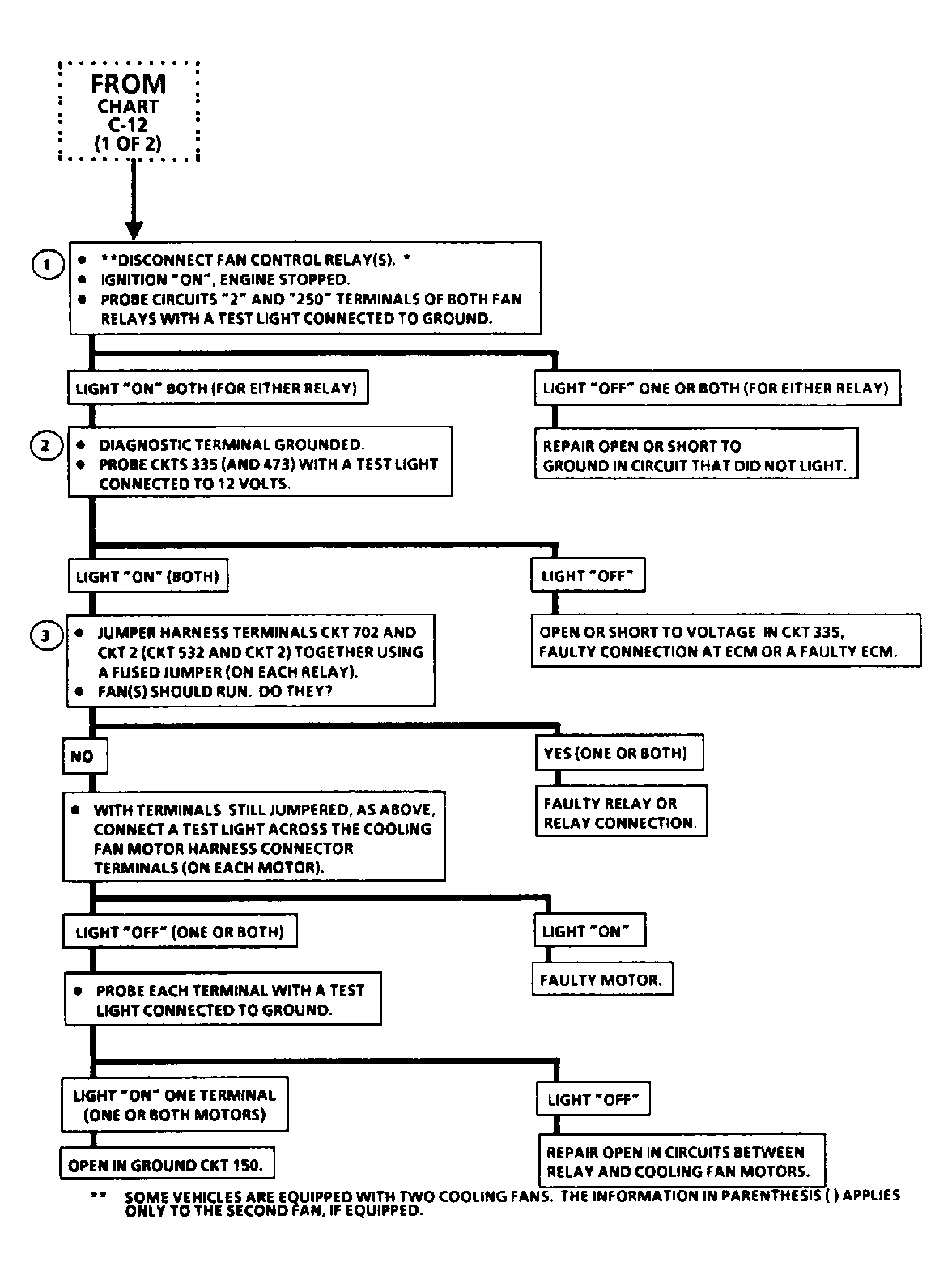

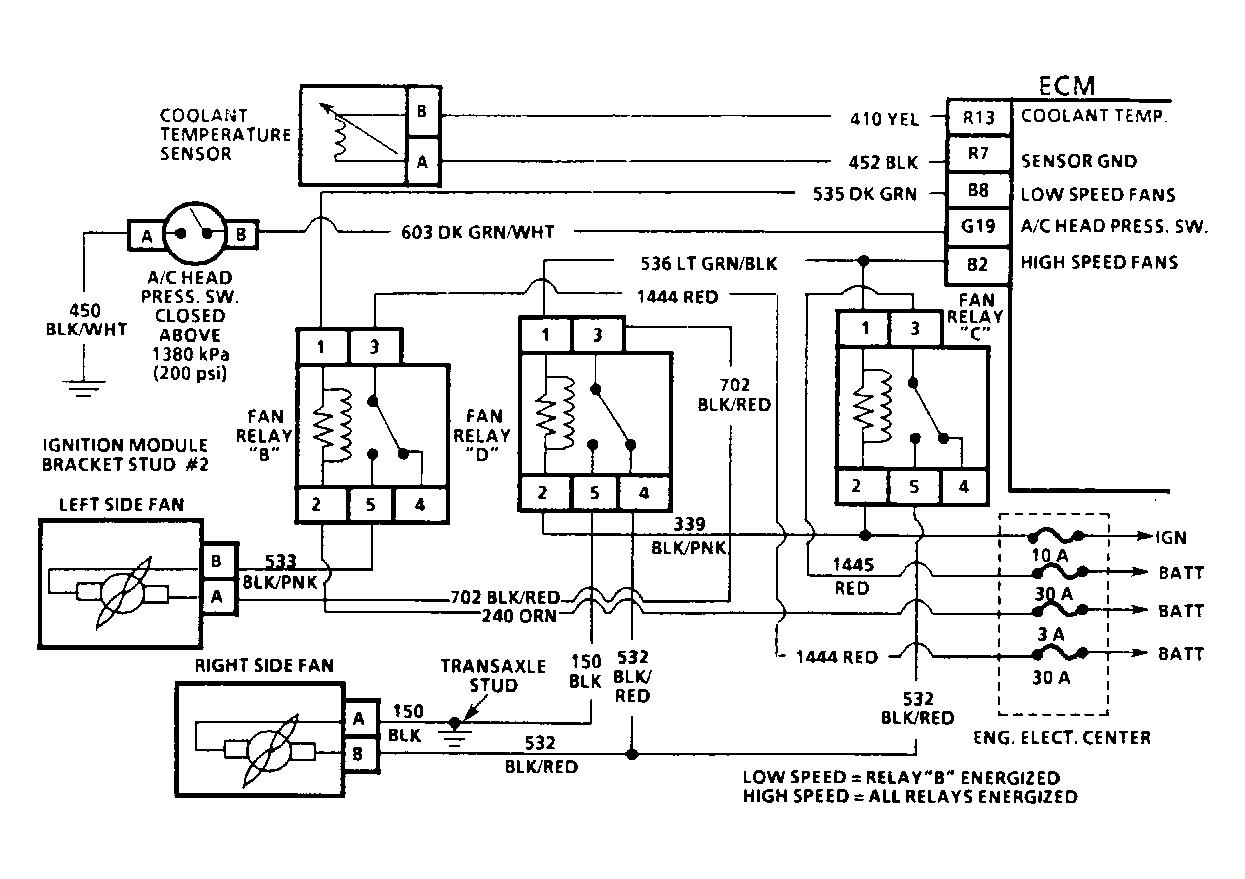

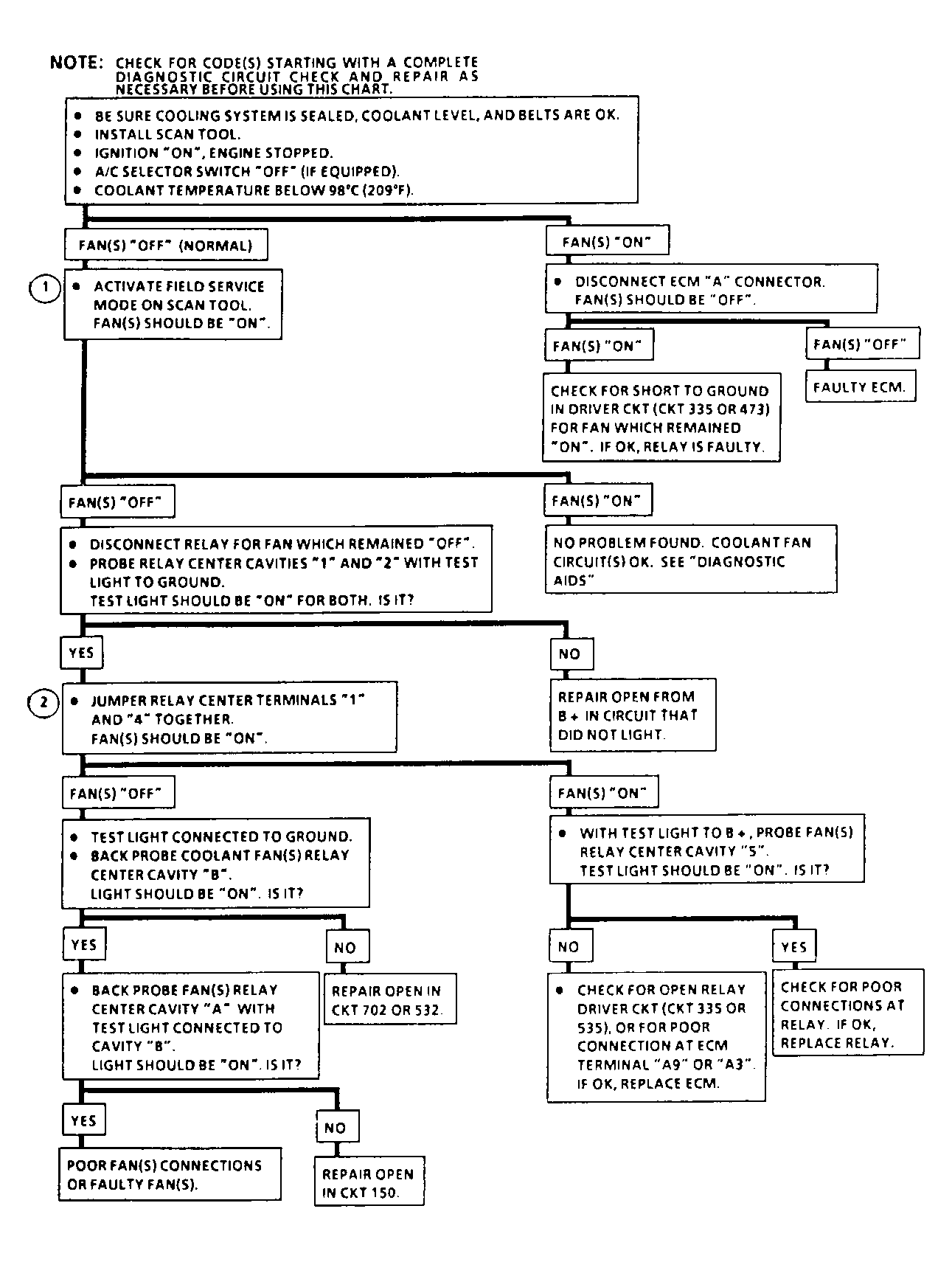

See trouble shooting charts for cooling fan diagnosis.

COOLING FAN CHART INDEX

Application	Figure Nos.
2.3L (VINs A & D)	Figure-Figure
2.5L (VIN R)	Figure-Figure
3.1L (VIN T)	Figure-Figure
3.4L (VIN X)	Figure-Figure
3.8L (VIN L)	Figure-Figure
