Alternator & Regulator: Overhaul

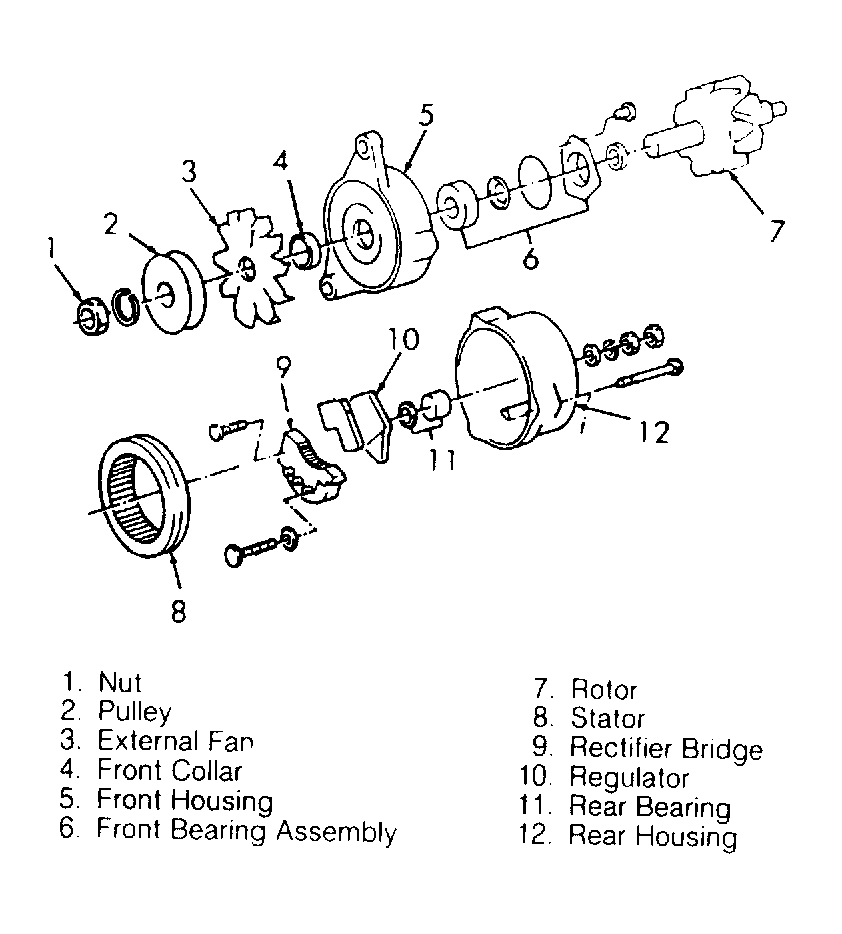

Fig 1: Exploded View of Typical CS Alternator
G90C08945Courtesy of GENERAL MOTORS CORP.
