Home › Pontiac › 1991 › LeMans Base › Repair and Diagnosis › Engine Performance › Wiring Diagrams › Wiring Diagram

Wiring Diagrams: Wiring Diagram

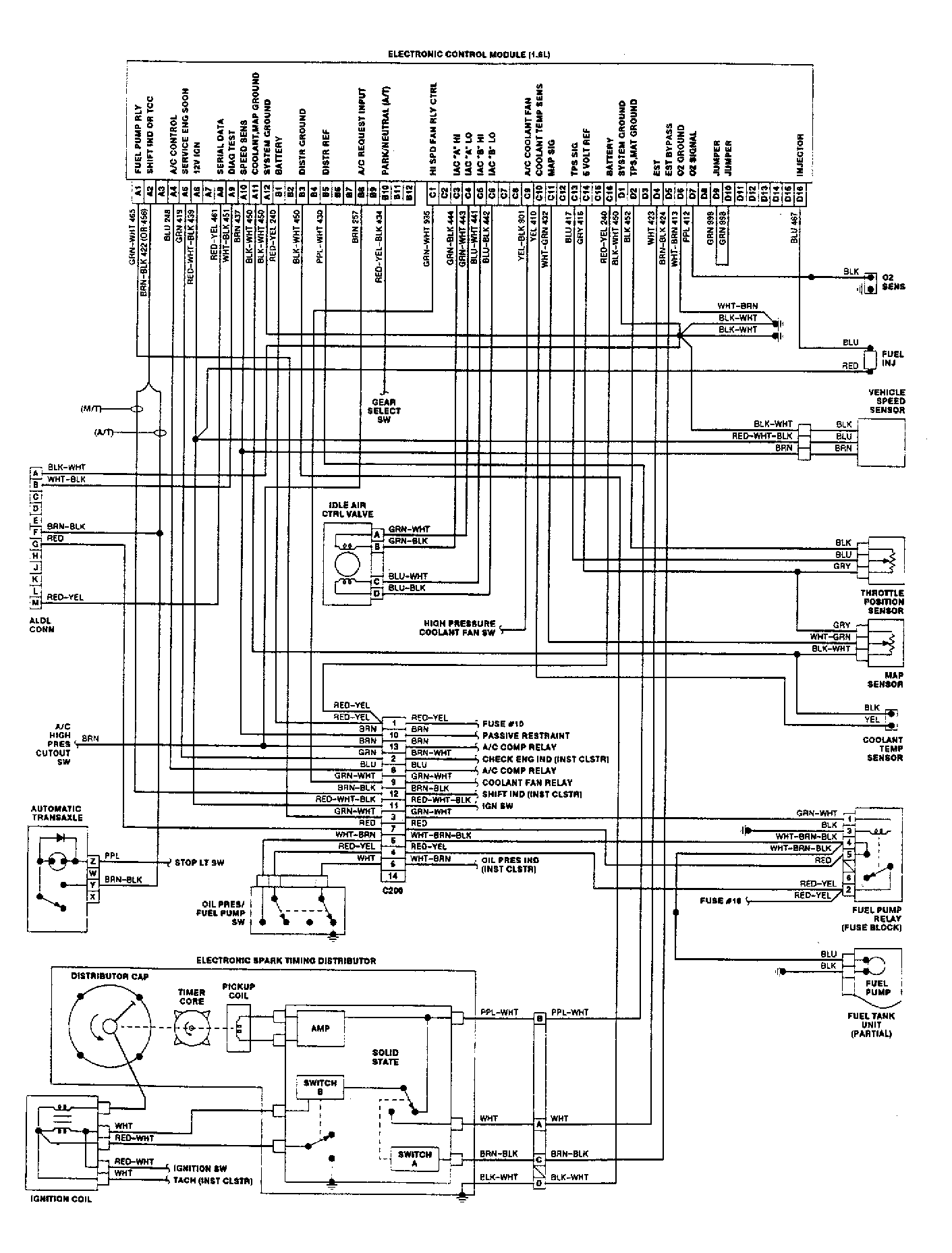

Fig 1: Wiring Diagram (LeMans 1.6L)
G91B17633
