Test C: Transmitter/Module Isolation Test

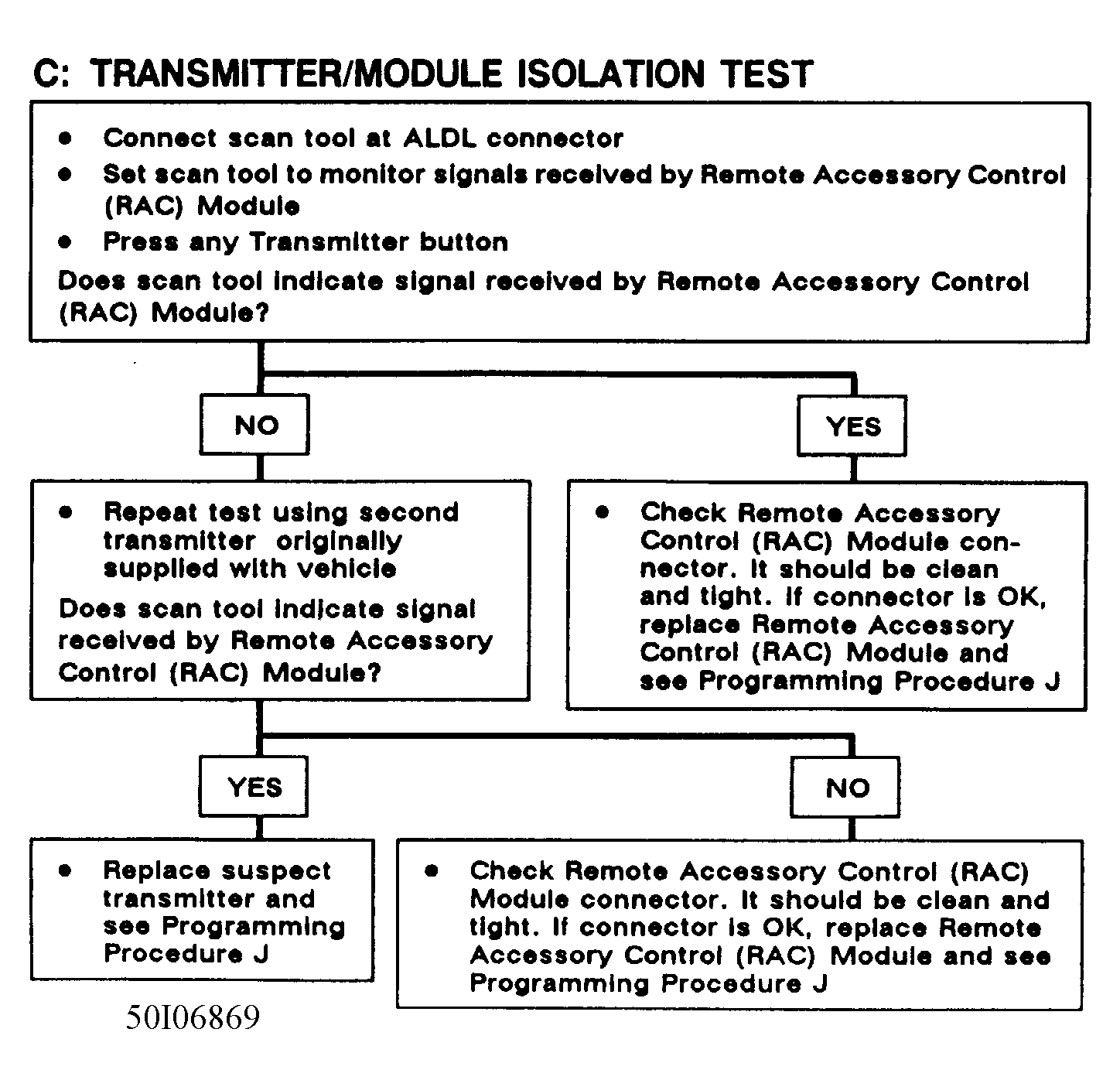

Fig 1: Test C: Transmitter/Module Isolation Test
G50I06869
