Test D: Remote Keyless Entry Lock/Unlock Isolation Test
Test D: Remote Keyless Entry Lock/Unlock Isolation Test

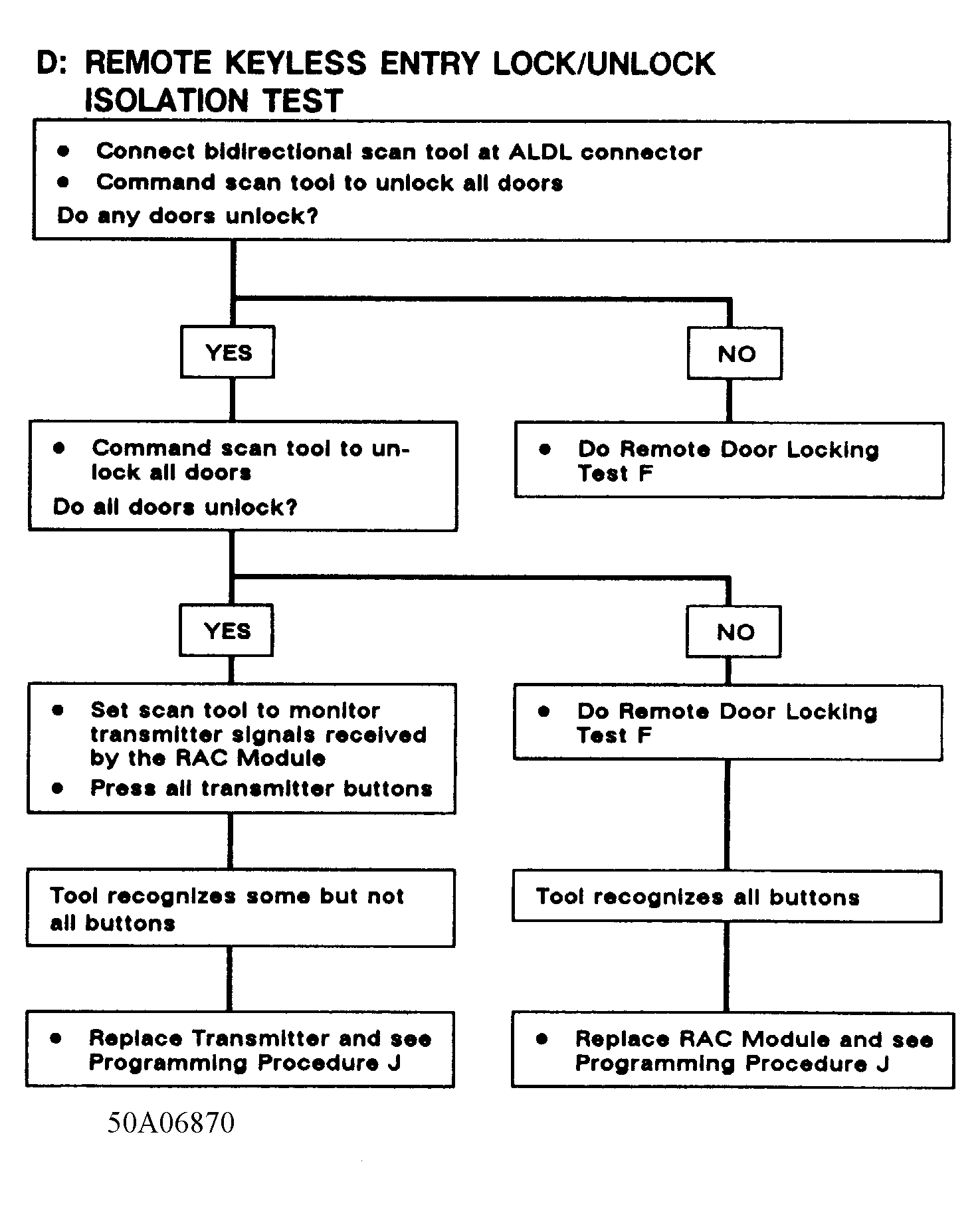

Fig 1: Test D: Remote Keyless Entry Lock/Unlock Isolation Test
